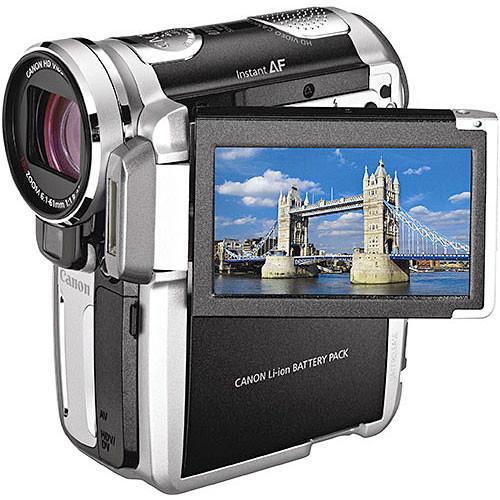

User Manual for Canon HV10 2.7MP CMOS HDV Camcorder with 10x Optical Zoom, 1080i, 16:9 - Refurbished Click to enlarge the picture
Contents of the user manual for the Canon HV10 2.7MP CMOS HDV Camcorder
- Product category: Uncategorized Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Uncategorized
|
User manual for the Canon HV10 2.7MP CMOS HDV Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon HV10 HDV Camcorder brings the power of HD recording to the consumer in one of the smallest and lightest HDV camcorders ever. The HV10 Captures images in genuine 1080i resolution, so you are shooting in real HDTV, all on a mini HDV tape. Canon improves upon the standard CCD camcorders by using a CMOS sensor to generate images. The 2.9MP CMOS Sensor tends to process faster than a CCD for richer color and sharper detail. When you add a 10x Optical Zoom and a DV II processor you get ultra-sharp color and incredible detail even from a distance.
As impressive as the HV10 is as a camcorder, it gets even better as a 3.1 Megapixel digital still camera. Store images on tiny Mini-SD memory cards with the Mini-SD card slot. The optical image stabilizer and advanced AF auto focus make it easy to get crisp clean video and photos. Choosing and using the enhanced features such as Smooth Zoom Zebra Pattern and Level Shot Control, are easy thanks to the 2.7" LCD screen.
Canon fit everything you can ask from a camcorder in the HV10, all in a body that fits comfortably in your pocket. Now if they could only develop a "remove 10 pounds feature"... - 2.98MP True HD CMOS Sensor (1920 x 1080)
- Canon improves upon the standard CCD camcorders by using a CMOS sensor to generate images. The 2.9MP CMOS Sensor tends to process faster than a CCD for richer color and sharper detail.
- DIGIC DV ll Processor
- Thanks to DIGIC DV II image processing, the HV10 produces video with improved color reproduction ideal for skin tones, and dark and light scenes. It also uses a noise reduction system that uses two types of noise reduction, for HD images that are crystal clear.
- Instant AF (Auto Focus)
- The Instant AF feature uses an external sensor, together with Canon's auto-focus system, to help significantly decrease the time it takes to find the focus, even in low light conditions. This system achieves focus instantaneously, eliminating the struggle needed to find the correct focus.
- Optical Image Stabilizer (OIS)
- While a digital image stabilizer compensates for shaking by adjusting the picture frame by frame, an Optical Image Stabilizer (OIS) avoids the shaking before the image is captured. OIS uses a a floating lens element that is moved relative to the rest of the lens, to maintain a balanced picture
- Variable Zoom Speed Control
- How often have you watched a home video and gotten motion sickness when the zoom goes from 0 to 60 in 1/10 seconds? The Variable Zoom Speed Control maintains the speed of your zoom so that everything looks smooth and professional.
- Level and Grid Markers
- Not sure if your shot of the sunset over the New York skyline is actually level? The Level marker places a horizontal line across your screen so you can make sure your shooting at the perfect angle.
In the Box Canon HV10 2.7MP CMOS HDV Camcorder with 10x Optical Zoom, 1080i, 16:9 BP-310 Battery Pack (with Terminal Cover) CA-570 Compact Power Adapter Stereo Video Cable WL-D87 Wireless Controller USB Cable Component Cable Digital Video Solution Disk for Windows and Macintosh 90-Day Refurbished Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon HV10 2.7MP CMOS HDV Camcorder with 10x Optical Zoom, 1080i, 16:9 - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 1194B006AA Specs | | | Sensor | 1/2.7" CMOS Sensor 2.98MP | | Lens | f = 6.1 - 61mm, f/1.8 - 3.0 | | Zoom | Optical: 10x
Digital: 200x | | Filter Size | 37mm | | Image Stabilization | Yes | | Lux | Auto Mode: - 5 lux
Night Mode: - 3 lux | | | | System | NTSC | | Format | HDV | | Audio | DV:
16 bit (2ch) 48 kHz
12 bit (4ch) 32 kHz
(4ch synchronous recording not possible)
HDV:
MPEG1 Audio Layer II (2 ch)
(4-channel playback of tapes containing 4-channel recordings possible) | | Time Code | Not Specified By Manufacturer | | Date & Time | Not Specified By Manufacturer | | A/V Dubbing | Not Specified By Manufacturer | | | | Viewfinder | .27" Widescreen TFT Color (123,000 pixels) | | LCD Monitor | 2.7" Widescreen TFT Color (210,000 pixels) | | | | Manual Controls | Focus, Exposure | | Built-in Light | Yes | | Built-in Mic | Yes | | Built-in Speaker | Yes | | Accessory Shoe | No | | Titler | Not Specified By Manufacturer | | Digital Effects | Yes | | Fade Resistance | Yes | | Tape Loading | Side | | | | Resolution | 1080i | | Card Slot | Mini-SD | | Built-in Flash | Yes | | | | Line In Recording | No | | Inputs | A/V Minijack
USB
IEEE1394 Standard | | Outputs | A/V Minijack
USB
IEEE1394 Standard
Component Video | | Edit Protocol | Not Specified By Manufacturer | | Microphone Input | No | | Headphone Jack | No | | | | Power Requirements | Not Specified By Manufacturer | | Power Consumption | Viewfinder: 4.8W
LCD Screen: 5W | | Dimensions (WxHxD) | 2.2 x 4.1 x 4.2" (56 x 104 x 106mm) | | Weight | 15.5 oz. (440g) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 10.5 x 8.2 x 4.1" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
