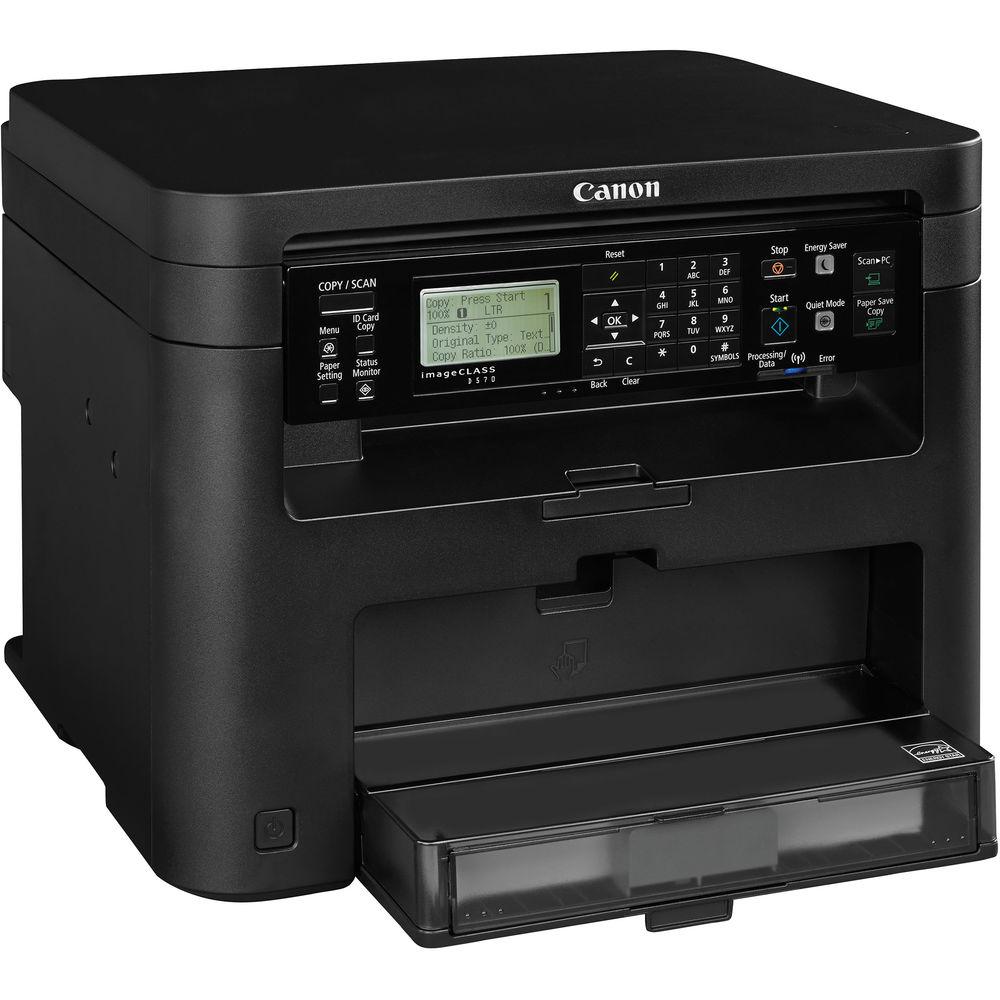

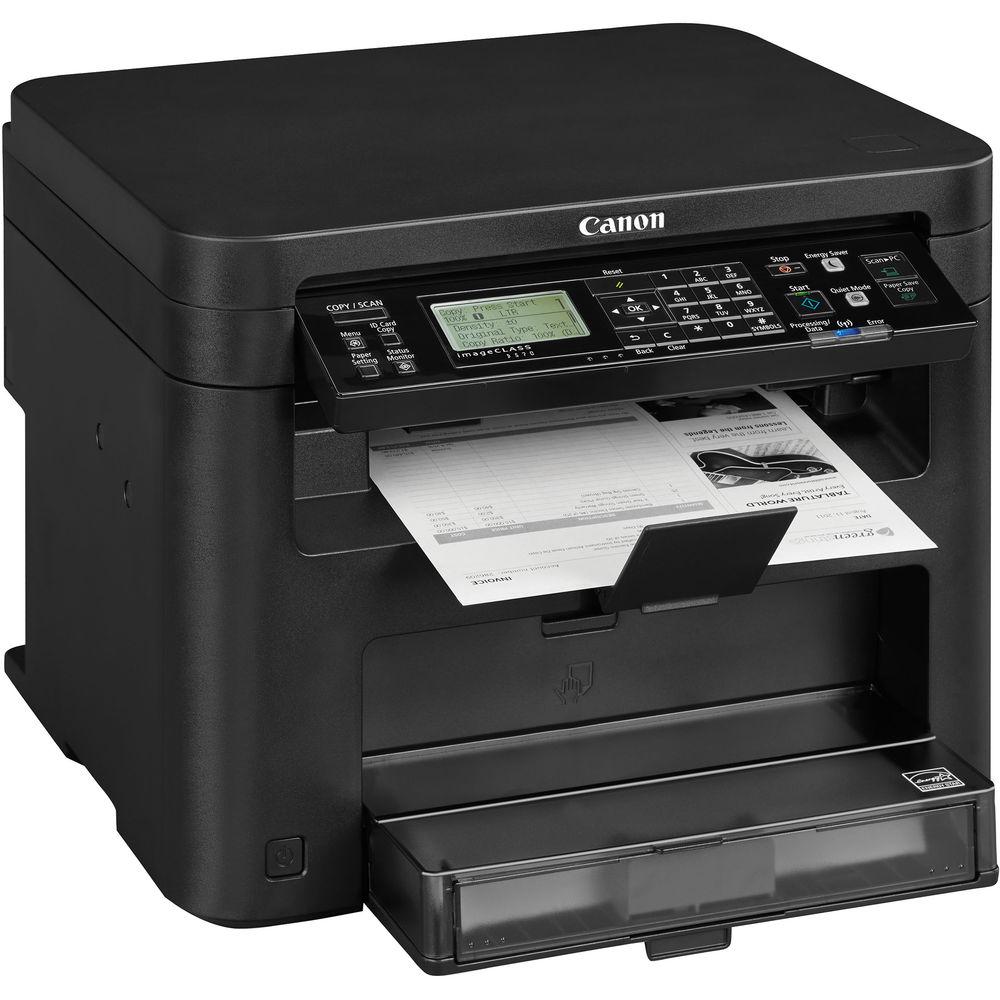

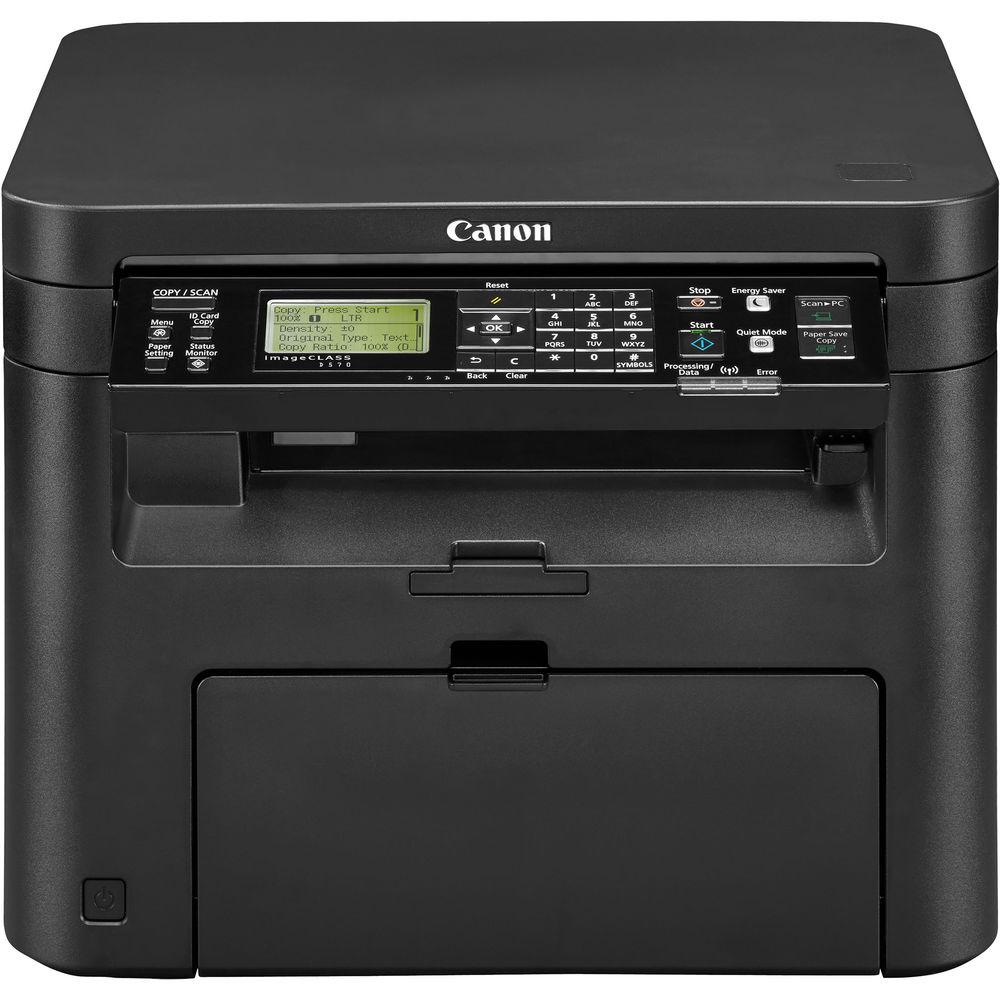

Canon imageCLASS D570 Monochrome Laser Printer

Search your instruction manual in PDF to download

User Manual for Canon imageCLASS D570 Monochrome Laser Printer

Click to enlarge the picture
Canon imageCLASS D570 Monochrome Laser Printer Contents of the user manual for the Canon imageCLASS D570 Monochrome Laser Printer
  • Product category: Laser Printers Canon
  • Brand: Canon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Canon Laser Printers

Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer Canon imageCLASS D570 Monochrome Laser Printer
User manual for the Canon imageCLASS D570 Monochrome Laser Printer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Canon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!



Product description

Outfit your home or office with a speedy and versatile imageCLASS D570 Monochrome Laser Printer from Canon to fulfill all of your printing, scanning, and copying needs. The fast unit is able to reach simplex speeds of 28 ppm and can perform automatic duplex printing at 16 ppm. It is also going to deliver sharp prints, with a print resolution of 600 x 600 dpi that is equivalent to 1200 x 1200 dpi.

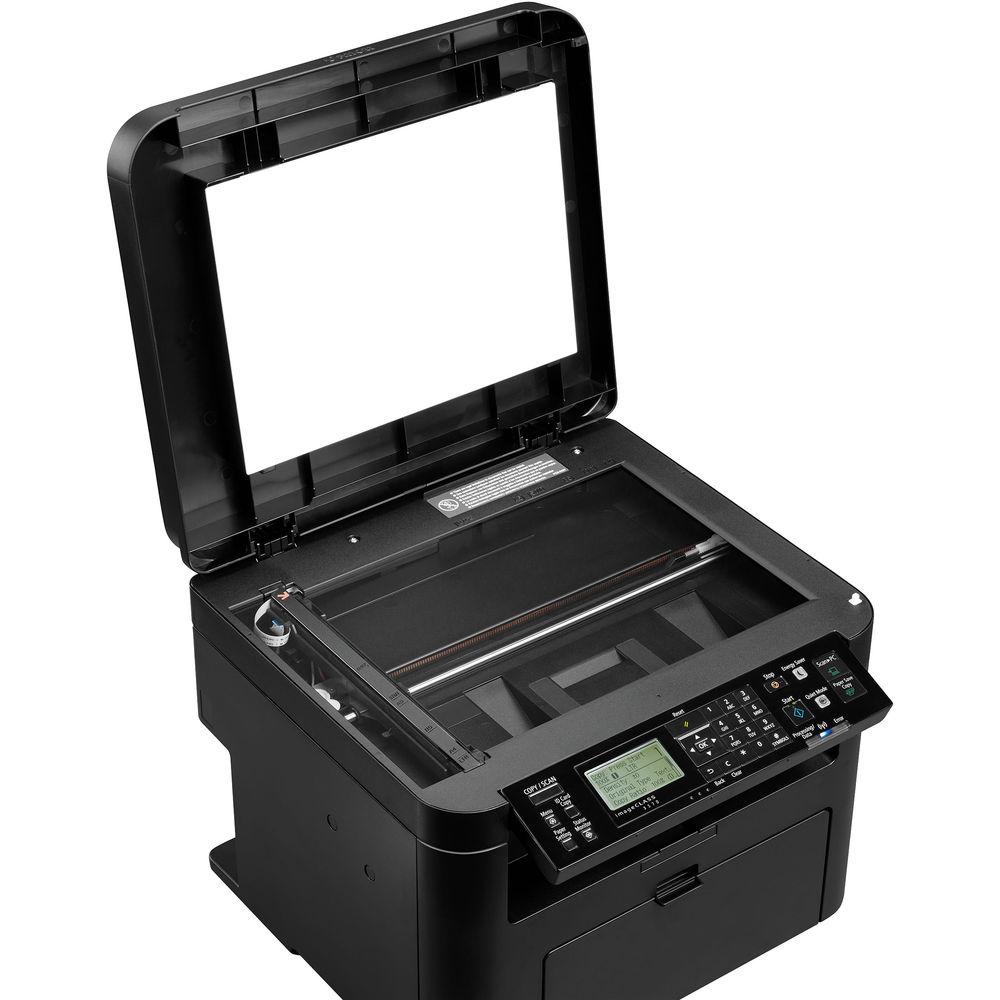

Scanning and copying is made possible through the implementation of an 8.5 x 11.7" flatbed unit. This features an optical resolution of 600 x 600 dpi for sharp and vivid scans. General media handling is provided by a 250-sheet input tray and a 1-sheet manual feed slot. Also, it features a tiltable five-line LCD, number pad, and various buttons for intuitive control. Additionally, it is equipped with USB 2.0 and Ethernet connections in addition to Wi-Fi.
  • Print speeds of up to 28 ppm in simplex and 16 ppm in duplex.
  • First print out time of 6 seconds.
  • Single-Cartridge System combines toner and drum into a single unit for faster and easier installation and tracking of consumables.
  • Magnetic Spherical Toner has an improved melting performance and works with On-Demand Fusing technology more efficiently for faster print times.
  • Monthly duty cycle of 15,000 pages with a recommended monthly volume of 750-3000 pages.
  • Print features include watermarks, Toner Saver mode, Page Composer, and more.
  • Built-in Wi-Fi enables on-the-go printing with support for Canon PRINT Business, Mopria Print Service, Apple AirPrint, and Google Cloud Print, as well as Wi-Fi Direct.
  • Scanner driver support for WIA, TWAIN, and ICA.
  • Scan features include scan to PC, Push and Pull Scan, scan to email, and scan to SMB.
  • Copy speeds of up to 28 cpm with a first copy out time of 8.7 seconds or less.
  • Copy features include 25-400% reduction/magnification, collation, 2-on-1, 4-on-1, and ID Card Copy.
  • Built-in security settings include IP/MAC address filters, HTTPS/IPPS, SNMPv3, IEEE802.1x, WEP 64/128-bit, WPA-PSK (TKIP/AES), and WPA2-PSK (AES).
  • The printer is ENERGY STAR and EPEAT Silver qualified.
UPC: 013803275117 In the Box Canon imageCLASS D570 Monochrome Laser Printer
  • 137 Starter Cartridge (~1700 Pages)
  • Power Cord
  • User Software DVD-ROM
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Canon imageCLASS D570 Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Canon D570 Specs

    Functions Print
    Scan
    Copy
    Printing Technology Laser
    Maximum Resolution 600 x 600 dpi (1200 x 1200 dpi equivalent)
    Print Speed Simplex: 28 ppm
    Duplex: 16 ppm
    First Print Out Speed 6 seconds or less
    Duplex Printing Yes
    Duty Cycle Monthly: 15,000 pages
    Recommended Monthly Volume: 750-3000 pages
    Print Languages UFR II LT
    PCL 6
    PCL 5e
    Scanner Type Flatbed
    Image Sensor Contact Image Sensor (CIS)
    Optical Resolution 600 x 600 dpi
    Interpolated Resolution 9600 x 9600 dpi
    Scan Speed Black & White: 3 seconds per page
    Color: 4 seconds per page
    Duplex Scanning No
    Maximum Scan Area 8.5 x 11.7" / 21.6 x 29.7 cm
    Color Depth 24-bit
    Scan File Format JPEG
    TIFF
    PDF
    Scanner Drivers TWAIN
    WIA
    ICA
    Maximum Resolution 600 x 600 dpi
    Copy Speed 28 cpm
    First Copy-Out Time 8.7 seconds or less
    Maximum Copy Size 8.5 x 11" / 21.6 x 27.9 cm
    Duplex Copying No
    Number of Copies Up to 999
    Reduction / Enlargement 25-400%
    Paper Handling Input Tray
    Manual Feed Slot
    Output Tray
    Paper Types Plain
    Heavy
    Recycled
    Color
    Bond
    Paper Sizes Input Tray: 3 x 8.3" to 8.5 x 14" / 7.6 x 21.0 cm to 21.6 x 35.6 cm
    Manual Feed Slot: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
    Media Weight Input Tray: 16-43 lb bond / 60-163 gsm
    Manual Feed Slot: 16-43 lb bond / 60-163 gsm
    Special Media Support Labels
    Envelopes
    Paper Capacity Input Tray: 250 sheets
    Manual Feed Slot: 1 sheet
    Output Tray: 100 sheets
    Interfaces USB 2.0
    Ethernet
    Wi-Fi
    Direct Printing Wi-Fi Direct
    Canon PRINT Business
    Mopria Print Service
    Apple AirPrint
    Google Cloud Print
    Memory 512 MB
    OS Compatibility Windows
    Mac OS X, macOS

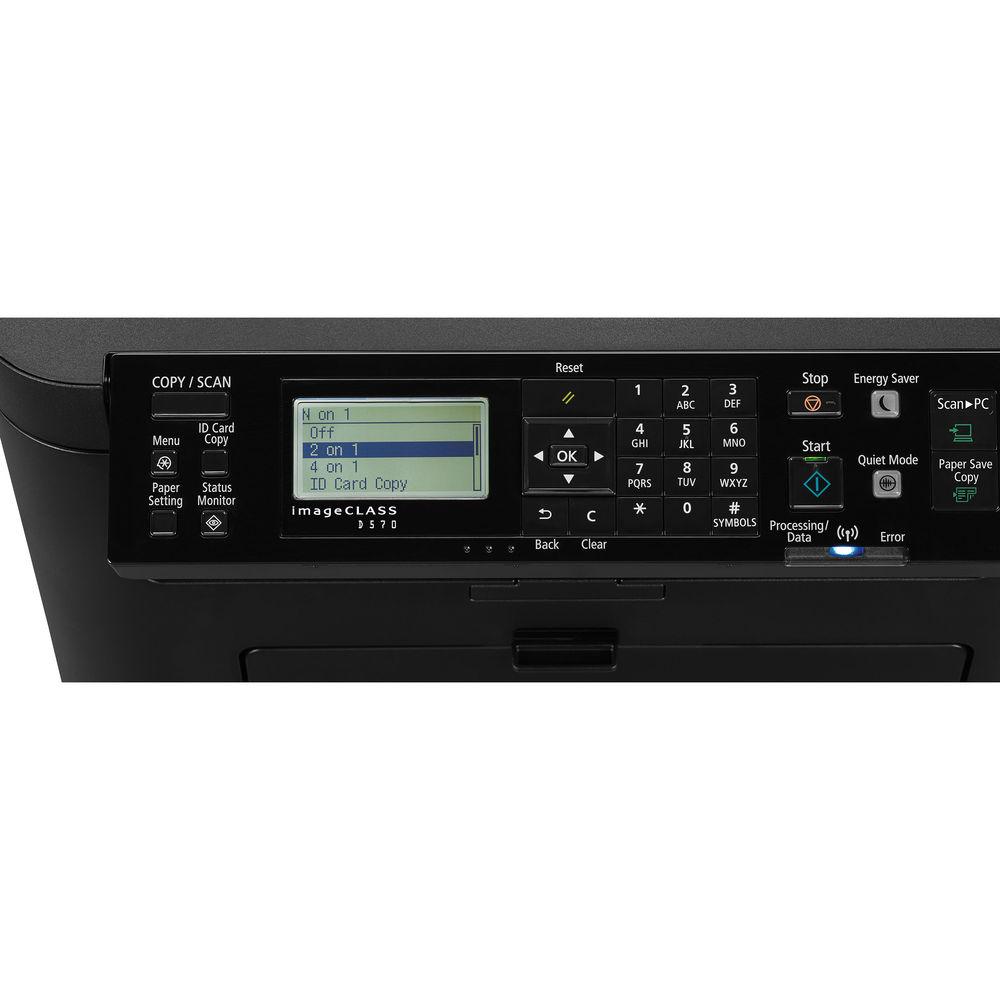

    Control Panel 5-line, tiltable LCD
    Keypad
    Buttons
    Warm-Up Time 13.5 seconds
    Power Requirements 110-127 VAC, 50/60 Hz
    Power Consumption Maximum: 1050 W
    Operating: 480 W
    Standby: 4.1 W
    Sleep (Wireless): 2 W
    Sleep (Wired): 1.3 W
    Sleep (USB): 1.2 W
    Off: 0.5 W
    Typical Power Consumption TEC: 0.9 kWh
    Acoustic Noise Sound Pressure
    Maximum: 52 dB(A)
    Standby: Inaudible
    Sound Power
    Maximum: 6.7 B(A)
    Standby: Inaudible
    Certifications ENERGY STAR
    EPEAT Silver
    Operating Conditions Temperature: 50 to 86°F / 10 to 30°C
    Humidity: 20 to 80%
    Dimensions (WxHxD) 15.38 x 12.25 x 14.63" / 39.0 x 37.1 x 31.2 cm
    Weight 25.1 lb / 11.4 kg
    Package Weight 31.5 lb
    Box Dimensions (LxWxH) 20.6 x 19.8 x 16.5"

    Rating

    66% users recommend this product to others. And what about you?
    Rating: 3.3 of 5

    This product has already been rated by 79 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Canon imageCLASS D570 Monochrome Laser Printer

    Subject: settings problem
    Date: 30.06.2024 14:03:25Name: JERRY VERNON
    How do you change the settings to print one sided. I have tried and tried to change it but it keeps printing 2-sided, even when the screen says 2-sided - OFF
