User Manual for Canon imageCLASS LBP612Cdw Color Laser Printer Click to enlarge the picture
Contents of the user manual for the Canon imageCLASS LBP612Cdw Color Laser Printer
- Product category: Laser Printers Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Laser Printers
 |
User manual for the Canon imageCLASS LBP612Cdw Color Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

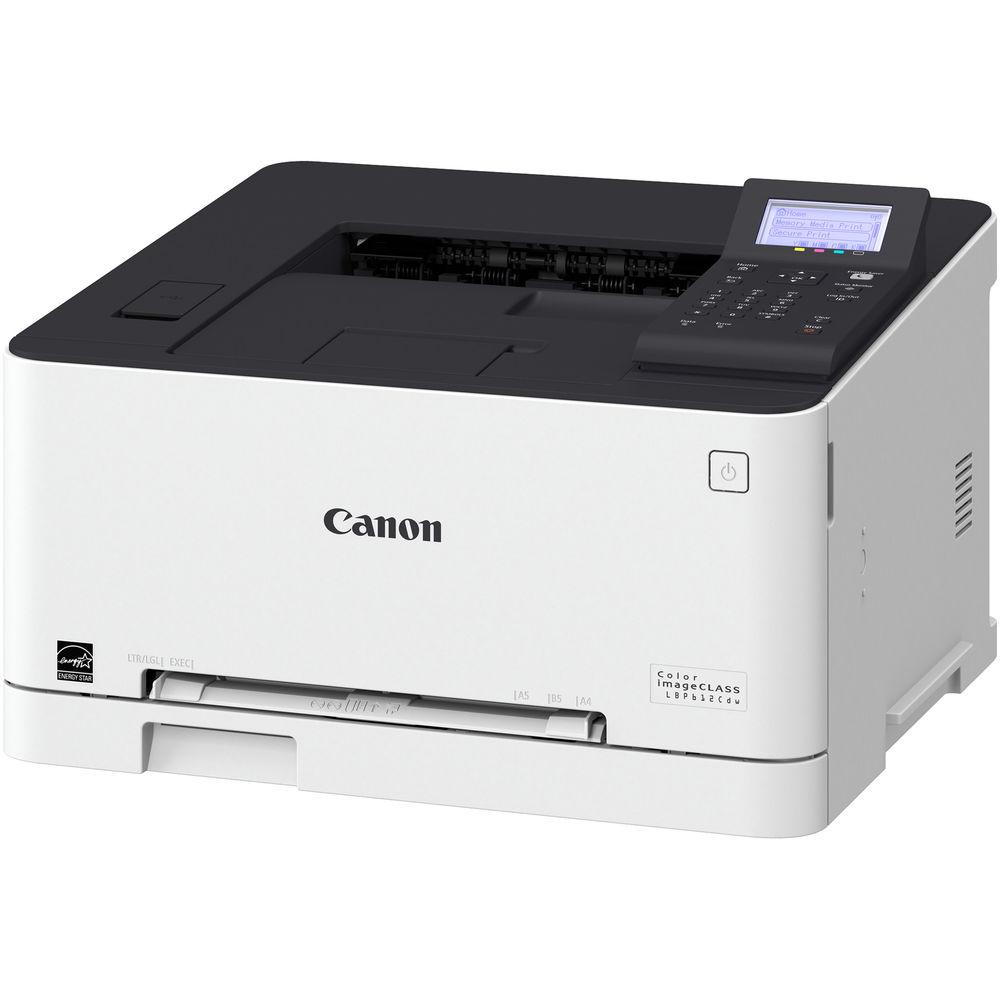

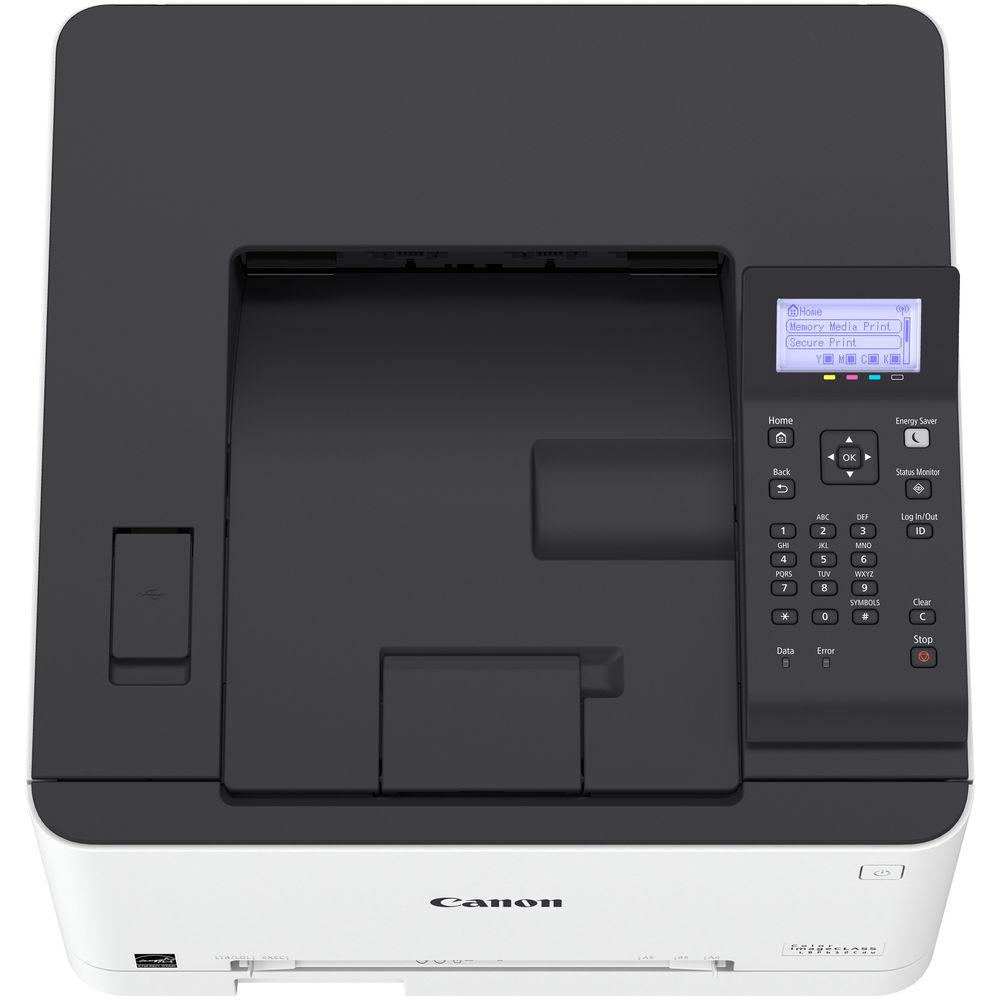

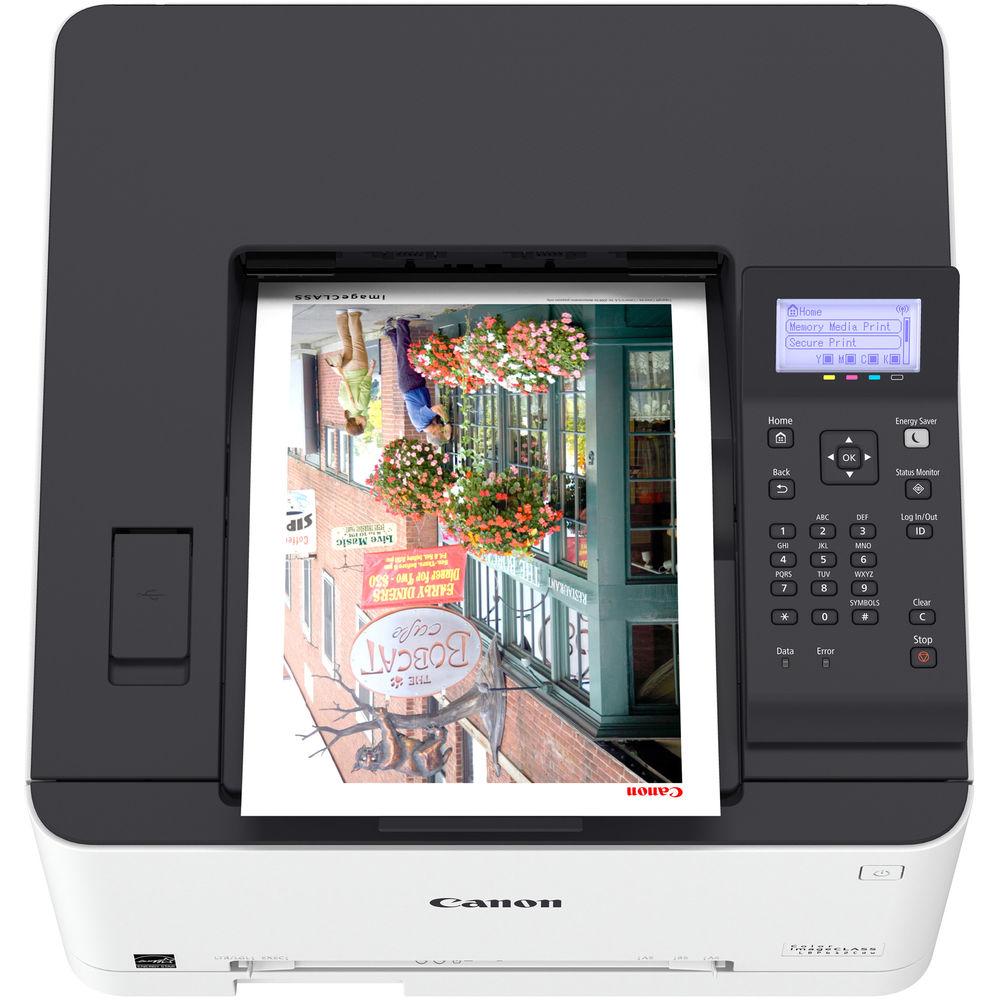

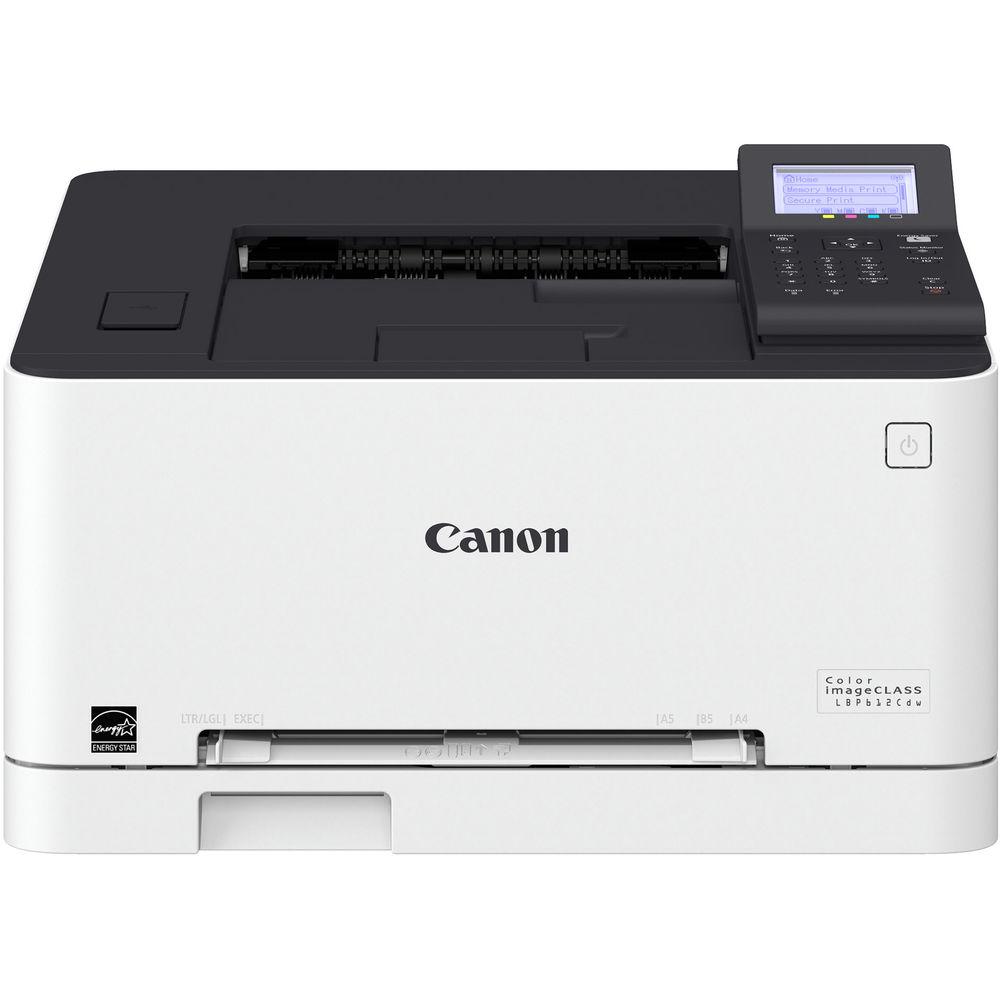

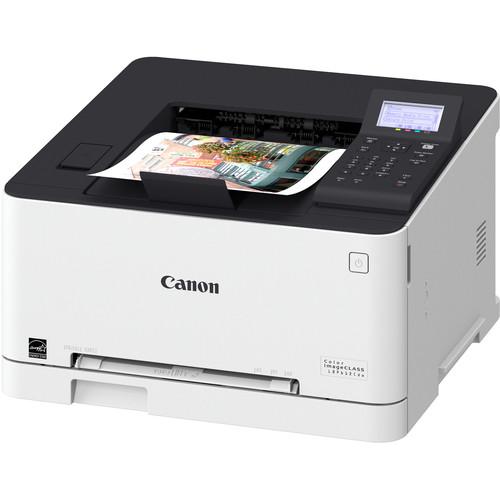

Product description Enjoy vivid and fast color printing along with wireless connectivity with this imageCLASS LBP612Cdw Color Laser Printer from Canon. Able to work at speeds of up to 19 ppm and with a first print out time of under 12 seconds, the LBP612Cdw will improve productivity. It also features automatic duplexing at up to 11 ppm and has a resolution of 600 x 600 dpi that is equivalent to 1200 x 1200 dpi for sharp documents. Also, the built-in Wi-Fi and Ethernet networking options enable mobile printing using Wi-Fi Direct, Apple AirPrint, Google Cloud Print, and more.
Media is handling via the 150-sheet input tray or a 1-sheet manual feed slot, which both support paper sizes from 3 x 5" up to 8.5 x 14". The printer is designed for easy use with a five-line LCD on the front panel as well as an easy-access USB port for direct printing of JPEG, TIFF, and PDF files from a portable drive. Additionally, along with the networking options, a standard USB 2.0 connection is available. - Print speeds of up to 19 ppm in simplex and 11 ppm in duplex in either black & white or color.
- First print out time of 11.9 seconds in color and 10.7 seconds in black & white.
- Single-Cartridge System combines toner and drum into a single unit for faster and easier installation and tracking of consumables. S-Toner help create a detailed image and eliminates the need for oil during fixing.
- V2 (Vivid and Vibrant) Color Technology helps users create images with an expanded color gamut in the shadows for greater sharpness and detail.
- Monthly duty cycle of 30,000 pages with a recommended monthly volume of 200-2500 pages.
- Print features include poster, booklet, watermarks, Toner Saver mode, Page Composer, and more.
- Built-in Wi-Fi enables on-the-go printing with support for Canon PRINT Business, Mopria Print Service, Apple AirPrint, and Google Cloud Print, as well as Wi-Fi Direct.
- Built-in security settings include IP/MAC address filters, SNMPv3, SSL (HTTPS/IPPS), IEEE802.1x, WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), and Department ID Management with up to 300 IDs.
- The printer is ENERGY STAR and EPEAT Silver qualified.
UPC: 013803276329 In the Box Canon imageCLASS LBP612Cdw Color Laser Printer 045 Starter CMY Cartridge (~700 Pages) / K (~1400 Pages) Power Cord User Software DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageCLASS LBP612Cdw Color Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon LBP612CDW Specs | | | Printing Technology | Laser | | Maximum Resolution | 600 x 600 dpi (1200 x 1200 dpi equivalent) | | Print Speed | Simplex: 19 ppm
Duplex: 11 ppm | | First Print Out Speed | Color: 11.9 seconds or less
Black: 10.7 seconds or less | | Duplex Printing | Yes | | Duty Cycle | Monthly: 30,000 pages
Recommended Monthly Volume: 200-2500 pages | | Print Languages | UFR II | | | | Paper Handling | Input Tray
Manual Feed Slot
Output Tray | | Paper Types | Plain
Thin
Heavy
Recycled
Color
Coated | | Paper Sizes | Input Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Manual Feed Slot: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm | | Media Weight | Input Tray: 14 lb bond to 60 lb cover / 52-163 gsm
Manual Feed Slot: 14 lb bond to 60 lb cover / 52-163 gsm | | Special Media Support | Labels
Envelopes | | Paper Capacity | Input Tray: 150 sheets
Manual Feed Slot: 1 sheet
Output Tray: 100 sheets | | | | Interfaces | USB 2.0
Ethernet
Wi-Fi | | Direct Printing | USB port
Wi-Fi Direct
Canon PRINT Business
Mopria Print Service
Apple AirPrint
Google Cloud Print | | Memory | 1 GB RAM | | OS Compatibility | Windows

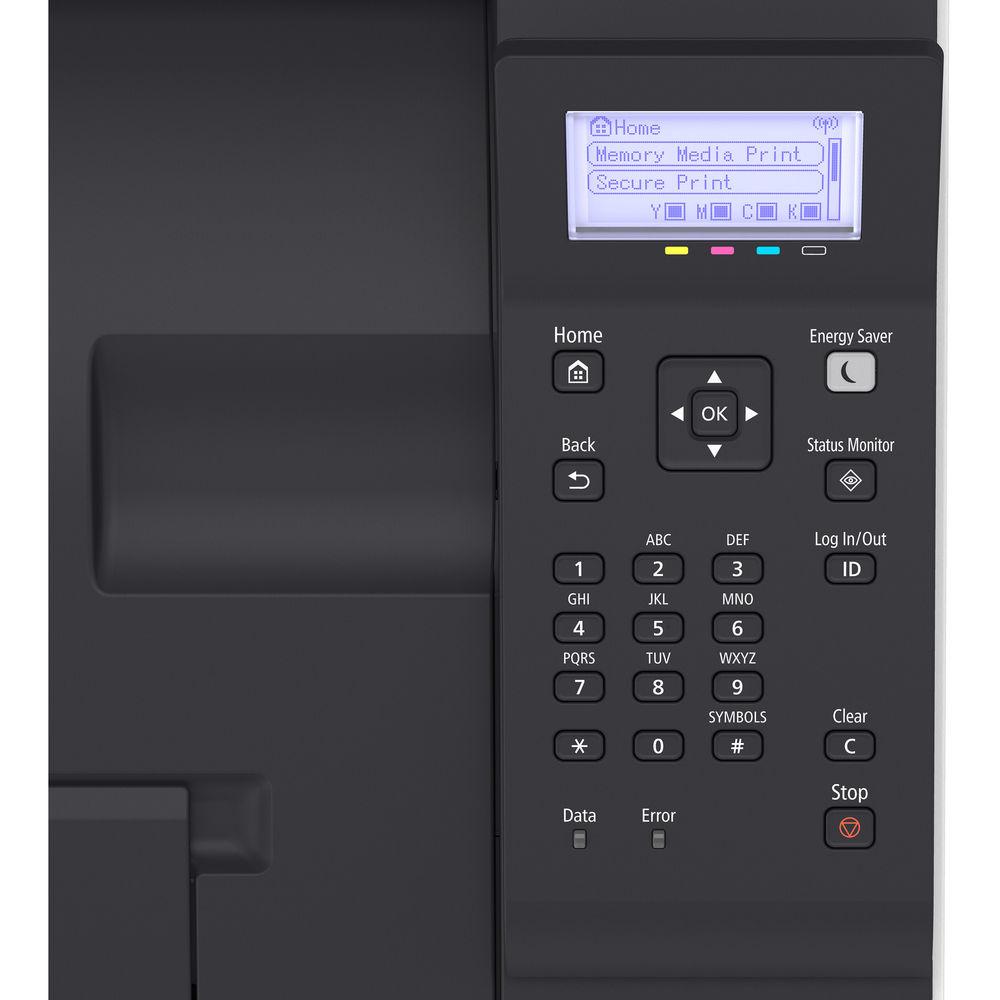

Mac OS X, macOS | | | | Control Panel | 5-line LCD
Keypad
Buttons | | Warm-Up Time | 13 seconds | | Power Requirements | 120-127 VAC, 60 Hz | | Power Consumption | Maximum: 950 W
Operating: 340 W
Standby: 10.2 W
Sleep: 0.7 W
Off: 0.3 W | | Typical Power Consumption | TEC: 0.5 kWh | | Acoustic Noise | Sound Pressure
Maximum: 49 dB(A)
Standby: Inaudible
Sound Power
Maximum: 6.3 B(A)
Standby: Inaudible | | Certifications | ENERGY STAR
EPEAT Silver | | Operating Conditions | Temperature: 50 to 86°F / 10 to 30°C
Humidity: 20 to 80% | | Dimensions (WxHxD) | 17.0 x 10.75 x 16.5" / 43.0 x 41.8 x 27.4 cm | | Weight | 34.2 lb / 15.5 kg | | | | Package Weight | 41.5 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 15.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
