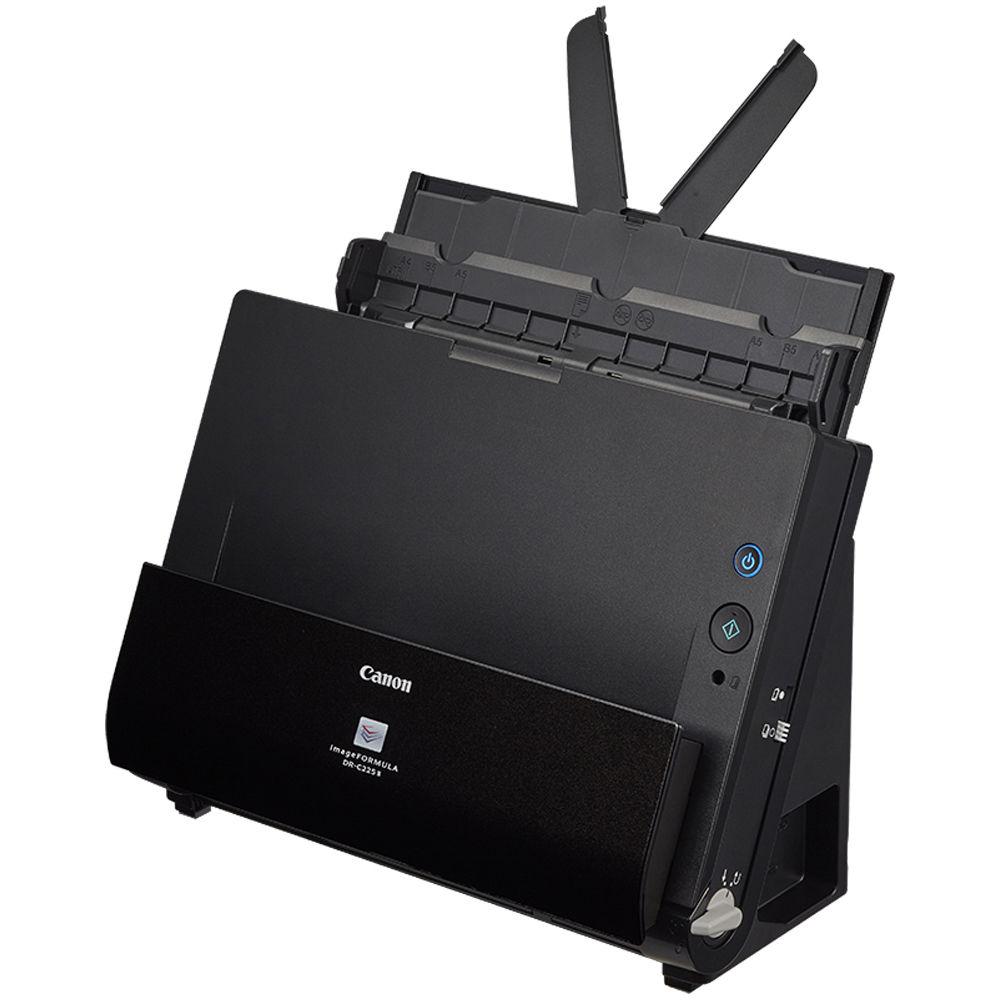

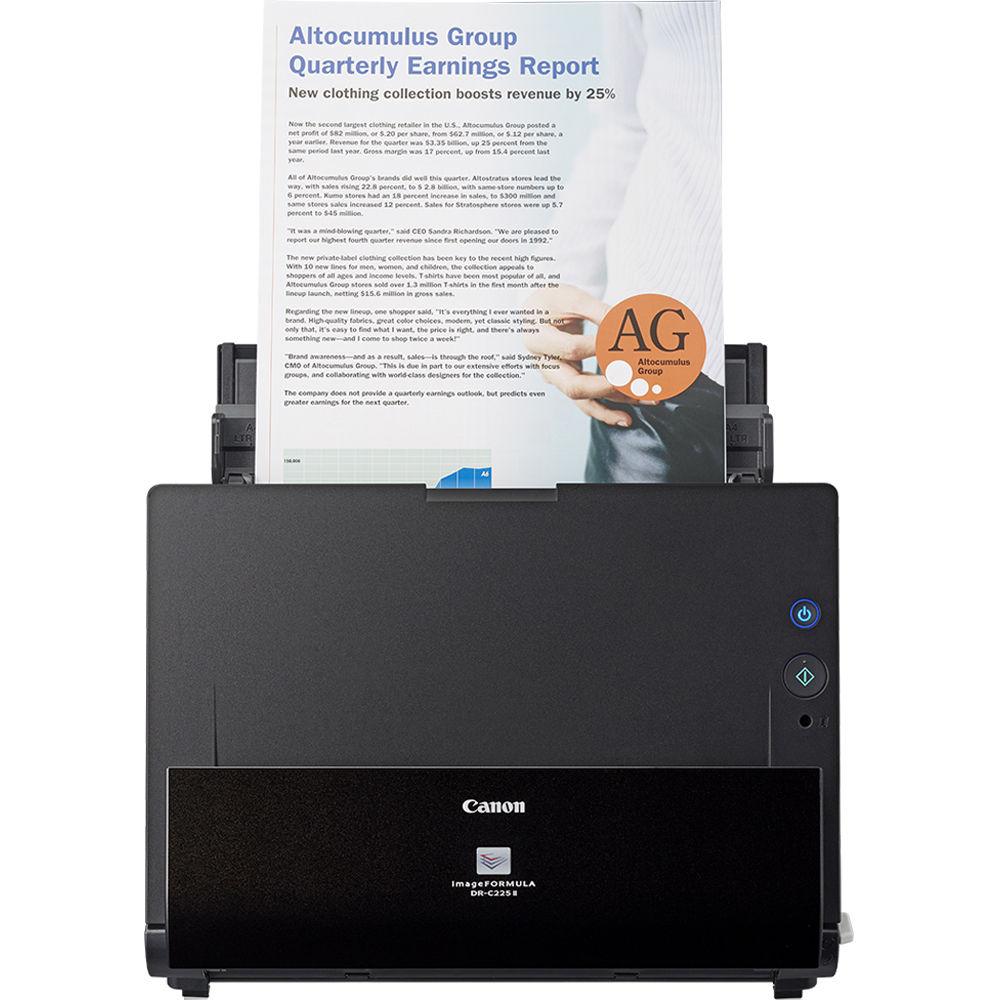

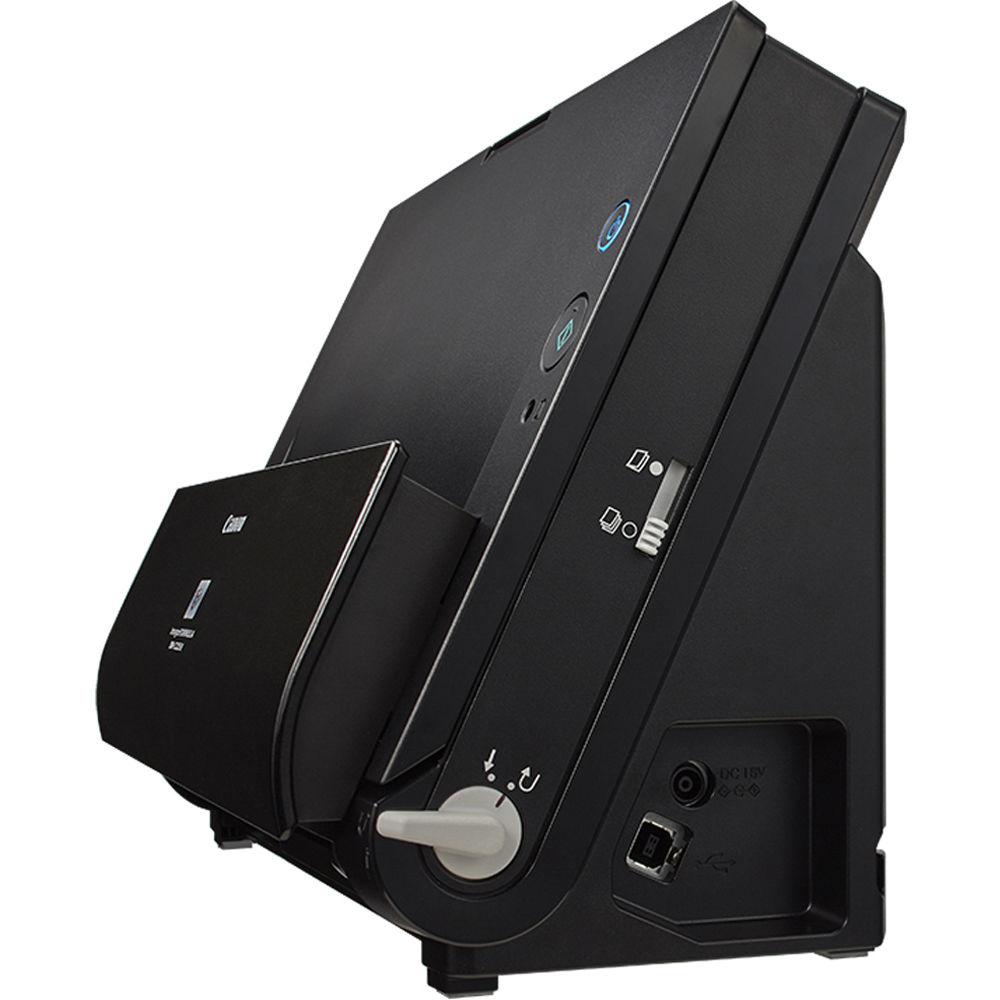

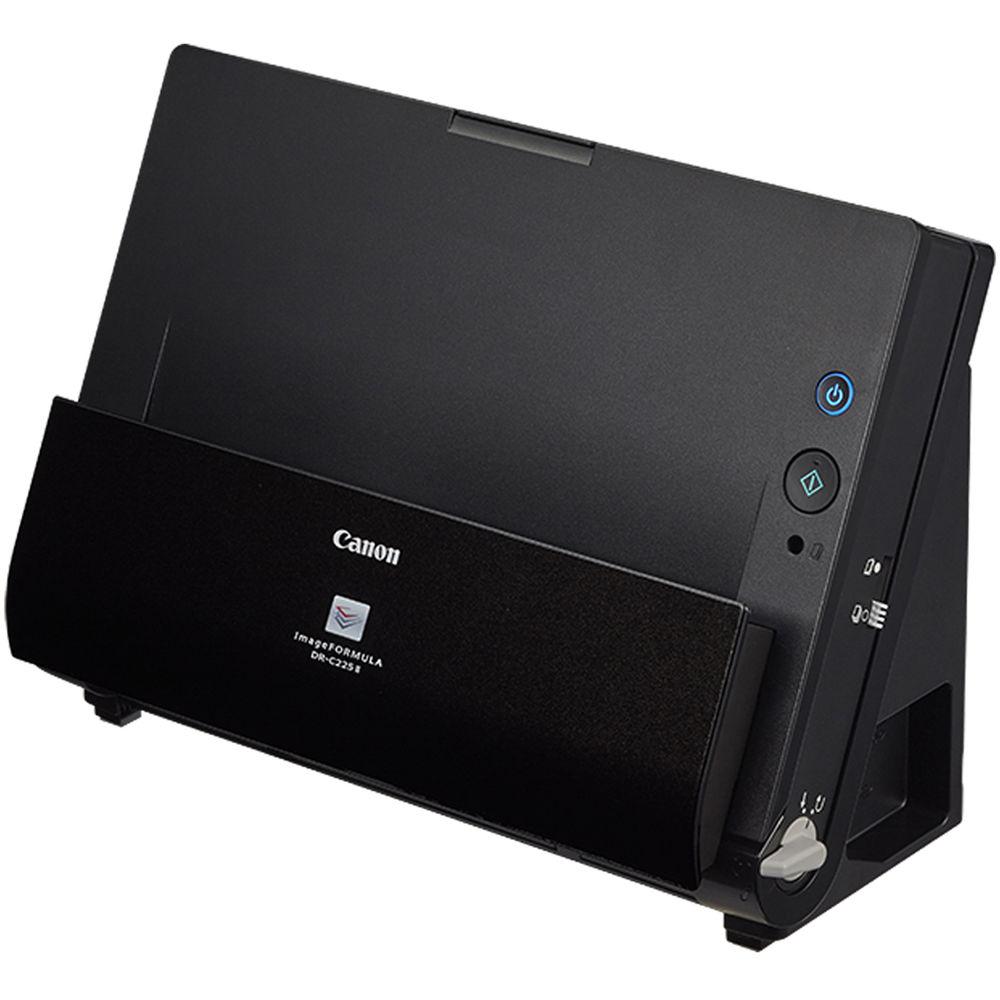

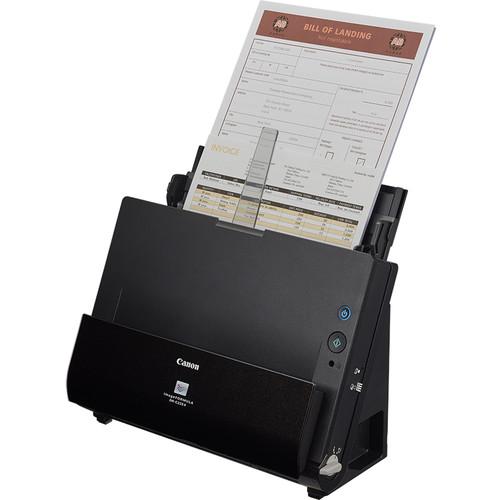

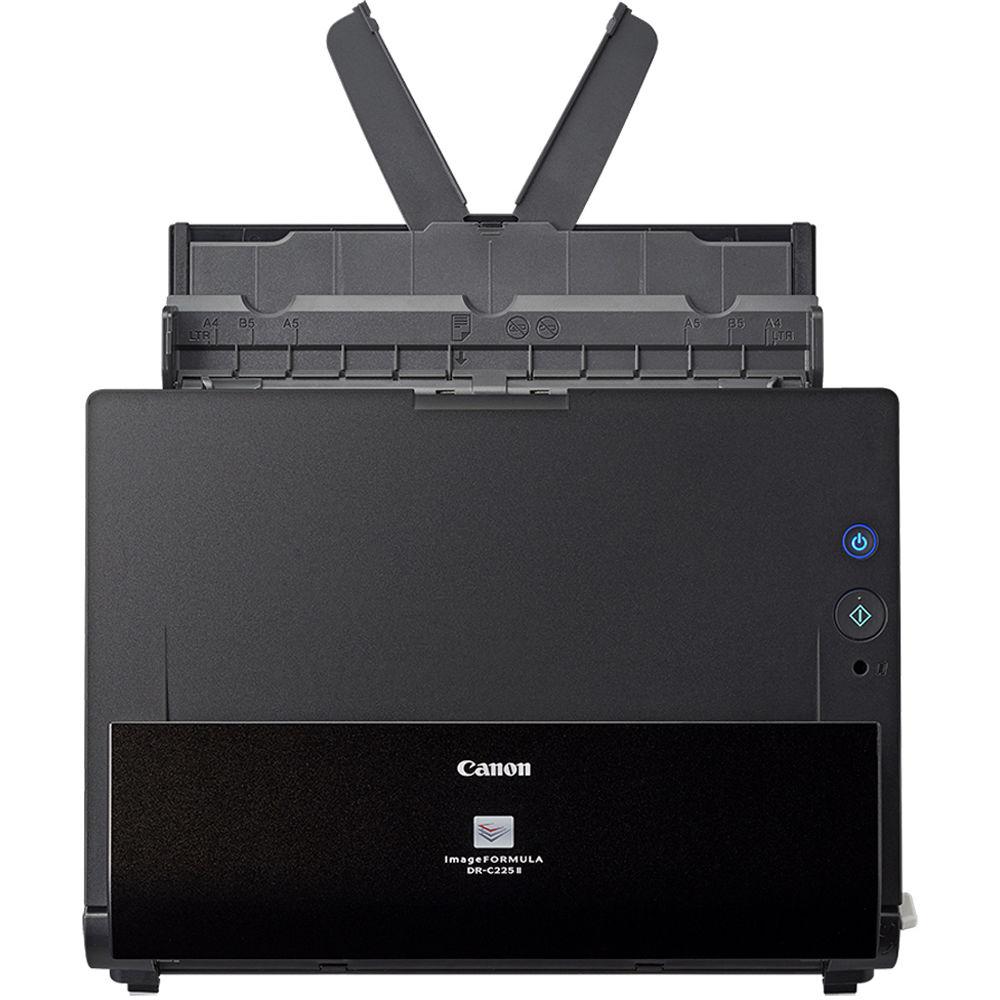

User Manual for Canon imageFORMULA DR-C225 II Document Scanner Click to enlarge the picture
Contents of the user manual for the Canon imageFORMULA DR-C225 II Document Scanner
- Product category: Flatbed & Document Scanners Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Flatbed & Document Scanners
 |
User manual for the Canon imageFORMULA DR-C225 II Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Scan documents with the Canon imageFORMULA DR-C225 II Document Scanner. Featuring an optical resolution of 600 dpi, the DR-C225 II provides high image quality along with the ability to scan up to tabloid-sized documents in folio mode or 8.5"-wide sheets using the 30-sheet ADF at up to 25 ppm. There are also features to help improve character legibility as well as straighten and removing shadows from images. A single click allows for the adjustment of multiple features to easily create an optimal scanned image using the intuitive front-side-forward, top-up item feeding. Save your scans in PDF, PDF/A, JBPG, TIFF, PPTX, BMP, or PNG file formats, and you can scan in color, grayscale, or monochrome. The bundled Canon CaptureOnTouch software also enables users to configure routine scan jobs for quick and easy one-touch access. Space-Saving Design - Features an upright design with a small footprint
- Top feeding and default top eject
Easy Use - Intuitive front-side-forward, top-up item feeding to eliminate the need to rotate or flip documents
- Full Auto Mode automatically adjusts multiple settings with a single click
- Canon CaptureOn Touch features one-touch scanning as well as scanning directly to cloud apps, such as Google Drive, Microsoft SharePoint, and DropBox. It also supports PDF, PDF/A, JPEG, TIFF, PPTX, BMP and PNG output formats
- Easy integration with third-party software with ISIS and TWAIN drivers for Windows as well as TWAIN for Mac
Flexibility - Scans up to 25 pages per minute in monochrome, gray-scale, and color — both sides of an item in a single pass
- Reliably handles a wide variety of document types, such as thick or thin documents, plastic or embossed cards, photographs, long documents up to 118.1", and even over-sized documents larger than letter size
High Image Quality - Features to improve character legibility, crop shadows, and straighten scanned images
- Auto Resolution setting for scanning mixed batches of text documents and photographs
- Optical Character Recognition (OCR) to help create searchable and editable information
UPC: 013803310214 In the Box Canon imageFORMULA DR-C225 II Document Scanner USB Cable AC Adapter 120V Power Cable eCopy PDF Pro Office License Key Setup Disc Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageFORMULA DR-C225 II Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon imageFORMULA DR-C225 II Specs | Maximum dpi Resolution | 600 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 50 ipm (Color, Grayscale) | | Simplex Speed | 25 ppm (Color)
25 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 118.1" / 300 cm | | Color Depth | 24-Bit (Internal) | | Grayscale Bit-Depth | 8-Bit (Internal) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Manual | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, PDF/A, PNG, PPTX, TIFF | | Paper Weight | 11 to 58 lb | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Drivers | TWAIN, ISIS | | Duty Cycle | 1500 Scans | | Maximum Sheet Capacity | 30 | | Maximum Power Consumption | 12.7 W | | Power Source | AC Adapter | | Dimensions | 8.7 x 11.8 x 6.1" / 22.1 x 30.0 x 15.5 cm | | Weight | 5.95 lb / 2.70 kg | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 15.2 x 12.0 x 12.0" |
