User Manual for Canon imageFORMULA DR-M160II Office Document Scanner Click to enlarge the picture
Contents of the user manual for the Canon imageFORMULA DR-M160II Office Document Scanner
- Product category: Flatbed & Document Scanners Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Flatbed & Document Scanners
 |
User manual for the Canon imageFORMULA DR-M160II Office Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

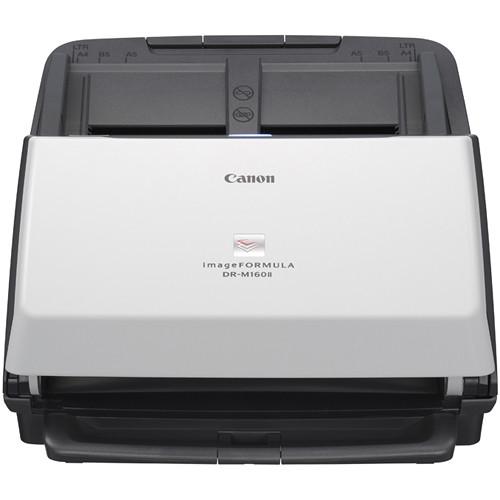

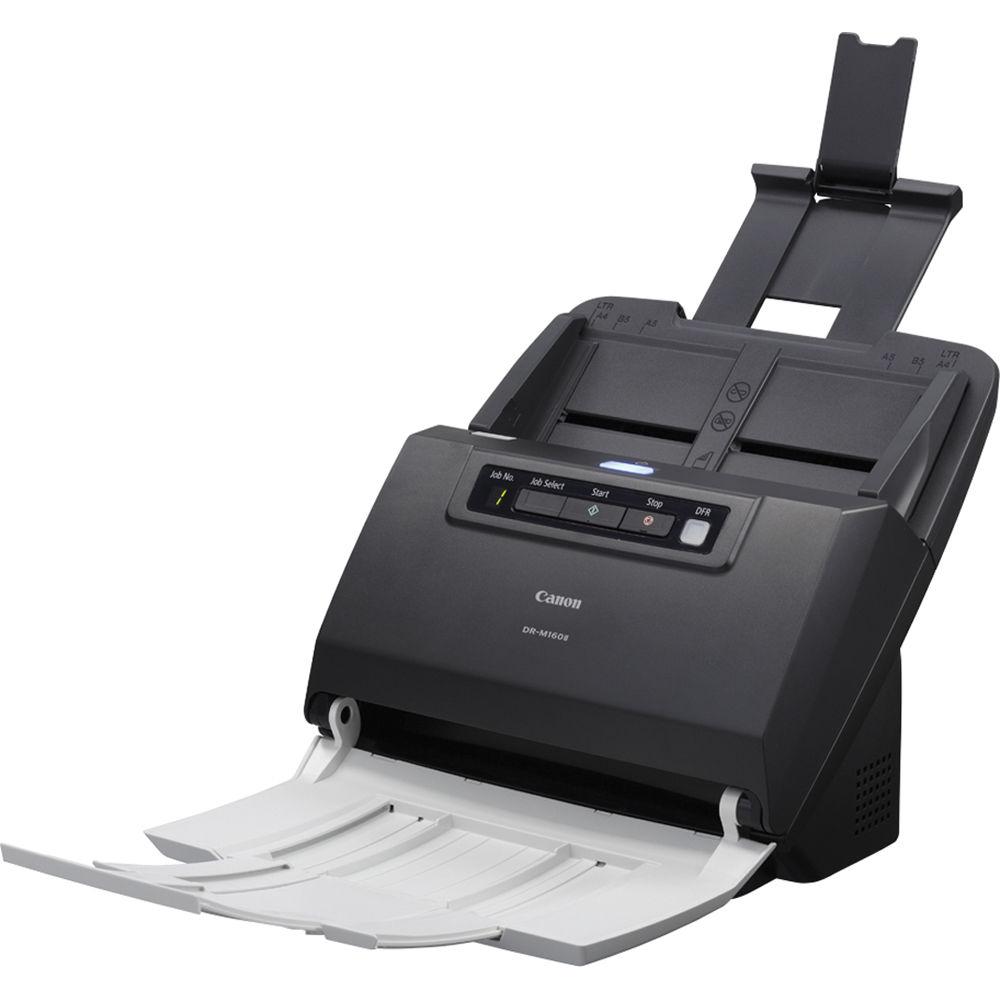

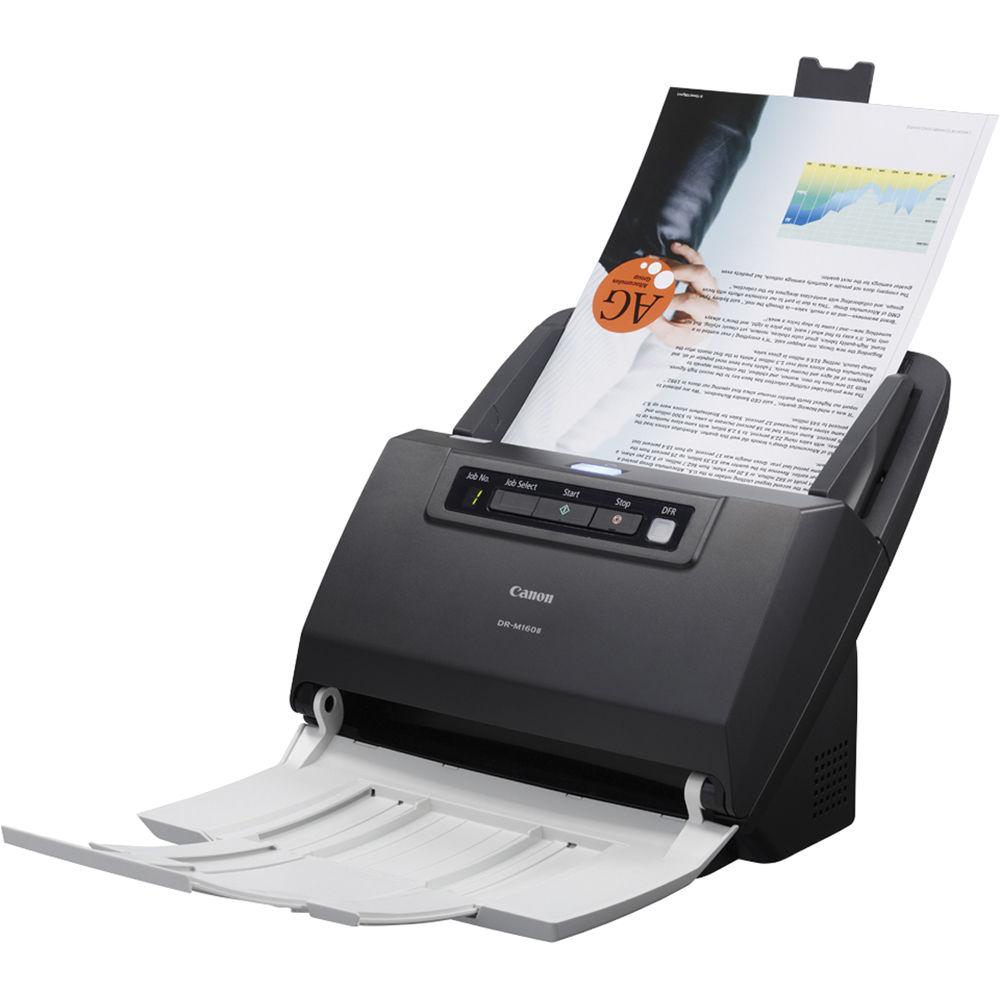

Product description Convert your documents and business cards into easily manageable digital files with the imageFORMULA DR-M160II Office Document Scanner from Canon. Featuring an optical resolution of 600 dpi and a scan speed of up to 60 ppm, or 120 ipm in duplex mode, it is capable of rapidly converting your documents. It also has a color bit-depth of 24-bit and has full duplex capabilities through the use of a 60-sheet automatic document feeder.
The DR-M160II can handle documents as small as 2.0 x 2.1" or as large as 8.5 x 14". There is also a mode for long documents up to 118.1" in length. Another useful feature of this scanner is Folio scanning, allowing you to scan both sides of a folded document up to 11 x 17" and have the scanner automatically combine the images into a single file. Additionally, it has a USB 2.0 connection. - Operates in grayscale, black and white, and full color modes
- Uses one-line CMOS Contact Image Sensor (CIS)
- Other features include auto color detection, auto page size detection, auto resolution setting, background smoothing, character emphasis, color dropout/enhance color, deskew, double-feed release, feeding retry, folio mode, image rotation, long document mode, multistream, pre-scan, prevent bleed-through/remove background, separation retry, shadow cropping, skip blank page, text enhancement, text orientation recognition, ultrasonic double feed detection, user preferences
- ISIS/TWAIN drivers are included
- CaptureOnTouch for Windows or Mac, Capture Perfect for Windows, Nuance eCopyPDF Pro Office for Windows, and Kofax VRS with AIPE software for Windows is bundled with this scanner
- Works with both Windows and Mac computers
- ENERGY STAR, Eu RoHS, and WEEE compliant
UPC: 013803245257 In the Box Canon imageFORMULA DR-M160II Office Document Scanner Feed Tray USB Cable AC Adapter/Power Cord Setup DVD-ROM Limited 1-Year Warranty User Manual PDF 7.1mbvzyywtzftvrzza Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageFORMULA DR-M160II Office Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon DR-M160II Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 120 ipm (Color)
120 ipm (Grayscale) | | Simplex Speed | 60 ppm (Color)
60 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 14" / 35.6 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (Internal) | | Document Feeding | ADF | | Connectivity | USB 2.0 | | File Formats | PDF | | Paper Weight | 7 to 56 lb | | Maximum Paper Thickness | 11.8 mil / 0.30 mm | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Maximum Sheet Capacity | 60 | | Environmental Compliance | ENERGY STAR, WEEE, RoHS | | Operating Acoustic Noise | 63.5 dB | | Maximum Power Consumption | 27 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 11.0 x 9.8 x 9.1" / 28.0 x 25.0 x 23.0 cm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 10.46 lb | | Box Dimensions (LxWxH) | 14.9 x 12.7 x 10.5" |
