User Manual for Canon imageFORMULA P-208II Scan-tini Personal Document Scanner with Carrying Case Kit Click to enlarge the picture
Contents of the user manual for the Canon imageFORMULA P-208II Scan-tini Personal Document
- Product category: Portable Scanners Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Portable Scanners
|
User manual for the Canon imageFORMULA P-208II Scan-tini Personal Document contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

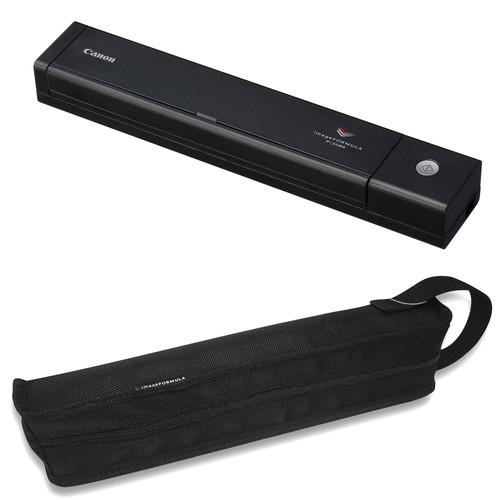

Product description Scan on the go with this Kit, which pairs the compact Canon imageFORMULA P-208II Scan-tini Personal Document Scanner with the P-208 Carrying Case for keeping it safe when not in use. - Canon imageFORMULA P-208II Scan-tini Personal Document Scanner Scan on the road, at home, or in the office with the compact imageFORMULA P-208II Scan-tini Personal Document Scanner from Canon. With an optical resolution of 600 dpi it will produce detailed images from documents ranging in size from 2.0 x 2.8" to 8.5 x 14". Also, it is speedy with the ability to handle 8 ppm or up to 16 ipm when set to duplex mode. A color depth of 24-bit further enhances quality with accurate color rendition in the final file.
Adding the units robust feature set is Optical Character Recognition (OCR) and auto resolution which will save time during use. It is plug-and-play with PC and Mac using a USB 2.0 cable which will also provide all of the power needed for the scanner. It is durable with the ability to handle up to 100 scans per day. - Can handle multiple document types, including thick or thin documents and plastic or embossed cards.
- ISIS and TWAIN drivers are bundled with the unit.
- Canon CaptureOnTouch software enables users to configure jobs for one-touch access. It can also send images directly to cloud services such as Evernote, Microsoft SharePoint, Google Drive, SugarSync, OneDrive, and Dropbox.
- Long document scanning capability.
- Optional WU10 Wireless Adapter and Battery Pack provides power and Wi-Fi connectivity to the unit that also enables compatibility with the Canon CaptureOnTouch Mobile app.
UPC: 013803247329 - Canon imageFORMULA P-208 Carrying Case The imageFORMULA P-208 Carrying Case from Canon is designed for the imageFORMULA P-208 Scan-tini Personal Document Scanner. The case enhances the scanner's portability and provides an added safeguard to help ensure that it remains protected while in transit. UPC: 660685106147
In the Box - imageFORMULA P-208II Scan-tini Personal Document Scanner
- USB Cable
- Documentation & Software CD-ROM
- Limited 1-Year Warranty
- imageFORMULA P-208 Carrying Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageFORMULA P-208II Scan-tini Personal Document Scanner with Carrying Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon imageFORMULA P-208II Scan-tini Personal Document Scanner
| | | Scan Sensor | Contact Image Sensor (CMOS) | | Optical Resolution | 600 dpi | | Output Resolution | 150, 200, 300, 400, 600 dpi | | Scan Speed | Simplex: 8 ppm (color, grayscale, black & white)
Duplex: 16 ipm (color, grayscale, black & white) | | Duplex Scanning | Yes | | Color Depth | 24-bit | | Grayscale | 8-bit | | Duty Cycle | Recommended Daily Volume: 100 scans | | Scan Modes | Color, grayscale, black & white | | Scanner Features | Auto color detection, auto page size detection, auto resolution, background smoothing, deskew, edge emphasis, moire reduction, photograph corrections, prevent bleed-through/remove background, shadow cropping, skip blank page, text enhancement, text orientation recognition, three-dimensional color correction, double-feed detection | | | | Paper-Feed Method | Automatic or manual
Automatic document feeder | | Minimum Document Size | 2.0 x 2.8" (5.1 x 7.1 cm) | | Maximum Document Size | 8.5 x 14.0" (21.6 x 35.6 cm) | | ADF Capacity | 10 sheets | | | | Computer Interface | USB 2.0 | | Drivers | TWAIN, ISIS | | Wireless | Optional, with WU10 Wireless Adapter | | OS Compatibility | Windows XP SP3 (32-bit) and SP2 (64-bit), Vista SP2 (32/64-bit), 7 (32/64-bit), 8 (32/64-bit), 8.1 (32/64-bit)
Mac OS X 10.6-10.10 | | | | Light Source | RGB LED | | Power Source | USB
Optional Battery Pack | | Power Consumption | 2.5 W or less
Sleep Mode: 1.5 W or less | | Certifications | ENERGY STAR
EU RoHS
EU WEEE
Erp Lot 6 directive | | Dimensions | 1.5 x 12.3 x 2.2" (3.8 x 31.2 x 5.6 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 15.45 x 5.35 x 4.7" | - Canon imageFORMULA P-208 Carrying Case
| Compatible Scanners | imageFORMULA P-208 | | | | Box Dimensions (LxWxH) | 14.7 x 3.8 x 2.7" |
