User Manual for Canon imageFORMULA P-215II Scan-tini Personal Document Scanner Click to enlarge the picture
Contents of the user manual for the Canon imageFORMULA P-215II Scan-tini Personal Document
- Product category: Portable Scanners Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Portable Scanners
 |
User manual for the Canon imageFORMULA P-215II Scan-tini Personal Document contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

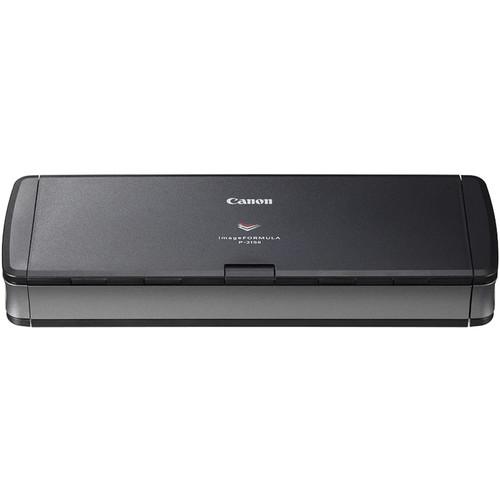

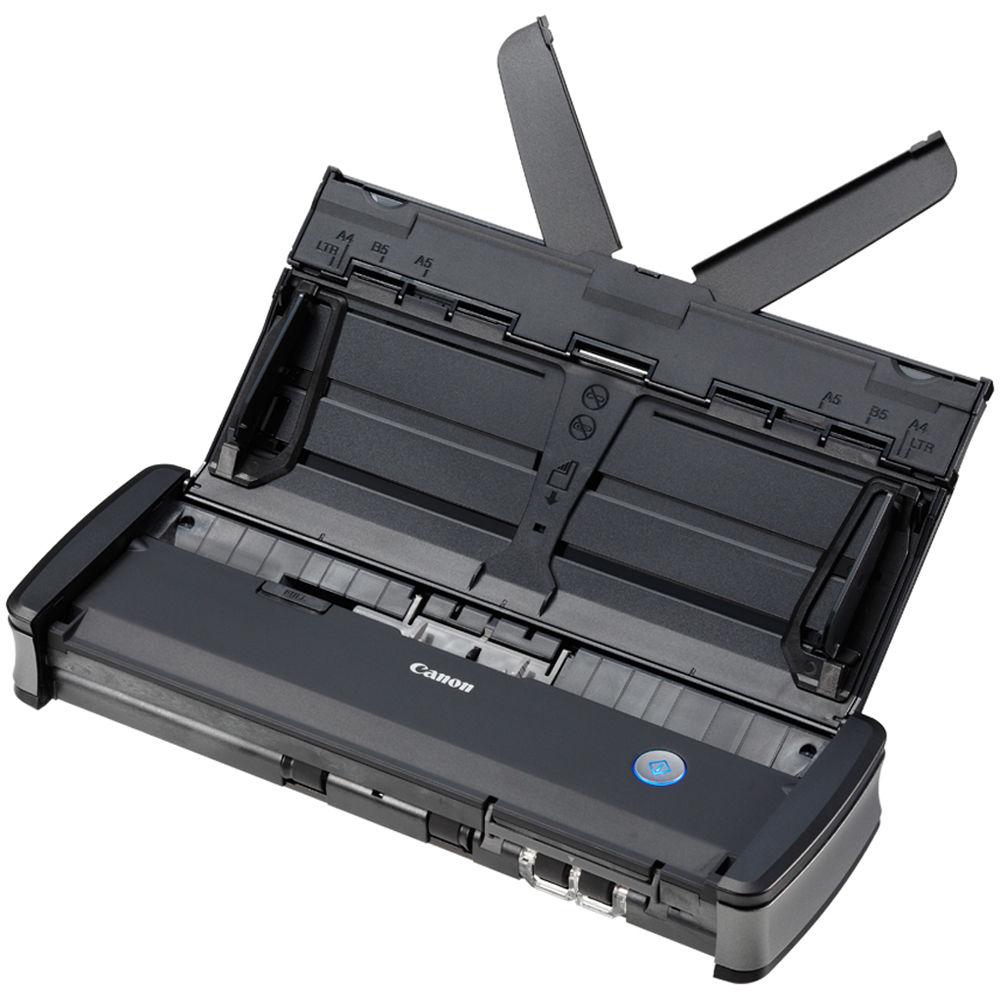

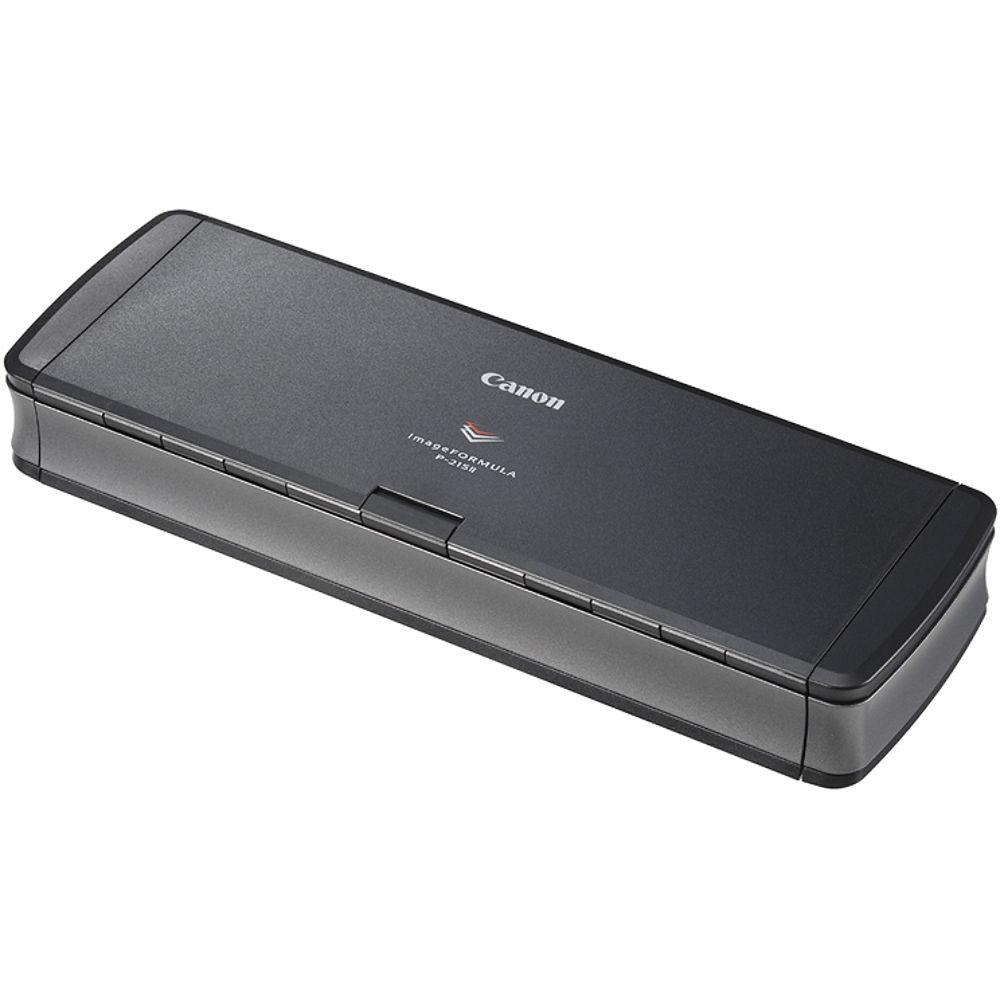

Product description Increase productivity while on the go with the compact and portable imageFORMULA P-215II Scan-tini Personal Document Scanner from Canon. The P-215II features an optical resolution of 600 dpi and utilizes a 20-sheet automatic document feeder for paper handling. The scanner can work with cards thanks to a built-in card slot, as well as documents from 2.0 x 2.8" to 8.5 x 39.4" in size. Additionally, the color depth of the P-215II is 24-bit and it can scan color documents at a rate of 10 ppm.
Also capable of duplex scanning to improve productivity with a color scan speed of 20 ipm. The unit also works quickly by simply plugging into the USB port on a computer, from which it can also draw power. Also, it features USB 3.0 and USB 2.0 support for speed and compatibility. - Black & white and grayscale scanning modes allow for speeds of 15 ppm in simplex or 30 ipm in duplex
- Dedicated card slot allows for scanning of plastic and embossed cards
- Fully automatic scanning mode
- Output formats includes PDF, TIFF, PNG, JPEG, BMP, and PPTX
- CaptureOnTouch software provides users with additional control over scan settings and quality, as well as the ability to scan to cloud services like Microsoft SharePoint, Evernote, and Google Drive
- Wi-Fi connectivity possible with optional WU10 unit
UPC: 013803247596 In the Box Canon imageFORMULA P-215II Scan-tini Personal Document Scanner USB Cable Software CD Limited 1-Year Warranty Brochure PDF 749.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageFORMULA P-215II Scan-tini Personal Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon P-215II Specs | Type | Desktop sheetfed scanner | | | | Image Sensor | CMOS Contact Image Sensor (CIS) | | Optical Resolution | 600 dpi | | Output Resolution | 150, 200, 300, 400, 600 dpi | | Scan Modes | Color, grayscale, black & white | | Bit Depth | Color: 24-bit
Grayscale: 8-bit | | Scan Speed | Simplex
Color: 10 ppm
Grayscale: 15 ppm
Black & White: 15 ppm
Duplex
Color: 20 ipm
Grayscale: 30 ipm
Black & White: 30 ipm | | Duplex Scanning | Yes | | File Formats | PDF, TIFF, PNG, JPEG, BMP, PPTX | | Scanner Features | Auto color detection, auto page size detection, auto resolution setting, background smoothing, character emphasis, color dropout (red, green, blue), red color enhance, deskew, double-feed detection, image rotation, moire reduction, MultiStream, photograph corrections, pre-scan, prevent bleed-through/remove background, shadow cropping/removal, skip blank page, text enhancement, text orientation recognition, three-dimensional color correction, trimming, user preferences | | | | Paper Handling | Automatic document feeder | | Minimum Document Size | 2.0 x 2.8" (5.1 x 7.1 cm) | | Maximum Document Size | 8.5 x 14.0" (21.6 x 35.6 cm)
Long Document Mode: Up to 39.4" (1 m) in length | | Paper Types | Plain, postcard, business card, card | | Paper Weight | Plain: 14-34 lb bond (52-128 gsm)
Postcard: 34-60 lb bond (128-225 gsm)
Business Card: 34-60 lb bond (128-225 gsm) | | Paper Thickness | Plain: 2.4-5.9 mil (0.06-0.15 mm)
Postcard: 5.9-11.8 mil (0.15-0.30 mm)
Business Card: 5.9-11.8 mil (0.15-0.30 mm)
Card: Less than 30 mil (0.76 mm)
Embossed Card: Less than 55 mil (1.4 mm) | | Paper Capacity | ADF: 20 sheets | | Daily Duty Scan (Sheets) | 500 scans | | | | Interface | USB 3.0 / USB 2.0 | | Compatible Operating Systems | Windows XP SP3, XP x64 Edition SP2, Vista SP2 (32/64-bit), 7 SP1 (32/64-bit), 8/8.1 (32/64-bit)
Mac OS X 10.7.5, 10.8.5, 10.9.1 | | Drivers Compatibility | TWAIN, ISIS | | | | Light Source | RGB LED | | Power Requirements | USB Bus Power: 500 mA
With USB Bus Power & USB Power Supply Cable: USB 2.0: 1 A; USB 3.0: 900 mA
Optional AC Adapter: 6 VDC, 800 mA | | Power Consumption | USB 2.0 Bus Power: 2.5 W
USB 3.0 Bus Power: 4.5 W
USB 2.0 & USB Power Supply Cable: 5.0 W
USB 3.0 & USB Power Supply Cable: 7.0 W
Sleep Mode: 1.5 W
Off: 0.1 W or less | | Acoustic Noise | 66 dB | | Operating Conditions | Temperature: 50 to 90.5°F (10 to 32.5°C)
Humidity: 25 to 80%, relative | | Dimensions | Tray Closed: 1.6 x 11.2 x 3.7" (4.0 x 28.5 x 9.5 cm)
Tray Open: 6.9 x 11.2 x 10.1" (17.4 x 28.5 x 25.7 cm) | | Weight | 2.2 lb (1.0 kg) | | | | Package Weight | 3.215 lb | | Box Dimensions (LxWxH) | 13.4 x 6.45 x 4.65" |
