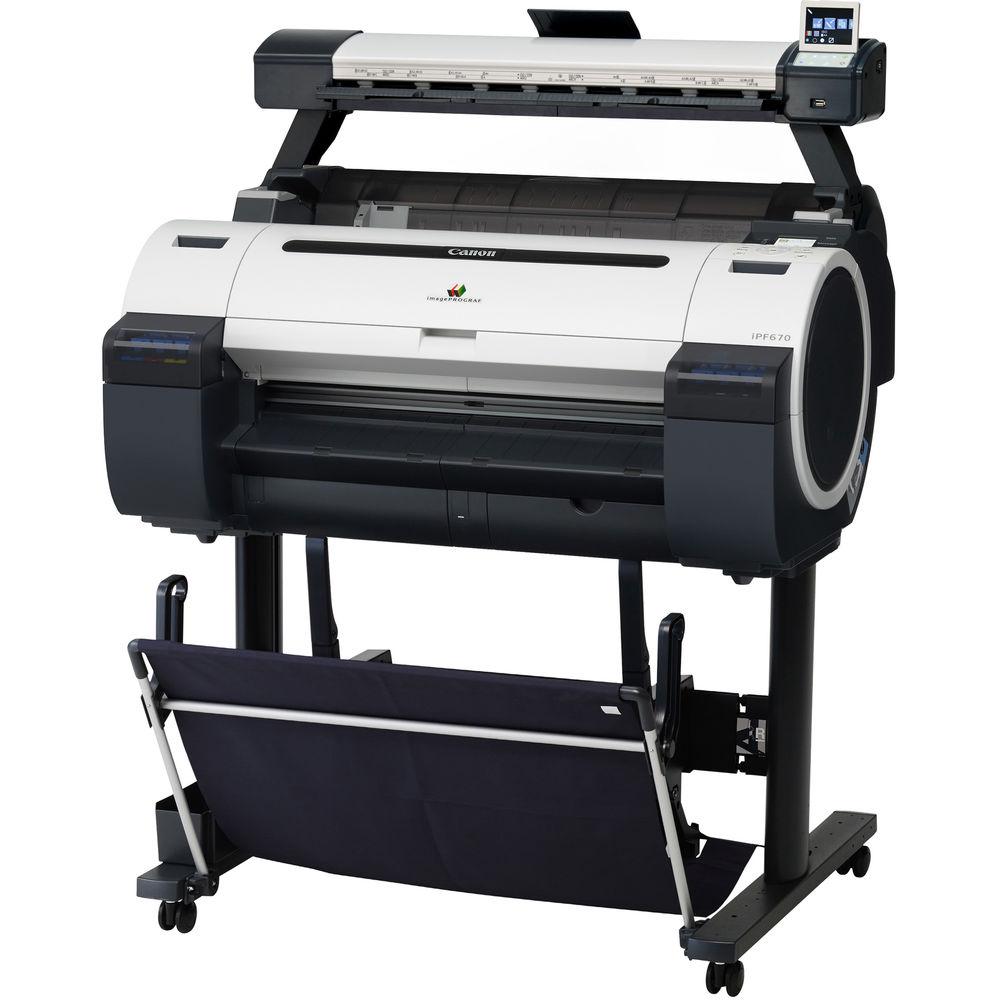

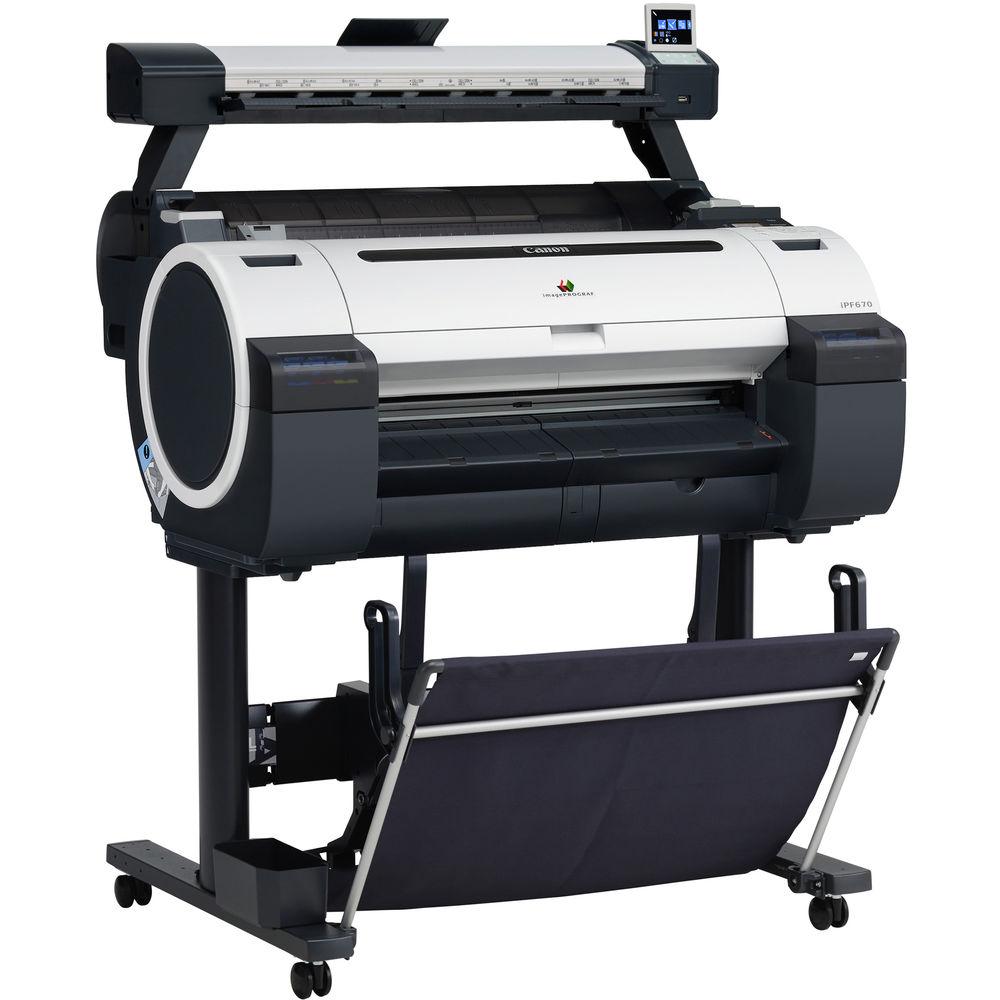

User Manual for Canon imagePROGRAF iPF670 24" Large-Format Inkjet Printer with L24 Scanner Click to enlarge the picture
Contents of the user manual for the Canon imagePROGRAF iPF670 24" Large-Format Inkjet
- Product category: Large Format Printers Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Large Format Printers
 |
User manual for the Canon imagePROGRAF iPF670 24" Large-Format Inkjet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Large format scanning and copying for low volume and entry-level users has arrived with the release of the imagePROGRAF iPF670 24" Large-Format Inkjet Printer with L24 Scanner from Canon. This 24" scanner, which can handle documents as wide as 26", has an optical resolution of 600 dpi and offers a variety of basic scan-to-copy capabilities. Along with this, it has scan to USB, scan to PC, as well as reduce and enlarging features. Additionally, there are three quality modes, Draft, Standard, or Best, which can help you dial in the exact settings you need.
The printer itself is quite capable, being able to produce posters and signage quickly and easily. It uses a High-Density Print Head to create detailed prints with a resolution of 2400 x 1200 dpi on documents up to 24" wide and up to 59' long.
Ensuring color accuracy and print longevity is a five-color dye/pigment Reactive Ink set. Bundled with the printer is a variety of software for monitoring your printer's status and improving productivity. Among the included software are a few status monitors, a plug-in for Microsoft Office, an optimized module for AutoCAD, and PosterArtist Lite. Additionally, it has both USB 2.0 and Ethernet connectivity options. - The dye/pigment Reactive Ink set uses four colorfast dye inks and two channels of pigment black for precise lines. Also, the magenta ink is reformulated to produce a wider color gamut in the red and orange spectrums.
- The High-Density print head features 15,360 nozzles and a minimum droplet size of 4 picoliters. This allows for 2400 x 1200 dpi output with line accuracy of ±0.1% and lines as thin as 0.02mm.
- Scanner can handle documents as wide as 26" with an image width of 24" and as long as 50".
- L24 can handle items as thick as 19.7 mil thanks to a straight through paper path.
- Scanning speeds of 3" per second in monochrome and 1" per second in color.
- Direct Print & Share for PCs allows for printing directly from a cloud service or a networked folder on your computer.
- imagePROGRAF Print Utility is a mobile app for iOS that enables wireless printing via an Apple iPad.
- Canon Printer Driver, imagePROGRAF Status Monitor, and imagePROGRAF Accounting Manager allow users to monitor the details of their current jobs and printer.
- The plug-in for Microsoft Office can easily convert letter-sized documents to poster size.
- To improve reliability and productivity, an optimized module for AutoCAD software is included.
- PosterArtist Lite software is a step-by-step program with numerous royalty-free images, art, and templates for creating your own posters and signage.
UPC: 660685143166 In the Box Canon imagePROGRAF iPF670 24" Large-Format Inkjet Printer with L24 Scanner L24 Scanner Calibration Target Document Return Guides 2 x Mounting Brackets ST-27 Printer Stand RH2-26 Paper Roll Holder Set for Canon iPF650/iP655 Printers PF-04 Print Head for ImagePrograf Printers iPF650/655/750/755 MC-10 Maintenance Cartridge for Canon IPF650/655/750/755 6 x Starter Ink Tanks 5 x Cut Sheets of Heavyweight Coated Paper (A2, 16.5 x 23.4") Ethernet Cable 2 x Power Cords L Scan App Software CD PosterArtist Lite Application CD Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imagePROGRAF iPF670 24" Large-Format Inkjet Printer with L24 Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon iPF670 Specs | | | Printing Technology | Inkjet | | Maximum Resolution | 2400 x 1200 dpi | | Print Color | Cyan, magenta, yellow, black, matte black | | Minimum Ink Droplet Size | 4 picoliter | | Ink Type | Pigment: Matte black
Dye: Cyan, magenta, yellow, black | | Compatible Ink Cartridges | PFI-107C Cyan Dye Ink Cartridge (130 mL)
PFI-107M Magenta Dye Ink Cartridge (130 mL)
PFI-107Y Yellow Dye Ink Cartridge (130 mL)
PFI-107BK Black Dye Ink Cartridge (130 mL)
PFI-107MBK Matte Black Pigment Ink Cartridge (130 mL) | | Number of Nozzles | Total: 15,360
Matte Black: 5120
Cyan, Magenta, Yellow, Black: 2560 each color | | Nozzle Pitch | 1200 dpi
Non-firing nozzle detection and compensation | | | | Paper Handling | Roll feed
Cut sheet | | Paper-Feed Method | Top-loading, front output | | Paper Sizes | Cut Sheet: 8-24" / 20.3-61 cm wide
Roll Feed: 10-24" / 25.4-61 cm wide | | Maximum Paper Length | Cut Sheet: 63" / 1.6 m
Roll Feed: 59' / 18 m | | Maximum Media Roll Diameter | 5.9" / 15 cm | | Borderless Printing Width | 10" / 25.4 cm, 14" / 35.6 cm, 17" / 43.2 cm, 24" / 61 cm, B2, A1 | | Media Thickness | 2.8-31.4 mil / 0.07-0.80 mm | | Paper Capacity | One sheet or one roll | | | | Interfaces | USB 2.0
Ethernet | | Direct Print Capable | Yes, via software | | OS Compatibility | Windows XP, Vista, 7, 8.1, 10
Max OS X 10.6.8-10.10 | | Memory | 256 MB | | Printer Language | GARO (Canon proprietary), HP-GL/2, HP-RTL | | | | Power Requirements | 100-240 VAC, 50-60 Hz | | Power Consumption | Maximum: 140 W
Standby: 5 W
Power Off: 0.5 W | | Acoustic Noise | Operation: 47 dB(A)
Standby: 35 dB(A)
Acoustic Power: 6.4 B | | Operating Conditions | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80%, non-condensing | | Dimensions | 42 x 39 x 34" / 106.7 x 99.1 x 86.4 cm with basket open | | Weight | 116 lb / 52.6 kg with stand | | | | Type | Contact Image Sensor (CIS) | | Optical Resolution | 600 dpi | | Accuracy | ±0.20% | | Scan Speed | Monochrome: 3" / 7.6 cm per second
Color: 1" / 2.5 cm per second | | Media Handling | Straight path, face up with rear exit | | Maximum Scan Size | Up to 26" / 66 cm wide document with 24" / 61 cm image width
Up to 50" / 127 cm long | | Media Thickness | Up to 19.7 mil / 0.5 mm | | Interface | USB 2.0
Ethernet | | | | Package Weight | 20.95 lb | | Box Dimensions (LxWxH) | 40.55 x 10.0 x 8.0" |
