User Manual for Canon imagePROGRAF iPF840 Large Format Printer Click to enlarge the picture
Contents of the user manual for the Canon imagePROGRAF iPF840 Large Format Printer
- Product category: Large Format Printers Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Large Format Printers
|
User manual for the Canon imagePROGRAF iPF840 Large Format Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

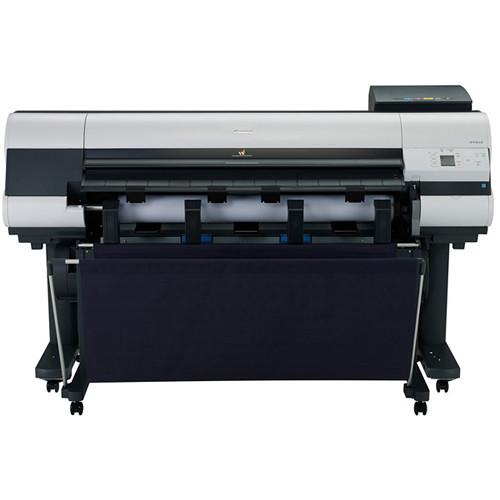

Product description The Canon imagePROGRAF iPF840 Large Format Printer is a 44" wide printing system designed to enhance productivity for medium to large workgroups, with high speed throughput. The imagePROGRAF iPF840 printer is a production printing solution with high line accuracy, a 320GB hard drive, excellent media handling, and support for HP-GL/2 and HP RTL files. It is an easy-to-use production printing solution for professionals with a need for producing intricately detailed full-color renderings, CAD drawings, GIS maps, and other large-format output. Equipped with two media rolls and the automatic roll switch feature, the iPF840 eliminates the cause of many bottlenecks in busy printing environments. Switch between different media types and sizes or use two rolls of the same paper for the printing of large, consecutive jobs. The built-in 320GB hard drive makes handling multiple complex jobs simple, especially in shared printer environments. You can relieve workload from your computer, store and retrieve print jobs with the touch of a button, and utilize a Remote User Interface and password-protected mailboxes to keep your workgroups productive. The iPF840 printer's Economy Print Mode helps lower cost-per-print while the sub-ink tank system enables hot-swap ink replacement for continuous printing. -
- Print Longer Without Interruption
- High-Speed Printing with L-COA processor
- Precision Printing with a high-density PF-04 print head
- Gigabit Ethernet compatible
- 320GB hard drive
- High chroma magenta ink
- Reactive ink system
- Direct print & share
- imagePROGRAF Print Utility
- Accounting Manager
- Canon Print Driver
- Optimized module for AutoCAD
- Print plug-in for Microsoft Office
- Economy print mode
- PosterArtist Lite
In the Box Canon imagePROGRAF iPF840 Large Format Printer Printer Stand Portable Media Basket 2 x 2" Roll Holder with 3" Core Adapters Print Head Maintenance Cartridge, (Installed) 5 x Starter Ink Tank (C, M, Y, BK, MBK) 5 x A2 Cut Sheet Heavyweight Coated Paper USB 2.0 High Speed Interface Ethernet Card Software CD Power Cord Limited 1-Year Warranty Manual PDF 6.7mbfcefwccczvddvczxb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imagePROGRAF iPF840 Large Format Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon iPF840 Specs | Printing Technology | 5-Color 44" / 1.11 m Printer | | Nozzle Pitch | 1,200 dpi non-firing nozzle detection and compensation | | Number of Nozzles | Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
| | Print Resolution | 2400 x 1200 dpi (Max) | | OS Compatibility | Windows: XP 32-bit/Vista/7/8/8.1
Macintosh: OSX 10.6.8 - 10.10
| | Standard Interface | USB 2.0 High-Speed
10/100/1000 Base-T/TX
| | Minimum Ink Droplet Size | 4.0 pl | | Capacity | Ink Capacity: 330 ml , 700 ml per color | | Ink Type | Dye/Pigment Reactive Ink | | Colors | Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black | | Hard Drive | 320 GB | | Media Width | Cut Sheet: 8 to 44" / 20 cm to 1.12 m
Roll Feed: 10 to 44" / 25 cm to 1.12 m
| | Media Thickness | 2.8 to 31.5 mil / 0.07 to 0.8 mm | | Maximum Roll Print Length | Roll Feed: 59' / 18 m | | Maximum Media Roll Diameter | 5.9" / 15.1 cm | | Borderless Printing Width | 10, 14, 17, 24, 36, 42" / 25, 35, 43, 61, 91, 107 cm | | Paper-Feed Method | Roll Feed: One roll, front loading, front output
Cut Sheet: One sheet, front loading, front output | | Languages | GARO (Canon Proprietary), HP-GL/2, HP-RTL | | Noise Level | Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or less
| | Power | Source: 100 to 240 VAC (50 to 60 Hz) | | Power Consumption | Maximum: 190 W or less
Standby: 5 W or less
Power Off: 0.5 W or less (compliant with Executive Order) | | User Replaceable | Print Head: PF-04
Maintenance Cartridge: MC-10, MC-09
Ink Tanks:
PFI-307 (330 ml: C, M, Y, BK, MBK)
PFI-707 (700 ml: C, M, Y, BK, MBK)
| | Environmental | Temperature: 59 to 86°F / 15 to 30°C
Humidity: 10 to 80% | | Dimensions (WxDxH) | 75 x 51 x 45" / 1.9 x 1.3 x 1.14 m | | Weight | 417 lb / 189 kg with stand | | | | Package Weight | 417.0 lb | | Box Dimensions (LxWxH) | 75.0 x 51.0 x 45.0" |
