Canon imagePROGRAF PRO-4000S 44" Professional Production

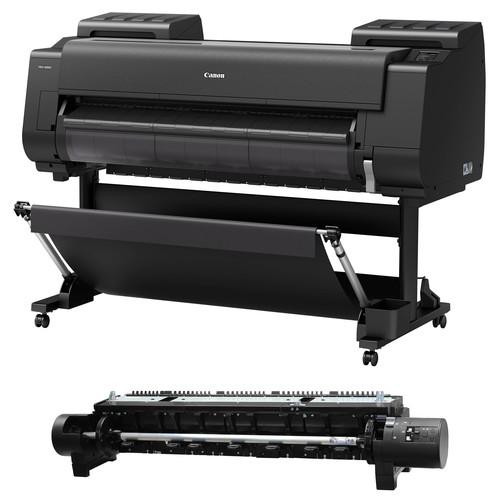

User Manual for Canon imagePROGRAF PRO-4000S 44" Professional Production Signage Large-Format Inkjet Printer with Multifunction Roll System

• Product category: Large Format Printers Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Large Format Printers

Product description

• Canon imagePROGRAF PRO-4000S 44" Professional Production Signage Large-Format Inkjet Printer Deliver posters and signage with precise color consistency with the imagePROGRAF PRO-4000S 44" Professional Production Signage Inkjet Printer from Canon. Able to handle large documents up to 44" wide and with a maximum resolution of 2400 x 1200 dpi, users will be able to create high-quality documents and graphics with sharp text at exceptional sizes. In order to deliver prints with speed and consistency the PRO-4000S has a few tricks up its sleeve, including Canon's FINE technology with a 1.28"-wide 12-channel print head, an eight-color LUCIA PRO pigmented ink set, a high-precision mechanical platform, and the L-COA PRO high-speed image processing engine. Additionally, this model offers a built-in color densitometer that uses a three-color LED and condenser lens to ensure peak performance.

  The PRO-4000S utilizes a Sub Ink Tank system to squeeze every last drop out of your cartridges along with providing smooth swaps even in the midst of a print job. An integrated 320GB hard drive furthers the unit's capabilities by allowing it to work with large documents easily. For operating the device, a large 3.5" color LCD touchscreen is available and a directly available USB port permits printing from a thumb drive. Additionally, this printer has wired and wireless networking thanks to both Ethernet and Wi-Fi connectivity and it has USB 2.0 for a simple connection to a computer.
  8-Color LUCIA PRO Ink Set
  • Using an eight-color system of pigment-based inks this set will deliver vivid images with clear details along with enhanced red color performance, a reduced grain, and improved reproduction in dark areas.
  PF-10 Print Head
  • A PF-10 1.28"-wide print head with 18,432 nozzles and anti-clogging FINE technology allows for fast, precise printing that is checked by 27 individual sensors. For improved performance, this system uses 12 channels with eight colors, symmetrically arranging cyan, magenta, yellow, and matte black for a bidirectional printing process with denser ink placement and faster speeds. The print head is also wider than earlier models, allowing for the printer to only need one and achieve a more compact design.
  L-COA PRO High-Speed Image Processing Engine
  • Utilizing three processing chips, the PRO-4000S can precisely manage large image files and control ink layout for optimal performance and high-resolution prints.
  Color Calibration
  • Featuring an integrated color densitometer with three-color LED and condenser lens, users will be able to recalibrate the PRO-4000S at nearly any time to ensure consistently colored prints. The Device Management Console software furthers your abilities by enabling calibrations and checking of print statuses for up to 50 units from a remote location.
  Optional Multifunction Roll System
  • This optional system enables a second roll of media to be loaded or to set up a bi-directional media take-up unit. The dual-roll feeding mechanism allows media of different types or sizes to be loaded at once for fast swapping or simply having two of the same rolls for high-volume jobs. A bi-directional rewinding method allows users to set up the second roll as a take-up unit and users can choose whether the printed surface is on the inside or outside of the roll.
  USB Direct Printing
  • An accessible USB port permits the use of a thumb drive for direct printing of PDF and JPG files without the use of a computer.
  Sub-Ink Tank System and Large-Capacity Cartridges
  • The Sub-Ink Tank System lets users squeeze every last drop of ink in the tank before needing to replace it, also enabling cartridge swaps in the middle of job without any issues. The PRO-4000S also accepts large-capacity cartridges from the PFI-1100, PFI-1300, and PFI-1700 series with capacities of 160mL, 330mL, and 700mL, respectively.
  Multipositional Basket
  • The basket can be freely adjusted as a catch basket, for flatbed stacking, and as a slope for print display.
  320GB Hard Drive
  • Holds job data in protected storage to alleviate the workload on a Windows or Mac computer and allows for easy access from remote workstations.
  Bundled Software and Tools
  • The PRO-4000S comes with a variety of software and management tools:
    • Media Configuration Tool
    • Accounting Manager
    • imagePROGRAF Printer Driver
    • Print Plug-In for Microsoft Office
    • PosterArtist Lite
    • Direct Print & Share
    • Quick Utility Toolbox
    UPC: 013803269468
  • Canon RU-41 Multifunction Roll System Enhance the functionality of your imagePROGRAF PRO-4000 and PRO-4000S printer with this RU-41 Multifunction Roll System from Canon. When installed, this system allows users to load a second roll of media into the printer or set up a bi-directional take-up unit. The dual-roll feeding mechanism can be used for fast swapping between two different types of media or just having two of the same rolls for high-volume jobs. The bi-directional rewinding method can help by letting users set up a take-up unit, and they will be able to choose whether the printed surface is on the inside or outside of the roll. UPC: 013803270419
  In the Box
  • imagePROGRAF PRO-4000S 44" Professional Production Signage Large-Format Inkjet Printer yxxbwexy
  • Matte Black Starter Ink Tank (330mL)
  • Photo Black Starter Ink Tank (190mL)
  • Cyan Starter Ink Tank (330mL)
  • Magenta Starter Ink Tank (330mL)
  • Yellow Starter Ink Tank (330mL)
  • Photo Cyan Starter Ink Tank (190mL)
  • Photo Magenta Starter Ink Tank (190mL)
  • Gray Starter Ink Tank (190mL)
  • MC-30 Maintenance Cartridge
  • PF-10 Print Head
  • RH2-45 Roll Holder Set
  • Power Cord
  • 5 x Sheets of Heavyweight Coated HG Paper (A2, 16.5 x 23.4")
  • Print Head Alignment Sheet
  • Stand with Legs, Basket, and Tools
  • Document Kit with Setup CD-ROM
  • Limited 1-Year Warranty
  • RU-41 Multifunction Roll System
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon imagePROGRAF PRO-4000S 44" Professional Production Signage Large-Format Inkjet Printer

  Printing Technology	Inkjet
  Ink Type	Pigment Based
  Compatible Ink Cartridges	Canon PFI-1100, Canon PFI-1300, Canon PFI-1700
  Number of Cartridges	8 Individual Cartridges
  Number of Nozzles	1536 Nozzles (Per Channel) 18,432 Nozzles (Total)
  Print Resolution	2400 x 1200 dpi
  Borderless Printing	Yes
  Minimum Ink Droplet Size	4 pL
  Printer Language	SG Raster

  Paper Handling	Manual Feed, Roll Feed
  Media Roll Diameter	2.0" / 5.1 cm (Core) 3.0" / 7.6 cm (Core) 6.7" / 17.0 cm (Outer)
  Media Length	0.6' to 59.0' / 0.2 m to 18.0 m (Roll) 0.6' to 5.2' / 0.2 m to 1.6 m (Sheet)
  Media Width	8.0 to 44.0" / 20.3 to 111.8 cm
  Media Thickness	2.8 to 31.4 mil / 0.1 to 0.8 mm
  Margins	Roll: 0.1" / 3.0 mm (Leading, Sides, Trailing) Sheet: 0.1" / 3.0 mm (Leading, Sides) 0.8" / 20.0 mm (Trailing)

  Interface	USB 2.0, Wi-Fi, Ethernet
  Direct Printing	USB Port
  Hard Drive	320 GB
  Memory	3 GB
  Operating System Support	Windows, macOS/OS X

  Control Panel	3.5" / 8.9 cm Color Touchscreen LCD
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Consumption	107 W (Maximum) 1.8 W (Standby) 0.5 W (Off)
  Max Acoustic Noise	49 dBA
  Operating Humidity	10 to 80%
  Operating Temperature	59 to 86°F / 15 to 30°C
  Dimensions (W x H x D)	46.0 x 62.7 x 38.7" / 116.8 x 159.3 x 98.3 cm (with Basket Open)
  Weight	267.0 lb / 121.0 kg

  Box Dimensions (LxWxH)	70.0 x 34.0 x 33.0"

• Canon RU-41 Multifunction Roll System

  Maximum Paper Width

  44" / 111.8 cm

  Box Dimensions (LxWxH)	67.8 x 21.8 x 18.5"
