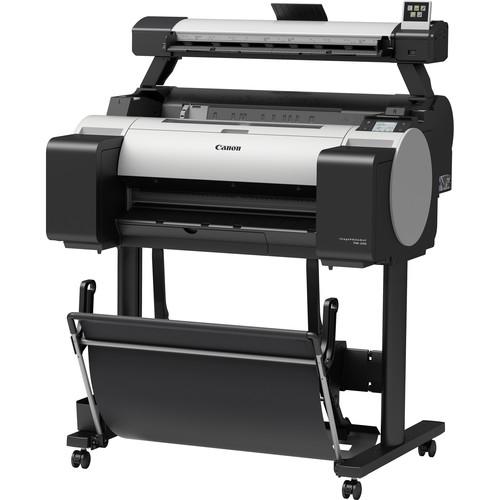

User Manual for Canon imagePROGRAF TM-200 24" Large-Format Inkjet Printer with L24ei Scanner Click to enlarge the picture
Contents of the user manual for the Canon imagePROGRAF TM-200 24" Large-Format Inkjet
- Product category: Large Format Printers Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Large Format Printers
|
User manual for the Canon imagePROGRAF TM-200 24" Large-Format Inkjet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description - The New Canon imagePROGRAF TM Series. TM-200, TM-205, TM-300 and TM-305
Create stunning prints and make high resolution scans with the imagePROGRAF TM-200 24" Large-Format Inkjet Printer with L24ei Scanner from Canon. Able to print media up to 24" wide and with a maximum resolution of 2400 x 1200 dpi, users can create high-quality documents and graphics with sharp text at large-format sizes. Featuring a high-precision, high-density printhead, with a total of 15,360 nozzles, the printer lays down 5 picoliter-size droplets that produce sharp lines and fine details for exceptional image quality. Along with these printing capabilities, this multi-function unit offers high-quality scanning of large-format documents at an optical resolution of 600 dpi. Able to accept documents up to 26" wide, the L24ei has a scan width of 24" and can scan media as long as 109."
Utilizing Canon's 5-Color LUCIA Inks, the TM-200 is ideal for technical documents, CAD drawings, GIS maps, posters, signs, and displays, and the UV and water-resistant inks add a level of protection that can withstand many outdoor conditions, making the printer well-suited for creating and taking building plans onto construction sites. This also makes the printer an excellent option for posters, signs, and displays.
For operating the printer, a 3" color touchscreen is featured, and a dedicated USB port permits printing directly from a thumb drive. The printer has wired and wireless networking via Ethernet, and Wi-Fi connectivity, and it has USB 2.0 for simple connection to a computer. Additionally, the unit's Sub-Ink Tank System allows most of the available ink to be used before replacement, which eliminates wasted ink and saves on operating costs. - 6-Channel PF-06 Printhead
- The high-density, 6-channel PF-06 printhead has a maximum resolution of 2400 x 1200 dpi and is designed for fast printing with minimal mist spray. It has 15,360 nozzles and lays down 5 picoliter-size ink droplets, allowing the printer to produce clean lines and text resulting in sharp detail and excellent image quality.
- 5-Color LUCIA Ink: UV & Water Resistant
- Featuring a 5-Color LUCIA ink set, this UV and water resistant ink is formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine these inks with water resistant media and you have printed documents that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Additionally, this makes the printer well-suited for creating outdoor poster displays and store signs.
- Sub-Ink Tank System
- The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink and cutting down on consumable costs. The empty tanks can also be replaced without stopping the printer, which is useful during long print jobs.
- 3" Color Touchscreen
- Featuring a 3" color touchscreen operation panel, the TM-200 makes it easy to view printer information as well as perform simple operations.
- Wi-Fi Compatible
- With Wi-Fi connectivity, you can transfer technical drawing files and speed up workflow. No Wi-Fi router is needed providing greater freedom during installation.
- Quiet Operation
- The TM-200 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
- Direct USB Thumb Drive Printing
- An accessible USB port permits the use of a thumb drive for direct printing of files without the use of a computer.
- Bundled Software and Tools
- The TM-200 Printer comes with a variety of software and management tools:
TM Unified Printer Driver
Direct Print and Share
Accounting Manager
PosterArtist Lite
AutoCAD Optimized Image Driver
Device Management Console
Media Configuration Tool
Apple AirPrint
Canon Print Service In the Box Canon imagePROGRAF TM-200 24" Large-Format Inkjet Printer with L24ei Scanner L24ei Scanner 2 x Scanner Mounting Bracket 2 x Calibration Target Return Guide Printer Stand Catch Basket 2"/3" Core Media Spool with Adapters Tools and Screws PF-06 Print Head sdtyexcacdct Starter Ink Cartridges Maintenance Cartridge (Installed) Sample Heavyweight Coated Paper (A1, 2 Sheets) 2 x Power Cable USB 2.0 High-Speed Interface USB Connection Sheet Scanner Software User Software CD for Windows (Printer Driver Utilities) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imagePROGRAF TM-200 24" Large-Format Inkjet Printer with L24ei Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon imagePROGRAF TM-200 Specs | | | Printing Technology | Inkjet | | Ink Type | Pigment Based (Black, Cyan, Magenta, Matte Black, Yellow) | | Ink Color | 1 x Black
1 x Matte Black
1 x Cyan
1 x Magenta
1 x Yellow | | Compatible Ink Cartridges | Canon PFI-120, Canon PFI-320 | | Number of Cartridges | 5 Individual Cartridges | | Number of Nozzles | 15,360 Nozzles (Total)
5120 Nozzles (Matte Black)
2560 Nozzles (Per Other Color) | | Print Resolution | 2400 x 1200 dpi | | Borderless Printing | Yes | | Minimum Line Width | 0.79 mil / 0.02 mm | | Line Accuracy |
