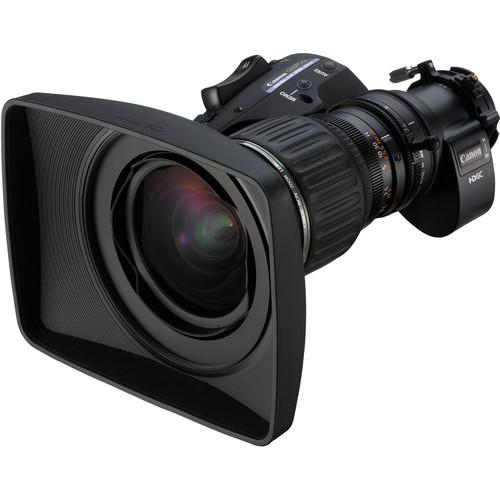

User Manual for Canon KH10ex3.6 IRSE A 10x Wide Angle ENG Zoom Lens Click to enlarge the picture
Contents of the user manual for the Canon KH10ex3.6 IRSE A 10x Wide
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon KH10ex3.6 IRSE A 10x Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon KH10ex3.6 IRSE A 10x Wide Angle ENG Zoom Lens is a 3.6-36mm lens for 1/2" format cameras. The lens has a fast maximum aperture of f/1.45 at 3.6-27mm, which stops down to f/1.9 at 36mm. Canon's HDgc series lenses exhibit high MTF, high resolution and high contrast from the center of the image to its extreme edges.
With the Shuttle Shot feature, a digital drive automatically "shuttles" between two preset points in either direction, and Framing Preset can reproduce a preset zoom position and repeat the same zoom at the highest speed. Users can also preset a specific zoom speed. Finally, 16-bit rotary encoder devices built into the drive unit make it easy to integrate the lens into a virtual digital studio system.
With the goal of minimizing chromatic aberration, the HDgc series lenses utilizes special elements including an artificially re-crystallized element, "Fluorite", with extraordinary dispersion characteristics and the newly developed "Hi-UD" (high index ultra low dispersion) glass. Canon has succeeded in the practical use of special elements along with advanced design techniques like "separate achromatism". - 3.6-36mm f/1.45-1.9 with 2x Extender
- 3.6-36mm renders a wide angle-of-view on 1/2" format cameras, and the 2x extender effectively doubles the focal range.
- Shuttle Shot
- By memorizing any two focal lengths, the digital drive can automatically "shuttle" between the two points, moving in either direction.
- Framing Preset
- An angle of view can be preset in either of two memories and the lens will zoom to that position with the push of a button. It is easy to repeat the same zoom as often as you like at the highest speed or in a preset zoom speed.
- Speed Preset
- A specific zoom speed can be preset in memory and it is possible to repeat the zoom speed as often as you like by pushing a simple button.
- 16 bit Resolution Rotary Encoder Device
- A 16 bit resolution rotary encoder device built into the digital drive unit allows the lens to be integrated into a virtual digital studio system.
In the Box Canon KH10ex3.6 IRSE A 10x Wide Angle ENG Zoom Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KH10ex3.6 IRSE A 10x Wide Angle ENG Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 3.6-36mm Specs | Sensor Compatibility | 1/2" (16:9) | | Focal Length | 3.6 to 36mm
With Extender: 7.2 to 72mm | | Built-In Extender | 2x | | Zoom Ratio | 10x | | Angle of View | Wide: 88.1 x 57.1° (H x V)
Tele: 11.1 x 6.2° (H x V) | | Maximum Aperture | f/1.45 to 1.9
With Extender: f/2.9 to 3.8 | | Filter Thread | M127 | | Macro | Yes | | Minimum Object Distance | 11.8" / 0.3 m
Macro: 0.4" / 10 mm | | Dimensions | 9.5 x 6.6 x 4.4" / 240.8 x 168.2 x 110.6 mm (L x W x H) | | Weight | 4.1 lb / 1.9 kg |
