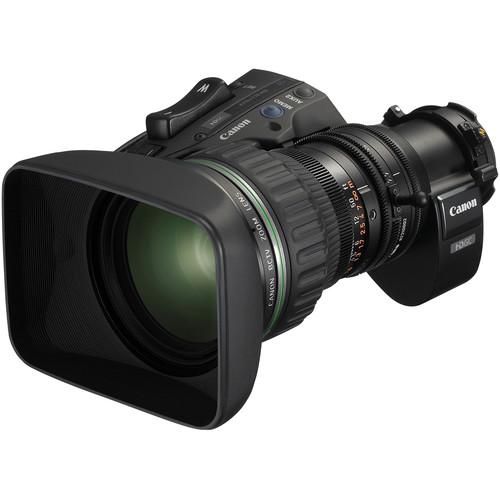

User Manual for Canon KJ17EX7.7BIRSD PS12 HDgc Lens for Panasonic AG-HPX500 Camera Click to enlarge the picture
Contents of the user manual for the Canon KJ17EX7.7BIRSD PS12 HDgc Lens for
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon KJ17EX7.7BIRSD PS12 HDgc Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon KJ17EX7.7BIRSD PS12 HDgc Lens for Panasonic AG-HPX500 Camera offers 17x optical zoom ratio or a focal length range of 7.7-131mm for the camera’s 2/3” format sensor. Featuring a 2x built-in extender, the lens can offer a 15.4-262mm focal length range.
Designed to offer ruggedness and mobility, the PS12 HDgc Lens is ideal for field operations and news gathering. Fluorite and high-index ultra low-dispersion glass elements ensure excellent image reproduction with minimized picture aberrations. Aspherical lens element design offers reduced geometrical distortion, and well-contained monochromatic/chromatic aberrations result in sharp images from the center to the edges of the picture.
The ergonomic design of the digital drive unit ensures stress-free control of zoom, iris, and focus. Featuring the shuttle shot mechanism, the KJ17EX7.7BIRSD PS12 HDgc Lens can memorize any 2 focal lengths, and automatically shuttle between the 2 points both ways. The Frame Preset feature allows you to preset an angle of view, and you can zoom in/out to the set frame with a simple push of a button. The servo zoom control has dynamic speed that ranges from 0.5 sec to over a super-slow 5 minute for the entire zoom range. You can preset a specific zoom speed for repetitive use. The lens features manual focus control.
Featuring a maximum aperture of f/1.8 at 7.7mm, the HDgc lens helps you to shoot in low-light conditions. The lens has a minimum focus distance of 23.6” (0.6m), and can focus from as close as 0.4” (10mm) in Macro mode. The versatile KJ17EX7.7BIRSD PS12 HDgc lens can be used for 4:3 or 16:9 aspect ratio images. - High-definition lens for Panasonic AG-HPX500 camera
- 17x Optical Zoom (7.7-131mm)
- 2x built-in extender offers 15.4-262mm focal length range
- Ruggedness and mobility - ideal for field operations and news gathering
- Fluorite & Hi-UD (high-index ultra low-dispersion) glass elements ensure excellent image reproduction with minimized picture aberrations
- Aspherical lens elements for reduced geometrical distortion
- Well-contained monochromatic/chromatic aberrations result in sharp images from the center to the edges of the picture
- Ergonomically-designed digital drive unit ensures stress-free control of zoom, iris, and focus
- Shuttle Shot - the lens can memorize any 2 focal lengths and automatically shuttle between the 2 points both ways
- Frame Preset - preset an angle of view, and you can zoom in/out to the set frame with a simple push of a button
- Dynamic zoom speed - ranges from 0.5 sec to over a super-slow 5 minute for the entire zoom range
- Maximum apertures - f/1.8 at wide end, and f/2.3 at telephoto end
- Minimum focus distance - 23.6" (0.6m) / 0.4" (10mm) in Macro mode
- Can be used for 4:3 / 16:9 aspect ratios
In the Box Canon KJ17EX7.7BIRSD PS12 HDgc Lens for Panasonic AG-HPX500 Camera 1-year Waranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KJ17EX7.7BIRSD PS12 HDgc Lens for Panasonic AG-HPX500 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 7.7-131mm Specs | | | Zoom Ratio | 17x | | Built-in Extender | 2.0x | | Focal Length | 7.7-131mm | | Focal Length (with Extender) | 15.4-262mm | | Maximum Relative Aperture | f/1.8 at 7.7-102.5mm
f/2.3 at 131mm | | Maximum Relative Aperture (with Extender) | f/3.6 at 15.4-205mm
f/4.6 at 262mm | | Macro | Yes | | Filter Size | 82mm P0.75 | | Minimum Object Distance (M.O.D.) | 23.6" (0.6m)
0.4" (10mm) in Macro mode | | | | Dimensions (WxHxL) | 6.27 x 4.2 x 7.48"(159.3 x 106.6 x 197.8mm) | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 18.8 x 12.9 x 12.5" |
