User Manual for Canon KJ20x8.2B Portable 20x HD Lens with 2x Zoom Extender Click to enlarge the picture
Contents of the user manual for the Canon KJ20x8.2B Portable 20x HD Lens
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon KJ20x8.2B Portable 20x HD Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

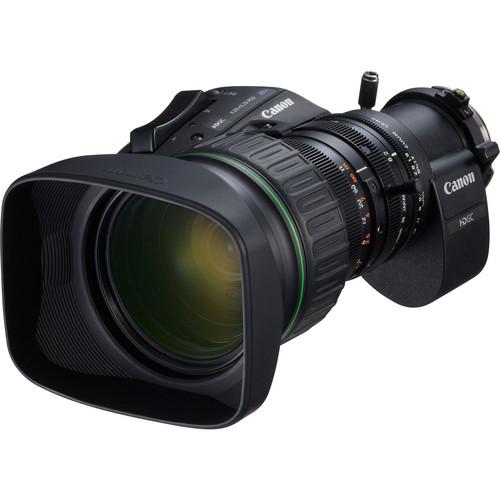

Product description The Canon KJ20x8.2B Portable 20x HD Lens with 2x Zoom Extender features a B4 mount for use with 2/3" format camcorders and offers a focal length range of 8.2-164mm. With a built-in 2x extender, you can enhance its focal length to 16.4-328mm.
Crafted with high-quality design tools including optical-simulation and 3D-design technologies, the
Canon HD lens ensures minimal axial and lateral chromatic aberrations, coma aberrations, and geometric distortion. Furthermore, the lens features optical materials and multilayer optical coatings that minimize optical artifacts stimulated by strong light sources. Macro focusing ability effectively reduces the minimum object distance to only 10mm from the front of the lens.
Advanced Drive Unit technology provides a convenient control when using Canon portable HD lenses. Thanks to its ergonomic design, the drive unit touts a comfortable grip and an improved balance, which further enhances your tactile connection with the lens.
This lens also includes Canon’s Shuttle Shot technology that improves production capabilities. Employ the Shuttle Shot technology to rapidly zoom back and forth between any two positions. It can also be used to zoom to the telephoto position for checking focus and almost instantly returning to the original position, or ‘shuttle’ between any two zoom-positions at any time. You can also set specific Shuttle Shot zoom positions through a memo switch that enables reliable Shuttle Shot setup in the field where more consistent functioning of the controls is required. Additionally, you can securely grip the drive unit without inadvertently pressing on the VTR or Shuttle Shot buttons. - B4 lens mount for use with 2/3" format camcorders
- Offers a focal length range of 8.2-164mm
- Built-in 2x extender enhances focal length from 8.2-164mm to 16.4-328mm
- Maximum Zoom Speed 1.0 sec. from wide end to tele end
- Made from high-quality design tools including optical-simulation and 3D-design technologies, novel optical glass materials and coatings, and dispersion glass
- Minimizes longitudinal and lateral chromatic aberrations, monochromatic aberrations like coma and astigmatism, and geometric distortion
- Optical materials and multilayer optical coatings weaken optical artifacts stimulated by strong light sources
- High MTF at picture center controls picture extremities
- Macro focusing ability effectively reduces the minimum object distance to only 10 mm (from the front of the lens)
- Suitable in the fields of journalism and production
- Advanced Drive Unit
- Has an ergonomic design for convenience and control when using the HD lens
Camera-communication interface supports aberration correction functions
Servomotor has a noise-suppressing construction to avoid corresponding increase in noise
Ribbed surface on the bottom for a firmer grip and better overall operational control
Grip Support ensures that you have a secure grip over the drive unit without pressing on the VTR or Shuttle Shot buttons - Shuttle Shot Technology
- Improves your production capabilities
Rapidly zooms back and forth between any two positions
Can also be used to zoom to the telephoto position for checking focus and almost instantly returning to the original position, or ‘shuttle’ between any two zoom-positions at any time
Has a memo switch that sets specific zoom positions for the Shuttle Shot function In the Box Canon KJ20x8.2B Portable 20x HD Lens with 2x Zoom Extender 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KJ20x8.2B Portable 20x HD Lens with 2x Zoom Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 8.2-164mm Specs | | | Mount Type | B4 | | Object Image Format | 2/3" | | Aspect Ratio | 16:9 | | Object Image size (H x V) | 9.59 x 5.39 mm | | Zoom Ratio | 20 X | | Focal Length Range | 8.2 - 164 mm | | Focal Length Range with Extender | 16.4 - 328 mm | | Angular Field of View | 60.7 × 36.5° at 8.2 mm
3.4 × 1.9° at 164 mm | | Angular Field of View with Extender | 32.6 × 18.7° at 16.4 mm
1.7 × 0.9° at 328 mm | | | | Maximum Relative Aperture (F-Number) | 1:1.9 at 8.2-115.4 mm
1:2.7 at 164 mm (Ramping Characteristic) | | Maximum Relative Aperture (F-Number) with Extender | 1:3.8 at 16.4-230.8 mm 1:5.4 at 328 mm (Ramping Characteristic) | | | | MOD From Front of Lens | 0.9 m (10 mm with Macro) | | Scene Object Dimensions at MOD | 98.2 × 55.2 cm at 8.2 mm 5.0 × 2.8 cm at 164 mm | | Scene Object Dimensions at MOD with Extender | 49.1 × 27.6 cm at 16.4 mm 2.5 × 1.4 cm at 328 mm | | Physical Attributes | 163.3 mm 103 mm 208 mm 3.13 lb (1.42 kg) | | Width | 163.3 mm | | Height | 103 mm | | Size Length mm mod1 | 208 mm | | Weight | 3.13 lb (1.42 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 14.6 x 11.4 x 9.8" |
