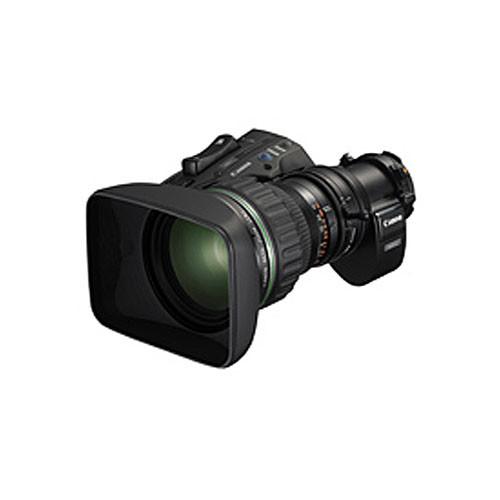

User Manual for Canon KJ22EX7.6B IRSE 2nd Generation HDgc Telephoto Lens Click to enlarge the picture
Contents of the user manual for the Canon KJ22EX7.6B IRSE 2nd Generation HDgc
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon KJ22EX7.6B IRSE 2nd Generation HDgc contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon KJ22EX7.6B IRSE 2nd Generation HDgc Telephoto Lens offers 22x zoom ratio, 65° wide angle view, and delivers images in the 16:9 HD and 4:3 formats. It has a focal length of 7.6-168mm, and with the built-in 2.0x extender provides a focal length of 15.2-336mm, providing improved image framing for outdoor applications. The focus can be manually adjusted.
Equipped with an enhanced digital drive featuring miniature 16-bit high resolution Rotary Encoder Devices, the KJ22EX7.6B IRSE Telephoto Lens offers a dynamic zoom speed range of 0.5 sec. to over a 5 min. super slow zoom, precise lens control, and zoom, focus, and iris control repeatability. In addition, it can be easily integrated into virtual digital studio systems without any options. Canon’s Information Display provides precise customization of the enhanced digital functions.
With the use of new optical designs, the KJ22EX7.6B IRSE Telephoto Lens provides enhanced quality images and maintains a fine balance between size, weight, and HD optical performance. It uses special optical materials including Fluorite and Hi-UD glasses that help reduce curvature of field and chromatic aberrations. With a large Diameter Aspherical lens, the lens provides enhanced control of comatic aberration, geometric distortion, and corner resolution. - Delivers images in the 16:9 HD and 4:3 formats
- Features a focal length of 7.6-168 mm
- Focus adjustment - Manual
- Built-in 2.0x extender - provides a focal length of 15.2-336 mm and an improved image framing for outdoor applications
- Equipped with an enhanced digital drive featuring miniature 16-bit high resolution Rotary Encoder Devices that offers dynamic zoom speed range of 0.5 sec. to over a 5 min. super slow zoom, precise lens control, zoom, focus and iris control repeatability, and easy integration into virtual digital studio systems without any options
- Canon's Information Display provides precise customization of the enhanced digital functions
- Shuttle Shot - the Digital Drive, on memorizing any 2 focal lengths, can automatically "shuttle" between them, moving in either direction
- Frame Preset - an angle of view can be preset in either of 2 memories, and at the push of a button, the lens will zoom at the highest speed or in a preset zoom speed to the preset position
- Speed Preset - a specific zoom speed can be preset in memory, and at the push of a button, the zoom speed can be repeated as often as you wish
- Uses new optical designs - help provide enhanced quality images and maintain a fine balance between size, weight, and HD optical performance
- Incorporates special optical materials including Fluorite and Hi-UD glasses that help reduce curvature of field and chromatic aberrations
- Uses Large Diameter Aspherical lens for enhanced control of comatic aberration, geometric distortion, and corner resolution
In the Box Canon KJ22EX7.6B IRSE 2nd Generation HDgc Telephoto Lens 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KJ22EX7.6B IRSE 2nd Generation HDgc Telephoto Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 7.6-168mm Specs | Zoom Ratio | 22x | | Focus Adjusting | Manual | | Focal Length | 1.0x extender: 7.6-168mm 2.0x extender: 15.2-336mm | | Maximum Relative Aperture | 1.0x extender: 1:1.8 at 7.6-116.3mm, 1:2.6 at 168mm 2.0x extender: 1:3.6 at 15.2-232.6mm, 1:5.1 at 336mm | | Angular Field of View | 1.0x extender (16:9) - 64.6° x 39.1° at 7.6mm, 3.3° x 1.8° at 168mm 1.0x extender (4:3) - 60.1° x 46.9° at 7.6mm, 3.0° x 2.3° at 168mm 2.0x extender (16:9) - 35.1° x 20.1° at 15.2mmm, 1.6° x 0.9° at 336mm 2.0x extender (4:3) - 32.3° x 24.5° at 15.2mm, 1.5° x 1.1° at 336mm | | Minimum Object Distance (M.O.D.) | 0.80m (10mm with Macro) | | Object Dimensions at M.O.D. | 1.0x extender (16:9) - 95.0 x 53.4cm at 7.6mm, 4.4 x 2.5cm at 168mm 1.0x extender (4:3) - 87.4 x 65.6cm at 7.6mm, 4.0 x 3.0cm at 168mm 2.0x extender (16:9) - 47.5 x 26.7cm at 15.2mm, 2.2 x 1.3cm at 336mm 2.0x extender (4:3) - 43.7 x 32.8cm at 15.2mm, 2.0 x 1.5cm at 336mm | | Weight | Approx. Mass: 4.0 lb (1.82 kg) | | Dimensions (WxHxL) | 6.48 x 4.41 x 8.6" (164.7 x 112.1 x 218.6 mm) | | | | Package Weight | 9.85 lb | | Box Dimensions (LxWxH) | 19.0 x 12.9 x 12.6" |
