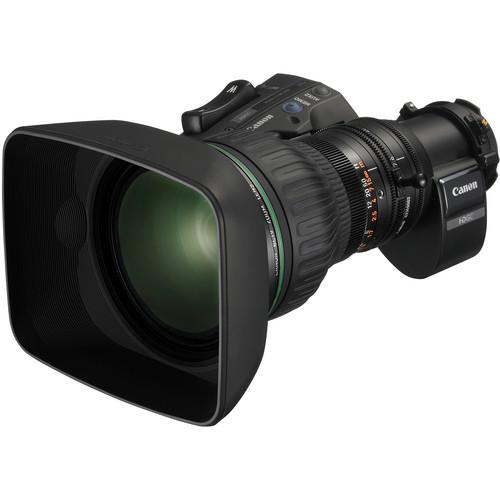

Product description The Canon KJ22ex7.6B ITS-ME 2/3" ENG/EFP Lens is a 2/3" HDTV zoom lens from Canon's HDgc family of lenses. The lens is intended for the HD News gathering, reality show and lower budget HD production markets. With a 22 x zoom ratio, this lens has a focal length range of 7.6 to 168mm, or 15.2 to 336mm when using the built-in 2x extender. The KJ22ex7.6B exhibits less noticeable focus breathing than its predecessor, making focus adjustments less noticeable. Canon's fourth generation digital servo system utilizes 16-bit rotary encoders to ensure zoom, iris and focus pulls are precisely repeatable. Canon's Shuttle Shot allows the lens to memorize two lens positions and quickly shuttle between them. The digital servo also allows you to adjust the zoom speed from between 0.5 seconds to 5 minutes to go from wide to telephoto.
The KJ22ex7.6B incorporates aspheric lens elements, multilayer optical coatings, Fluorite and Hi-UD glass into the lens design for improved: contrast, image geometry, corner sharpness, contrast and sharpness. Internal focusing elements ensure the lens volume remains constant throughout the zoom and focus range. The lens housing utilizes a magnesium alloy body to allow the lens to be both lightweight and durable. Focus and zoom controls are designed to fit ergonomically with the camera operator, improving comfort during hand held operation. Lens Design -
- Aspheric lens optics utilizing Flourite and Hi-UD glass with multilayer coating for sharp clear images and improved resolution corner to corner
- Internal foucs for constant lens volume
- Redesigned zoom control and focus ring access for improved ergonomics from previous generation lens
- Materials and substances potentially harmful to the environment are avoided in the lens construction
Digital Servo System -
- Framing Preset
- Allows you to preset a focal length into either of the two lens memories
- A simple push of a button allows you to zoom the lens to that preset
- The digital drive ensures repeatable zoom positions to 0.1 micrometer
- The zoom speed can be varied as desired without affecting the accuracy of the zoom
- Speed Preset
- Allows you to set a repeatable zoom speed
- Shuttle Shot
- The digital servo system can "shuttle" the lens between any memorized focal lengths two points in either direction
- 16-bit Rotary Lens Encoder
- Encodes Focus, Iris and Zoom
- Allows for precision repeatable zoom, focus and iris pulls accurate to 0.1 micrometer
- The lens requires no modifications to be used with virtual digital studios
In the Box Canon KJ22ex7.6B ITS-ME 2/3" ENG/EFP Lens Limited 1-Year Warranty (Parts and Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KJ22ex7.6B ITS-ME 2 3" ENG EFP Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 7.6-168mm Specs | Sensor Compatibility | 2/3" 3CCD (16:9) | | Focal Length | 7.6 to 168mm
With Extender: 15.2 to 336mm | | Built-In Extender | 2x (Manual) | | Zoom Ratio | 22x | | Angle of View | Wide: 64.6 x 39.1° (H x V)
Tele: 3.3 x 1.8° (H x V)
With 2x Extender
Wide: 35.1 x 20.1° (H x V)
Tele: 1.6 x 0.9° (H x V) | | Focus Type | Servo | | Iris Type | Manual, Servo | | Macro | Yes | | Minimum Object Distance | Macro: 31.5" / 0.8 m | | Dimensions | 8.6 x 6.5 x 4.4" / 218.6 x 164.7 x 112.1 mm (L x W x H) | | Weight | 4.2 lb / 1.9 kg |
