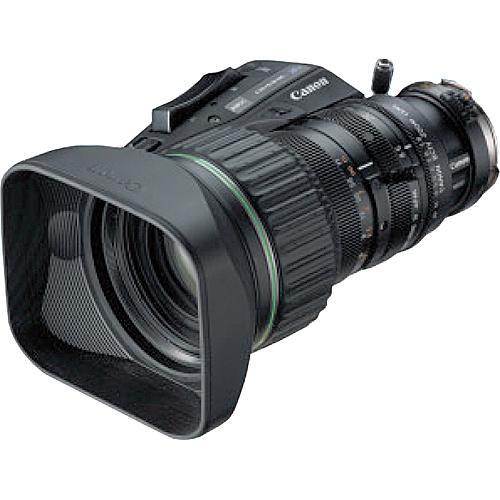

User Manual for Canon KT20x5B-KTS HDgc 20x 1 3" Full-Servo Lens Click to enlarge the picture
Contents of the user manual for the Canon KT20x5B-KTS HDgc 20x 1 3"
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon KT20x5B-KTS HDgc 20x 1 3" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon KT20x5B-KTS is a 20x zoom lens for professional 1/3" remote video cameras. This model is highly versatile and can be used in a variety of professional applications, including teleconferencing, distance learning, and specialized broadcasting small studio and sports broadcasting. The focal-length range is 5-100mm with a minimum object distance of 3.0' (0.9m). - Video Conferencing Remote Control
- Designed to fit a remotely controlled and monitored pan and tilt system, this lens is particularly suited for the highest quality industrial cameras, as well as high definition broadcast including sports coverage.
- High Definition Ready
- Many high definition cameras are hamstrung by insufficient optics. Electronic Field Production (EFP) lenses traditionally have been built to accommodate standard definition. This lens is designed specifically with high definition in mind. The optics increase fidelity, making sure HD footage is crystal clear.
- Improved Image Quality
- The lens element design greatly reduces aberrations and image distortions. These advances contribute to more balanced imaging from center to edge throughout the aperture range.
- Internal Focus for Ultimate Versatility
- The lens is made for the highest quality professional video cameras. The front lens element is stationary and can be used with a matte box for greater lens flair protection as well as a wide array of square and rectangular filters.
- High Zoom Speed
- With a zoom speed of 2 seconds, the lens will never miss any action.
- Square hood reduces flares and ghosting
In the Box Canon KT20x5B-KTS HDgc 20x 1/3" Full-Servo Lens Lens Hood Front and Rear Lens Cap 1-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon KT20x5B-KTS HDgc 20x 1 3" Full-Servo Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 5-100mm Specs | Sensor Compatibility | 1/3" CCD (16:9) | | Focal Length | 5 to 100mm | | Built-In Extender | None | | Zoom Ratio | 20x | | Angle of View | Wide: 51.9° (H)
Tele: 2.8° (H) | | Maximum Aperture | f/1.4 to 1.55 | | Focus Type | Servo | | Iris Type | Servo | | Macro | Yes | | Minimum Object Distance | 3' / 0.9 m | | Dimensions | 6.7 x 4.4 x 3.8" / 17.2 x 11.3 x 9.6 cm (L x W x H) | | Weight | 2.9 lb / 1.3 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
