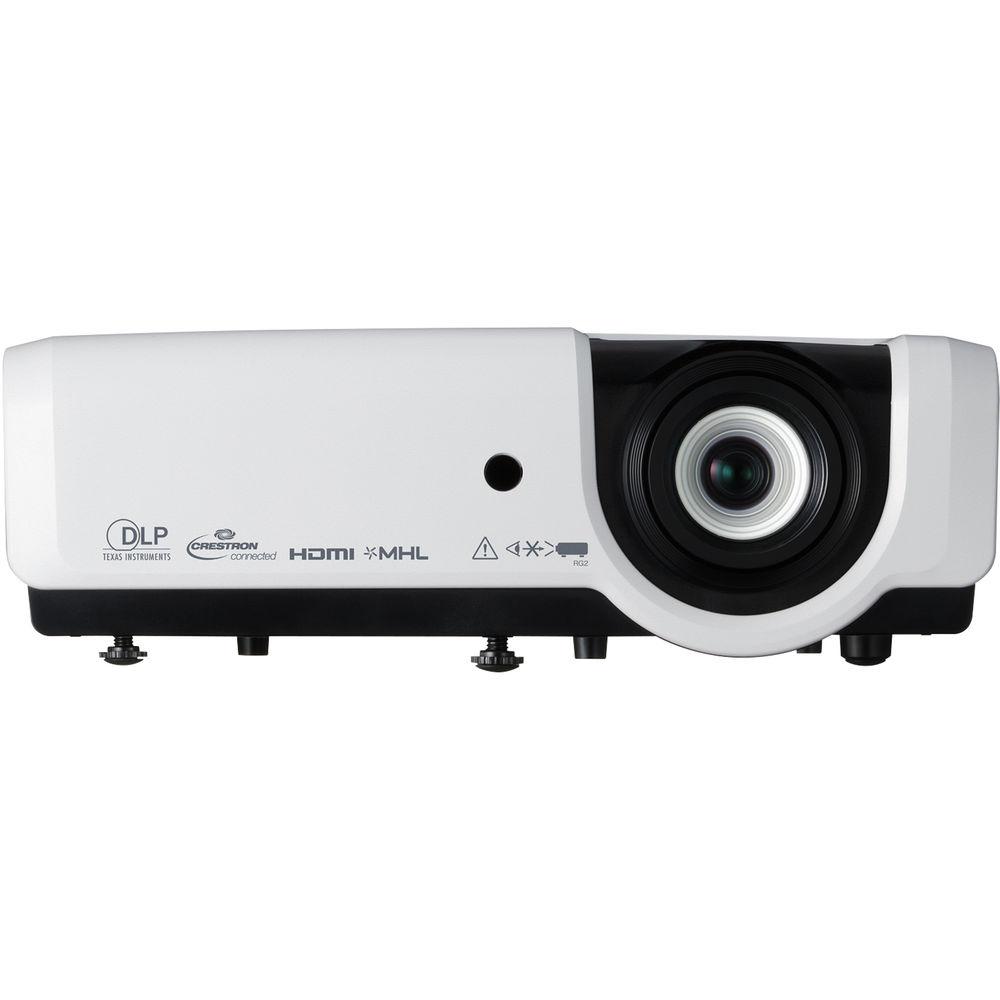

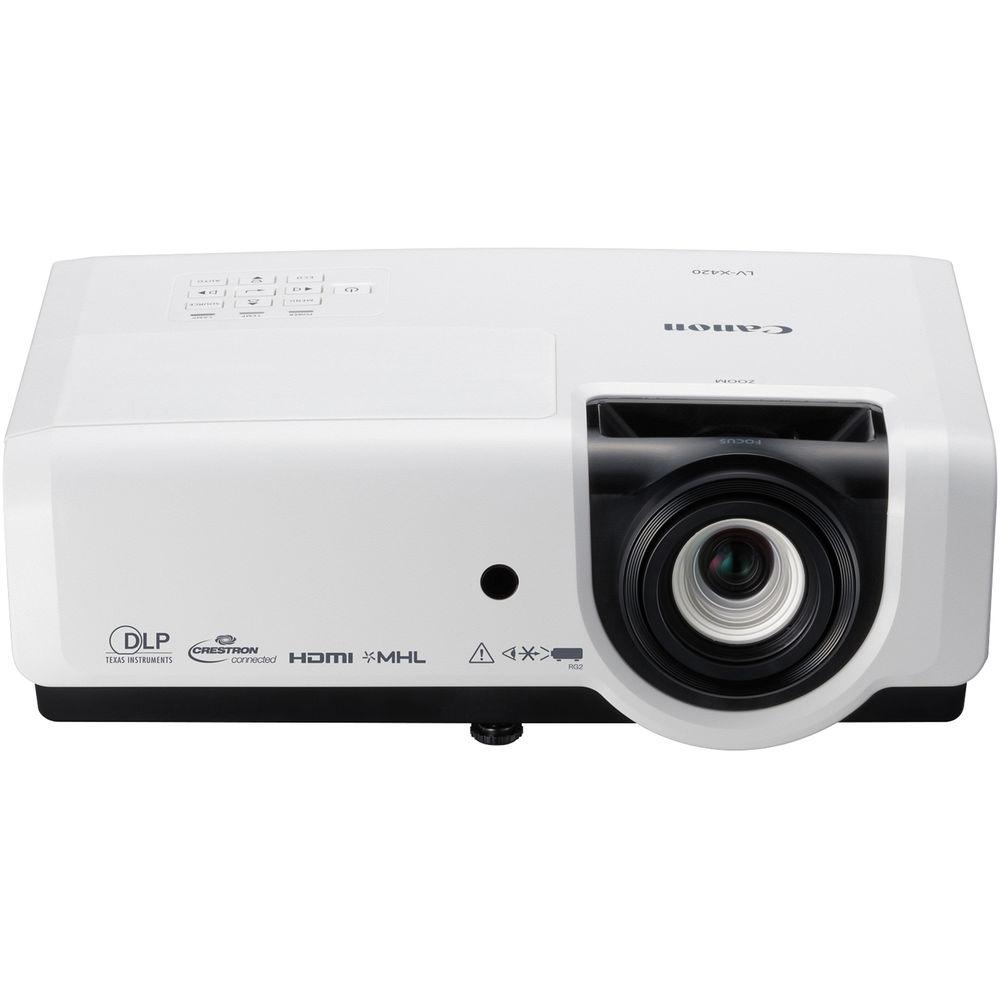

Product description Enjoy bright images in most settings with the Canon LV-X420 4200-Lumen XGA DLP Projector. Its native 1024 x 768 resolution displays data and images clearly at various viewing distances, while its 1.83 to 2.75:1 throw ratio allows you to place the projector at various distances from the screen without losing focus. The LV-X420 features S-Video, RCA composite video, two VGA, and two HDMI inputs for connecting different types of devices. One HDMI input is MHL-compatible for wired mirroring of your compatible smart device. The projector includes a 5.9' VGA cable and an IR remote control for added convenience. - 10,000:1 Dynamic Contrast Ratio with 4200 Lumens of Brightness
- The 4200-lumen brightness and 10,000:1 dynamic contrast ratio help ensure deep blacks, bright whites, and enhanced color for images with crisp depth and dimension and accurate color.
- Native XGA 1024 x 768 Resolution
- The native XGA 1024 x 768 resolution allows graphics, text, and other visual content to be shown accurately and supports source material with resolutions up to WUXGA 1920 x 1200.
- DLP Technology
- The LV-X420 uses Digital Light Processing (DLP) technology, which utilizes a six-segment color wheel, and a reflective Digital Micromirror Device (DMD) to produce detailed video and images.
- Multiple Image Modes
- Each image mode provides a different variation of color reproduction characteristics suitable for the image type and projection environment.
- Presentation: Well suited for somewhat bright rooms when text needs to be clear, such as in a video presentation.
- Standard: Designed for bright rooms, and when using content from computer screens or motion picture content.
- sRGB: Complies with the sRGB standards and is intended to optimize the projection of photos from sRGB-compatible digital cameras.
- Movie/Cinema: Intended for colorful videos or images.
- User1/User2: Two user-defined modes that simplify image customization, each storing a unique image setting. This allows multiple presenters to share the projector, while keeping the image settings optimized for diverse subject matters or sources. In this mode, you may also make advanced color adjustments through the management of the six colors on the color wheel.
- Versatile Connectivity Options

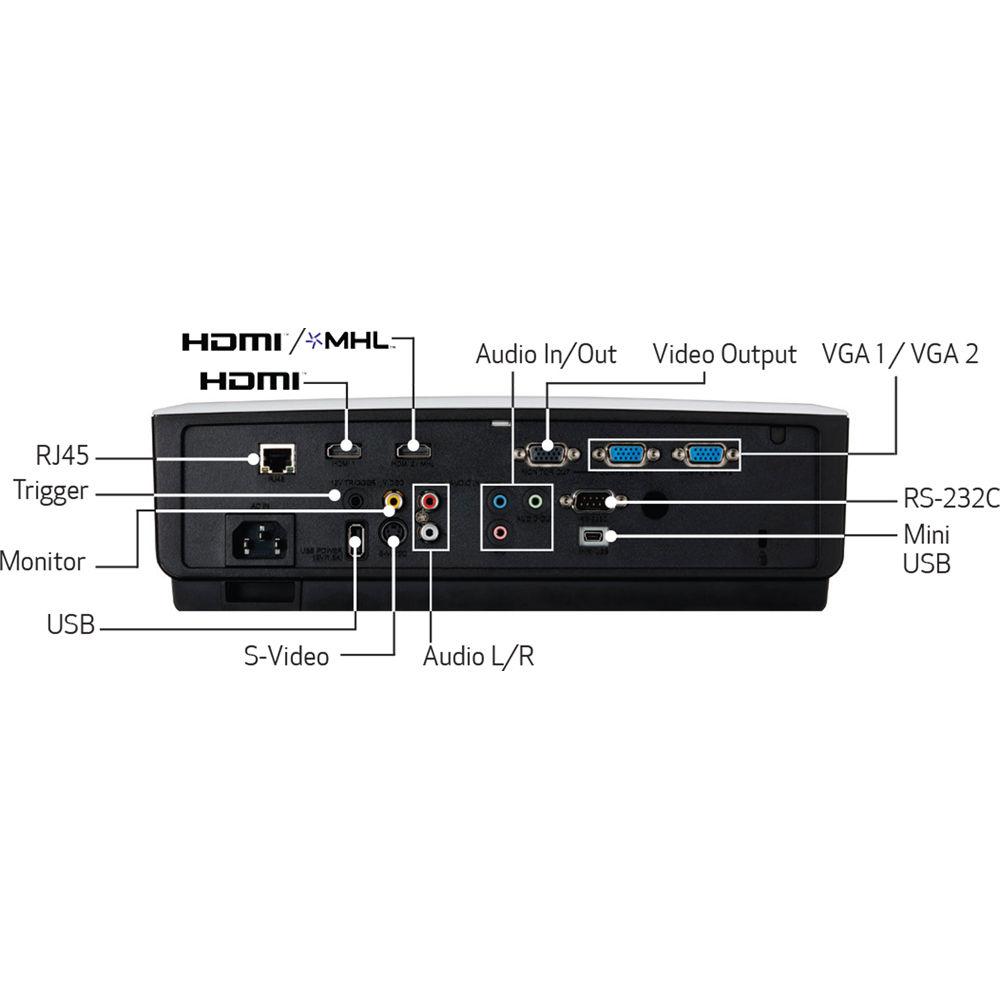

- The LV-X420 includes HDMI, HDMI with MHL, RCA composite video, stereo RCA audio, 3.5mm audio, and Ethernet LAN connections, plus various control connections.
- PJLink, Crestron, and e-Control Network Management Support
- Compatibility with Crestron helps ensure seamless integration into various systems or infrastructures and smooth network management. PJLink also makes it possible to control and monitor the projector over a network and allows you to observe lamp hours, usage, and more. The LV-X420 is also equipped with e-Control, which allows you to connect with the projector when using HTML via a web browser. By inputting the IP address of the projector into your browser, you can connect and access information such as on/off functions, source settings, screen blanking, inputs, and more.
- Designed for Flexible Placement

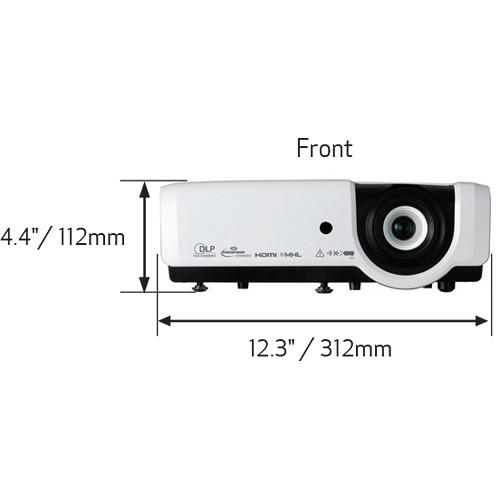

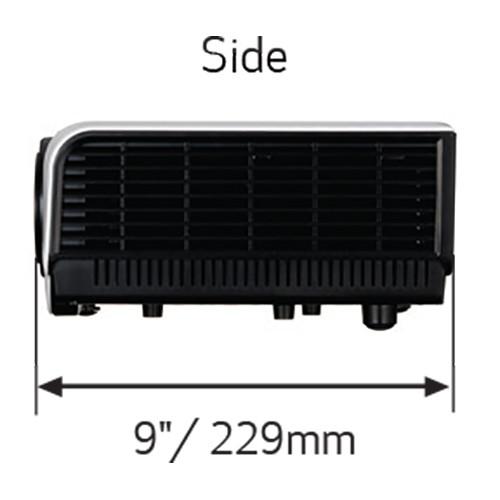

- The LV-X420 features a compact 12.3 x 4.4 x 9" design and, weighing only 7.5 lb, is relatively easy to move from room to room and place on a desk or table, or mount to a wall or ceiling.
- Engineered for Low Power Consumption and Simplified Maintenance
- The projector offers multiple power management settings that allow you to preset standby durations, execute power operations, and auto-assign functions to the power button. Additionally, it features a filter-free design, and the lamp can be replaced while ceiling-mounted, for simplified maintenance.
- 3D-Ready
- The LV-X420 is capable of projecting 3D content via the DLP-Link system when used with compatible 3D glasses, content, and source devices.
- Built-In 10-Watt Speaker
- The built-in speaker allows audio to accompany your presentation, so external speakers won't be necessary in smaller environments.

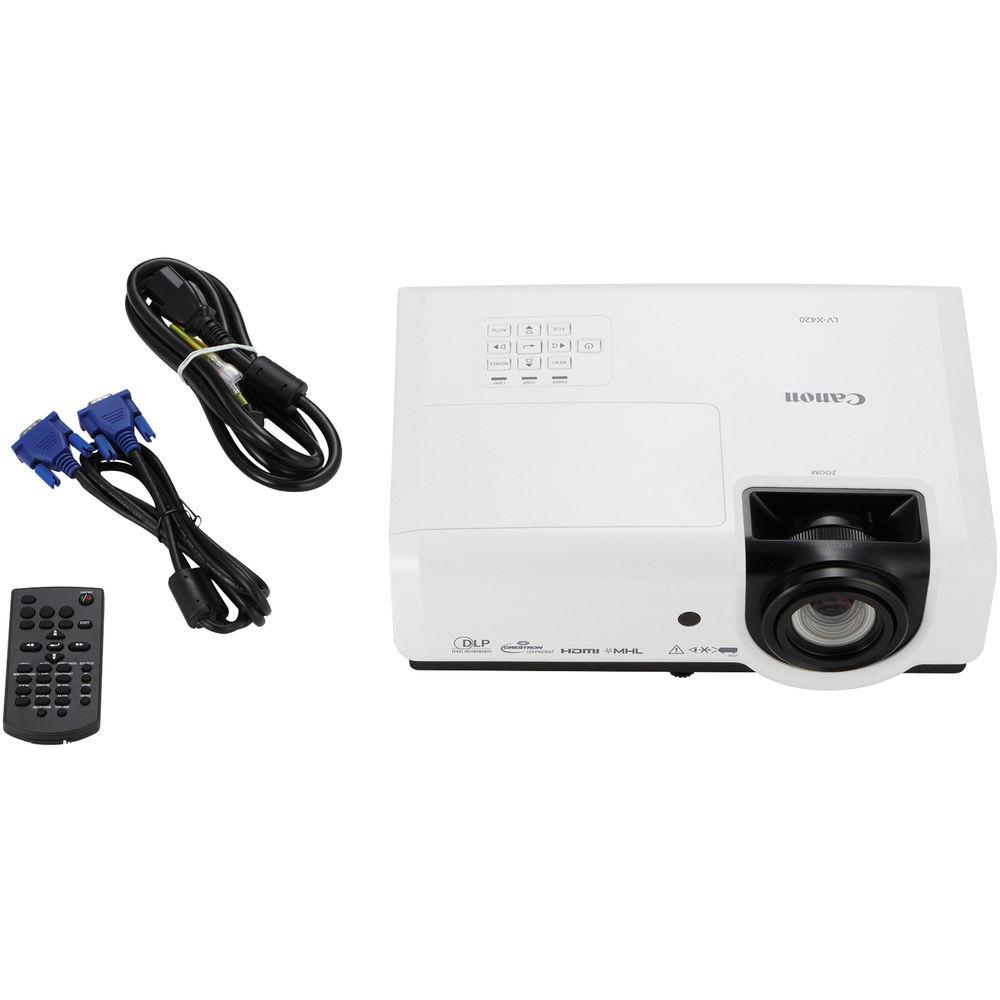

UPC: 013803289237 In the Box Canon LV-X420 4200-Lumen XGA DLP Projector LV-RC11 Wireless IR Remote Control for LV-HD420 & LV-X420 Projectors CR2025 Battery 5.9' VGA Cable 5.9' Power Cord Limited 3-Year Warranty on Projector Limited 120-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon LV-X420 4200-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon LV-X420 Specs | | | Display System | 0.55" DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 4200 Lumens | | Uniformity | 80% | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 2.35:1 | | Dynamic Contrast Ratio | 10,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Sequential
Top Bottom
Side by Side
Frame Packing | | Color Wheel | 6-Segment (R, G, B, W, Y, C) | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Vertical: 24 to 120 Hz
Horizontal: 15.625 to 101.6 kHz | | | | Focus | Manual | | Lens | f/2.42 - 2.97 (f = 20.7 - 31.1 mm) | | Lens Shift | Horizontal: ± 64% | | Optical Zoom | Manual: 1.5x | | Throw Distance | 3.937 - 32.808' / 1.2 - 10 m | | Throw Ratio | 1.83 - 2.75:1 | | Projection Size | 30 - 260" / 76.20 - 660.40 cm | | | | Keystone Correction | Manual-Vertical: ± 30°

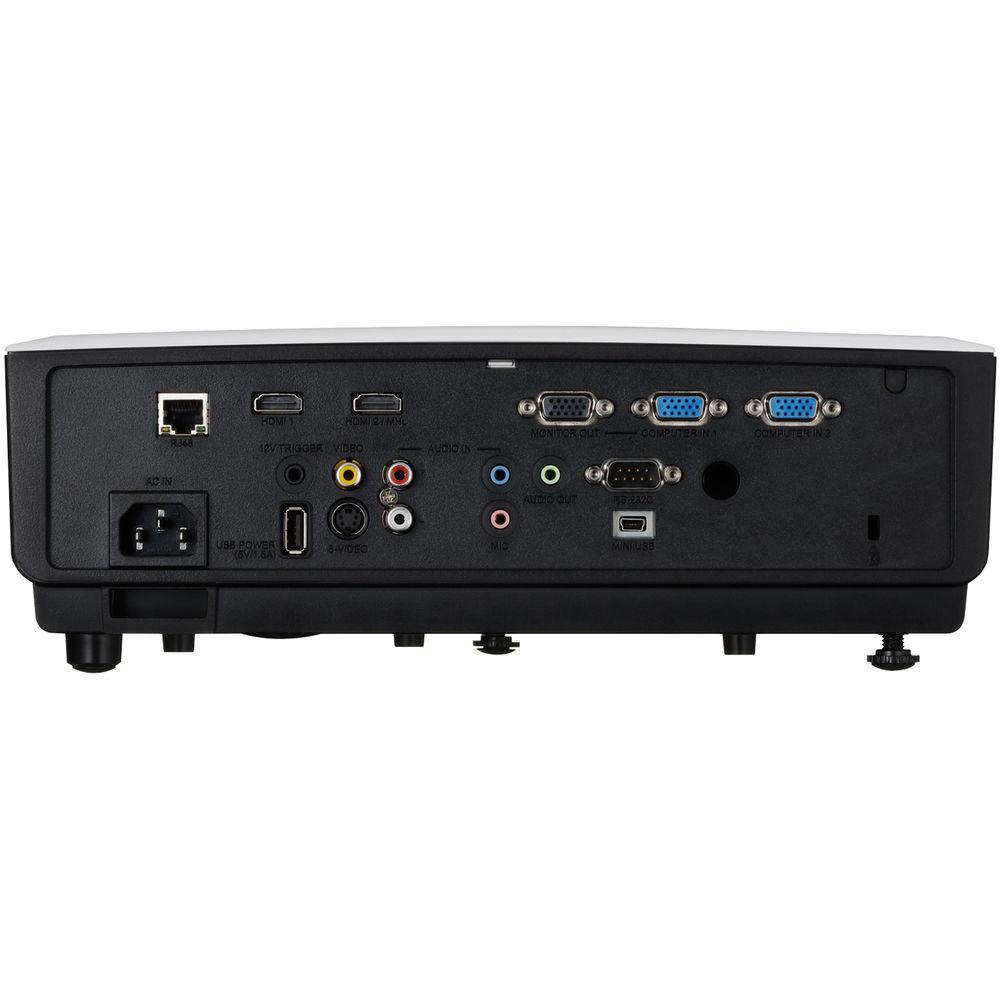

Manual-Horizontal: ± 30° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input/Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x 12 V Trigger Type-A Female (Output)
1 x USB Power (Output)
1 x USB Service (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x SHP) | | Lamp Power | 310 W | | Expected Lamp Life | Full Brightness: 2500 Hours
Low Brightness: 3000 Hours | | Fan Noise | Full Brightness: 40 dB
Low Brightness: 36 dB | | Security | Cable Lock Slot
Keypad Lock | | Supported Languages | Czech
Dutch
English
French
German
Italian
Japanese
Korean
Polish
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1399 BTU | | Power Consumption | Full Brightness: 410 W
Low Brightness: 320 W
Standby Mode (Lamp Off): 2.0 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 - 85% | | Dimensions (W x H x D) | 12.4 x 4.4 x 9.1" / 314.0 x 112.0 x 231.0 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 15.1 x 12.1 x 7.9" |
