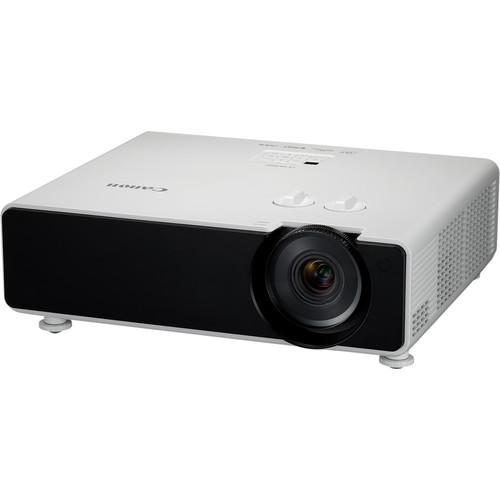

User Manual for Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP Projector Click to enlarge the picture
Contents of the user manual for the Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Enjoy bright images in a variety of settings with the Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP Projector. Its native 1920 x 1200 resolution displays data and images clearly at various viewing distances, while its 1.36 to 2.18:1 throw ratio allows you to place the projector at various distances from the screen without losing focus.
The projector features S-Video, RCA composite video, VGA, and two HDMI inputs for connecting different types of devices. One HDMI input is MHL-compatible for wired mirroring of your compatible smart device. The projector includes a 5.9' VGA cable and an IR remote control for added convenience. - Laser Projection for Simplified Maintenance
- The onboard laser light source can last up to 20,000 hours. With no lamps or filters to replace, the projector can run continuously and virtually maintenance-free. At 8 hours per day of use, the projector can keep going for up to 2500 days, or 7 years, providing a low total cost of ownership.
- High Brightness Output
- The projector delivers 1920 x 1200 WUXGA resolution for HD images, while the 5000-lumen brightness helps ensure a clear image, even in well-lit environments.
- Designed for Flexible Installation
- The ±50% vertical and ±23% horizontal lens shift and 1.36 to 2.18:1 throw ratio help simplify installation. Additionally, 360° positioning allows both landscape and portrait orientation, making the projector suitable for digital signage in retail and museum settings.
- Versatile Connectivity
- HDBaseT helps simplify your connections with control of video and audio over one Ethernet cable. The projector also features MHL (Mobile High Definition Link) compatibility on one of the two HDMI inputs, so mobile content from your compatible tablet or smartphone can be viewed directly through the projector. A/V network management systems are also supported, including Crestron RoomView and AMX Device Discovery, to help you minimize downtime.
- Additional Features
-
- Multiple image modes (Presentation, Standard, sRGB, Movie, DICOM, USER 1, USER 2) help you optimize image quality for your setting
- Image adjustment options for customizable image characteristics
- Installation versatility with lens shift, 4-point keystone correction, and more installation-friendly functions
- Color adjustment options include color temperature, color, tint, 6-axis color adjustment, and BrilliantColor
- Screen color correction features include off, light yellow, pink, light green, and blackboard
- Four adjustable feet
- Blue laser diode light source with a yellow phosphor wheel

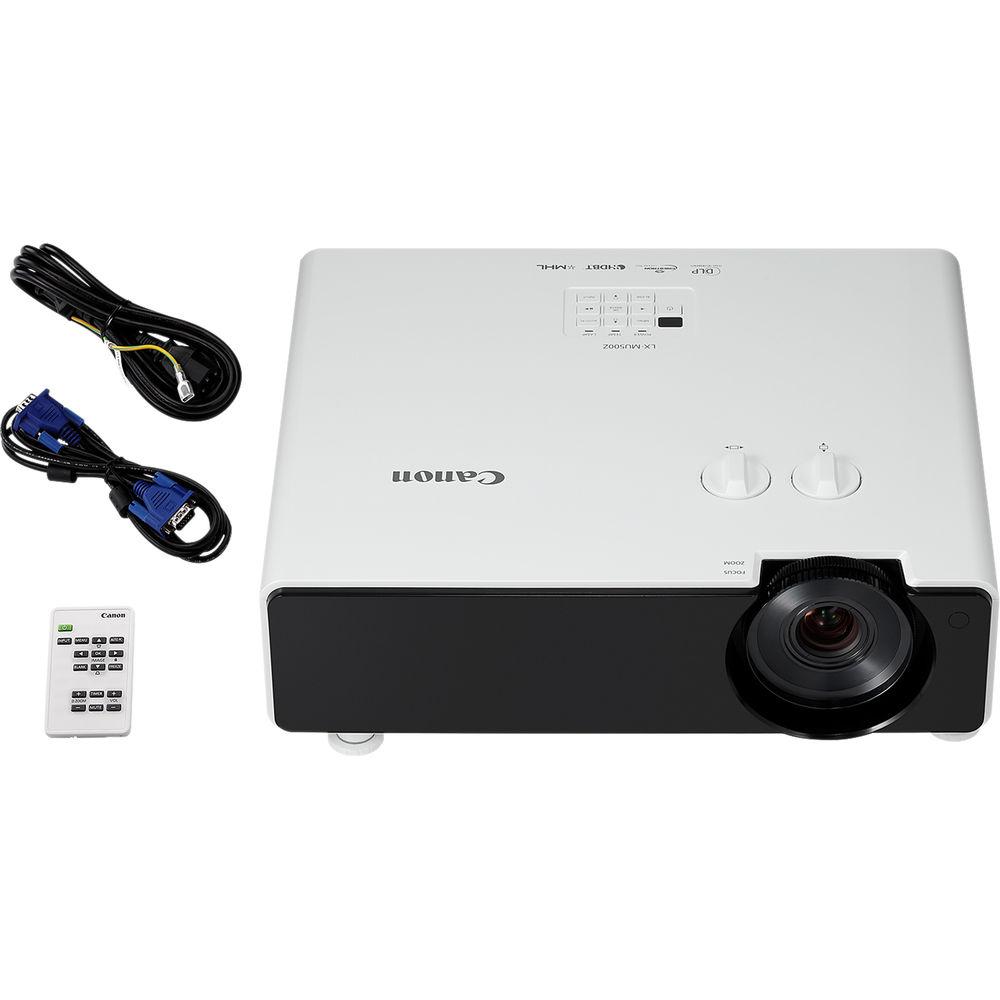

UPC: 013803306675 In the Box Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP Projector Remote Control with Battery 5.9' VGA Cable 5.9' Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon LX-MU500Z 5000-Lumen WUXGA Laser DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon LXMU500Z Specs | | | Display System | 0.48" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5000 Lumens | | Uniformity | 80% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 50,000:1 | | Scan | Vertical: 24 to 119.989 Hz
Horizontal: 15.63 to 101.563 kHz | | | | Focus | Manual | | Lens | f/1.81 - 2.1 (f = 14.3 - 22.9 mm) | | Lens Shift | Vertical: ± 50%
Horizontal: ± 23% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 5.741 - 30.577' / 1.75 - 9.32 m | | Throw Ratio | 1.36 - 2.18:1 | | Projection Size | 60 - 300" / 152.40 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

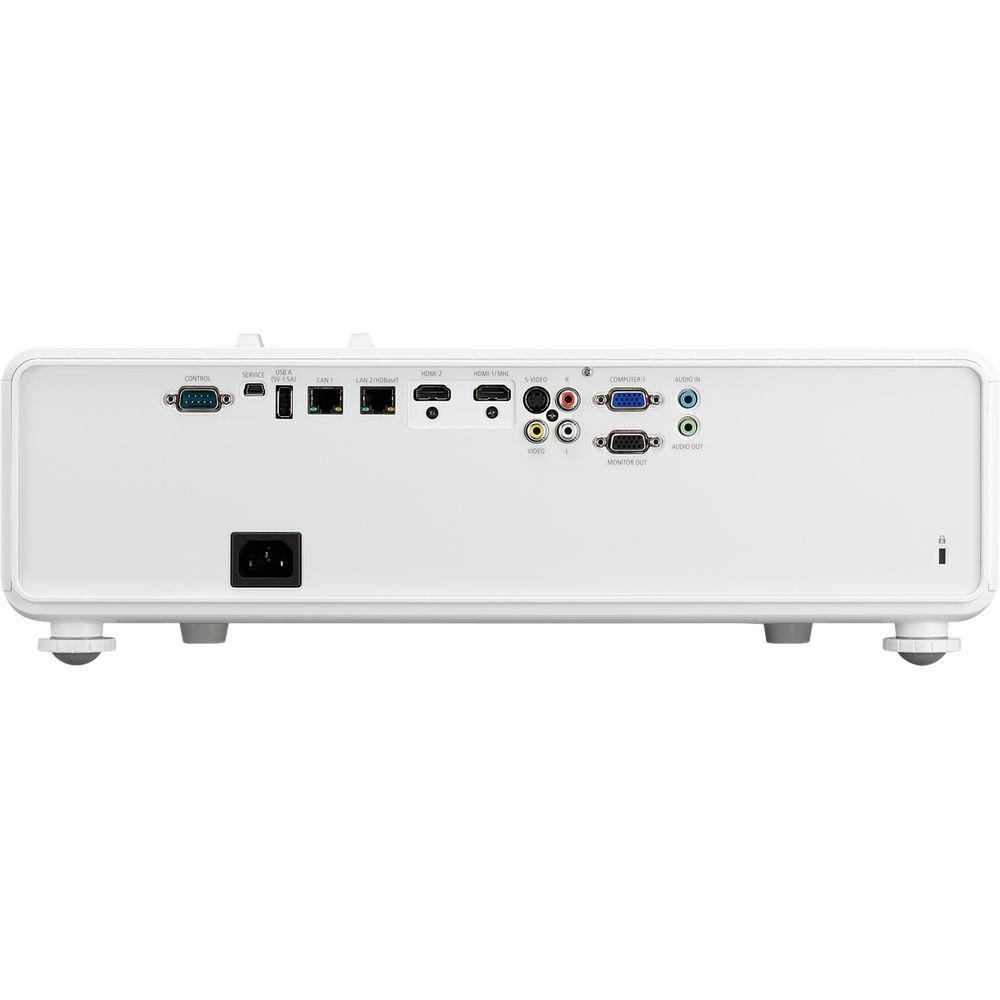

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 5W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x HDBaseT (RJ45) Audio, Control, Data, Video Input/Output
1 x DE-9 Control
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Service Input | | Memory Card Slot | None | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 37 dB
Low Brightness: 35 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 530 W
Low Brightness: 415 W
Standby Mode (Lamp Off): 1.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 17.7 x 6.0 x 14.9" / 45.0 x 15.2 x 37.8 cm | | Weight | 19.6 lb / 8.89 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 9.0" |
