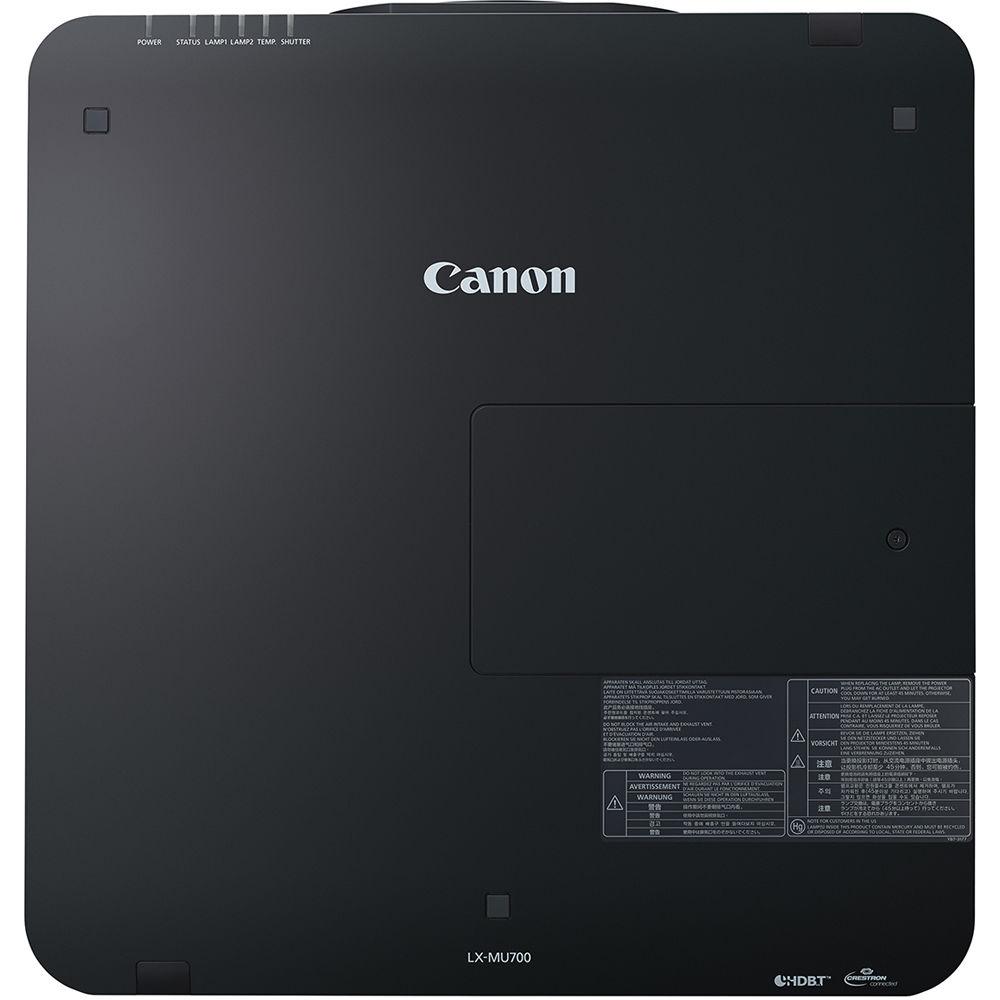

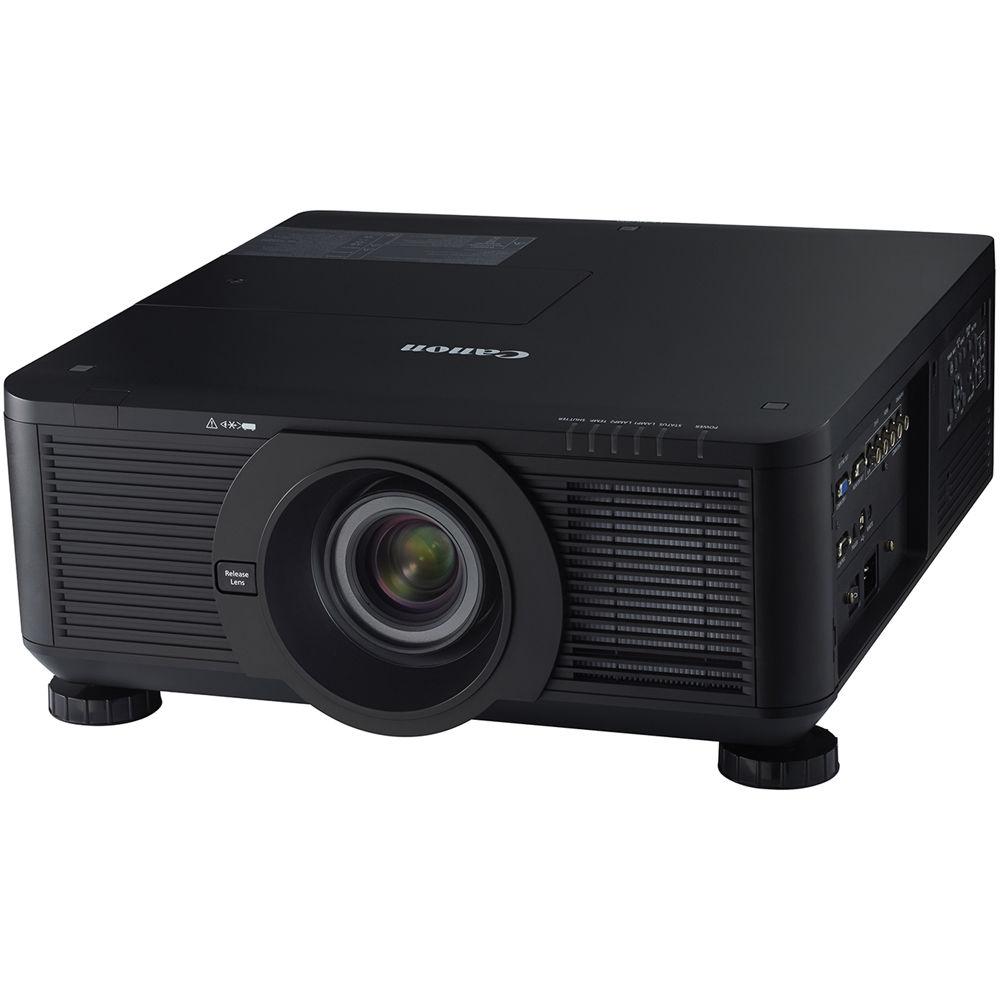

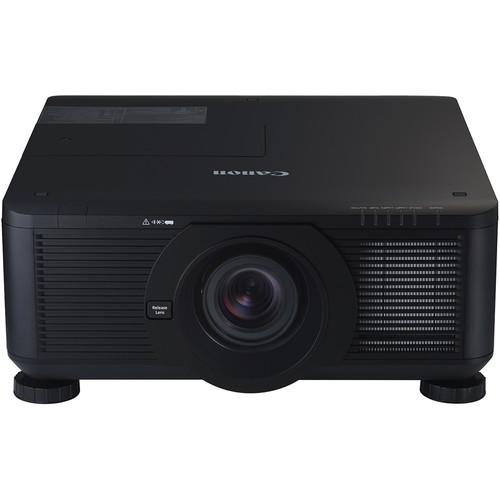

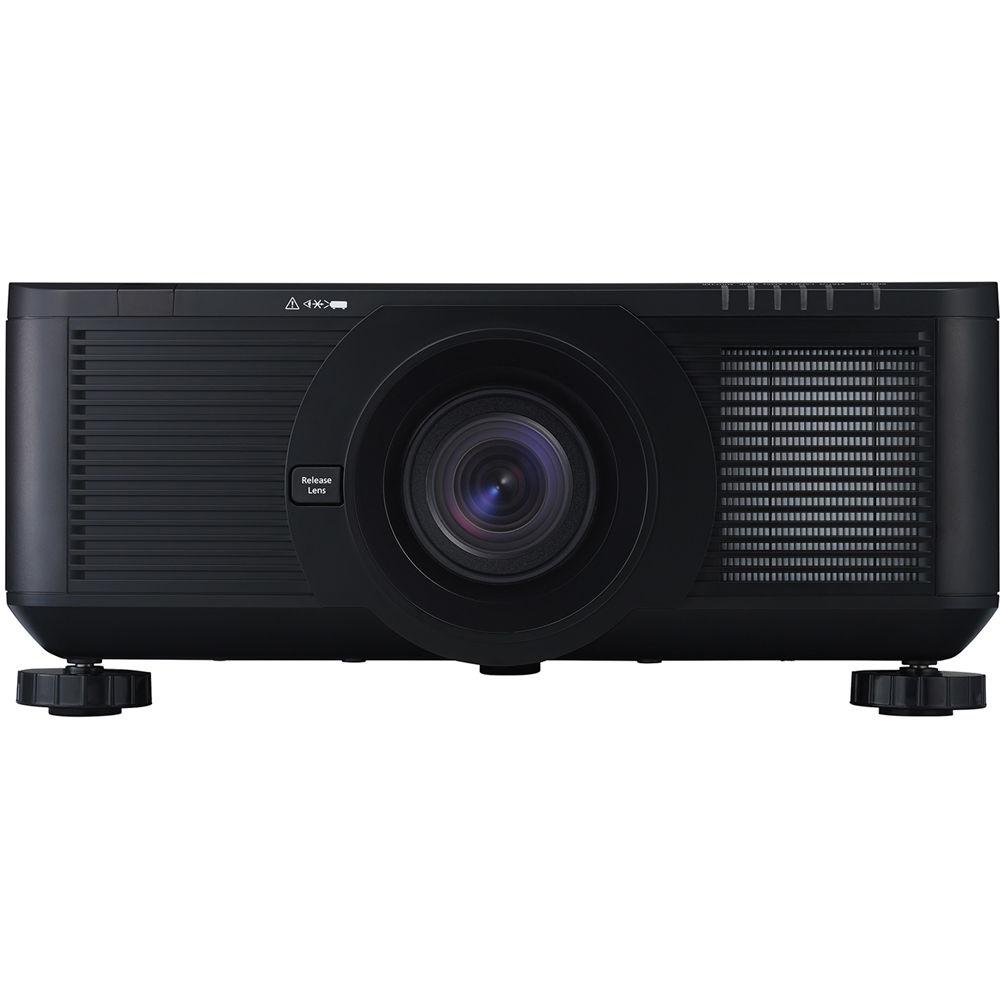

User Manual for Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Project in nearly any setting with the Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP Projector. Its 7500 lumens of brightness will overcome most ambient light, making it suitable for use in large venues or digital signage installations. The WUXGA (1920 x 1200) native resolution will clearly display most file and document types for effective presentations. There are several interchangeable lens options, allowing you to purchase the one best suited for your installation needs. Additionally, this model includes a second interchangeable color wheel to provide two types of viewing options; one for maximum brightness and the other for enhanced color accuracy.
The LX-MU700 has a multitude of video inputs including HDMI, DVI-D, 5-BNC, DisplayPort, and VGA to support virtually any source. Its VGA output offers daisy-chaining capability so you can have multiple projectors or displays showing the same source. The projector is controllable via Ethernet and RS-232 connections for network integration. Included is a VGA cable for instant connectivity and an IR remote control. - Brightness of 7500 lumens with up to 2100:1 contrast ratio
- Dual lamp system for reliable usage
- Native WUXGA resolution (1920 x 1200)
- Seven optional interchangeable lenses for installation flexibility
- Installation convenience including motorized lens shift, lens position memory, multiple screen settings, and 360-degree installation
- Two interchangeable color wheels included (brightness or color accuracy) to optimize content
- Advanced image adjustment settings for enhanced image quality reproduction
- Versatile connectivity – HDBaseTZ, HDMI, DVI, DisplayPort, RJ-45, and audio inputs
- Network Management including Crestron connectivity and AMX Device Discovery
UPC: 013803262704 In the Box Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP Projector (No Lens) Remote Control 2 x AA Batteries Interchangeable Color Wheel VGA Cable (5.9') Dust Cap Lens Anti-Theft Screw Power Cord (8.2') Limited 3-Year Warranty Brochure PDF 920.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon LX-MU700 7500-Lumen Dual-Lamp WUXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon LX-MU700 Specs | | | Display System | 1-Chip 0.67" DMD DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 @ 60 Hz | | Max Brightness | 7500 Lumens | | Uniformity | >85% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 2100:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side
Top Bottom

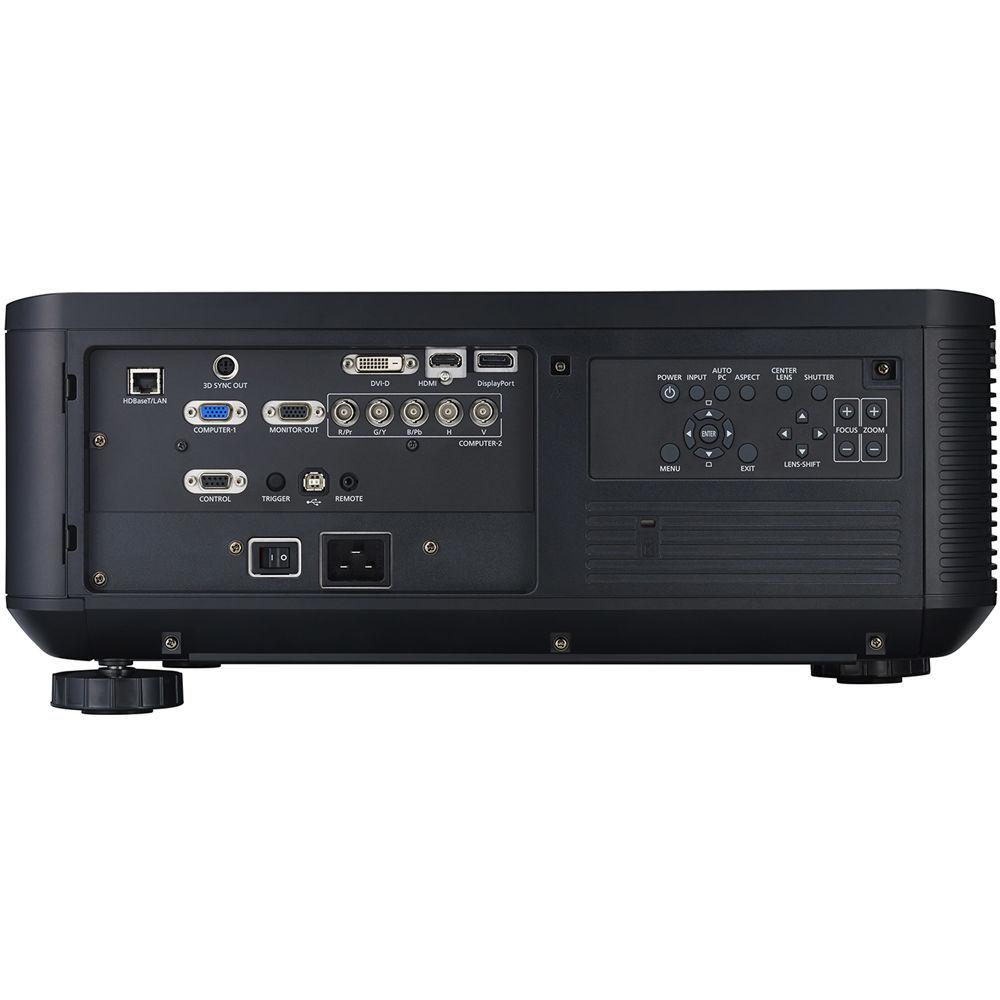

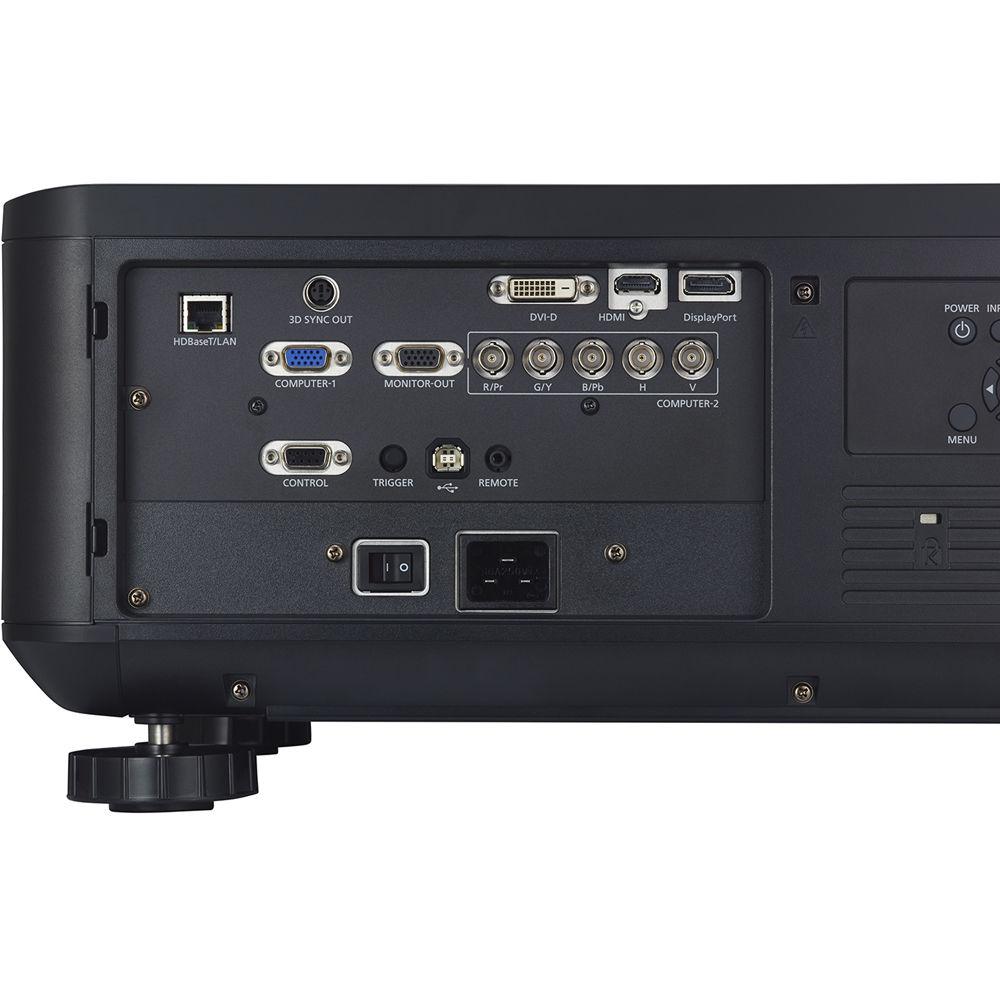

Frame Sequential | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Keystone Correction | Auto-Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x DVI-D Video (Input)
1 x HDMI Video (Input)
1 x DisplayPort Video (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x VGA (DE-15) Video (Output)
1 x RS-232C (Unspecified Connector) Remote (Input/Output)
1 x USB Service (Input)
1 x 1/8" (3.5 mm) Mini Remote (Input)
1 x VESA 3D Sync Control (Output) | | | | Light Source | Lamp (2 x SHP) | | Lamp Power | 350 W
280 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 4000 Hours | | Fan Noise | Full Brightness: 41 dB
Low Brightness: 36 dB | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 850 W
Low Brightness: 680 W | | Temperature | Operating
40 to 104°F (4 to 40°C) | | Dimensions (W x H x D) | 19.8 x 20.8 x 8.7" / 50.3 x 52.8 x 22.1 cm | | Weight | 42.2 lb / 19.1 kg | | | | Package Weight | 58.8 lb | | Box Dimensions (LxWxH) | 28.3 x 25.3 x 14.75" |
