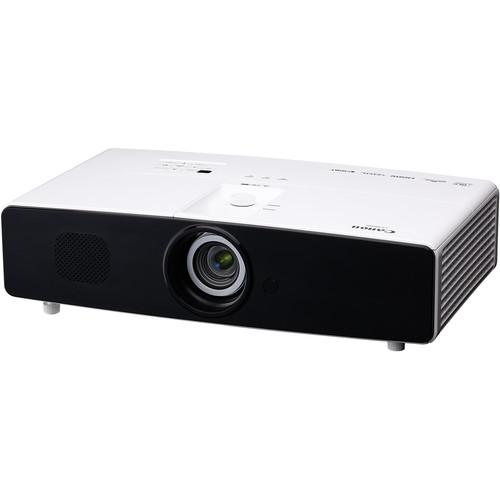

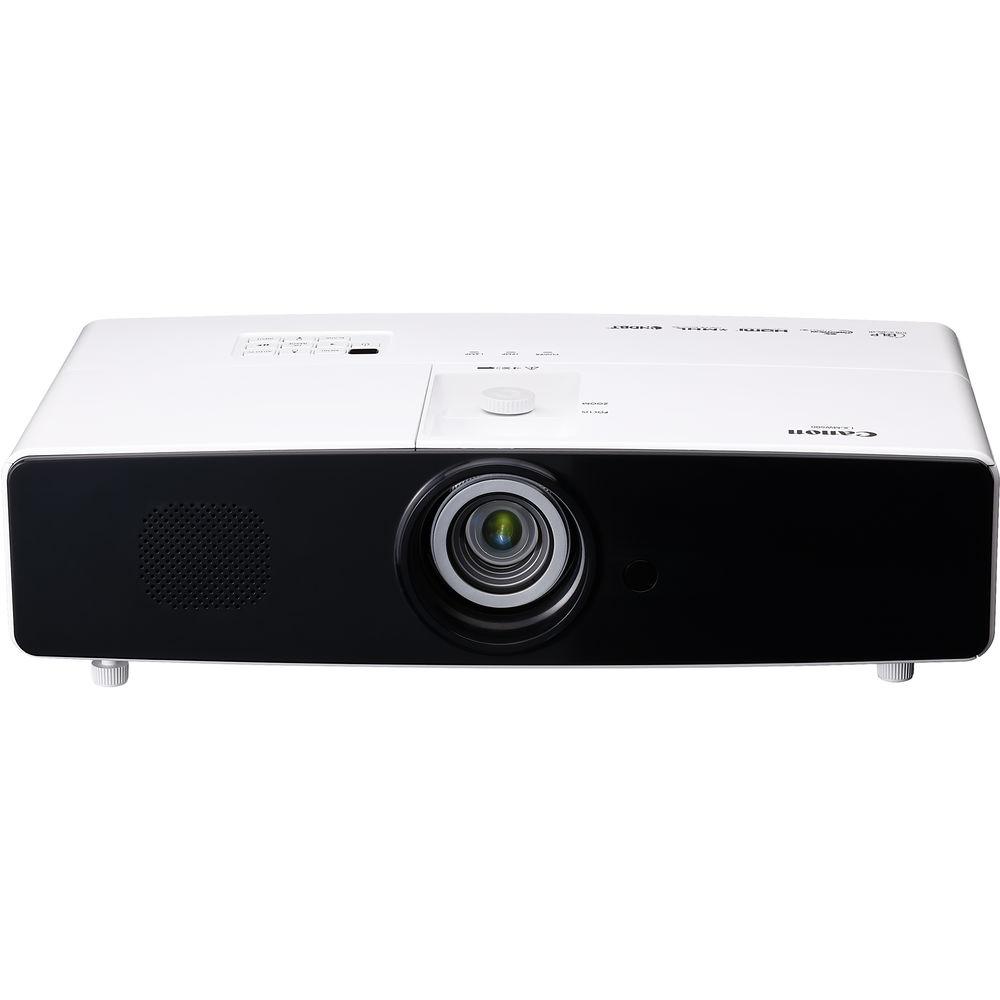

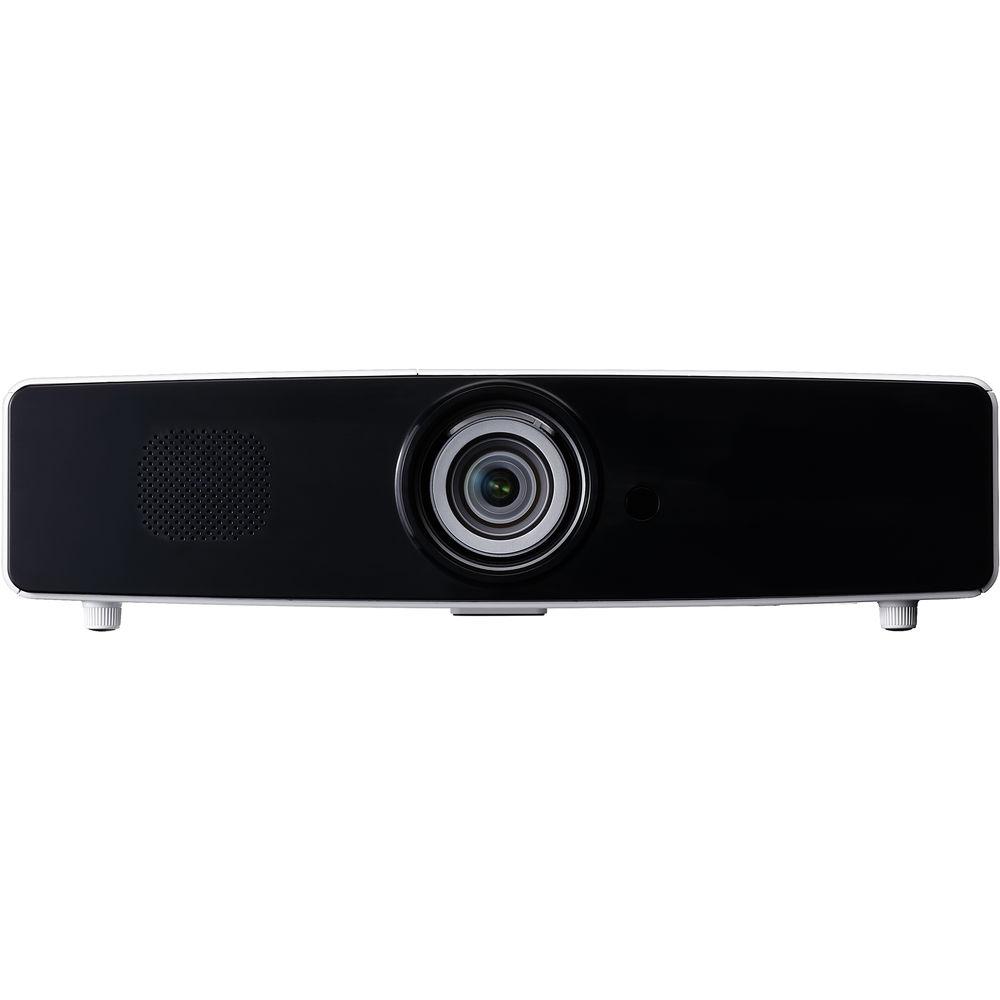

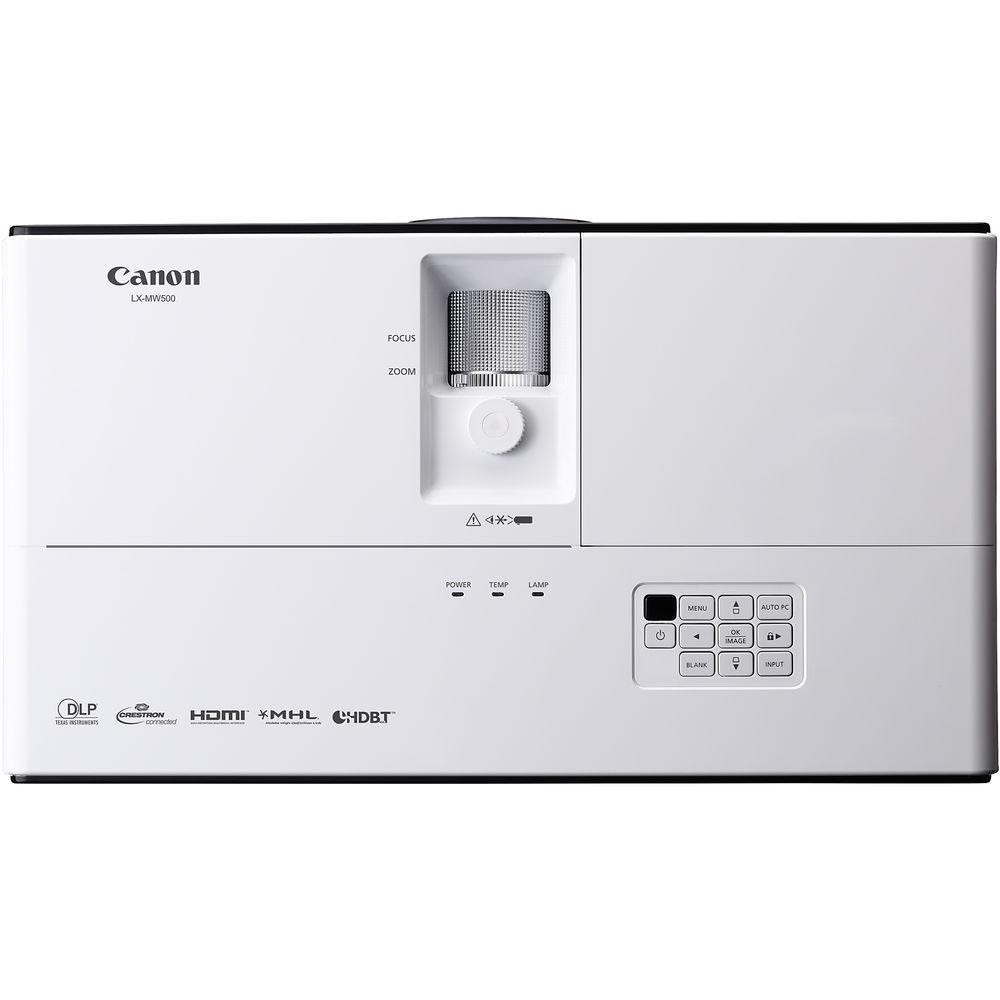

User Manual for Canon LX-MW500 5000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Designed with the versatility to perform in educational, corporate, and house of worship applications, the Canon LX-MW500 5000-Lumen WXGA DLP Projector features a high brightness of 5000 lumens and a contrast ratio of 3750:1, keeping images bright and clear. Its native resolution of 1280 x 800 will help ensure sharp images for those seated near the screen.
The LX-MW500 features S-Video, composite, two HDMI, and two VGA inputs to connect a number of various sources, plus a VGA output for daisy chaining two or more projectors with the same image. Additionally, one HDMI input features MHL compliance for connecting to a smartphone or tablet. An analog audio input and output are also onboard, and a built-in 10-watt mono speaker will allow you to show your presentations without an additional speaker setup.
The 1.12 to 1.80:1 throw ratio will provide a range of setup locations, further adding to the projector's versatility. It is controllable via Ethernet, RS-232, or the included IR remote. Also included is a VGA cable for instant connection. - 5000 Lumens with up to 3750:1 contrast ratio
- Native WXGA (1280 x 800) resolution
- DLP technology with BrilliantColor system
- Advanced image quality adjustment settings for enhanced image reproduction
- Compact size and flexible placement options
- Versatile connectivity featuring HDBaseT and dual HDMI, one port with MHL support

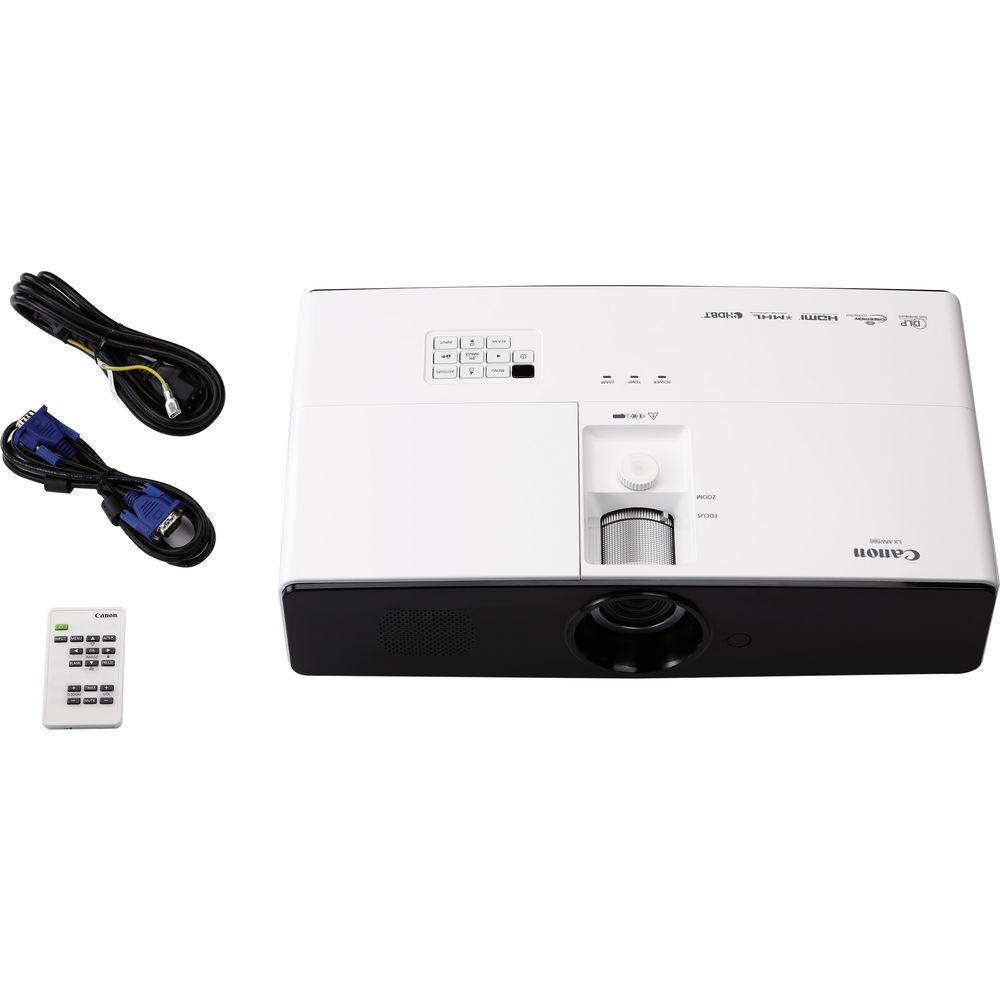

UPC: 013803271072 In the Box Canon LX-MW500 5000-Lumen WXGA DLP Projector Lens Cap 70.8" VGA to VGA Cable Remote Control with CR2025 Battery 70.8" Power Cord Limited 3-Year Warranty on Projector Limited 120-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon LX-MW500 5000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon LX-MW500 Specs | | | Display System | 1-Chip DMD DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 5000 Lumens
4000 Lumens | | Uniformity | 75% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 3750:1 | | Scan | Vertical: 24 to 119.989 Hz
Horizontal: 15.73 to 101.563 kHz | | | | Focus | Manual | | Lens | f/2.45 - 3.07 (f = 15.75 - 25.1 mm) | | Lens Shift | Vertical: 53 to 55% | | Optical Zoom | 1.6x | | Throw Distance | 4.5 - 19' / 1.372 - 5.791 m | | Throw Ratio | 1.12 - 1.80:1 | | Projection Size | 60 - 240" / 152.40 - 609.60 cm | | | | Keystone Correction | Vertical: ± 30°

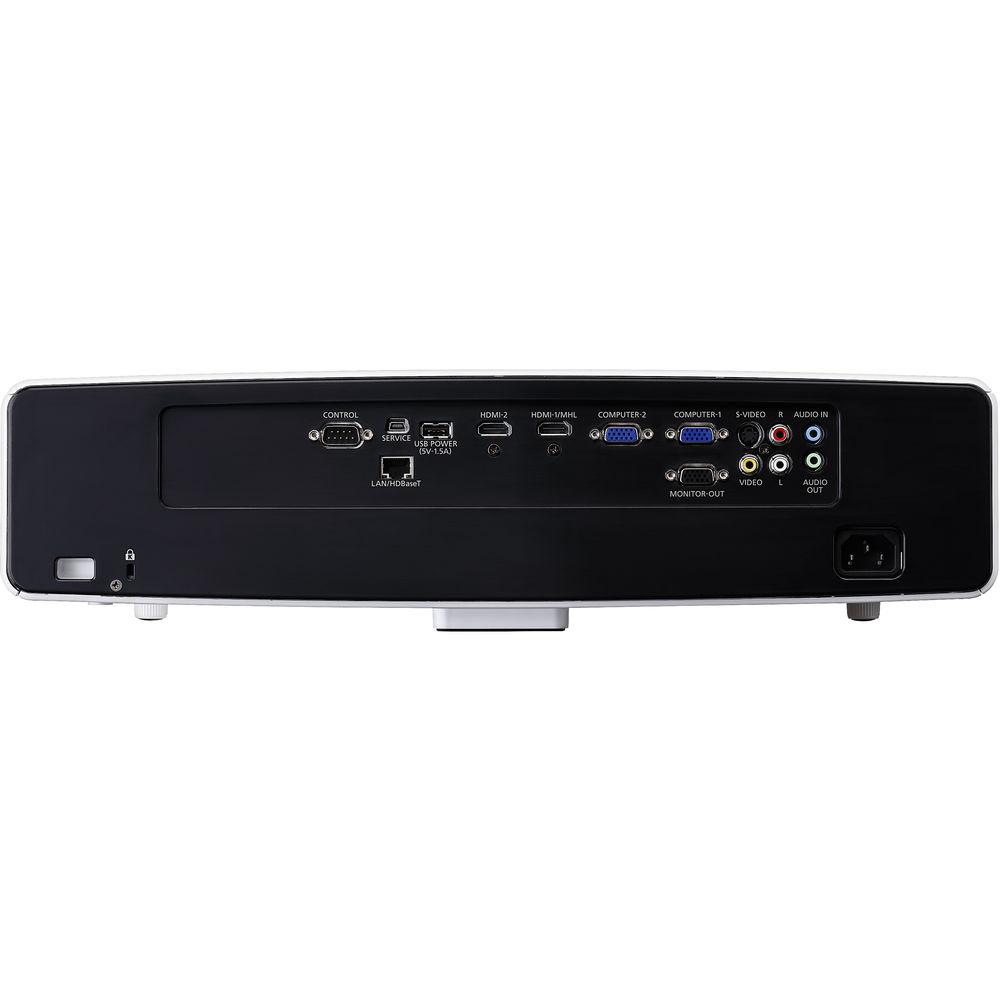

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Power (Output)
1 x USB Service (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)

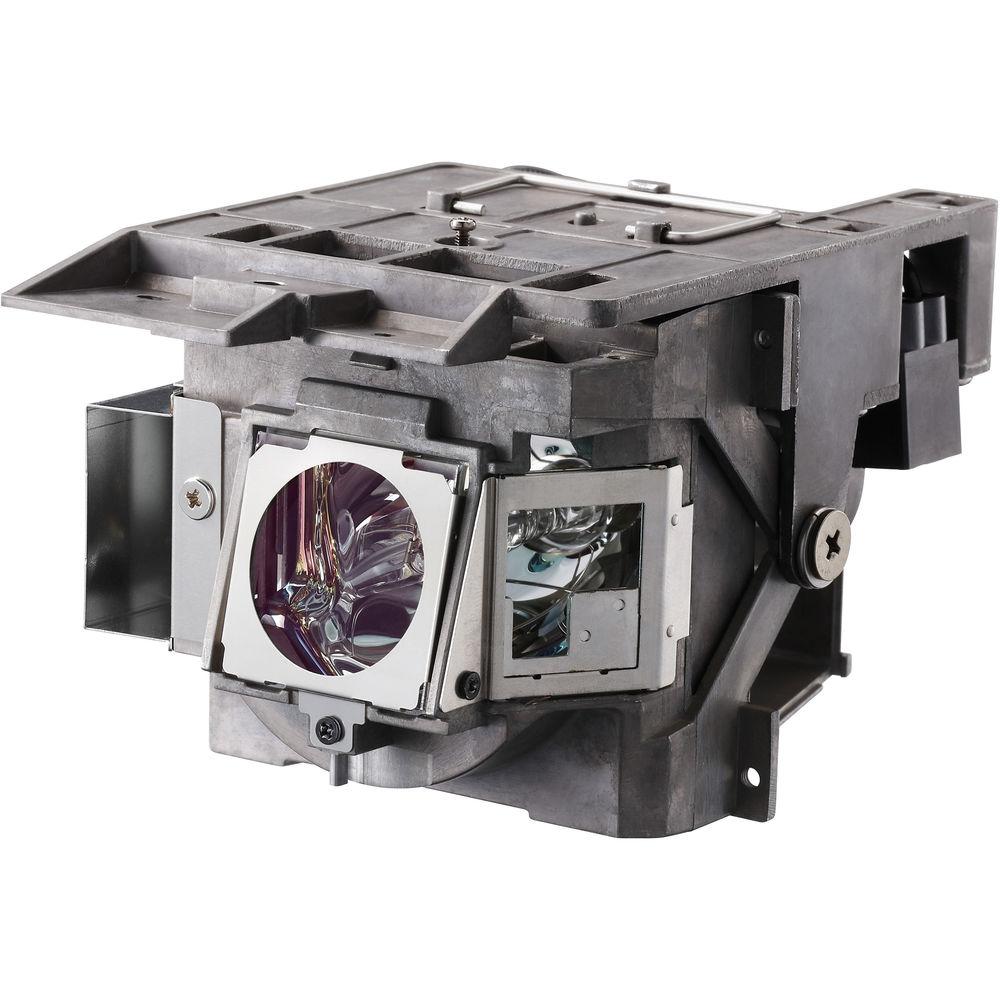

1 x 1/8" (3.5 mm) Mini Audio (Output) | | | | Light Source | Lamp (1 x SHP) | | Lamp Power | 370 W
296 W | | Expected Lamp Life | Medium Brightness: 2000 Hours
Low Brightness: 2500 Hours | | Fan Noise | Medium Brightness: 36 dB
Low Brightness: 33 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 500 W
Low Brightness: 400 W
Standby Mode (Lamp Off): 3 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 18.3 x 4.8 x 10.3" / 46.5 x 12.2 x 26.2 cm | | Weight | 11.9 lb / 5.4 kg | | | | Package Weight | 16.65 lb | | Box Dimensions (LxWxH) | 23.2 x 15.7 x 8.9" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
