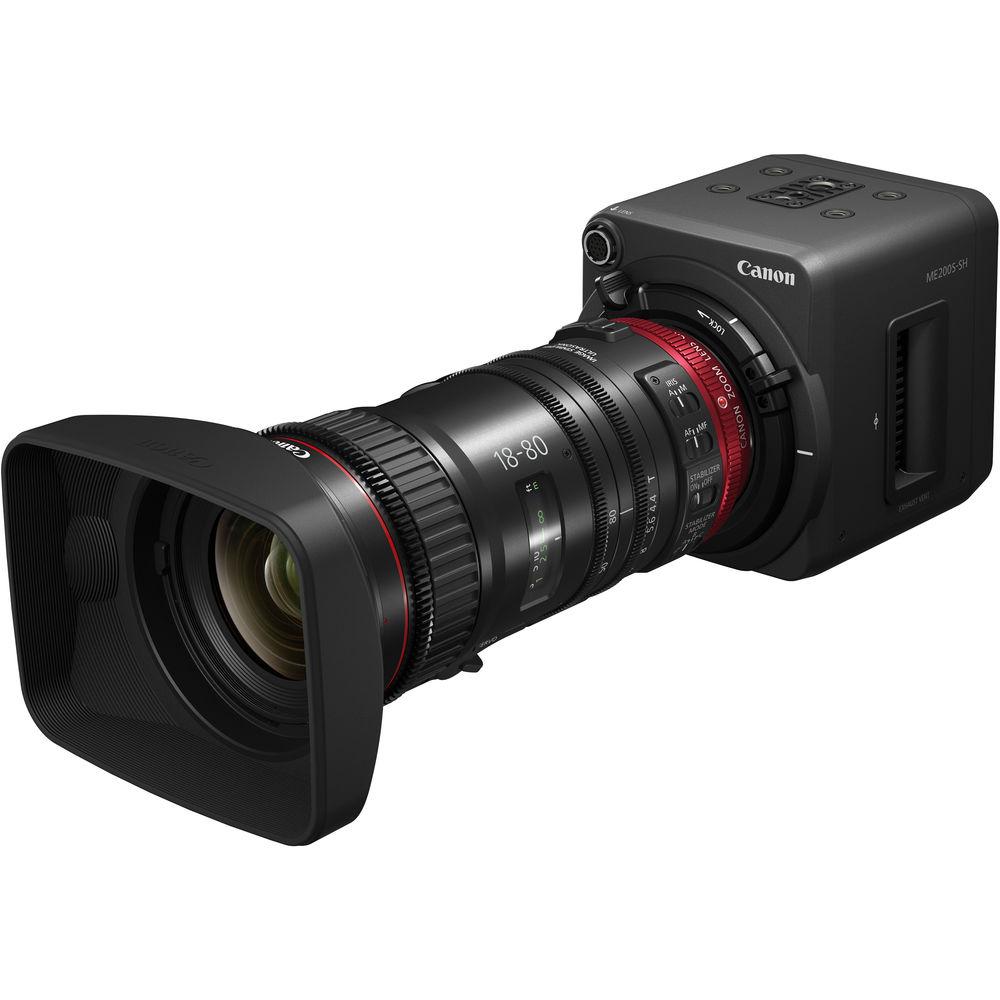

Product description - First Look: Canon ME-200S-SH and Compact Servo 18-80mm T4.4 Lens

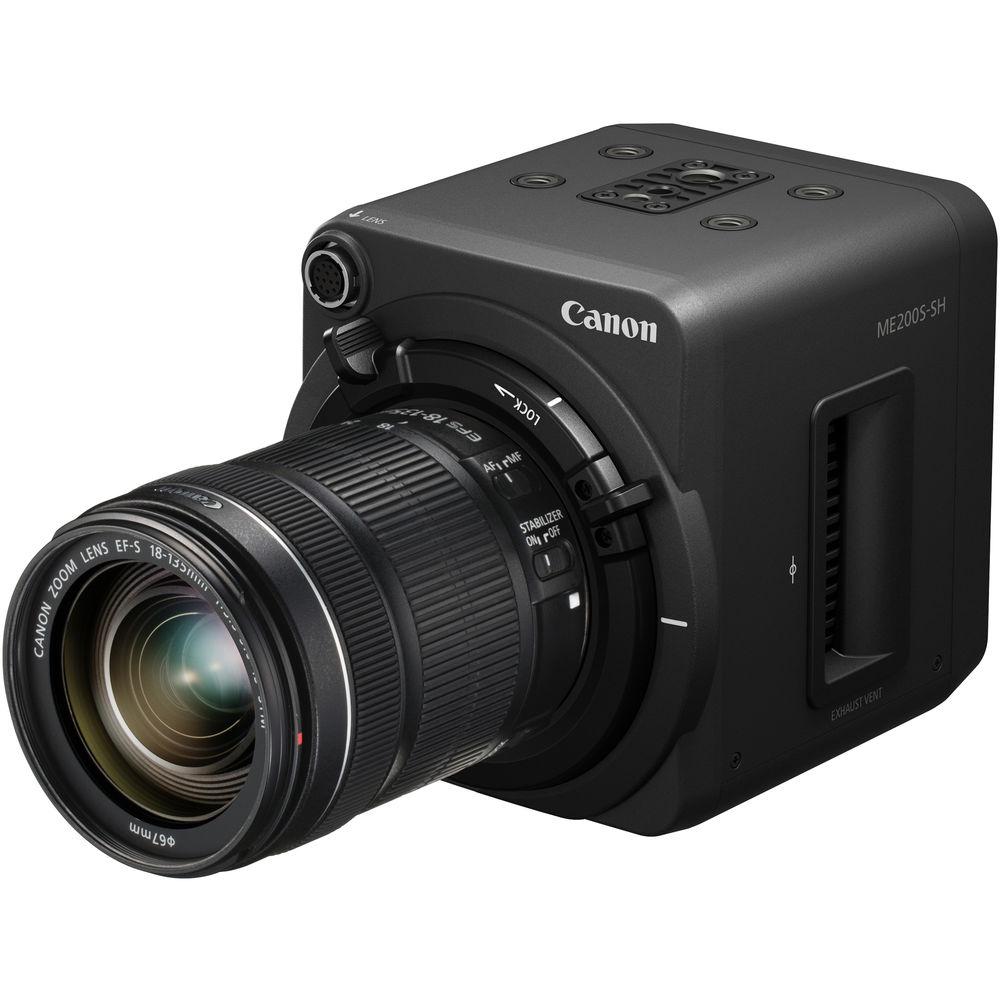

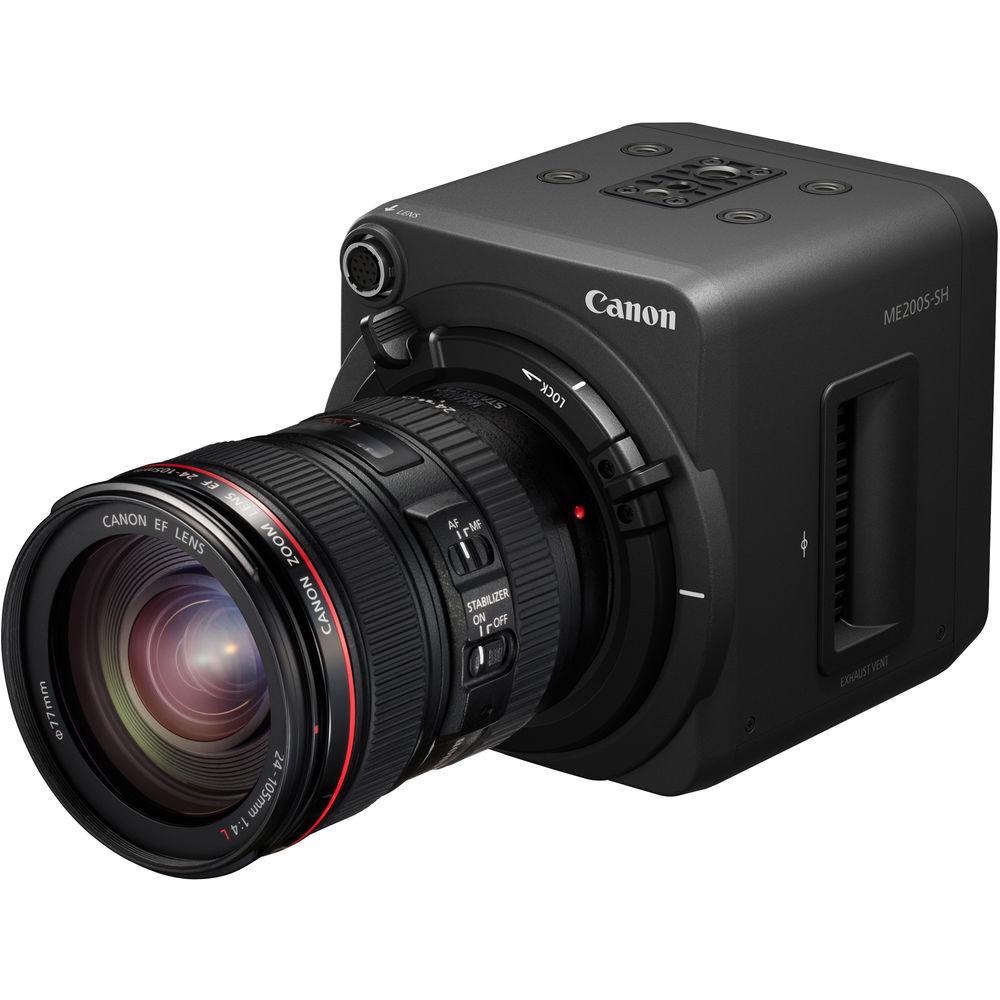

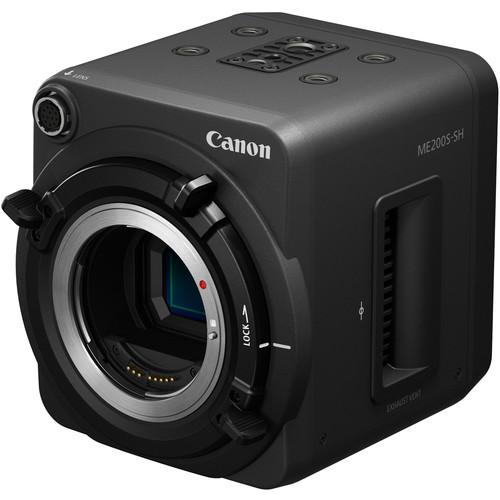

The Canon ME200S-SH Multi-Purpose Camera features a locking EF mount and captures video at up to 1920 x 1080p 60 (59.94p), while supporting both NTSC and PAL broadcast frame rates. The camera incorporates a Super 35mm-sized sensor with 12 stops of dynamic range and an ISO of up to 204,800. It supports EOS Standard, Wide DR, Canon Log, and allows you to set up to six custom picture settings to protect highlight and shadow detail.
The camera body is small in size, perfect for getting the shot from a hard-to-reach space. It features a digital teleconverter that can be set to provide 2x, 4x, or 8x zoom effect. With two HD/3G-SDI outputs and a single HDMI output, the camera incorporates a genlock-in for integrating this camera into a multi-camera shoot, as well as 2.5mm stereo mini jack and a RS-422 port for control. You can power the camera using 12 VDC by either the 2-pin Phoenix connector or the built-in 4-pin XLR connector. - This small-box-sized camera is versatile and can fit into smaller spaces. You can use optional accessories to configure the camera for a variety of applications.
- This is an HD camera body capable of capturing 1920 x 1080 footage at 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P.
- Professional connectivity includes the HD/3G-SDI connectors and genlock input, allowing the camera to be easily integrated into a multi-camera workflow. The OSD is available on both the HDMI and the first SDI output.
- The camera features a built-in filter stack including a clear filter, an ND 1/8, and an ND 1/64, as well as an IR cut filter, this allows you to choose to use the IR cut filter much as you would choose from the built-in ND filters.
- The camera features built-in One-Shot AF, and Push Auto Iris. The One-Shot AF assists in focusing adjustment with a dedicated button. Focus status can be confirmed on an external monitor. Push Auto Iris automatically adjusts the aperture of the lens to quickly and easily maintain proper exposure, even in situations where lighting changes frequently.

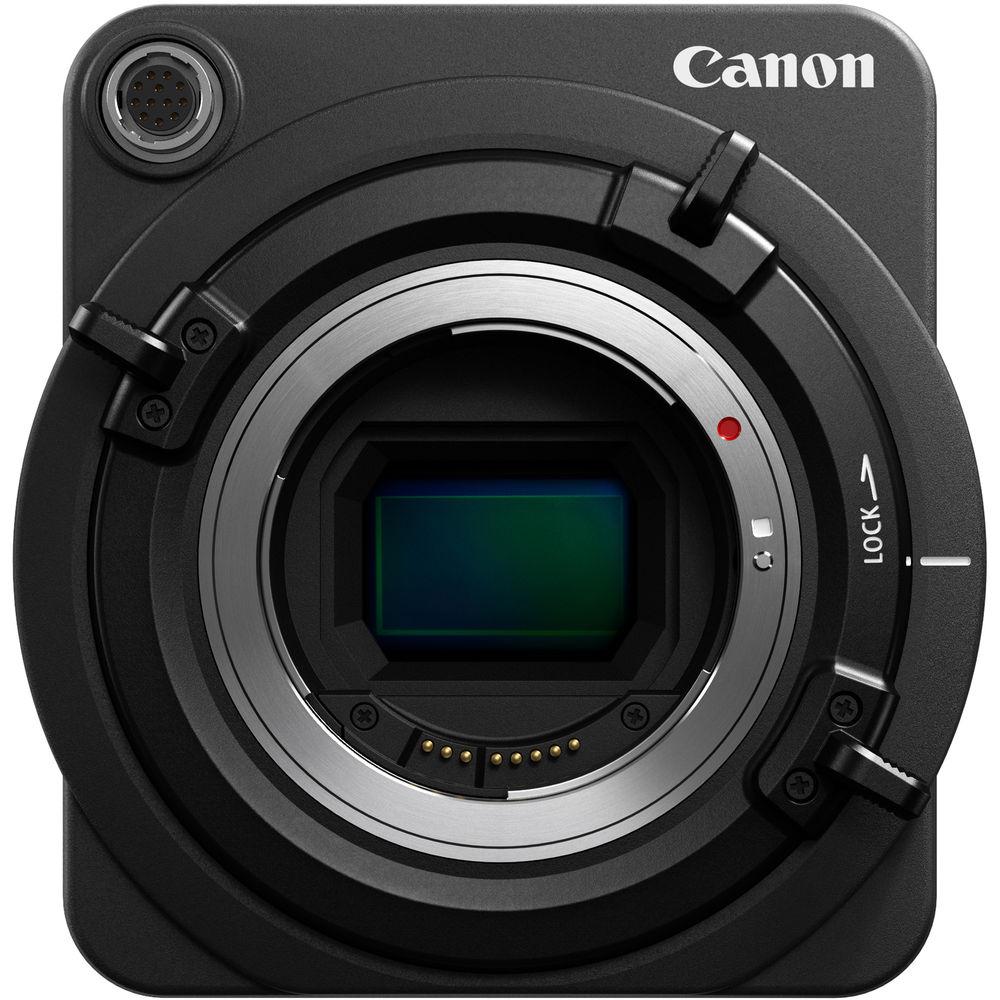

- The locking cinema EF mount is compatible with EF mount lenses and provides a stronger attachment to the camera than a standard EF mount. The front of the camera features a 12-pin lens terminal enabling lens connectivity with EF mount CINE-SERVO lenses or 2/3" broadcast lenses with an optional third party adapter.
- Other calibration functions include auto black balance, color bar, test tone, assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter.
- The camera supports custom picture settings for highlight and shadow detail protection. These settings include selections for EOS Standard, Wide DR, and Canon Log gamma. The camera also supports up to six custom scene settings.
UPC: 013803277470 In the Box Canon ME200S-SH Multi-Purpose Camera (Cinema Lock EF-Mount) Limited 1-Year Warranty Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon ME200S-SH Multi-Purpose Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon ME200S-SH Specs | Sensor | Super 35mm | | Pixels | Total: 4206 x 2340 (approximately 9.84 MP)
Effective: 3840 x 2160 (approximately 8.29 MP) | | Output Resolution | 1920 x 1080

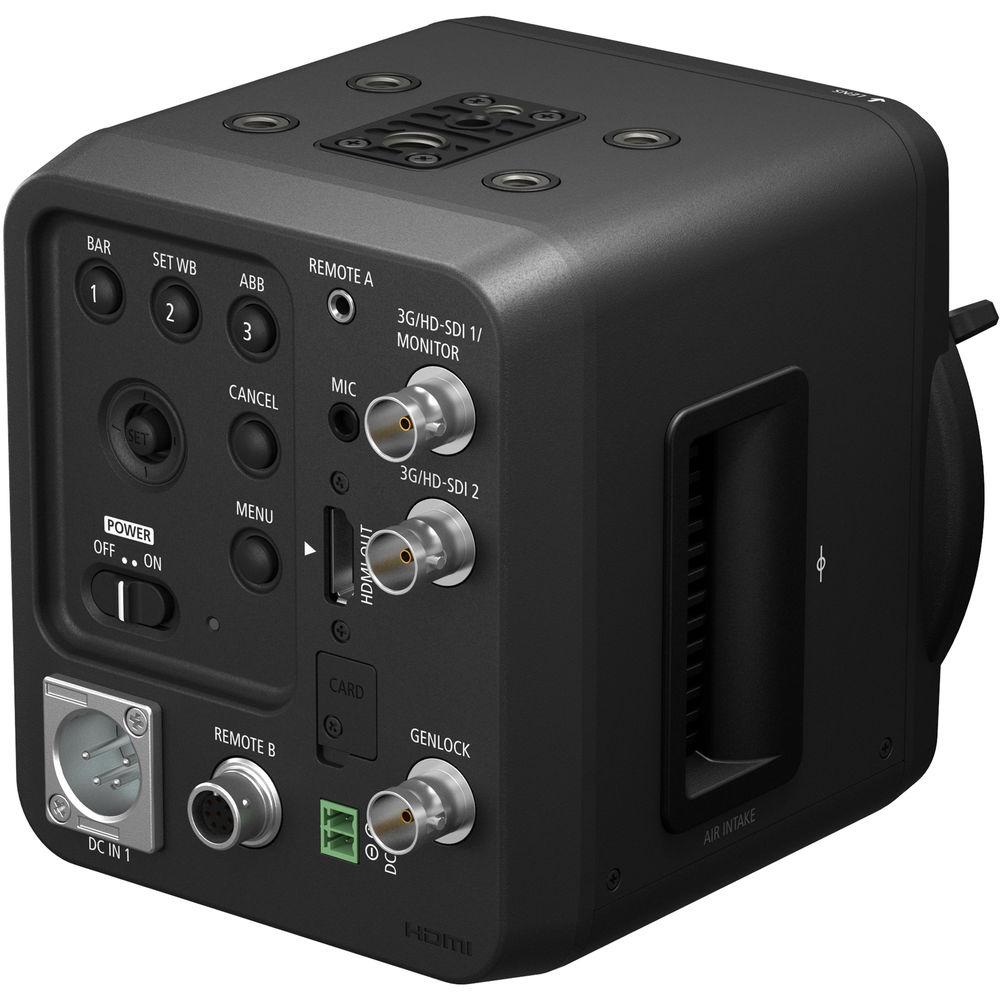

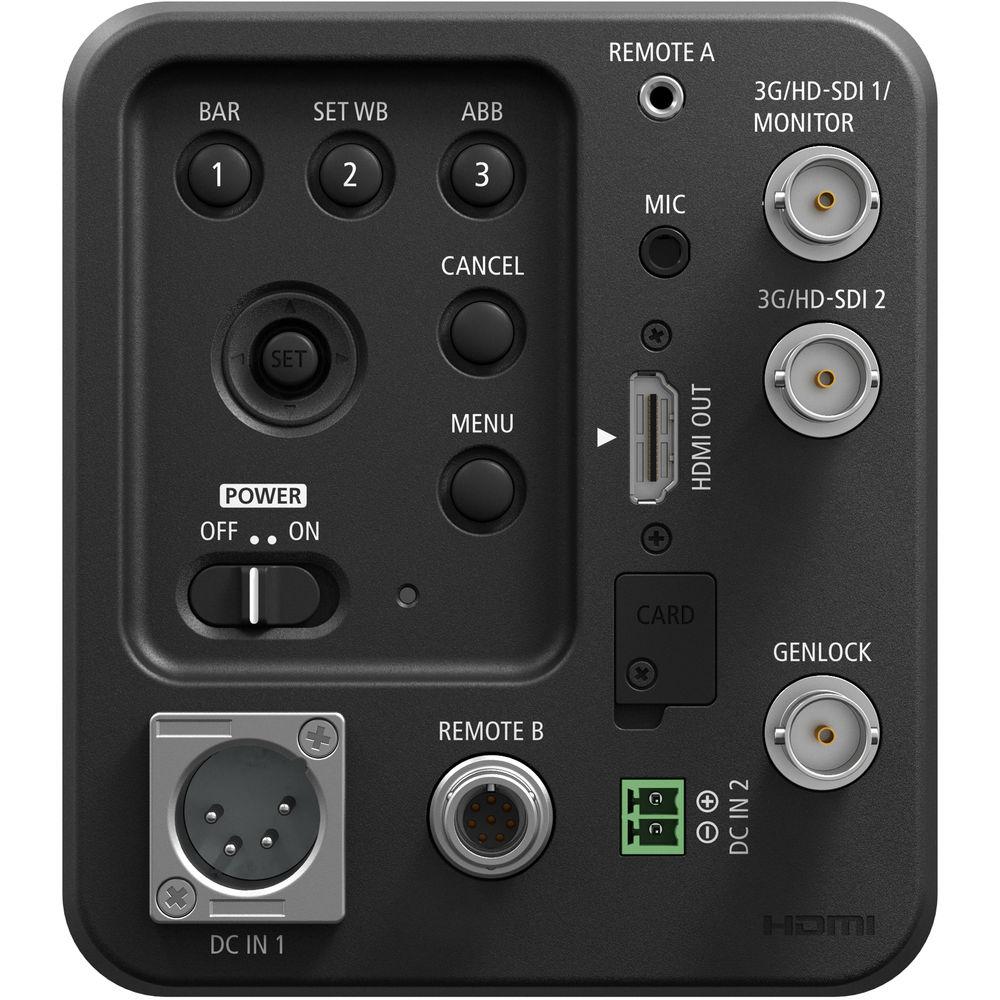

1280 x 720 | | Color Filter System | RGB Bayer array | | Lens Port | Canon EF Cinema-Lock-type | | Interface (Inputs/Outputs) | Outputs
HD/3G-SDI: 2 (#1 with selectable OSD, #2 clean)
HDMI: 1 (selectable OSD)
Inputs
Genlock: Black burst or Tri-Level reference
Mic: 1 x 3.5 mm stereo mini jack (plug-in power mic supported)
Remote Control A: 1 x 2.5 mm stereo mini jack (Canon unique protocol)
Remote Control B: 1 x circular 8-pin connector (Canon unique protocol) | | Format | 3G-SDI
Bit Depth: YCbCr422 10bits (effective bits: 8)
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50/29.97/25/23.98
HDMI
Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)
1920 x 1080p: 59.94/50/29.97/25/23.98
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50/29.97/25/23.98
Please Note: You cannot set framerate and output size separately by SDI and HDMI. Also, when outputting via HDMI, 640 x 480: 59.94P & 768x576: 50P will be output when connected with a monitor that support 480P and 576P inputs. This cannot be set from the menu and the on-screen display will not show. | | Exposure | Auto: Iris, Gain, Shutter and ND operating together (cannot set auto / manual separately)
AE shift / AE response selectable
AGC limit can be set from 36dB to Off/75dB (3-dB intervals) | | Min Illumination | 0.015 lux or less (at 56dB, F1.2, 29.97P, 1/30 sec shutter) | | Shutter | Manual: 1/3 to 1/2000 (1/4 stops); 1/3 only at 23.98p
Auto: Iris, Gain, Shutter and ND operating together | | Iris | Manual: 1/2 stops (push auto iris can be set to an assign button)
Auto: Iris, Gain, Shutter and ND operating together | | Gain | Manual: 0dB to 56dB @ 3dB intervals (approx. ISO 204,800 equivalent at 56dB)
Auto: Iris, Gain, Shutter and ND operating together | | Built-in Filters | ND: 1/8 & 1/64 Built-in (auto or motorized manual)
IR Cut Filter: On/Off (motorized manual) | | Focus Control | Manual focus (when used with RC-V100)
One-Shot AF (used with assign button) | | White Balance | AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B | | Power | Input: 11 to 17 VDC
Consumption: approximately 11 W (body only)
Input Connectors
1 x 4-pin XLR
1 x 2-pin Phoenix | | Operating Temperature | Approx. 32 to 104°F /0 to 40°F | | Dimension | 4.0 x 4.6 x 4.4" / 102 x 116 x 113 mm | | Weight | Approx. 2.2 lb / 1.0 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 11.0 x 10.3 x 9.6" |
