Product description Canon ME20F-SH: a Full-Frame Video Camera that Sees in the Dark Read More - Canon ME20F-SH Multi-Purpose Camera: First Look
Featuring an astonishing four million ISO rating, the Canon ME20F-SH Multi-Purpose Camera captures video at up to 1920 x 1080p 60 and supports both NTSC and PAL broadcast frame rates. The camera incorporates a full frame 35mm-sized sensor with approximately 2.26 million pixels. This results in a pixel that is about 7.5 x larger than the pixels on optional Canon Full-frame DSLR cameras, which provides for camera's notable ISO rating.
Incorporating a Canon DIGIC DV 4 image processor, the camera supports 12 stops of dynamic range, and features Wide DR and Canon Log gamma profiles that protect highlight and shadow detail. The camera body is small in size and features 2 x HD/3G-SDI outputs, and a single HDMI output. The camera incorporates a Genlock-in for integrating this camera into a multi-camera shoot. Although small in size the ME20F Multi-Purpose camera features a locking Cinema EF Lens mount. - This small box sized camera is versatile and can fit into smaller spaces. You can use optional accessories to configure the camera for a variety of applications.

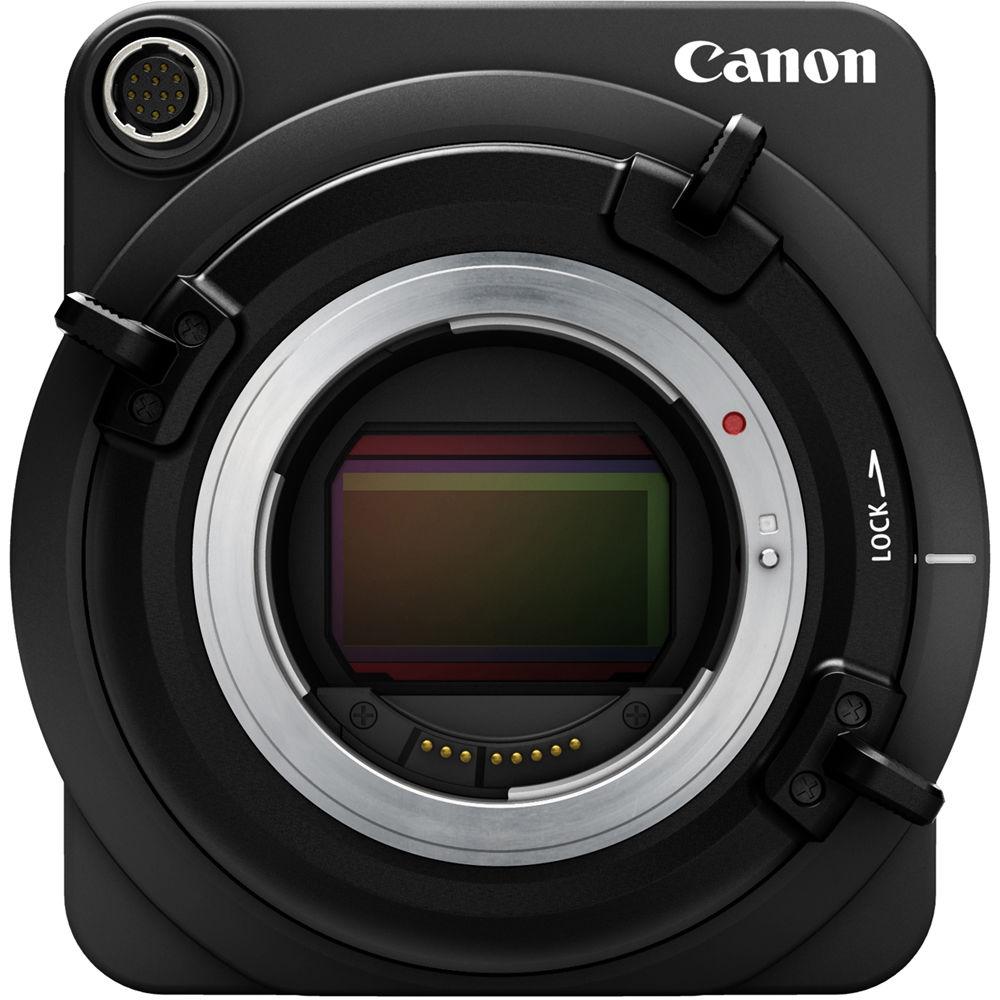

- The camera's sensor feature photosites that measure 19 micrometers, which is 7.5 times larger than the photosites of the nominal Canon 35mm DSLR sensor. This allows the camera to provide excellent low light performance.
- This is an HD camera body only and is capable of capturing 1920 x 1080 footage at 59.94P / 59.94i / 50.00P / 50.00i / 29.97P / 25.00P / 23.98P.

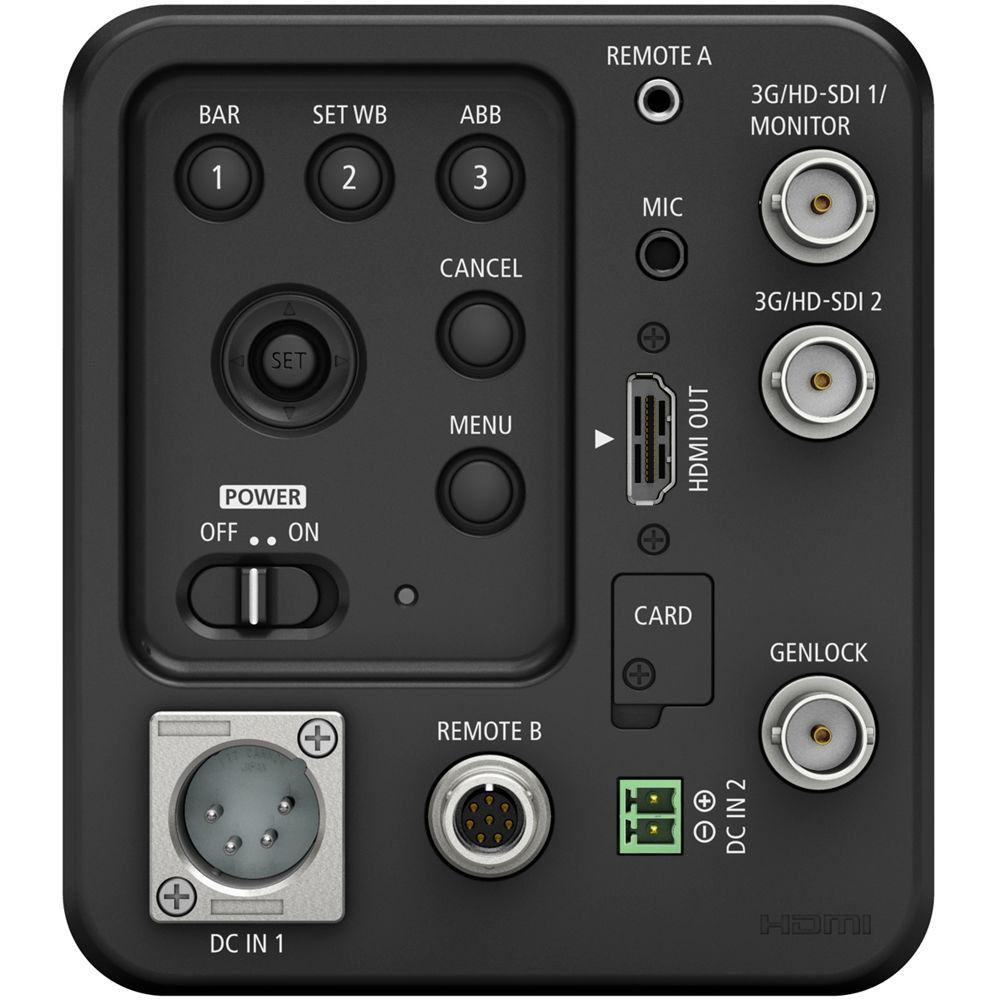

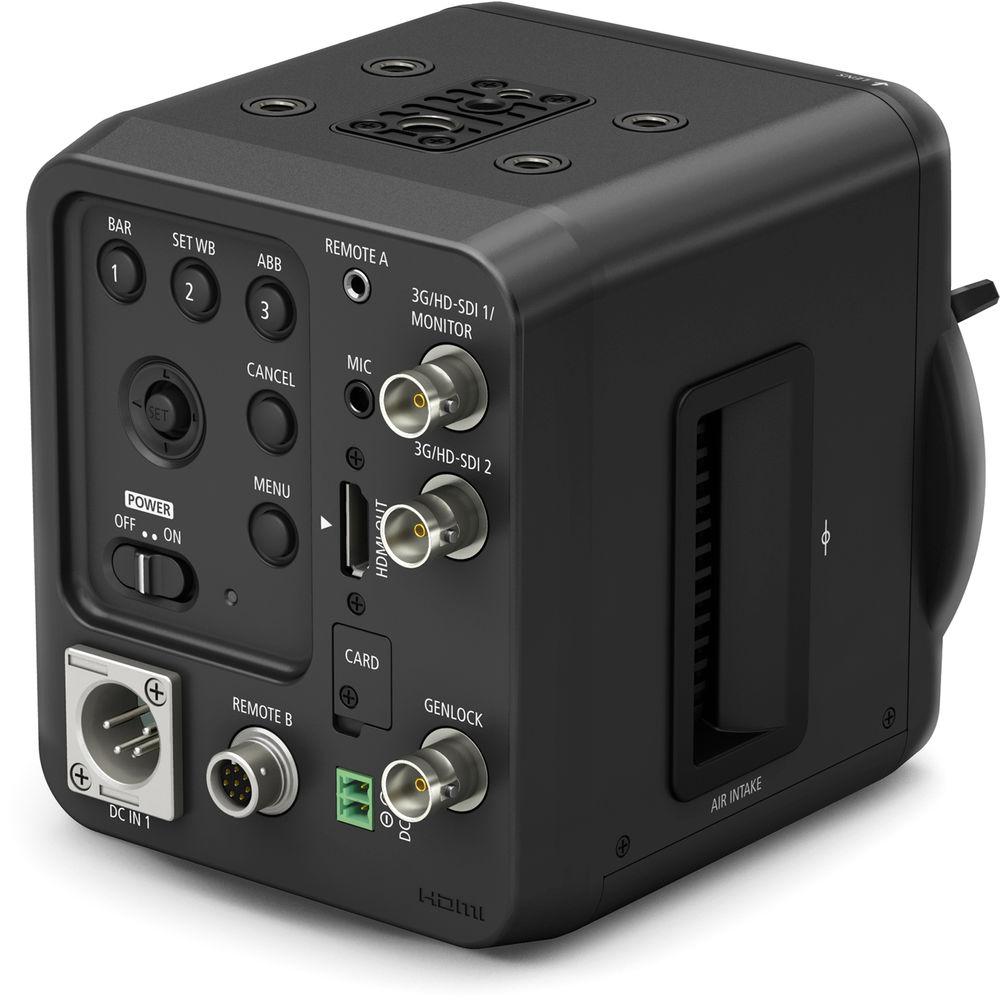

- Professional connectivity includes the HD/3G-SDI connectors and genlock input, allowing the camera to be easily integrated into a multi-camera workflow. The OSD is available on both the HDMI and the first SDI output.
- The camera features a built-in filter stack including a clear filter, an ND 1/8, and an ND 1/64, as well as an IR cut filter, this allows you to choose to use the IR cut filter much as you would choose from the built-in ND filters.
- The camera features built-in One-shot AF, and Push Auto Iris. The One-Shot AF assists in focusing adjustment with a dedicated button. Focus status can be confirmed on an external monitor. Push Auto Iris automatically adjusts the aperture of the lens to quickly and easily maintain proper exposure, even in situations where lighting changes frequently.

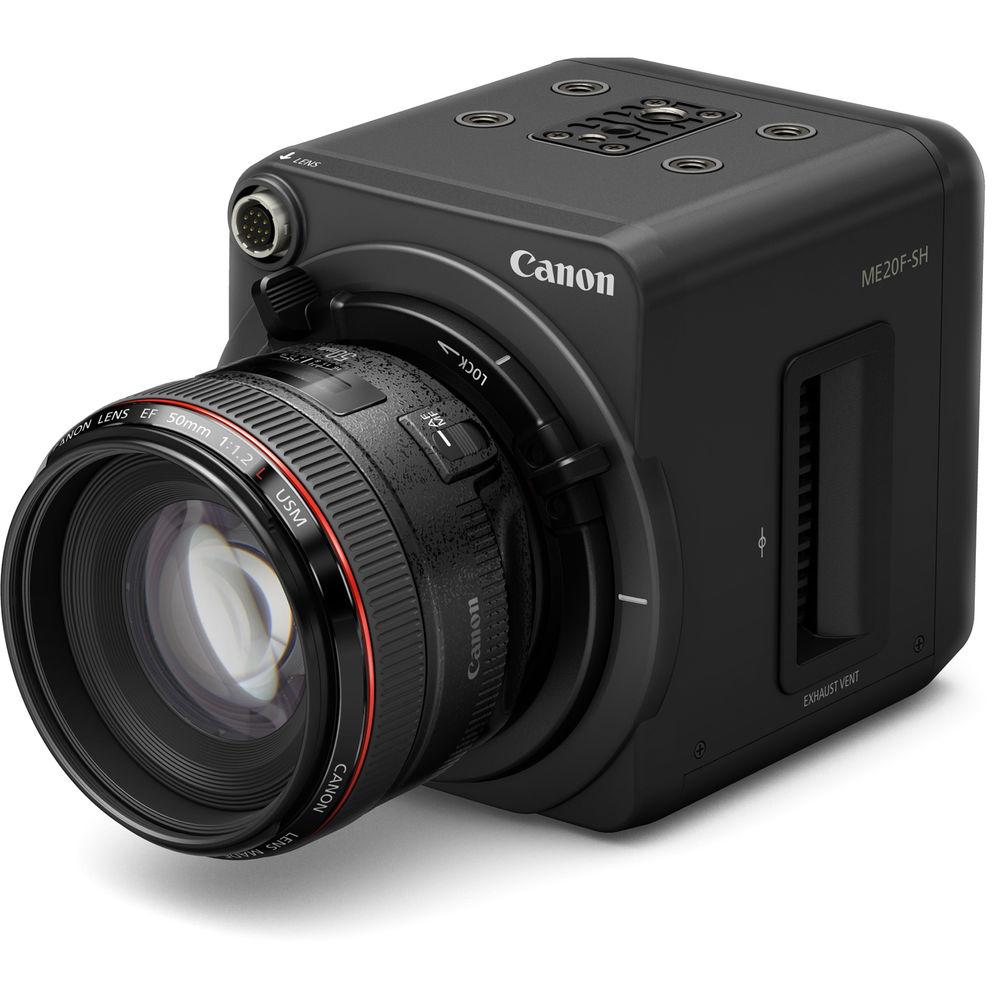

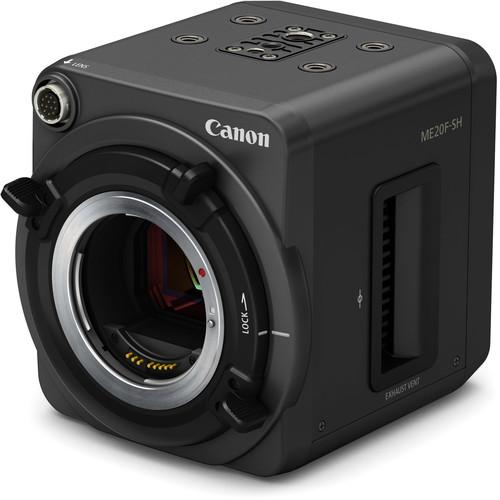

- The locking cinema EF mount is compatible with EF mount lenses, and provides a stronger attachment to the camera than a standard EF mount. The front of the camera features a 12-pin lens terminal enabling lens connectivity with EF mount CINE-SERVO lenses or 2/3" broadcast lenses with an optional third party adapter.
UPC: 013803271249 Video: First-Look At The Canon ME20F BH Online Videos 12/08/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon ME20F-SH Multi-Purpose Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon ME20F-SH Specs | Sensor | Full frame 35mm | | Pixels | Total: 2160 x 1200 (approximately 2.59 MP)
Effective: 2000 x 1128 (approximately 2.25 MP) | | Color Filter System | RGB Bayer array | | Lens Port | Canon EF Cinema Lock type | | Interface (Inputs/Outputs) | Outputs
HD/3G-SDI: 2 (#1 with OSD, #2 clean)
HDMI: 1
Inputs
Genlock: Input only
Mic: 1 x 3.5 mm stereo mini jack
Remote Control A: 1 x 2.5 mm stereo mini jack (Canon unique protocol)
Remote Control B: 1 x Circular 8-pin connector (Canon unique protocol) | | Format | 1920 x 1080p: 50 / 59.94
1920 x 1080PsF: 25 / 29.97
1920 x 1080i: 50 / 59.94
1280 x 720p: 50 / 59.94
768 x 576p: 50
640 x 480p: 59.94 | | Exposure | Auto: Iris, Gain, Shutter and ND operating together (Cannot set auto / manual separately)
AE shift / AE response selectable | | Gain | Manual: 0 dB to 75 dB (3 dB intervals), ISO4M equivalent at gain 75 dB Auto: Iris, Gain, Shutter and ND operating together, Gain limit is settable from 36 dB to Off / 75 dB | | Shutter | Manual: 1.4 stops
Auto: Iris, Gain, Shutter and ND operating together | | Iris | Manual: 1/2 stops push auto iris available (used with assign button)
Auto: Iris, Gain, Shutter and ND operating together | | ND Filter | Electric Manual: 2 density (1/8, 1/64)
Auto: Iris, Gain, Shutter and ND operating together | | Focus Control | Manual focus (when used with RC-V100)
ONE SHOT AF (used with assign button) | | White Balance | AWB/Kelvin (2000K - 15000K) / Daylight / Tungsten / Set A / Set B | | IR | IR cut filter ON/OFF (electric manual) | | Digital Zoom | 2x / 4x | | Power | Input: 11 to 17 VDC
Consumption: approximately 11 W (body only)
Input Connectors
1 x 4-pin XLR
1 x 2-pin | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 10.8 x 10.3 x 9.7" |
