User manual
Canon PowerShot G7 X Mark II

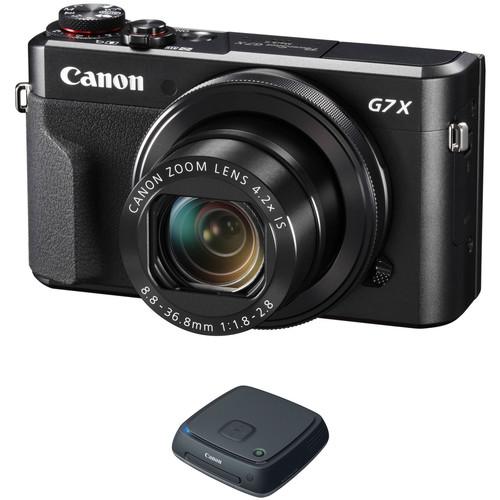

User Manual for Canon PowerShot G7 X Mark II Digital Camera with CS100 Connect Station Kit

• Product category: Point & Shoot Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Point & Shoot Cameras

Product description

• Canon PowerShot G7 X Mark II Digital Camera
  • Canon EOS 80D & PowerShot G7X Mk II: First Look
  • Canon PowerShot G7 X Mark II: Illuminate Your Passion
  • Canon PowerShot G7 X Mark II: "The Premium Movie"
  Blending notable imaging qualities with refined handling, the PowerShot G7 X Mark II Digital Camera from Canon is a compact point-and-shoot characterized by its large feature-set. Utilizing a 20.1MP 1" CMOS sensor and DIGIC 7 image processor, this camera offers a maximum ISO 12800 in Program mode, and achieves smooth image quality with reduced noise when working in low-light conditions. Additionally, it is also capable of recording stills at up to 8 fps as well as Full HD 1080p60 video. Complementing the sensor and processor combination is a versatile 4.2x zoom lens, which provides a 24-100mm equivalent focal length range, covering wide-angle to short-telephoto perspectives. A fast f/1.8-f/2.8 maximum aperture maintains consistent performance throughout the zoom range and also benefits working in difficult lighting conditions. The lens design is surrounded by a familiar control ring that offers intuitive control over settings, and a large 3.0" 1.04m-dot tilting touchscreen LCD provides a natural means for composing imagery from a variety of shooting angles. Additionally, the G7 X Mark II also features built-in Wi-Fi with NFC for wireless sharing of imagery to smartphones or tablets, as well as remote camera control from linked mobile devices.
  20.1MP 1" CMOS Sensor and DIGIC 7 Image Processor
  • Delivering notable image quality in a variety of situations, a 20.1MP 1" CMOS sensor and DIGIC 7 image processor combine to create the Canon HS SYSTEM, which avails clean, clear imagery with minimal noise and a wide dynamic range, with a top expanded sensitivity to ISO 12800. The sensor and processor also avail the ability to shoot raw or JPEG files at up to 8 fps or record Full HD 1080p60 video in the MP4 format with stereo sound.

    In addition to benefitting image quality, the DIGIC 7 processor also enhances focusing speeds and tracking capabilities for maintaining sharp focus on moving subjects, even in low light and low contrast situations. Additionally, the processor also enables Dual Sensing IS that interprets data from imagery in order to intelligently reduce blur caused by camera shake.
  4.2x Optical Zoom Lens and Intelligent IS
  • A built-in 4.2x optical zoom lens provides a versatile 24-100mm equivalent focal length range, and features a bright f/1.8-f/2.8 maximum aperture range to benefit working in difficult lighting conditions throughout the zoom range. This fast maximum aperture also teams up with a nine-blade diaphragm to produce a smooth bokeh quality when using selective focus techniques. Additionally, a Super Spectra Coating has been applied to individual lens elements to noticeably reduce lens flare and ghosting when shooting in strong lighting conditions.

    An Intelligent IS image stabilization system is also incorporated into the lens design to minimize the appearance of camera shake for a variety of shooting scenarios:

    • Normal IS: Corrects for a wide variety of camera movement types when shooting stills.
    • Panning IS: Intended for use when making tracking shots, this setting ensures that IS will not interfere with desired lateral camera movements.
    • Macro (Hybrid) IS: Used for both stills and video recording, this setting corrects for shift-type camera shake that is common when photographing close-up subjects. It also compensates for motion blur associated with recording video while walking.
    • Tripod: Image stabilization is deactivated when shooting stills atop a tripod.
    • Dynamic IS: This setting is effective when recording video using wider focal lengths and simultaneously walking or moving.
    • Powered IS: Ideally suited for shooting video with telephoto focal lengths, this mode compensates for the camera movements that become more apparent with greater zoom magnifications.
    • Active Tripod IS: Unlike the stills tripod mode, this video-specific tripod mode compensates for slight amounts of shake that can be caused when recording movies from a tripod.
  Body Design and Built-In Wi-Fi
  • • A sleek, compact profile incorporates a large 3.0" 1.04m-dot touchscreen LCD that features a 180° upward, 45° downward tilting design to support taking selfies or working from low shooting angles.
    • A manual control ring surrounds the lens for intuitive control over select camera and exposure settings. The ring can also be set to have clicked intervals, for tactile recognition of settings changes, or can be de-clicked for smooth, quiet transitions between adjustments.
    • Built-in Wi-Fi with NFC allows you to wirelessly share your photos and movies with a linked smartphone or tablet as well as remotely control the camera from the mobile device by using the Camera Connect app.
  Other Camera Features
  • • Picture Style affords in-camera control over the color, contrast, and sharpness of imagery.
    • In-camera raw file conversions let you preview and apply adjustments to files without needing to process the files on a computer.
    • A Time-Lapse Movie function automatically compiles sequentially-recorded images taken at predetermined intervals and composites them into a seamless movie file for smooth playback.
    • A dedicated Panning function can lock onto an intended subject and, using image stabilization, automatically adjust the shutter speed to render a sharp moving subject set against a blurred background.
  UPC: 013803269321
• Canon Connect Station CS100 1TB Storage Device
  • Canon EOS 80D & PowerShot G7X Mk II: First Look
  • Canon PowerShot G7 X Mark II: Illuminate Your Passion
  • Canon PowerShot G7 X Mark II: "The Premium Movie"
  Enabling wireless backing up of image and video files from Canon cameras and camcorders, the Connect Station CS100 is a media hub designed for storing, managing, and viewing your multimedia content. Featuring a built-in 1TB drive, this storage device is able to back-up approximately 150,000 photos or 70 hours of video from your camera, with the convenience of syncing your device via NFC or over Wi-Fi. Once the content has been loaded into the CS100, you can browse, manage, sort, and view your files using an intuitive menu system. Playback is supported via HDMI. Wireless printing is possible to compatible PIXMA/SELPHY printers, and imagery can be downloaded to PCs or smart devices via a web browser. The CS100 offers both convenience and practicality in how to import, view, and export your imagery.
  • The built-in 1TB of storage is able to hold approximately 150,000 photos or approximately 70 hours of video.
  • NFC and Wi-Fi connectivity allow you to simply tap your NFC-enabled Canon camera to the device in order to automatically transfer photos and movies over Wi-Fi. For cameras without built-in Wi-Fi or NFC, a USB 2.0 port and both CF and SD card slots are also available for importing content.
  • For large-scale playback on an HDTV or monitor, an HDMI out port can be used to preview your imagery. The photos' full resolution is maintained during playback as well as the smooth playback from high bitrate video formats. Additionally, the included remote control (CS-RC1) permits simple, wireless control over playback and file navigation.
  • Files are automatically sorted by date (month/year) or by the specific shooting device. For further refinement, an easy-to-navigate menu structure allows you to create albums for more personalized sorting.
  • Wireless printing is supported from the CS100, which is fully compatible with PictBridge and wireless LAN-enabled PIXMA, SELPHY, or other compatible printers.
  • Accessible via a web browser on smartphones, tablets, or PCs, the contents of the CS100 can also be viewed or downloaded to other devices. Furthermore, imagery can be imported from smart devices, and compatible Android devices will automatically connect without the need to manually launch the web browser interface.
  • Seamless and wireless file transferring between two Connect Stations is possible, as well as the ability to share directly to social networks via the Canon iMAGE GATEWAY.
  • The following file formats are supported by the CS100:

    • Photo: JPEG, CR2
    • Video: MP4, MOV, AVCHD
  • The contents of the CS100 can securely be offloaded to another external hard drive via USB connection for backing up your photo and video library.
  UPC: 013803253740

• PowerShot G7 X Mark II Digital Camera cztxdtfbvrwusb
• NB-13L Lithium-Ion Battery Pack (3.6V, 1250mAh)
• CB-2LH Battery Charger for NB-13L Li-Ion Batteries
• WS-DC12 Wrist Strap
• Limited 1-Year Warranty

• Connect Station CS100 1TB Storage Device

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Canon PowerShot G7 X Mark II Digital Camera with CS100 Connect Station Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Canon PowerShot G7 X Mark II Digital Camera with CS100 Connect Station Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Canon PowerShot G7 X Mark II Digital Camera with CS100 Connect Station Kit (PDF file, 0 MB)

Technical parameters

• Canon PowerShot G7 X Mark II Digital Camera

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1" CMOS
  Bit Depth	14-Bit
  File Formats	Still Images: JPEG, RAW Movies: MP4 Audio: AAC LC
  Max Resolution	5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	Effective Focal Length: 8.8 to 36.8mm (35 mm Equivalent: 24 to 100mm) Aperture: f/1.8 (W) to f/2.8 (T)
  Zoom	Optical: 4.2x Digital: 4x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 1.31' to Infinity / 40 cm to Infinity Macro: 1.97" to 1.64' / 5 cm to 50 cm Quick: 4.92' to 65.62' / 1.5 m to 20 m

  ISO Sensitivity	125 to 12800
  Shutter	15 to 1/2000 Second , Bulb Mode 1 to 1/2000 Second in Auto Mode
  Exposure Metering	Center-Weighted, Evaluative, Spot
  Exposure Modes	Modes: AE Lock, Aperture Priority, Custom, Manual, Program Shift, Safety Shift, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Auto Background Defocus Fireworks Fish-Eye Effect HDR Handheld Night Scene Hybrid Auto Miniature Effect Movie Panning Portrait Self-Portrait Soft Focus Star Nightscape Star Portrait Star Time-Lapse Movie Star Trails Time-Lapse Movie Toy Camera Effect Underwater Watercolor
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Fluorescent H, Kelvin, Shade, Tungsten, Underwater
  Continuous Shooting	Up to 8 fps at 20.1 MP for up to 30 Exposures (JPEG Format) Up to 5.4 fps at 20.1 MP for up to 46 Exposures (JPEG Format) Up to 4 fps at 20.1 MP
  Self-Timer	2, 10 Sec
  Interval Recording	Yes

  Flash Modes	Auto Flash On Off Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.6 to 23.0' / 0.5 to 7 m Telephoto:1.3 to 13.1' / 0.4 to 4 m

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	1920 x 1080p: 59.94 fps, 29.97 fps, 23.98 fps 1280 x 720p: 29.97 fps 640 x 480p: 29.97 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Stereo)

  Screen	3.0" LCD Rear Touchscreen Tilt (1,040,000 Pixels)
  Screen Coverage	100%

  Connectivity	AV Output, HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 90%

  Battery	1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh

  Dimensions (W x H x D)	4.2 x 2.4 x 1.7" / 105.5 x 60.9 x 42.0 mm
  Weight	11.29 oz / 320 g with battery and memory card

  Box Dimensions (LxWxH)	6.2 x 5.9 x 3.2"

• Canon Connect Station CS100 1TB Storage Device

  Storage Capacity	Built-in 1 TB drive (actual capacity is less than 1 TB due to system requirements)

  Standard Compliance	IEEE802.11b/g/n
  Transmission Method	DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g / n)
  Transmission Range	Approx. 49.2' / 15 m
  Transmission Frequency	2.412 - 2.462 GHz
  Security	WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES)

  Interface Type	10BASE-T, 100BASE-TX, 1000BASE-T

  USB	Hi-Speed USB (USB 2.0)
  HDMI Out	Type A, CEC-compatible
  Card Slot	1x CF (Type I or II compatible) 1x SD (SD, SDHC, SDXC; UHS-I is not compatible)

  Still Image	JPEG, RAW (CR2 only)
  Video	MP4, MOV, AVCHD

  Operating Environment	32-104°F / 0-40°C 85% or less relative humidity
  Power Consumption	During operation: Approx. 10 W During standby: Approx. 9.5 W
  Power Adapter	Compact Power Adapter CA-PS00 100-240 V AC 50/60 Hz 5.9' / 1.8 m DC cord
  Dimensions	CS100: 6.1 x 2.0 x 6.1" / 155.6 x 51.1 x 155.6 mm Remote Controller CS-RC1: 1.6 x 0.6 x 4.9" / 41.3 x 15.1 x 125.5 mm Compact Power Adapter CA-PS00: 4.4 x 1.1 x 1.8" / 112 x 29 x 45 mm (excluding power cord)
  Weight	CS100: 1.3 lb / 570 g Remote Controller CS-RC1: 1.5 oz / 48 g Compact Power Adapter CA-PS00: 6.5 oz / 185 g (excluding power cord)

  Box Dimensions (LxWxH)	10.2 x 8.9 x 3.8"
