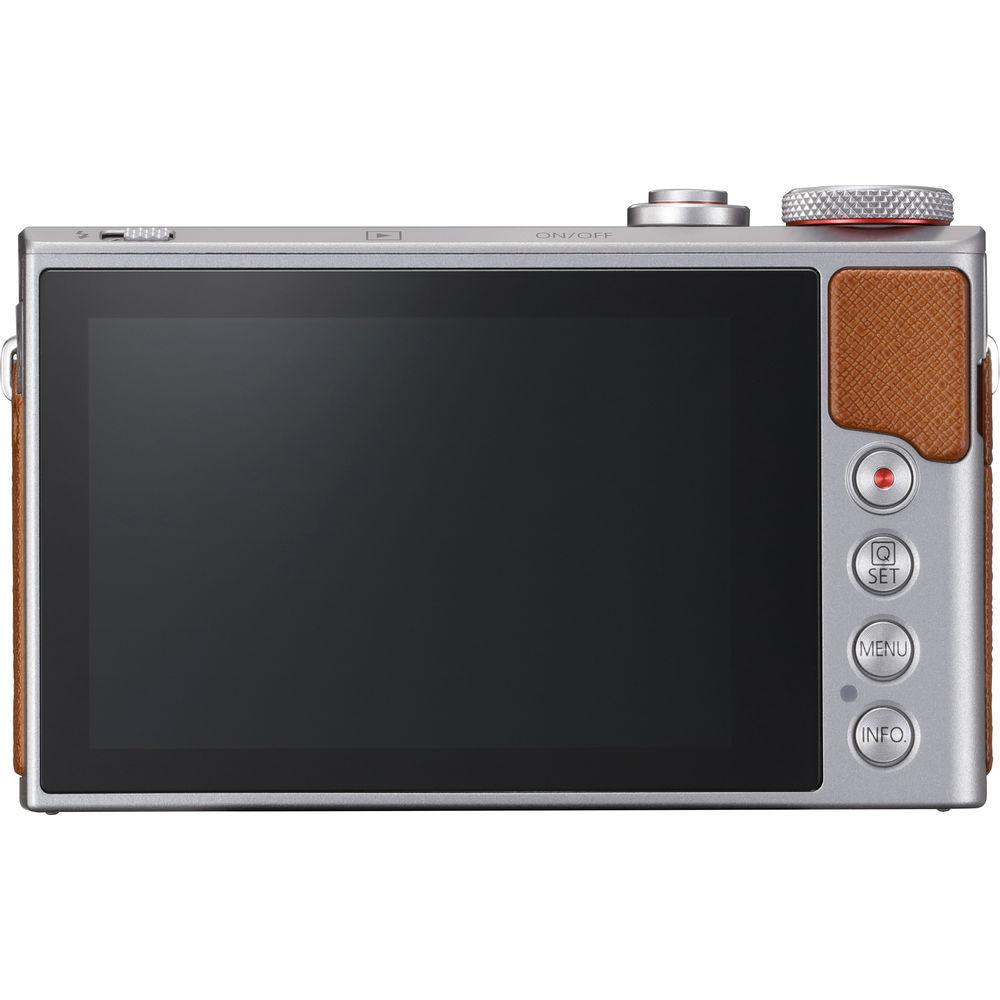

User Manual for Canon PowerShot G9 X Mark II Digital Camera Click to enlarge the picture
Contents of the user manual for the Canon PowerShot G9 X Mark II
- Product category: Point & Shoot Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Point & Shoot Cameras
 |
User manual for the Canon PowerShot G9 X Mark II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description CES 2017: Canon Releases G9 X Mark II, G7 X Mark II Video Creator Kit Read More rabbzddyvtrqsytdxfcfxqdr - Official Canon PowerShot G9X Mark II Introduction Video
- PowerShot G9X Mark II Timelapse

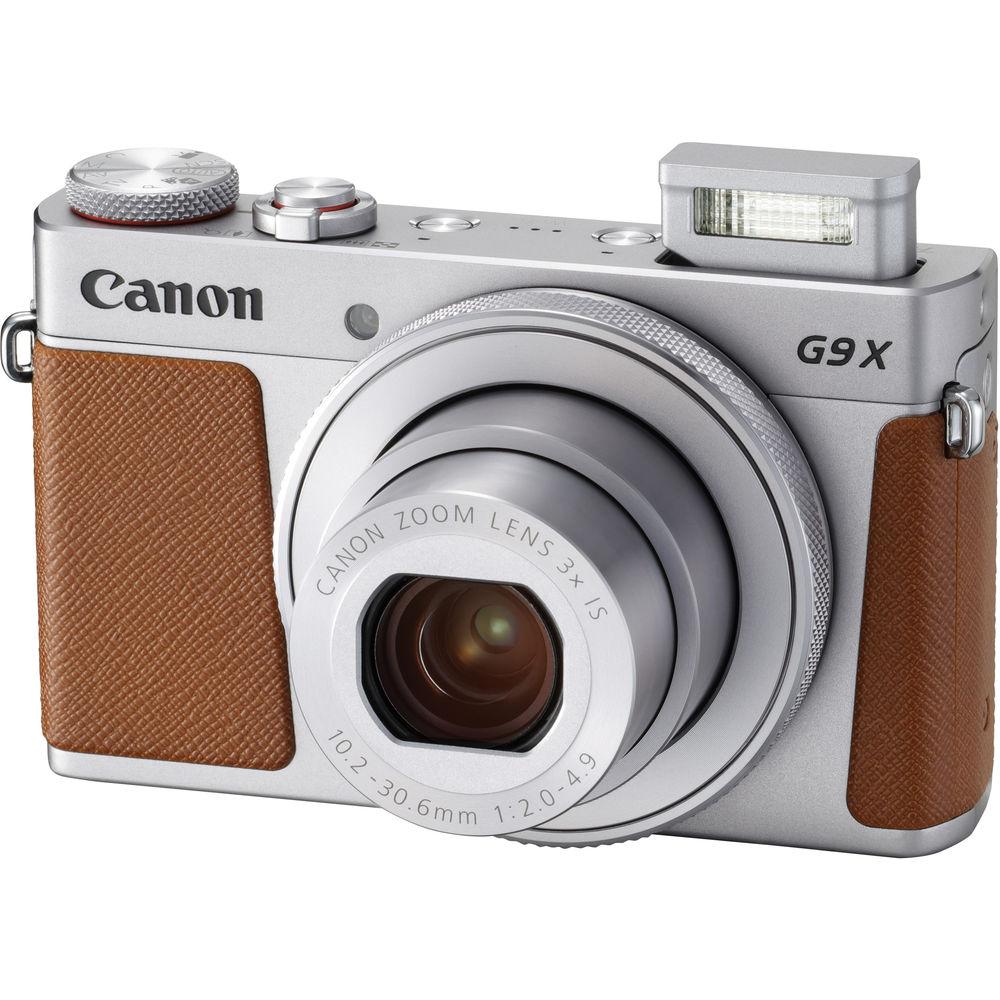

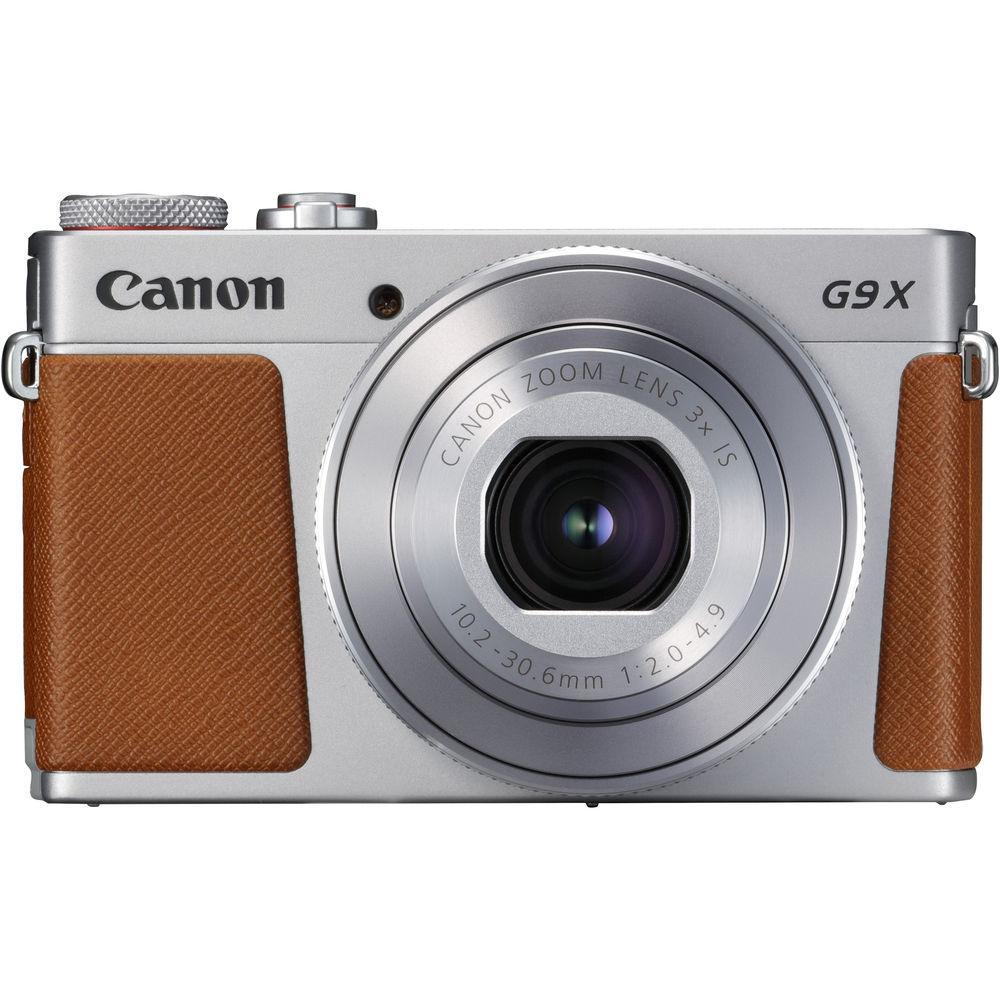

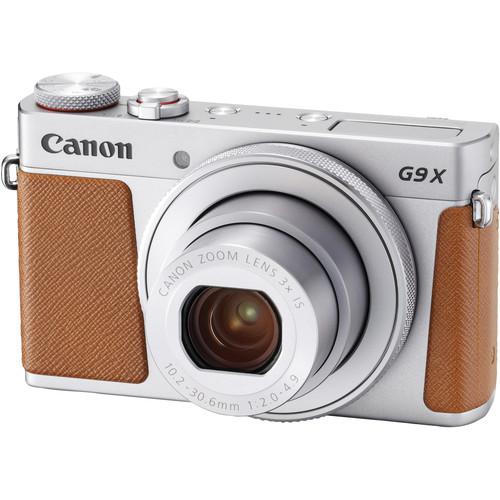

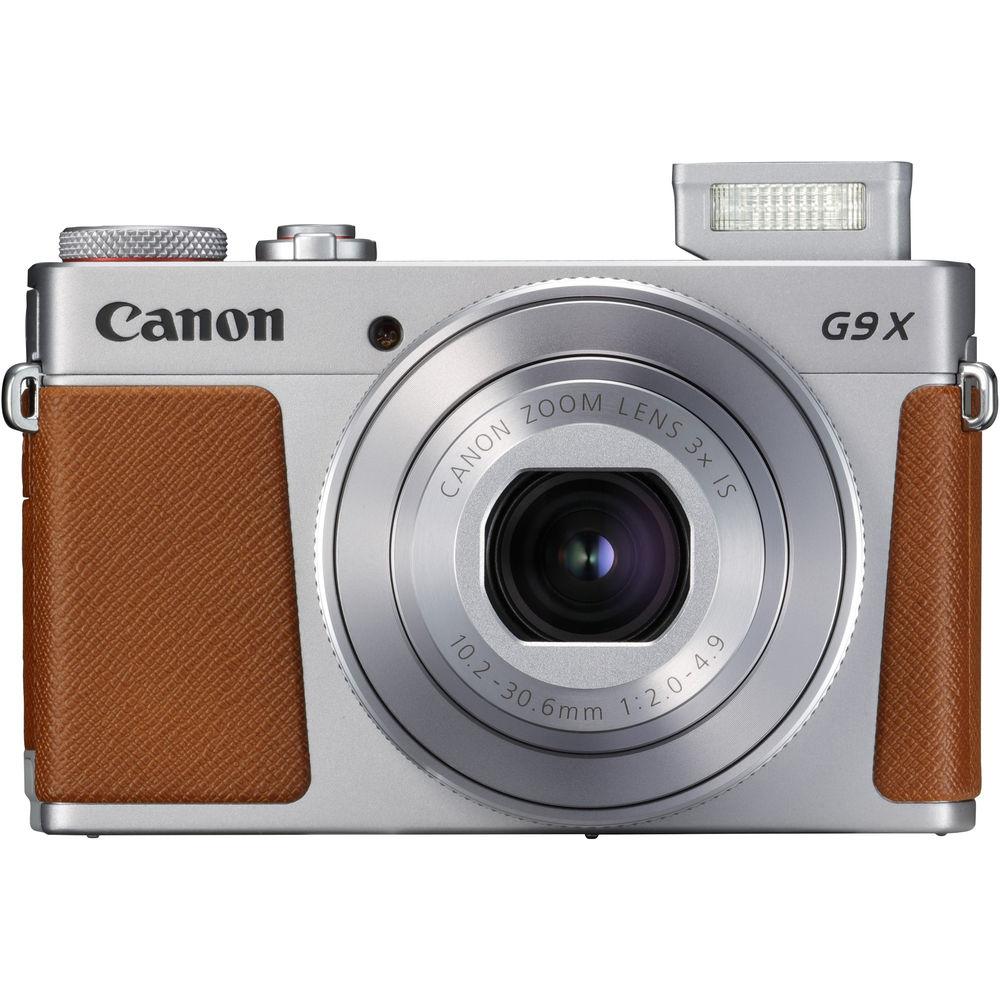

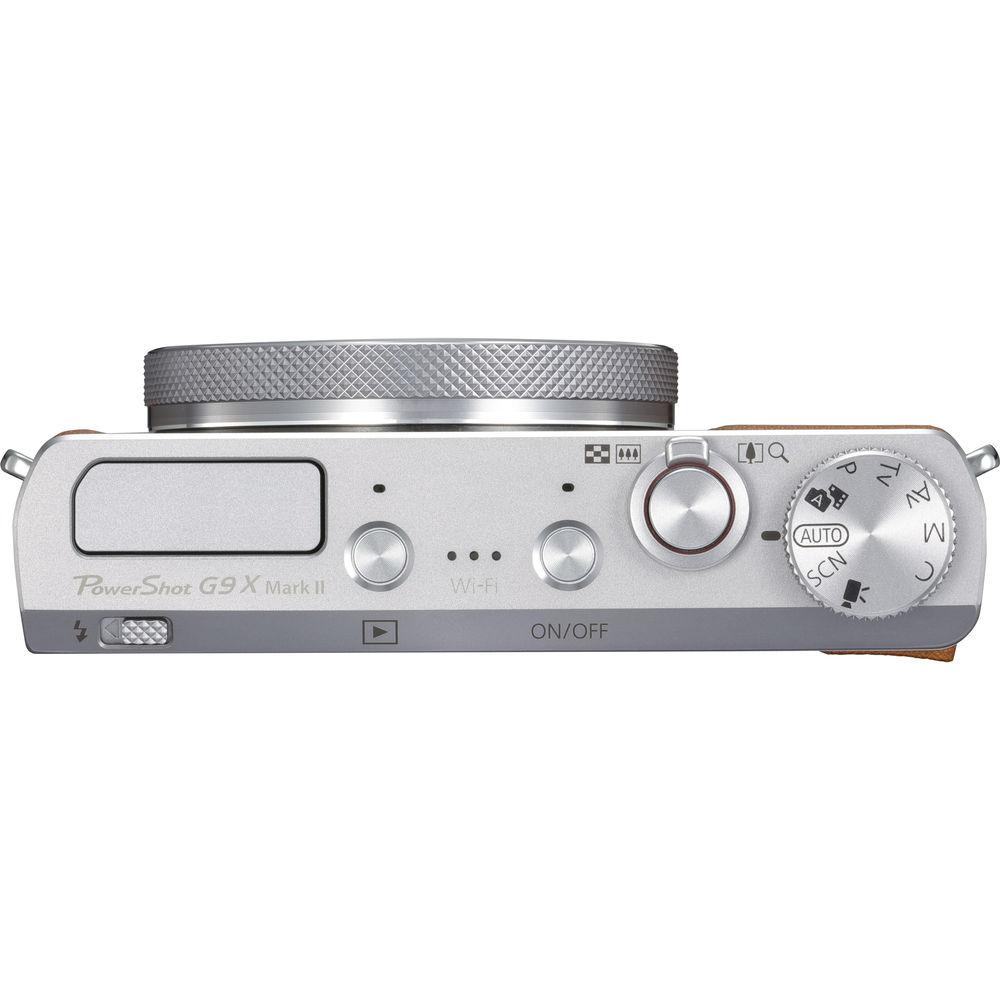

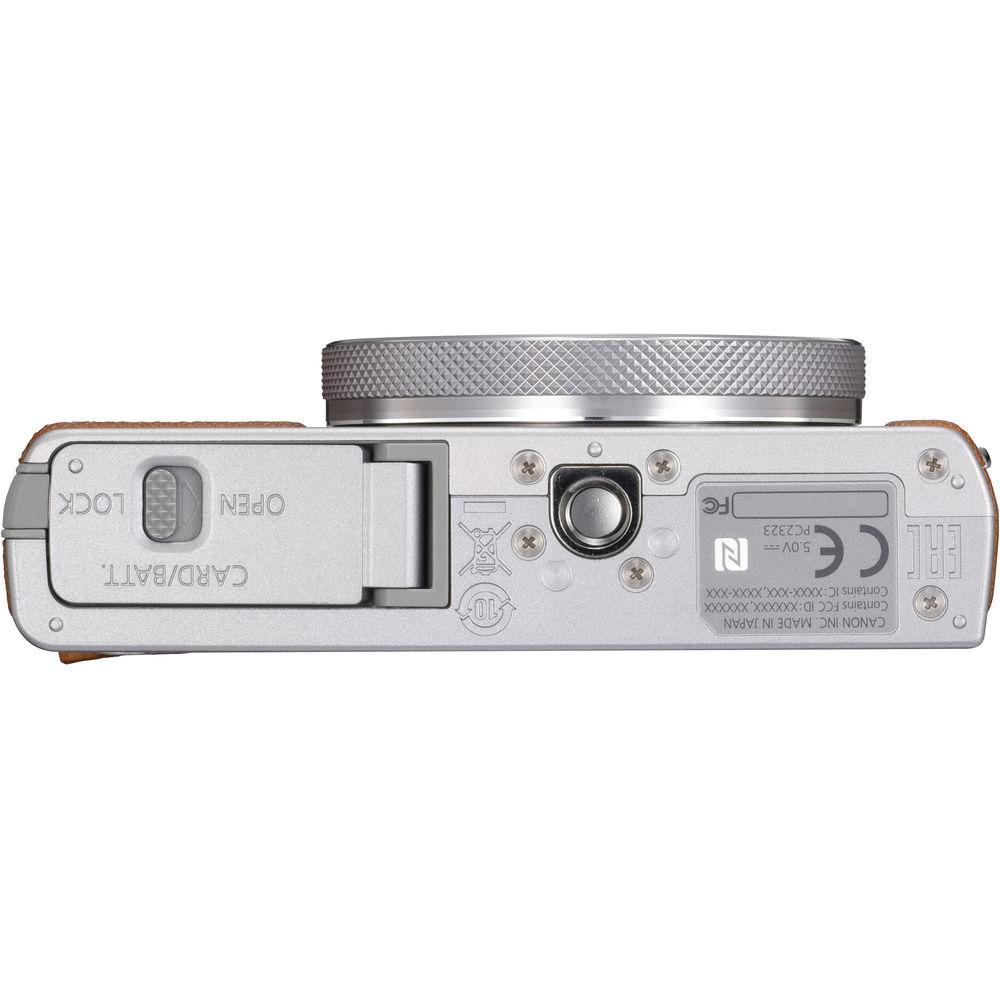

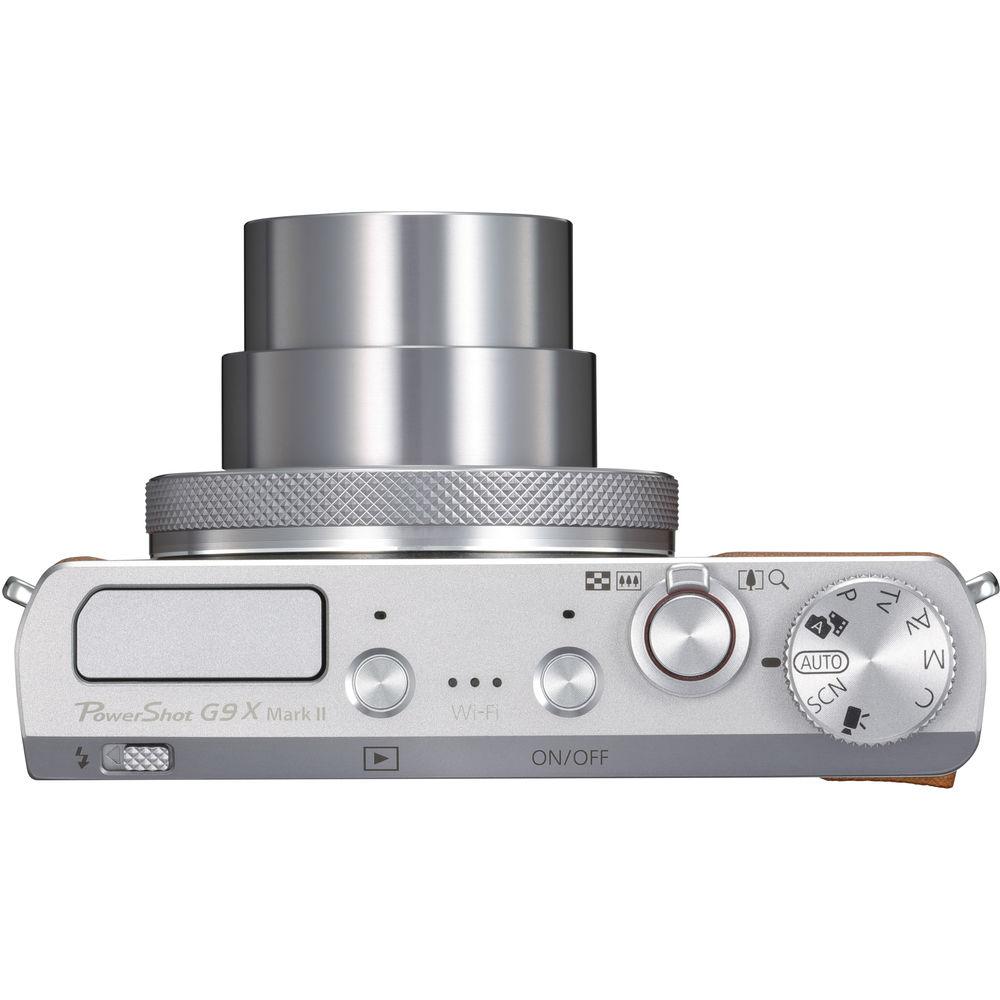

A sleek, pocketable, and quite capable camera, the silver PowerShot G9 X Mark II from Canon mixes a compact form factor with advanced imaging capabilities. Pairing a 20.1MP 1" CMOS sensor with a DIGIC 7 image processor, this combination produces clean, high-resolution image quality well-suited to working in difficult lighting conditions, with extended sensitivity to ISO 12800, and also avails quick shooting performance up to 8.2 fps for working with moving subjects. Full HD 1080p video recording is also supported, as well as in-camera time-lapse movies for producing dynamic moving image content. Complementing the imaging capabilities is a versatile 3x optical zoom lens, which covers a wide-angle to portrait-length 28-84mm equivalent focal length range, and Dynamic IS benefits this reach by minimizing the appearance of camera shake. The slim camera body also features a 3.0" touchscreen LCD for intuitive control as well as built-in Wi-Fi with NFC and Bluetooth for wirelessly transferring imagery and remotely controlling the camera from a mobile device. - 20.1MP 1" CMOS Sensor and DIGIC 7 Processor
- A large 20.1MP 1" High-Sensitivity BSI CMOS sensor and DIGIC 7 image processor combine to create the Canon HS SYSTEM, which offers an expanded sensitivity range up to ISO 12800 and enhanced low-light performance with reduced image noise to benefit working in difficult conditions. The sensor and processor pairing also avails quick performance throughout the camera system, including an 8.2 fps continuous shooting rate, quick autofocus with subject tracking, and Full HD 1080p video recording at 60 fps, and the large sensor size contributes to rich image quality that is well-suited to printing and sharing work.
- 3x Optical Zoom Lens and Image Stabilization
- The versatile 3x optical zoom lens covers a wide-angle to portrait-length 28-84mm equivalent focal length range, and features an f/2-4.9 maximum aperture along with Intelligent IS and Dual Sensing IS image stabilization technologies to benefit handheld shooting in difficult lighting conditions. Additionally, Dynamic IS can also be used to help stabilize videos and minimize the appearance of shake when recording while walking.
- Body Design and Wireless Connectivity
-
- For live view monitoring and image playback, a 3.0" 1.04m-dot LCD screen is available and features a touchscreen design for intuitive settings control and menu navigation.
- Compact, pocket-sized form factor is ideal for carrying with you at all times.
- Built-in Wi-Fi with NFC allows you to wirelessly transfer images to a linked mobile device and Bluetooth pairing allows you to easily connect to smartphones or tablets to permit remote control over the camera from your device using the Canon Camera Connect app.
- The included NB-13L rechargeable lithium-ion battery provides approximately 235 shots per charge when working with the screen on, or approximately 315 shots per charge in ECO mode.
- Other Camera Features
-
- Time-Lapse Movie functions let you record a series of stills over a set time period, then automatically merge and output the time-lapse as a video for seamless playback.
- In-camera raw conversion lets you apply a range of creative adjustments to your raw files, such as Auto Light Optimizer and Picture Style adjustments, and then export them as edited JPEGs directly from the camera.
- Picture Style effects allow you to creatively refine the look of imagery in-camera while shooting; these modes include Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, and three User Defined settings.

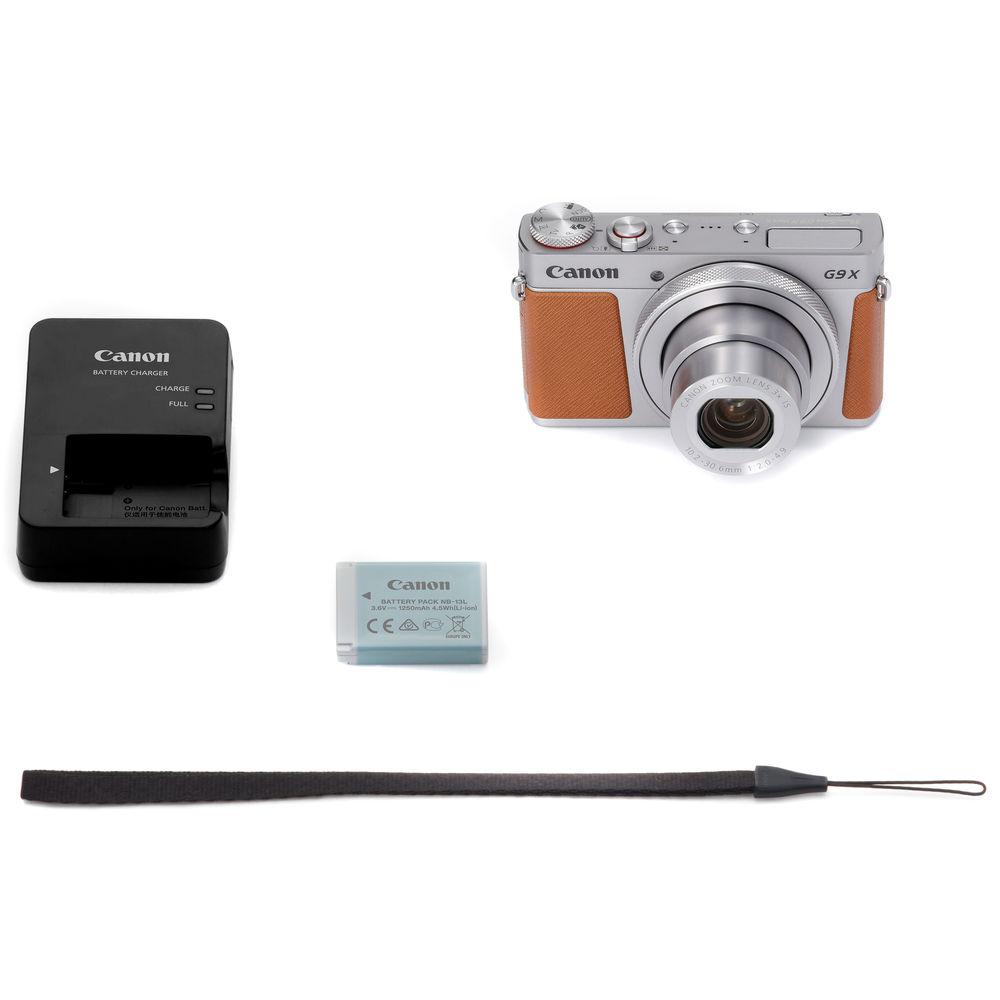

UPC: 013803284942 In the Box Canon PowerShot G9 X Mark II Digital Camera (Silver) NB-13L Lithium-Ion Battery Pack (3.6V, 1250mAh) rabbzddyvtrqsytdxfcfxqdr CB-2LH Battery Charger for NB-13L Li-Ion Batteries WS-DC12 Wrist Strap Limited 1-Year Warranty User Manual PDF 8mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon PowerShot G9 X Mark II Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon G9 X Mark II Specs | | | Pixels | Actual: 20.9 Megapixel
Effective: 20.1 Megapixel | | Sensor | 1" CMOS | | Bit Depth | 14-Bit | | File Formats | Still Images: JPEG, RAW
Movies: MP4,
Audio: AAC LC | | Max Resolution | 5472 x 3648 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | Effective Focal Length: 10.2 to 30.6mm (35 mm Equivalent: 28 to 84mm)
Aperture: f/2 (W) to f/4.9 (T) | | Zoom | Optical: 3x
Digital: 4x | | Focus Range | Wide: 1.97" to Infinity / 5 cm to Infinity
Telephoto: 1.15' to Infinity / 35 cm to Infinity
Wide Macro: 1.97" to Infinity / 5 cm to Infinity
Tele Macro: 1.64' to Infinity / 50 cm to Infinity | | | | ISO Sensitivity | Auto, 125 to 6400 (Extended Mode:125 to 12800) | | Shutter | 30 to 1/2000 Second , Bulb Mode
1 to 1/2000 Second in Auto Mode | | Exposure Metering | Center-Weighted, Evaluative, Spot | | Exposure Modes | Modes: AE Lock, Aperture Priority, Custom, Hybrid Auto, Manual, Program Shift, Safety Shift, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | Auto
Background Defocus
Fireworks
Fish-Eye Effect
Handheld Night Scene
High Dynamic
Miniature Effect
Panning
Portrait
Soft Focus
Star Nightscape
Star Portrait
Star Time-Lapse Movie
Star Trails
Time-Lapse Movie
Toy Camera Effect
Watercolor | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent, Shade, Tungsten | | Continuous Shooting | Up to 8.2 fps at 20.1 MP for up to 21 Exposures (Raw Format)
Up to 4 fps at 20.1 MP for Unlimited Exposures (Raw Format)
Up to 8.1 fps at 20.1 MP for up to 38 Exposures (JPEG Format)
Up to 4 fps at 20.1 MP for Unlimited Exposures (JPEG Format)
Up to 5.3 fps at 20.1 MP for up to 102 Exposures (JPEG Format) | | Self-Timer | 2, 10 Sec | | Interval Recording | Yes | | | | Flash Modes | Auto
Forced On
Off
Slow Sync | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 19.7' / 0.5 to 6 m
Telephoto:1.6 to 7.9' / 0.5 to 2.4 m | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080p: 59.94 fps, 29.97 fps, 23.98 fps
1280 x 720p: 29.97 fps
640 x 480p: 29.97 fps | | | | Video Clip Length | Up to 29 Minutes 59 Seconds | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Screen | 3.0" LCD Rear Touchscreen (1,040,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Battery | 1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | AC Power Adapter | ACK-DC110 (Not Included) | | | | Dimensions (W x H x D) | 3.9 x 2.3 x 1.2" / 98.0 x 57.9 x 31.3 mm | | Weight | 7.27 oz / 206 g with battery and memory card | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.2 x 5.6 x 2.4" |
