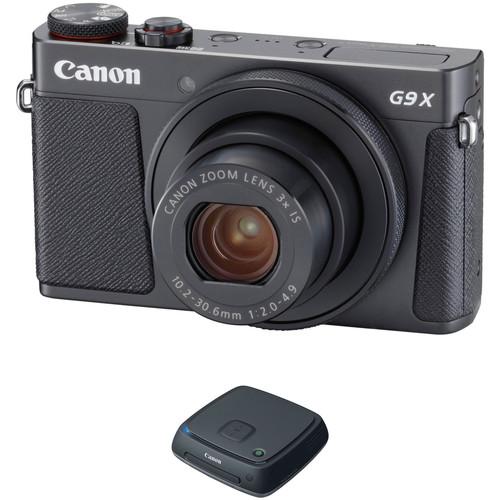

User Manual for Canon PowerShot G9 X Mark II Digital Camera with CS100 Kit

• Product category: Point & Shoot Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Point & Shoot Cameras

Product description

• Canon PowerShot G9 X Mark II Digital Camera (Black)
  • Official Canon PowerShot G9X Mark II Introduction Video
  • PowerShot G9X Mark II Timelapse
  A sleek, pocketable, and quite capable camera, the black PowerShot G9 X Mark II from Canon mixes a compact form factor with advanced imaging capabilities. Pairing a 20.1MP 1" CMOS sensor with a DIGIC 7 image processor, this combination produces clean, high-resolution image quality well-suited to working in difficult lighting conditions, with extended sensitivity to ISO 12800, and also avails quick shooting performance up to 8.2 fps for working with moving subjects. Full HD 1080p video recording is also supported, as well as in-camera time-lapse movies for producing dynamic moving image content. Complementing the imaging capabilities is a versatile 3x optical zoom lens, which covers a wide-angle to portrait-length 28-84mm equivalent focal length range, and Dynamic IS benefits this reach by minimizing the appearance of camera shake. The slim camera body also features a 3.0" touchscreen LCD for intuitive control as well as built-in Wi-Fi with NFC and Bluetooth for wirelessly transferring imagery and remotely controlling the camera from a mobile device.
  20.1MP 1" CMOS Sensor and DIGIC 7 Processor
  • A large 20.1MP 1" High-Sensitivity BSI CMOS sensor and DIGIC 7 image processor combine to create the Canon HS SYSTEM, which offers an expanded sensitivity range up to ISO 12800 and enhanced low-light performance with reduced image noise to benefit working in difficult conditions. The sensor and processor pairing also avails quick performance throughout the camera system, including an 8.2 fps continuous shooting rate, quick autofocus with subject tracking, and Full HD 1080p video recording at 60 fps, and the large sensor size contributes to rich image quality that is well-suited to printing and sharing work.
  3x Optical Zoom Lens and Image Stabilization
  • The versatile 3x optical zoom lens covers a wide-angle to portrait-length 28-84mm equivalent focal length range, and features an f/2-4.9 maximum aperture along with Intelligent IS and Dual Sensing IS image stabilization technologies to benefit handheld shooting in difficult lighting conditions. Additionally, Dynamic IS can also be used to help stabilize videos and minimize the appearance of shake when recording while walking.
  Body Design and Wireless Connectivity
  • • For live view monitoring and image playback, a 3.0" 1.04m-dot LCD screen is available and features a touchscreen design for intuitive settings control and menu navigation.
    • Compact, pocket-sized form factor is ideal for carrying with you at all times.
    • Built-in Wi-Fi with NFC allows you to wirelessly transfer images to a linked mobile device and Bluetooth pairing allows you to easily connect to smartphones or tablets to permit remote control over the camera from your device using the Canon Camera Connect app.
    • The included NB-13L rechargeable lithium-ion battery provides approximately 235 shots per charge when working with the screen on, or approximately 315 shots per charge in ECO mode.
  Other Camera Features
  • • Time-Lapse Movie functions let you record a series of stills over a set time period, then automatically merge and output the time-lapse as a video for seamless playback.
    • In-camera raw conversion lets you apply a range of creative adjustments to your raw files, such as Auto Light Optimizer and Picture Style adjustments, and then export them as edited JPEGs directly from the camera.
    • Picture Style effects allow you to creatively refine the look of imagery in-camera while shooting; these modes include Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, and three User Defined settings.
  UPC: 013803284928
• Canon Connect Station CS100 1TB Storage Device
  • Official Canon PowerShot G9X Mark II Introduction Video
  • PowerShot G9X Mark II Timelapse
  Enabling wireless backing up of image and video files from Canon cameras and camcorders, the Connect Station CS100 is a media hub designed for storing, managing, and viewing your multimedia content. Featuring a built-in 1TB drive, this storage device is able to back-up approximately 150,000 photos or 70 hours of video from your camera, with the convenience of syncing your device via NFC or over Wi-Fi. Once the content has been loaded into the CS100, you can browse, manage, sort, and view your files using an intuitive menu system. Playback is supported via HDMI. Wireless printing is possible to compatible PIXMA/SELPHY printers, and imagery can be downloaded to PCs or smart devices via a web browser. The CS100 offers both convenience and practicality in how to import, view, and export your imagery.
  • The built-in 1TB of storage is able to hold approximately 150,000 photos or approximately 70 hours of video.
  • NFC and Wi-Fi connectivity allow you to simply tap your NFC-enabled Canon camera to the device in order to automatically transfer photos and movies over Wi-Fi. For cameras without built-in Wi-Fi or NFC, a USB 2.0 port and both CF and SD card slots are also available for importing content.
  • For large-scale playback on an HDTV or monitor, an HDMI out port can be used to preview your imagery. The photos' full resolution is maintained during playback as well as the smooth playback from high bitrate video formats. Additionally, the included remote control (CS-RC1) permits simple, wireless control over playback and file navigation.
  • Files are automatically sorted by date (month/year) or by the specific shooting device. For further refinement, an easy-to-navigate menu structure allows you to create albums for more personalized sorting.
  • Wireless printing is supported from the CS100, which is fully compatible with PictBridge and wireless LAN-enabled PIXMA, SELPHY, or other compatible printers.
  • Accessible via a web browser on smartphones, tablets, or PCs, the contents of the CS100 can also be viewed or downloaded to other devices. Furthermore, imagery can be imported from smart devices, and compatible Android devices will automatically connect without the need to manually launch the web browser interface.
  • Seamless and wireless file transferring between two Connect Stations is possible, as well as the ability to share directly to social networks via the Canon iMAGE GATEWAY.
  • The following file formats are supported by the CS100:

    • Photo: JPEG, CR2
    • Video: MP4, MOV, AVCHD
  • The contents of the CS100 can securely be offloaded to another external hard drive via USB connection for backing up your photo and video library.
  UPC: 013803253740

• PowerShot G9 X Mark II Digital Camera (Black) adaezzeadzycutzywtwfrfcracydwfwvbw
• NB-13L Lithium-Ion Battery Pack (3.6V, 1250mAh)
• CB-2LH Battery Charger for NB-13L Li-Ion Batteries
• WS-DC12 Wrist Strap
• Limited 1-Year Warranty

• Connect Station CS100 1TB Storage Device

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon PowerShot G9 X Mark II Digital Camera (Black)

  Pixels	Actual: 20.9 Megapixel Effective: 20.1 Megapixel
  Sensor	1" CMOS
  Bit Depth	14-Bit
  File Formats	Still Images: JPEG, RAW Movies: MP4, Audio: AAC LC
  Max Resolution	5472 x 3648
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Image Stabilization	Optical

  Lens	Effective Focal Length: 10.2 to 30.6mm (35 mm Equivalent: 28 to 84mm) Aperture: f/2 (W) to f/4.9 (T)
  Zoom	Optical: 3x Digital: 4x
  Focus Range	Wide: 1.97" to Infinity / 5 cm to Infinity Telephoto: 1.15' to Infinity / 35 cm to Infinity Wide Macro: 1.97" to Infinity / 5 cm to Infinity Tele Macro: 1.64' to Infinity / 50 cm to Infinity

  ISO Sensitivity	Auto, 125 to 6400 (Extended Mode:125 to 12800)
  Shutter	30 to 1/2000 Second , Bulb Mode 1 to 1/2000 Second in Auto Mode
  Exposure Metering	Center-Weighted, Evaluative, Spot
  Exposure Modes	Modes: AE Lock, Aperture Priority, Custom, Hybrid Auto, Manual, Program Shift, Safety Shift, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Auto Background Defocus Fireworks Fish-Eye Effect Handheld Night Scene High Dynamic Miniature Effect Panning Portrait Soft Focus Star Nightscape Star Portrait Star Time-Lapse Movie Star Trails Time-Lapse Movie Toy Camera Effect Watercolor
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent, Shade, Tungsten
  Continuous Shooting	Up to 8.2 fps at 20.1 MP for up to 21 Exposures (Raw Format) Up to 4 fps at 20.1 MP for Unlimited Exposures (Raw Format) Up to 8.1 fps at 20.1 MP for up to 38 Exposures (JPEG Format) Up to 4 fps at 20.1 MP for Unlimited Exposures (JPEG Format) Up to 5.3 fps at 20.1 MP for up to 102 Exposures (JPEG Format)
  Self-Timer	2, 10 Sec
  Interval Recording	Yes

  Flash Modes	Auto Forced On Off Slow Sync
  Built-In Flash	Yes
  Effective Flash Range	Wide:1.6 to 19.7' / 0.5 to 6 m Telephoto:1.6 to 7.9' / 0.5 to 2.4 m

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	1920 x 1080p: 59.94 fps, 29.97 fps, 23.98 fps 1280 x 720p: 29.97 fps 640 x 480p: 29.97 fps

  Video Clip Length	Up to 29 Minutes 59 Seconds
  Audio Recording	Built-In Mic: With Video (Stereo)

  Screen	3.0" LCD Rear Touchscreen (1,040,000 Pixels)
  Screen Coverage	100%

  Connectivity	HDMI D (Micro), USB 2.0 Micro-B, USB 2.0
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 90%

  Battery	1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh
  AC Power Adapter	ACK-DC110 (Not Included)

  Dimensions (W x H x D)	3.9 x 2.3 x 1.2" / 98.0 x 57.9 x 31.3 mm
  Weight	7.27 oz / 206 g with battery and memory card

  Box Dimensions (LxWxH)	6.3 x 5.7 x 2.5"

• Canon Connect Station CS100 1TB Storage Device

  Storage Capacity	Built-in 1 TB drive (actual capacity is less than 1 TB due to system requirements)

  Standard Compliance	IEEE802.11b/g/n
  Transmission Method	DS-SS modulation (IEEE 802.11b) OFDM modulation (IEEE 802.11g / n)
  Transmission Range	Approx. 49.2' / 15 m
  Transmission Frequency	2.412 - 2.462 GHz
  Security	WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES)

  Interface Type	10BASE-T, 100BASE-TX, 1000BASE-T

  USB	Hi-Speed USB (USB 2.0)
  HDMI Out	Type A, CEC-compatible
  Card Slot	1x CF (Type I or II compatible) 1x SD (SD, SDHC, SDXC; UHS-I is not compatible)

  Still Image	JPEG, RAW (CR2 only)
  Video	MP4, MOV, AVCHD

  Operating Environment	32-104°F / 0-40°C 85% or less relative humidity
  Power Consumption	During operation: Approx. 10 W During standby: Approx. 9.5 W
  Power Adapter	Compact Power Adapter CA-PS00 100-240 V AC 50/60 Hz 5.9' / 1.8 m DC cord
  Dimensions	CS100: 6.1 x 2.0 x 6.1" / 155.6 x 51.1 x 155.6 mm Remote Controller CS-RC1: 1.6 x 0.6 x 4.9" / 41.3 x 15.1 x 125.5 mm Compact Power Adapter CA-PS00: 4.4 x 1.1 x 1.8" / 112 x 29 x 45 mm (excluding power cord)
  Weight	CS100: 1.3 lb / 570 g Remote Controller CS-RC1: 1.5 oz / 48 g Compact Power Adapter CA-PS00: 6.5 oz / 185 g (excluding power cord)

  Box Dimensions (LxWxH)	10.2 x 8.9 x 3.8"
