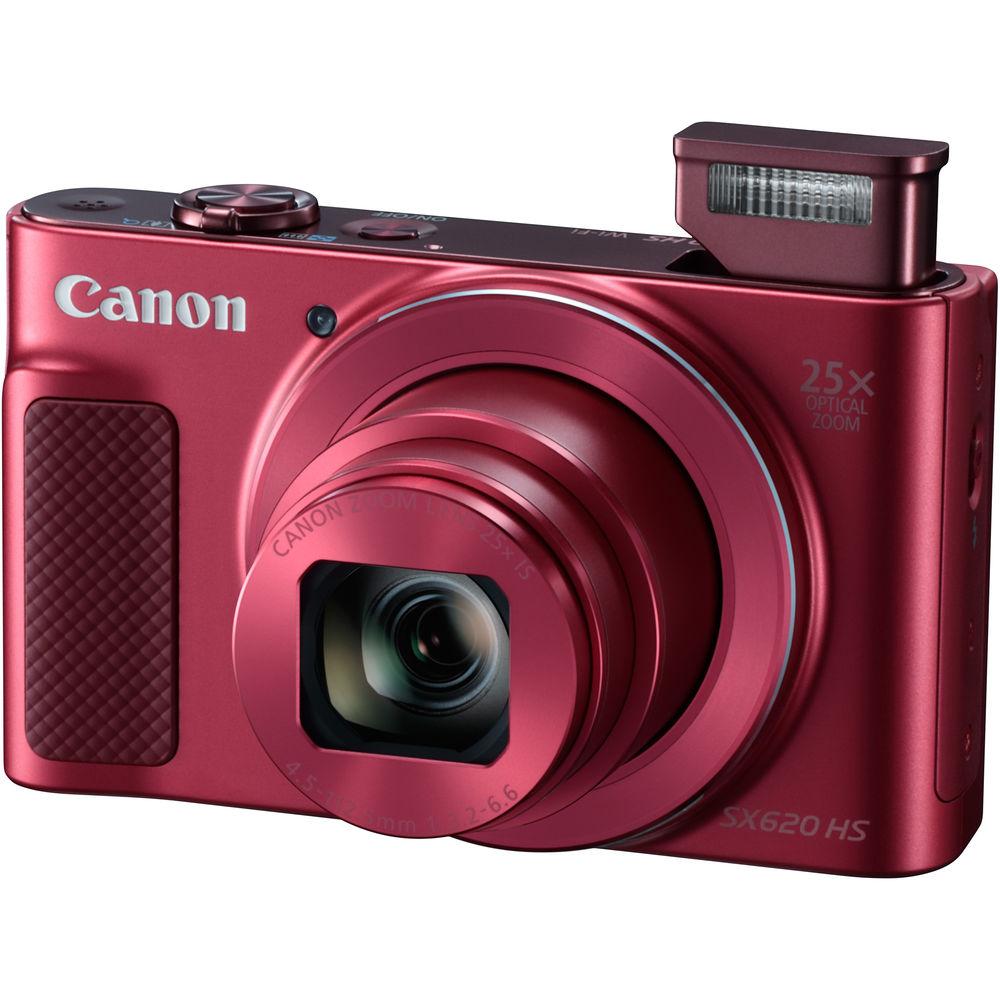

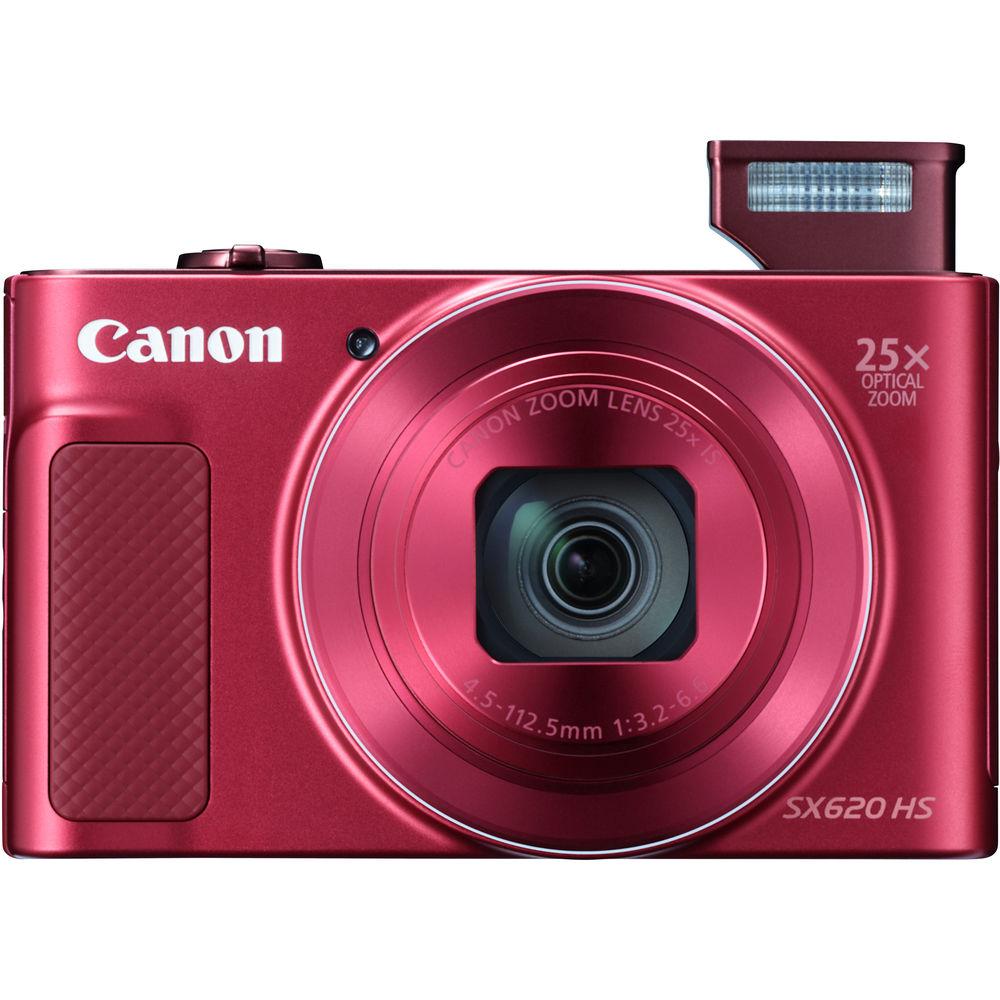

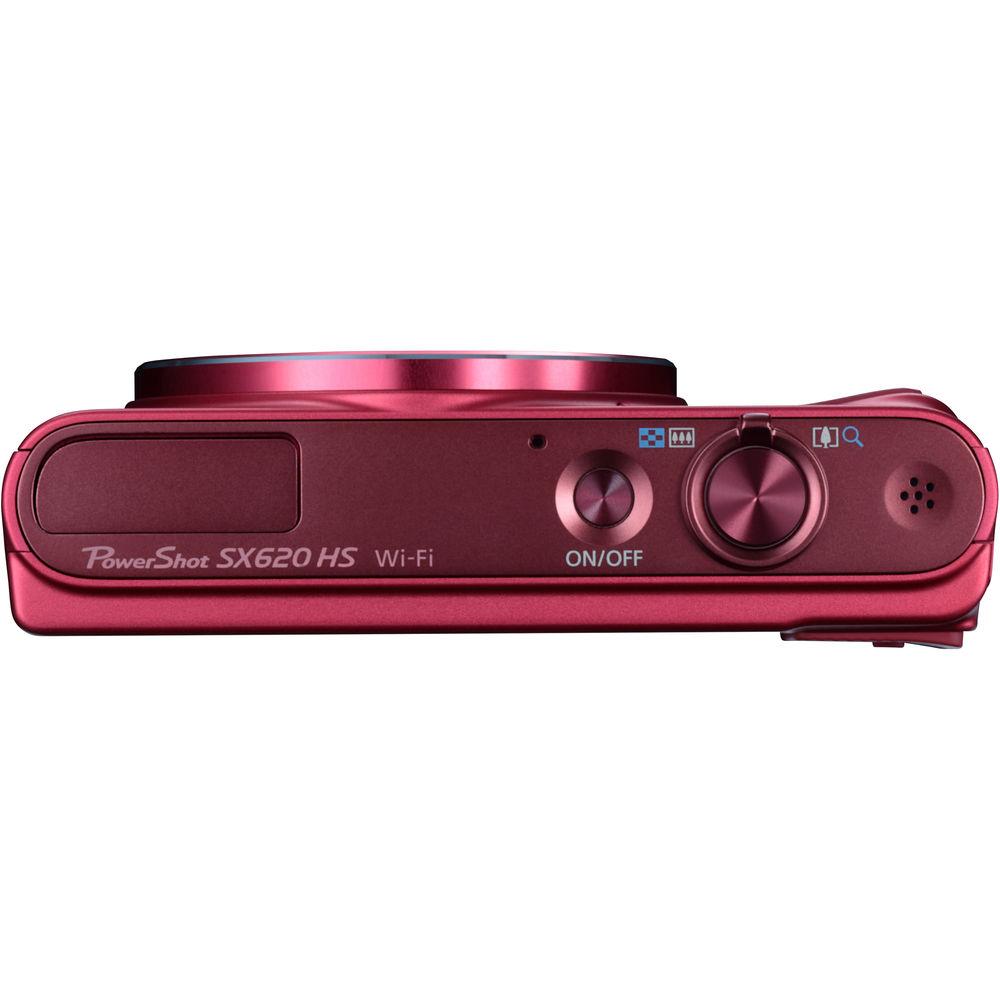

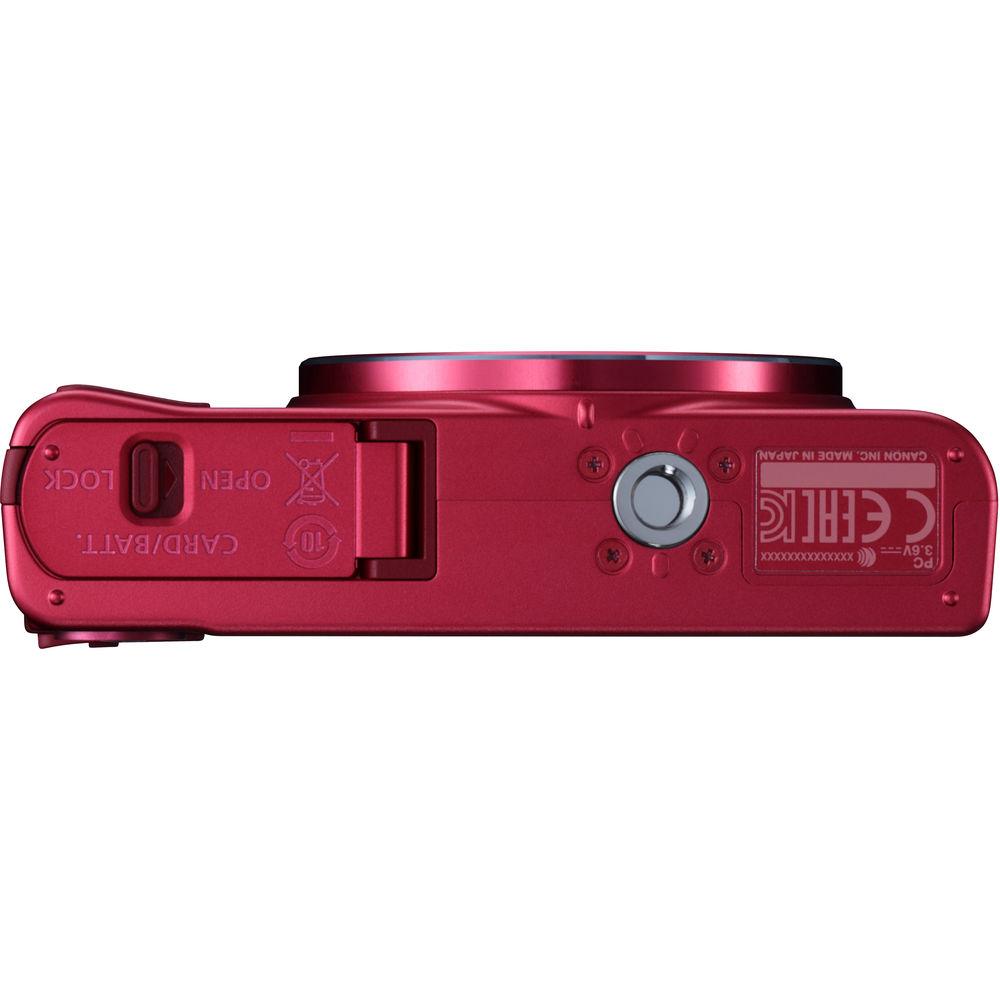

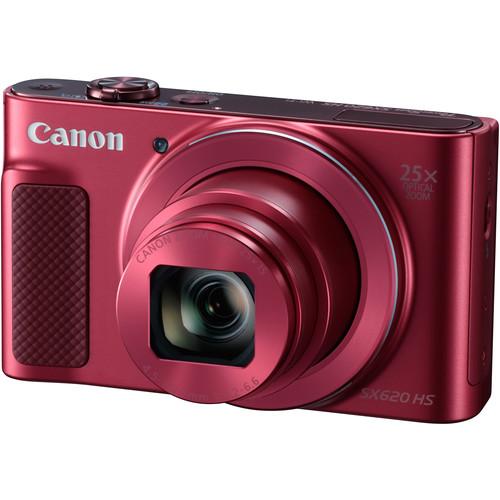

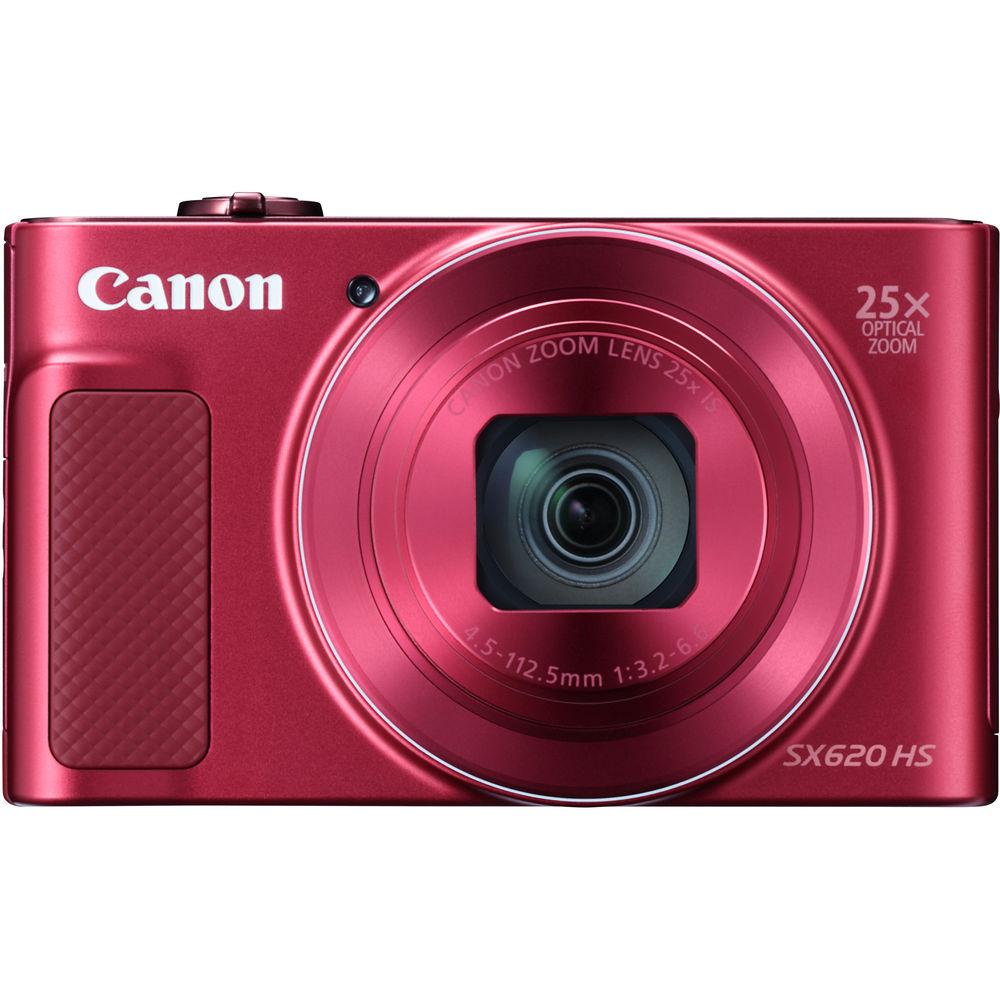

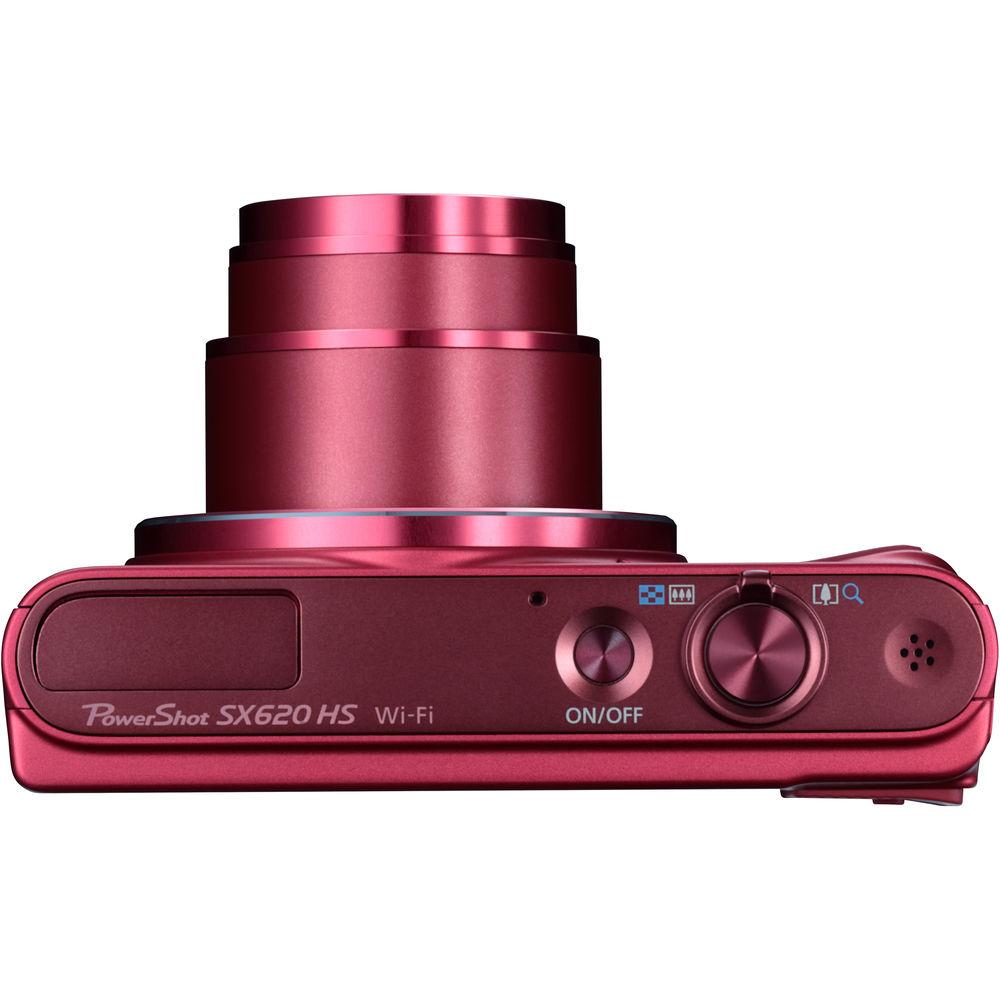

User Manual for Canon PowerShot SX620 HS Digital Camera Click to enlarge the picture
Contents of the user manual for the Canon PowerShot SX620 HS Digital Camera
- Product category: Point & Shoot Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Point & Shoot Cameras
 |
User manual for the Canon PowerShot SX620 HS Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Characterized by its long-reaching zoom, the red PowerShot SX620 HS from Canon is a sleek digital camera featuring a high-resolution 20.2MP CMOS sensor along with a powerful DIGIC 4+ image processor. The sensor and processor combine to form the Canon HS SYSTEM, which produces imagery with notable clarity and quality, as well as reduced noise when working at high sensitivities in low-light conditions. The sensor and processor also permit recording Full HD 1080p video at 30 fps, shooting stills at up to 7.1 fps, and working with sensitivities up to ISO 3200 to suit shooting in difficult lighting conditions. Complementing the imaging capabilities is a 25x optical zoom lens, which covers a wide-angle to super telephoto 25-625mm-equivalent focal length range, and Intelligent IS serves to balance this reach by minimizing the appearance of camera shake for sharper handheld shooting. The sleek form factor of the camera is accented by a large 3.0" 922k-dot LCD screen for composing imagery and reviewing your shots, and built-in Wi-Fi with NFC enables wireless sharing and remote camera control from a linked smartphone or tablet. - 20.2MP CMOS Sensor and DIGIC 4+ Image Processor
- The 20.2MP 1/2.3" CMOS sensor produces high-resolution imagery that, when paired with the DIGIC 4+ image processor, exhibits notable clarity and sensitivity to ISO 3200, as well as a top continuous shooting rate of 7.1 fps. The sensor and processor work together to create Canon's HS SYSTEM, which is able to produce clear, rich imagery in dimly-lit situations with minimal noise and vivid detail.
Beyond still image recording, the SX620 HS is also capable of recording Full HD 1080p video at 30 fps, which is easily accessible via a dedicated movie button. - 25x Zoom Lens and Intelligent Image Stabilization
- An expansive 25x optical zoom lens offers a wide-angle to super telephoto equivalent focal length range of 25-625mm to suit working with a wide variety of subjects. This extensive reach is complemented by a versatile Intelligent IS image stabilization system that minimizes the appearance of camera shake for both stills and video shooting:
Stills:- Normal IS corrects for a wide range of common camera movements.
- Panning IS detects deliberate panning movements and does not compensate for lateral movements to permit desired camera movements.
- Macro (Hybrid) IS corrects for shift-type camera shake that commonly occurs when working with close-up subject matter.
- Tripod is a dedicated setting that automatically deactivates IS when the use of a tripod is detected since camera-based stabilization is not needed.
Video:- Dynamic IS is well-suited to recording at wide-angle focal lengths and reduces unwanted shaking that typically occurs when walking while recording.
- Powered IS compensates for hand movements that become more visually discernible when working at the telephoto end of the zoom range.
- Macro (Hybrid) IS minimizes the appearance of shake when walking as well as compensates for shift-type shake that occurs when working with close-up subject matter.
- Active Tripod IS minimizes the slight amount of shake that can happen when recording video while using a tripod.
- Built-In Wi-Fi with NFC
- Built-in Wi-Fi with NFC allows you to wirelessly share your photos and movies with a linked smartphone or tablet as well as remotely control the camera from the mobile device by using the Camera Connect app. A dedicated Wi-Fi button is also featured on the camera body to expedite the process of connecting with a smartphone or tablet and sharing imagery between devices.
- Other Camera Features
-

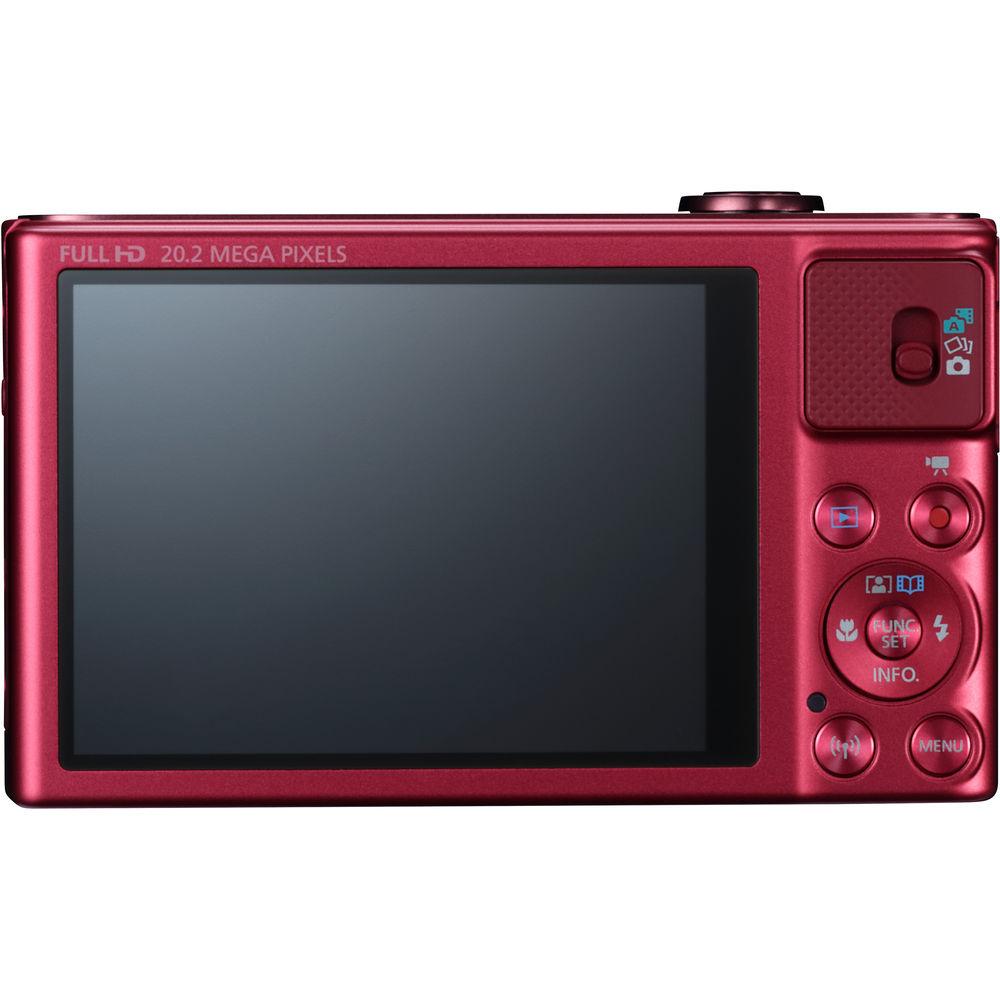

- A large 3.0" 922k-dot LCD monitor is available for composing imagery, navigating the menu, and reviewing photos and videos.
- The Auto Zoom feature helps to maintain consistent compositions and framing accuracy, as well as sharp focus, when working with distant subjects by automatically zooming in or out.
- Creative Shot modes help to transform your original imagery into creative and unique works using a system of 46 in-camera filters, which are grouped within Retro, Monochrome, Special, and Natural categories. Once the original image has been taken, the camera will automatically produce five additional variations using this series of filters.
- Hybrid Auto will record short video clips prior to recording a still image, and then automatically compile them into one HD 720p video file to produce a highlight reel of a shooting session.
- Smart AUTO intelligently selects the proper camera settings based on recognized shooting situations.

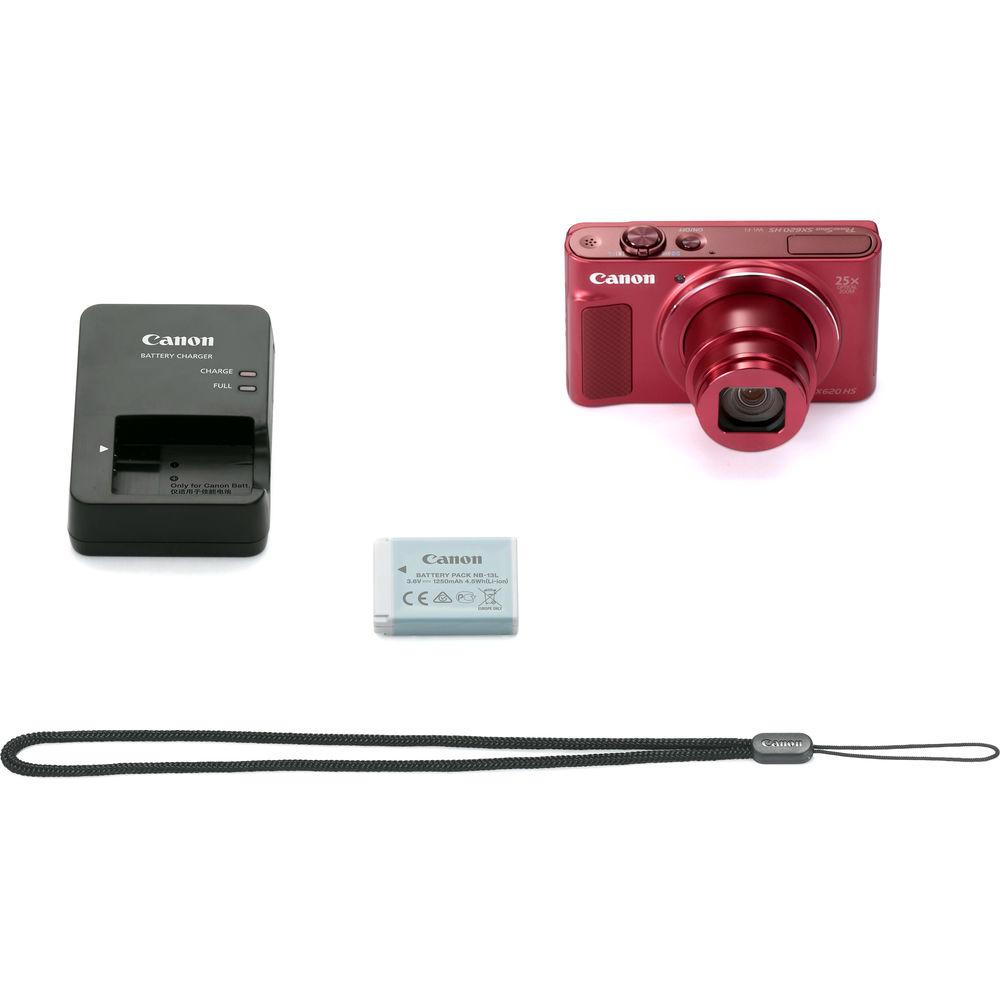

UPC: 013803269574 In the Box Canon PowerShot SX620 HS Digital Camera (Red) NB-13L Lithium-Ion Battery Pack (3.6V, 1250mAh) CB-2LH Battery Charger for NB-13L Li-Ion Batteries WS-800 Wrist Strap Limited 1-Year Warranty User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon PowerShot SX620 HS Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon SX620 HS Specs | | | Pixels | Actual: 21.1 Megapixel
Effective: 20.2 Megapixel | | Sensor | 1/2.3" CMOS | | File Formats | Still Images: JPEG
Movies: MP4,
Audio: AAC LC | | Max Resolution | 5184 x 3888 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | Effective Focal Length: 4.5 to 112.5mm (35 mm Equivalent: 25 to 625mm)
Aperture: f/3.2 (W) to f/6.6 (T) | | Zoom | Optical: 25x
Digital: 4x | | Focus Range | Auto: 0.39" to Infinity / 1 cm to Infinity
Wide: 1.97" to Infinity / 5 cm to Infinity
Telephoto: 3.28' to Infinity / 1 m to Infinity
Macro: 0.39" to 1.64' / 1 cm to 50 cm
Quick: 9.84' to Infinity / 3 m to Infinity | | | | ISO Sensitivity | Auto, 80 to 3200 | | Shutter | 15 to 1/2000 Second | | Exposure Metering | Center-Weighted, Evaluative, Spot | | Exposure Modes | Modes: Auto, Hybrid Auto, Program
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | Shooting Modes | Auto
Creative Shot
Face Self-Timer
Fireworks
Fish-Eye Effect
Handheld Night Scene
High Speed Shutter
Hybrid Auto
Long Exposure
Low Light
Miniature Effect
Monochrome
P
Portrait
Poster Effect
Smile
Super Vivid
Toy Camera Effect
Wink Self-Timer | | White Balance | Auto, Cloudy, Custom, Daylight, Fluorescent, Fluorescent H, Tungsten | | Continuous Shooting | Up to 7.1 fps at 20.2 MP
Up to 2.5 fps at 20.2 MP | | Self-Timer | 2, 10 Sec | | | | Flash Modes | Auto
Flash On
Off
Slow Sync | | Built-In Flash | Yes | | Effective Flash Range | Wide:1.6 to 13.1' / 0.5 to 4 m
Telephoto:3.3 to 6.6' / 1 to 2 m | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080p: 29.97 fps
1280 x 720p: 29.97 fps
640 x 480p: 29.97 fps | | | | Video Clip Length | Up to 29 Minutes 59 Seconds | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Screen | 3.0" LCD Rear Screen (922,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | Wi-Fi | Yes Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Battery | 1 x NB-13L Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | | | Dimensions (W x H x D) | 3.8 x 2.2 x 1.1" / 96.9 x 56.9 x 27.9 mm | | Weight | 6.42 oz / 182 g CIPA standard | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.2 x 5.5 x 2.1" |
