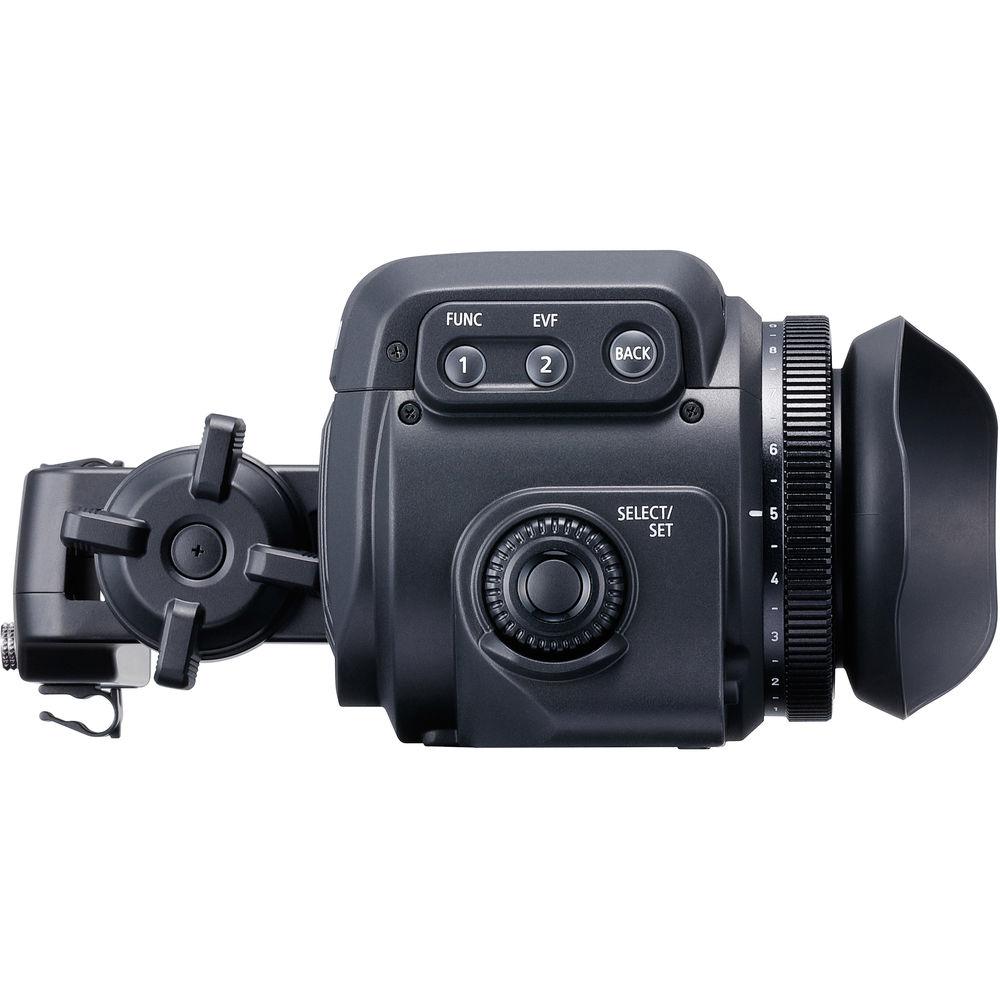

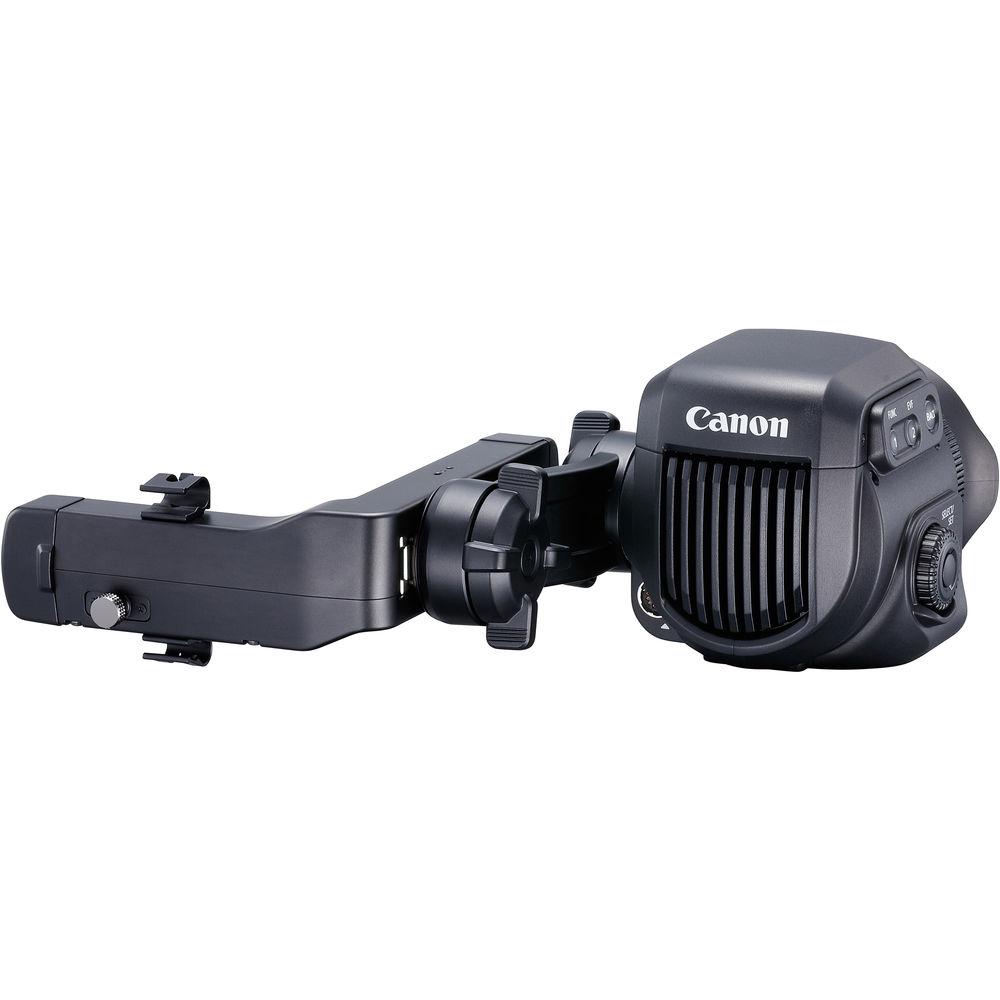

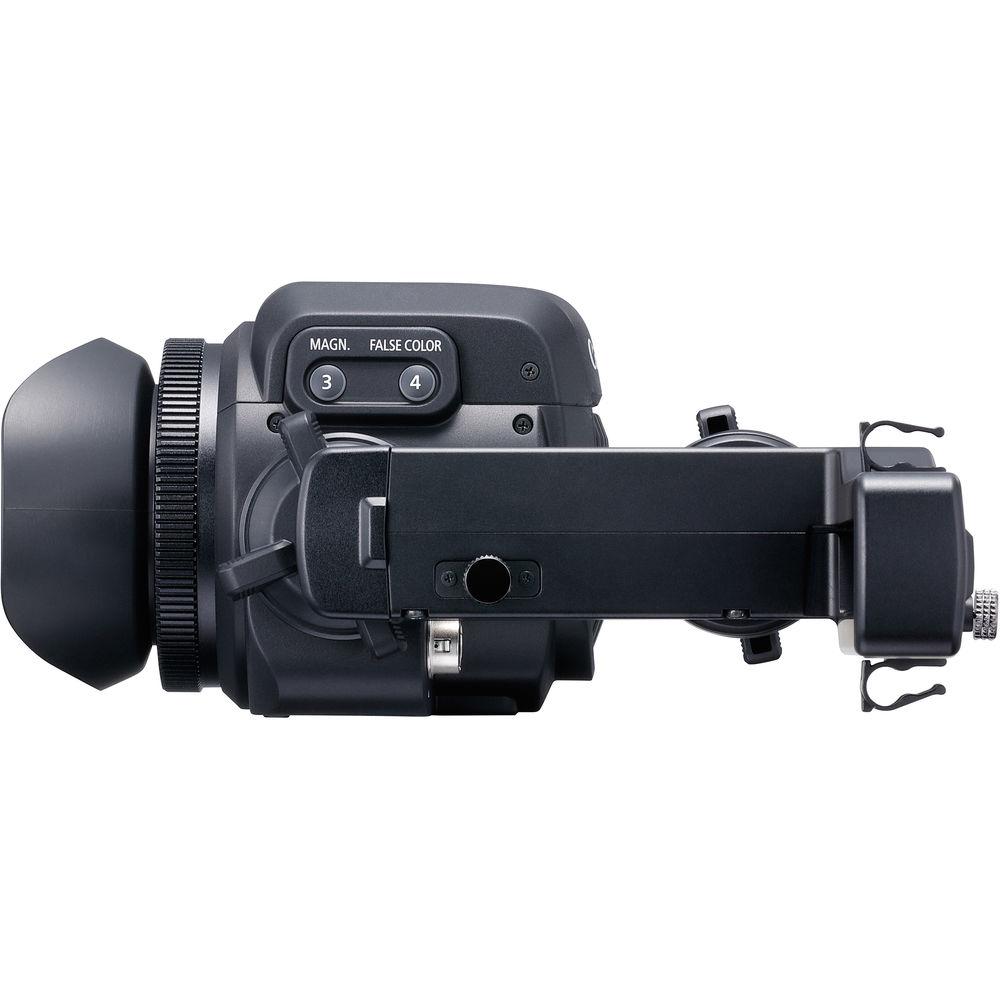

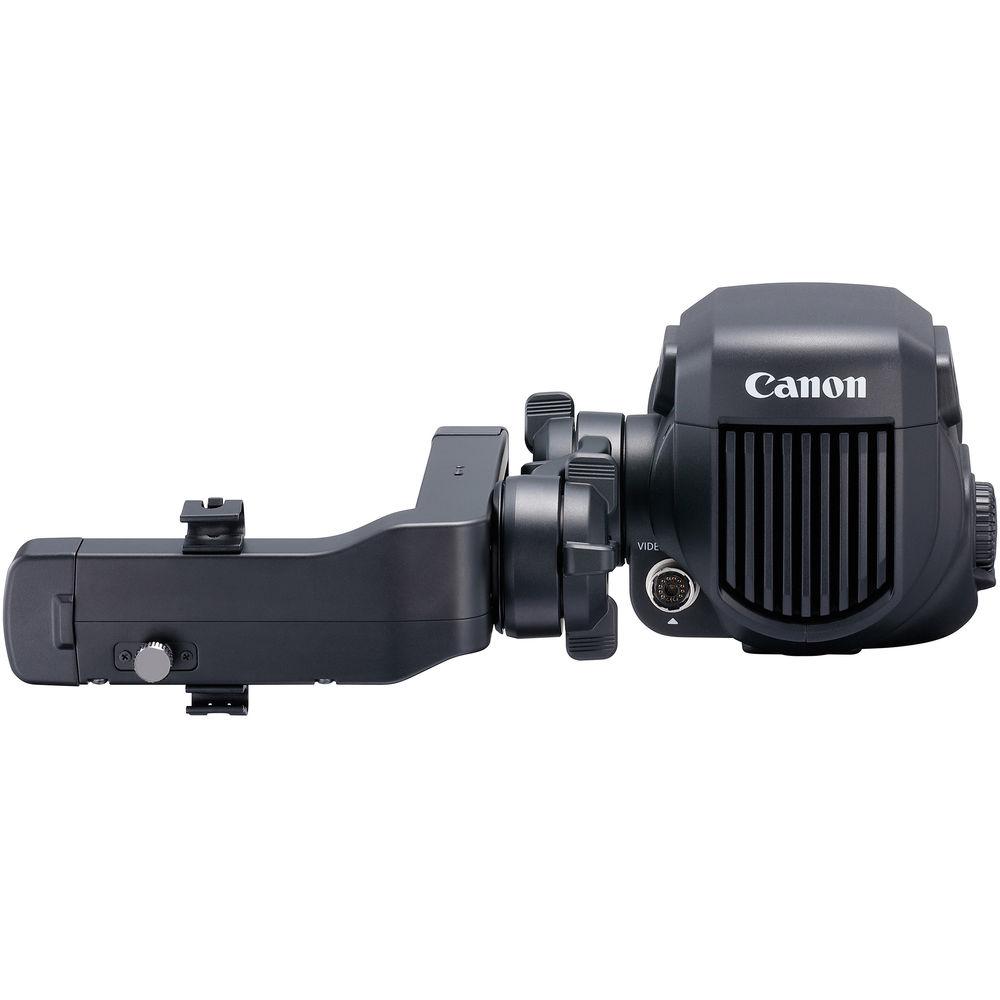

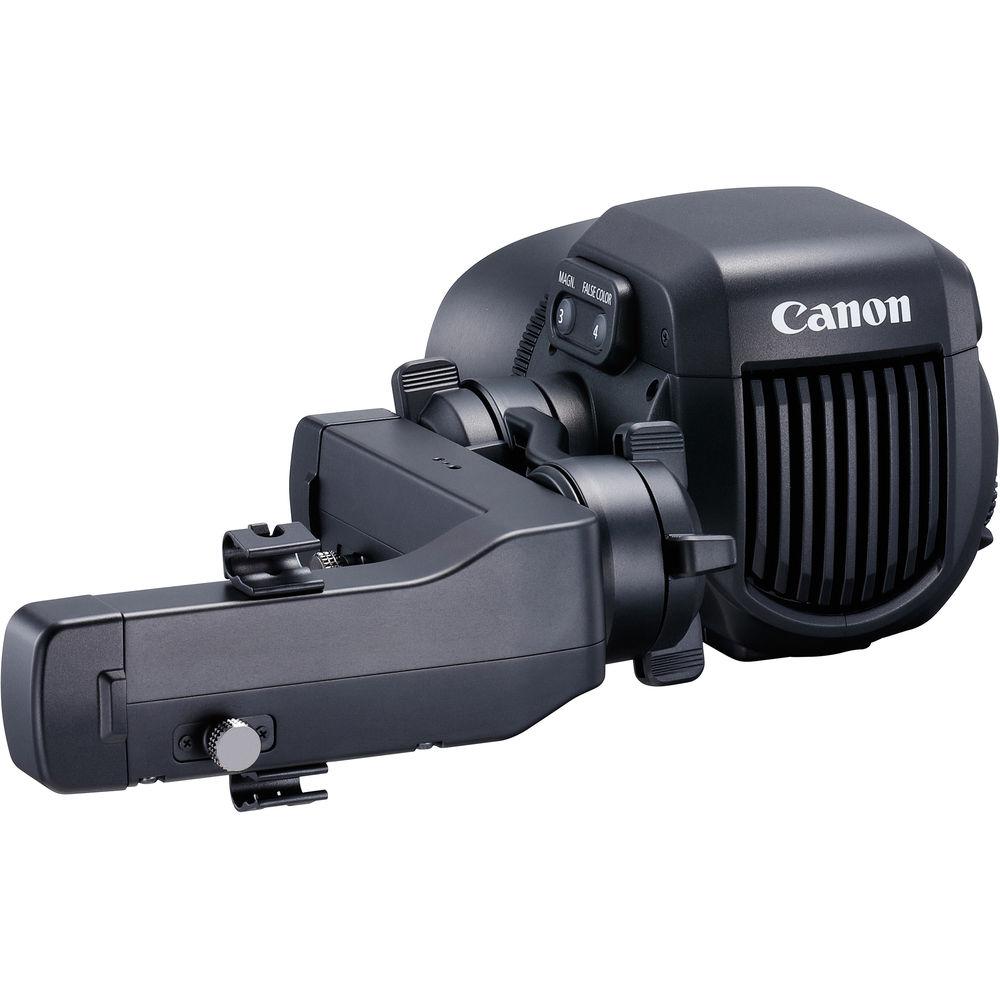

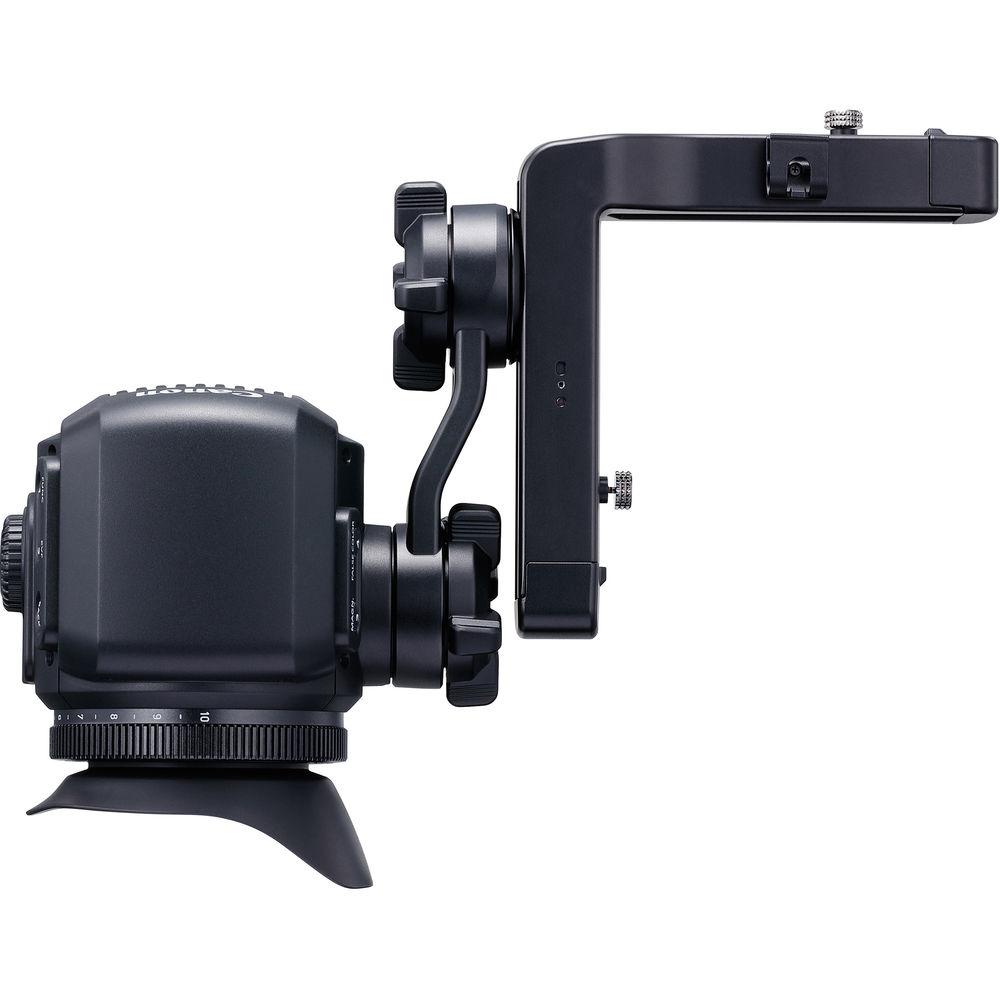

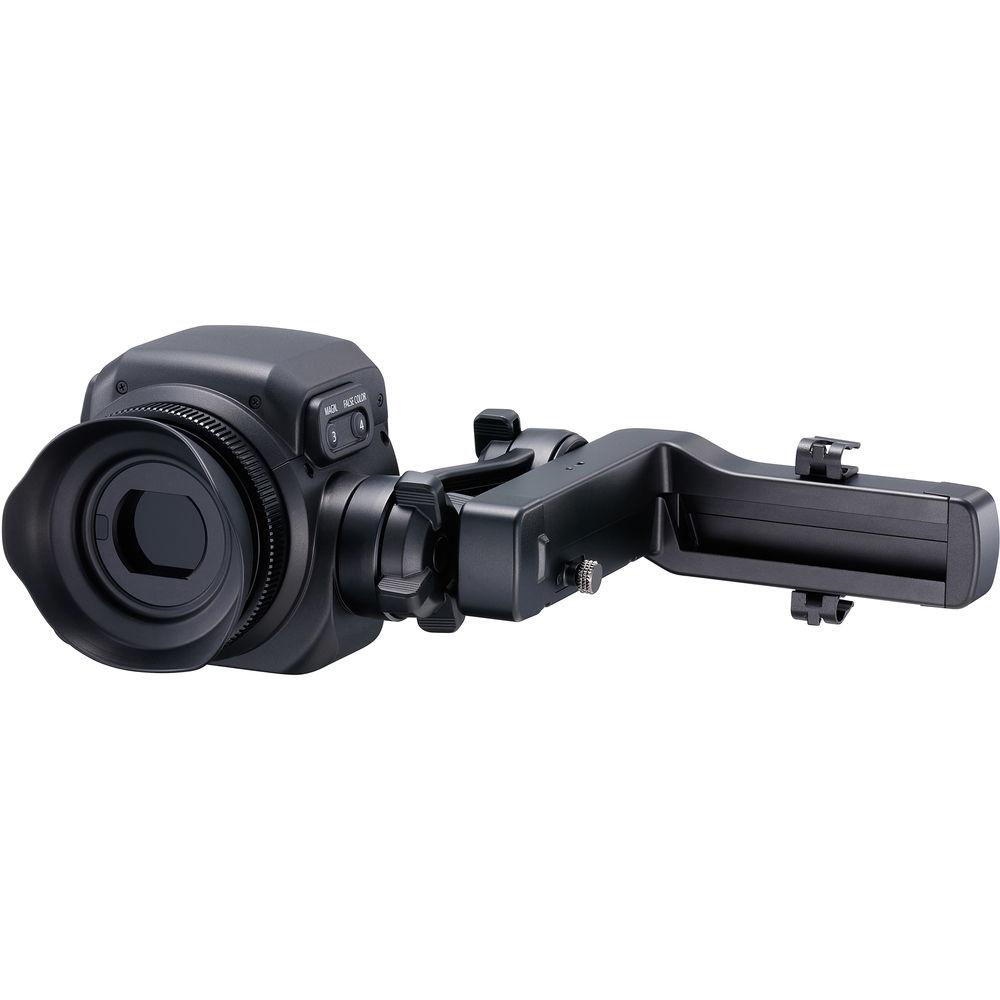

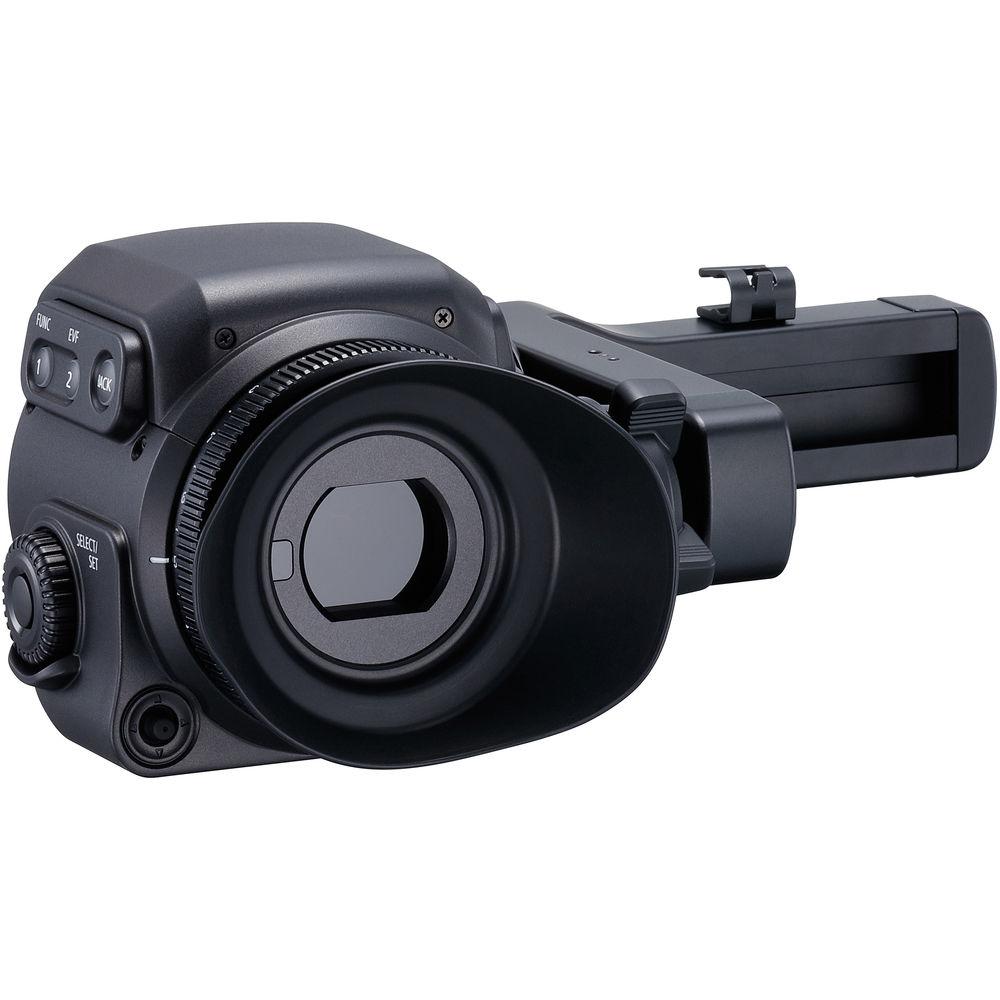

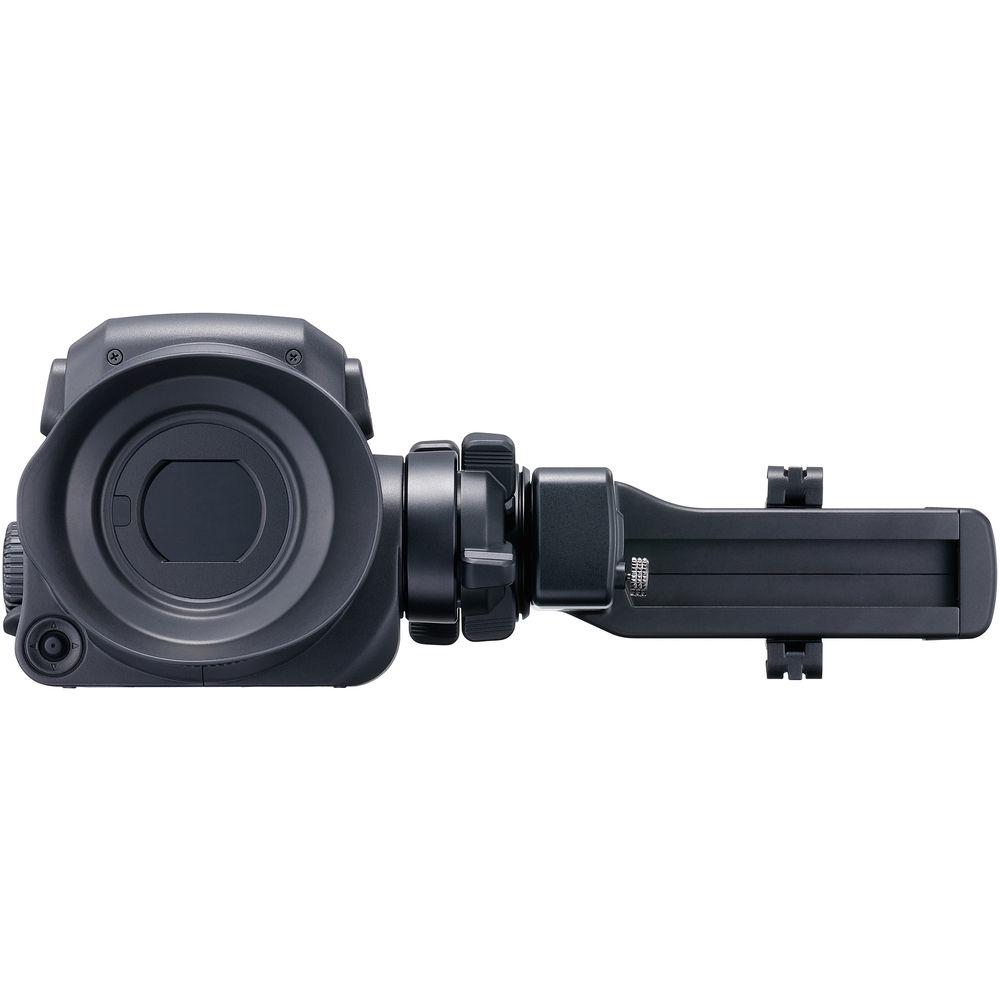

Product description The Canon Production Accessory Bundle Plus for C700 provides a robust selection of components to flesh out your EOS C700 cinema camera. Bundle components include an EVF-V70 OLED viewfinder, an OU-700 remote control panel, an ARRI Cine 19mm Pro Support Set, a V-mount battery with charger/AC adapter, cables, and a carrying case. The included ARRI Cine 19mm Pro Set provides a variety of cine-style support components, each featuring ARRI build-quality and ergonomics. The camera adapter plate offers quick mounting with the included BP-8 studio bridge plate and with VCT-style plates. Various camera accessory-mounting options include 19mm studio and 15mm lightweight rods, 3/8"-16 and 1/4"-20 threaded points, and standard ARRI rosettes. An ARRI viewfinder bracket provides a quick release mount for more comfortable viewing of the Canon EVF. - EVF-V70 OLED Viewfinder for C700 The EVF-V70 OLED Viewfinder is an electronic viewfinder for the Canon C700 that features a 1920 x 1080 resolution, making it suitable for critical 4K applications. The EVF puts its controls at your fingertips, offering four assignable buttons plus a menu navigation joystick and menu selector that are both readily accessible. It features false color and zebra to assist in exposure, and there is a magnification mode for critical focus.
- Magnification, false color, and zebra patterns
- Joystick and menu select dial/button
- Self-illuminating buttons
UPC: 013803284577 - UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"') The Canon UN-5 Unit Cable allows you to connect the Canon LM-V1 4" LCD monitor to the Canon EOS C200 and C300 Mark II cameras. It also connects the Canon MA-400 Microphone Adapter to the C300 Mark II and Canon XC15. UPC: 013803263251
- OU-700 Remote Operation Unit for C700 The OU-700 Remote Operation Unit for C700 from Canon provides a control surface for accessing camera settings as well as triggering record start/stop. The unit can be mounted directly to the right side of the camera or used remotely by employing a separately available extension cable. It is ideal for scenarios where several crew members need access to the camera, allowing the camera assistant to stay out of the way so the focus puller and operator can do their jobs unobstructed. UPC: 013803284621
- Cine Pro Set for Canon EOS C700 (19mm) The ARRI 19mm Cine Pro Set for Canon EOS C700 provides accessories designed to outfit your camera for film production and broadcast environments. The included top plate, top handle, viewfinder mounting bracket, and EVF bracket stay mounted on your camera providing top-mounted rods and support for your EVF system. The Cine Pro Set enables mounting your camera on the included Studio bridge plate, directly onto select touch-and-go plates, and optional VCT plates providing flexibility in your camera support.
- LS-9 Lens Support for 19mm Studio Bridge Plate The ARRI LS-9 Lens Support features a snap-on design enabling you to attach the support to your camera rig's 19mm rods without needing to remove other rod-mounted accessories. This adjustable lens support screws into a lens support foot and can be used with the ARRI BPS-2 studio bridge plate.

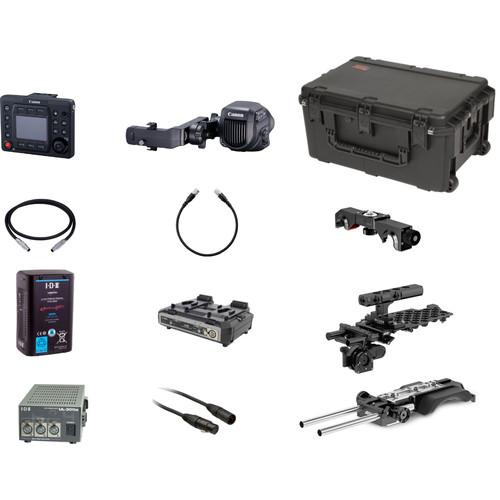

In the Box Bundle Items EVF-V70 OLED Viewfinder for C700 bfbyezzcfysszxxeftv UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"') OU-700 Remote Operation Unit for C700 Cine Pro Set for Canon EOS C700 (19mm) - MVB-1 Viewfinder Mounting Bracket for ALEXA Mini
- Support Plate for Canon C700
- Viewfinder Bracket for Canon C700 EVF
- Top Plate with Rod Support for Canon EOS C700
- BP-8 Bridge Plate Set with 12" Dovetail & 19mm Rods (17")
- 15mm Lightweight Support Rods (Pair, 9")
- CCH-2 Center Camera Handle
LS-9 Lens Support for 19mm Studio Bridge Plate bfbyezzcfysszxxeftv
Also Includes - UC-V75 Remote Cable
- V-Mount Battery
- XLR Cable
- Battery Charger / Power Adapter
- Custom SKB Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Production Accessory Bundle Plus for C700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EVF-V70 OLED Viewfinder for C700
| | | Type | OLED | | Resolution | 1920 x 1080 | | | | Box Dimensions (LxWxH) | 10.0 x 9.6 x 5.6" | - UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"')
| | | Box Dimensions (LxWxH) | 6.4 x 5.65 x 1.7" | - OU-700 Remote Operation Unit for C700
| | | Box Dimensions (LxWxH) | 8.0 x 6.2 x 2.4" | - Cine Pro Set for Canon EOS C700 (19mm)
- LS-9 Lens Support for 19mm Studio Bridge Plate
| Rod Clamp Type | Snap-on 19 mm | | Lens Mount | 3/8"-16 screw secures the lens | | Dimensions | 3.9 x 5.9 x 1.2" (100 x 150 x 30 mm) | | Weight | 5.9 oz (166 g) | | | | Box Dimensions (LxWxH) | 5.3 x 5.0 x 1.4" |
