User Manual for Canon Rayo S1 100-Lumen WVGA DLP Pico Projector with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Canon Rayo S1 100-Lumen WVGA DLP
- Product category: Pico Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Pico Projectors
 |
User manual for the Canon Rayo S1 100-Lumen WVGA DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description - Canon Rayo S1 Mini Projector Introduction Video
Take your presentations on the go with the Canon Rayo S1 100-Lumen WVGA DLP Pico Projector. Its 100 lumens of brightness can produce images up to 84" diagonal in low-light conditions, and its 800:1 contrast ratio will help enhance dark areas of the image.

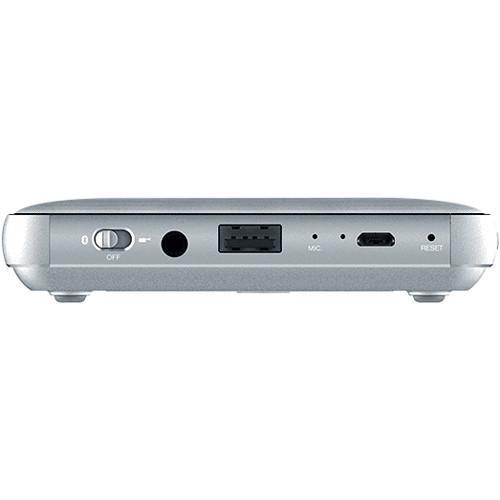

The Rayo S1 has a 3W speaker built-in to eliminate the need for external speakers, simplifying its ease of transport and setup, though it also has an 1/8" headphone jack for use with powered speakers or your headphones. Its USB port allows playback of files, lets you load files onto the onboard 4GB of storage, and can also charge your compatible mobile devices. You can control the Android OS with the built-in touchpad. - Mobility and Power
- The compact 4.1" square size and built-in battery that lasts up to two hours makes the Rayo S1 suited for presenting or playing movies on the go. With a maximum brightness of 100 lumens and projection up to 84", it is designed to deliver big screens from its small form factor.
- Intuitive Design

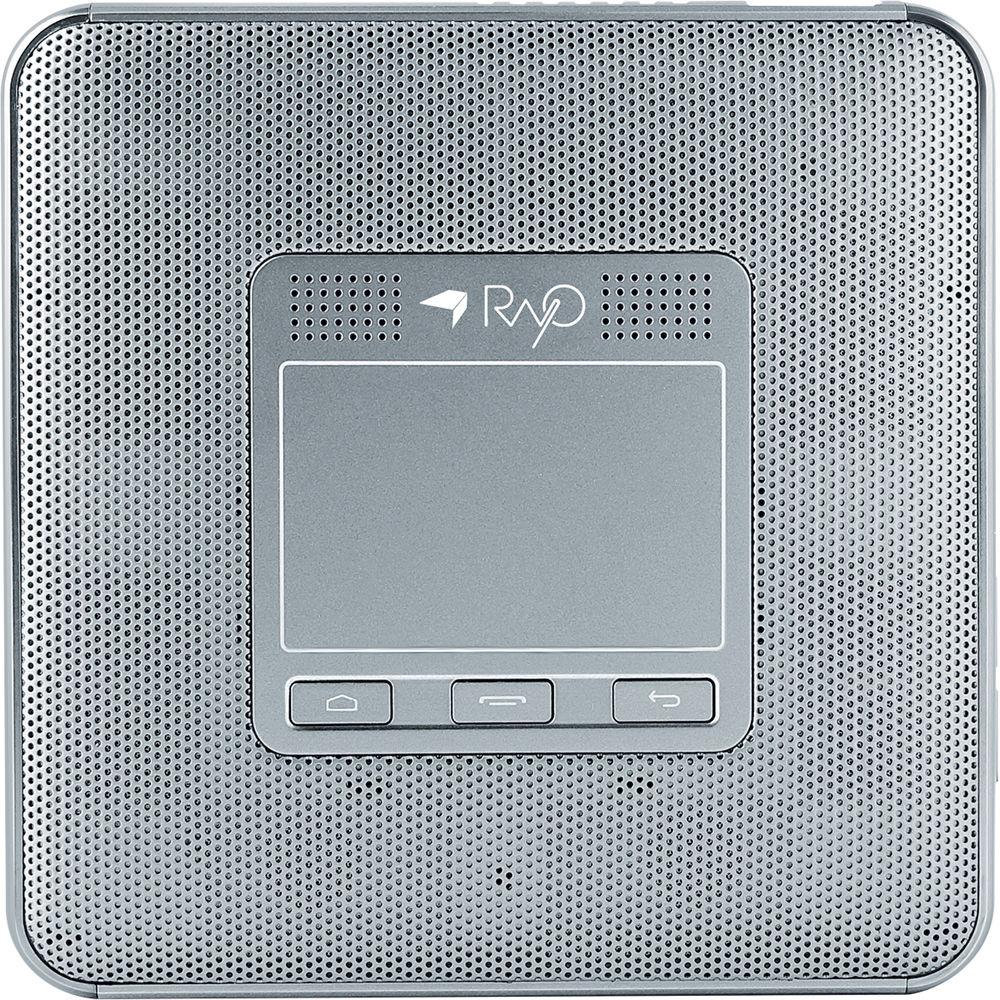

- Interact with the projector's Android OS interface with the onboard touchpad. Wi-Fi and Bluetooth allow you to wirelessly connect to the internet, your smart devices, and audio sources.
- Built-In Speaker & Tripod Mount

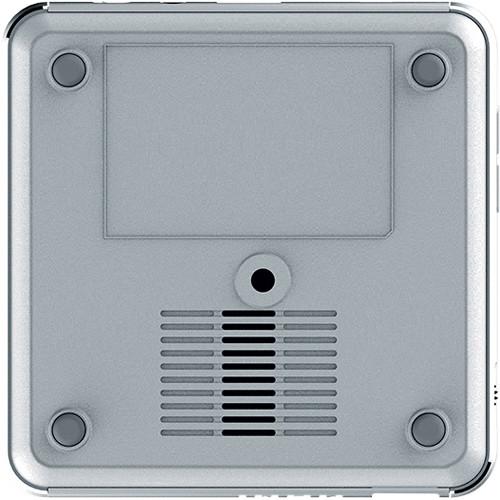

- Host conference calls with business associates or loved ones with the built-in speaker. You can also elevate your image by connecting the Rayo S1 to your tripod.
- Storage & Powerbank Capability
- With 4GB of storage, you can store videos, music, or presentations. The built-in battery and USB port also allow you to power and charge your compatible mobile devices.
- Project from up to 10' Away
- With a projection distance of up to 10', you can enjoy large-screen images in a variety of settings.
- Wireless Connectivity
- Connect to your compatible mobile device to surf the internet, stream movies, or share content.
- Additional Features
-
- Download and install apps directly to the projector
- Pre-installed Canon Camera Connect App for connecting to compatible Canon cameras
- Android 4.2.2 or later, iOS 8.0 or later, or Windows 8.1 or later is required for wireless mirroring
UPC: 013803320145 In the Box Canon Rayo S1 100-Lumen WVGA DLP Pico Projector with Wi-Fi 3.3' USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Rayo S1 100-Lumen WVGA DLP Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Rayo S1 Specs | | | Display System | DMD DLP | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 100 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 800:1 | | | | Focus | Manual | | Optical Zoom | None | | Throw Ratio | 1.6:1 | | Projection Size | 14 - 84" / 35.56 - 213.36 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 3W | | | | Inputs/Outputs | 1 x USB 2.0 (USB Type-A) Audio, Video Input
1 x 1/8" (3.5 mm) Mini Headphone Output | | | | Operating System | Android | | Internal Storage | 4.0GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | Bluetooth | 4.0 | | | | Light Source | LED | | DC Power Requirements | 5 VDC | | Battery Capacity | 3800 mAh | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 80% | | Dimensions (W x H x D) | 4.1 x 0.8 x 4.1" / 105.0 x 20.0 x 105.0 mm | | Weight | 8.29 oz / 235 g |
