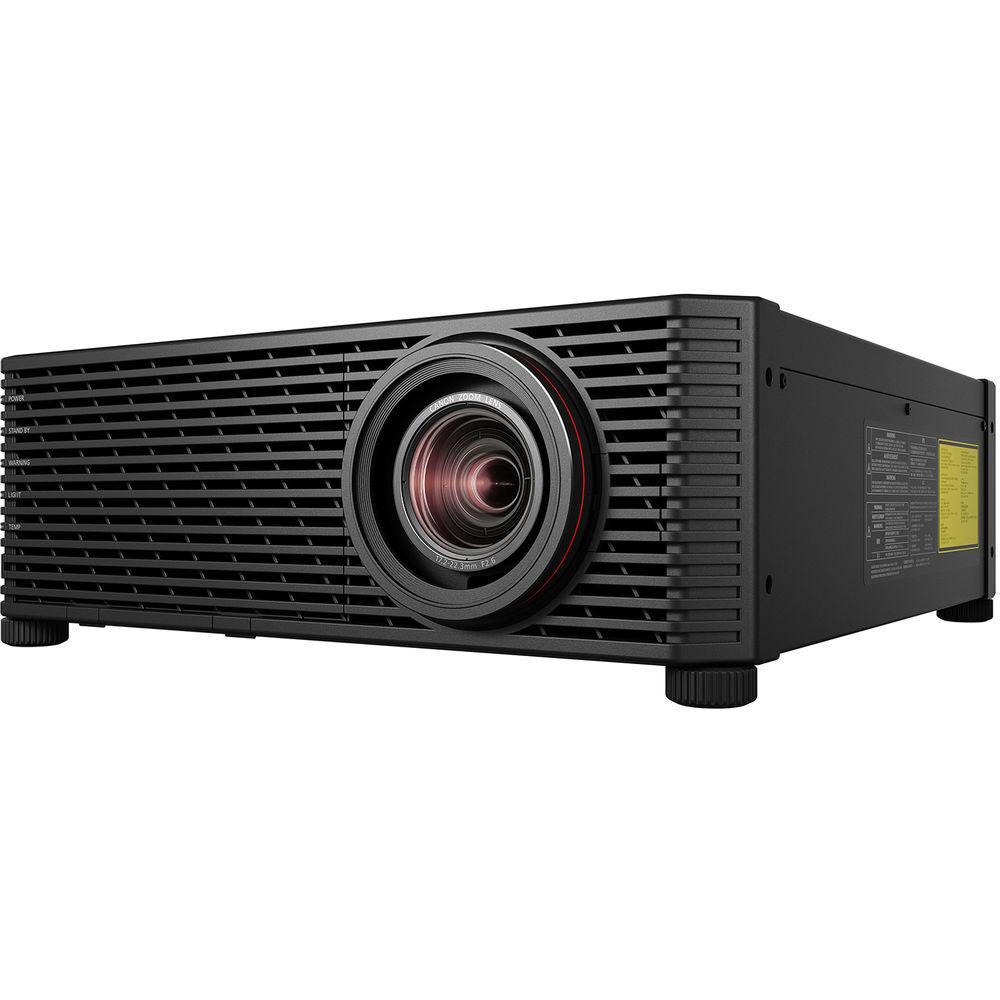

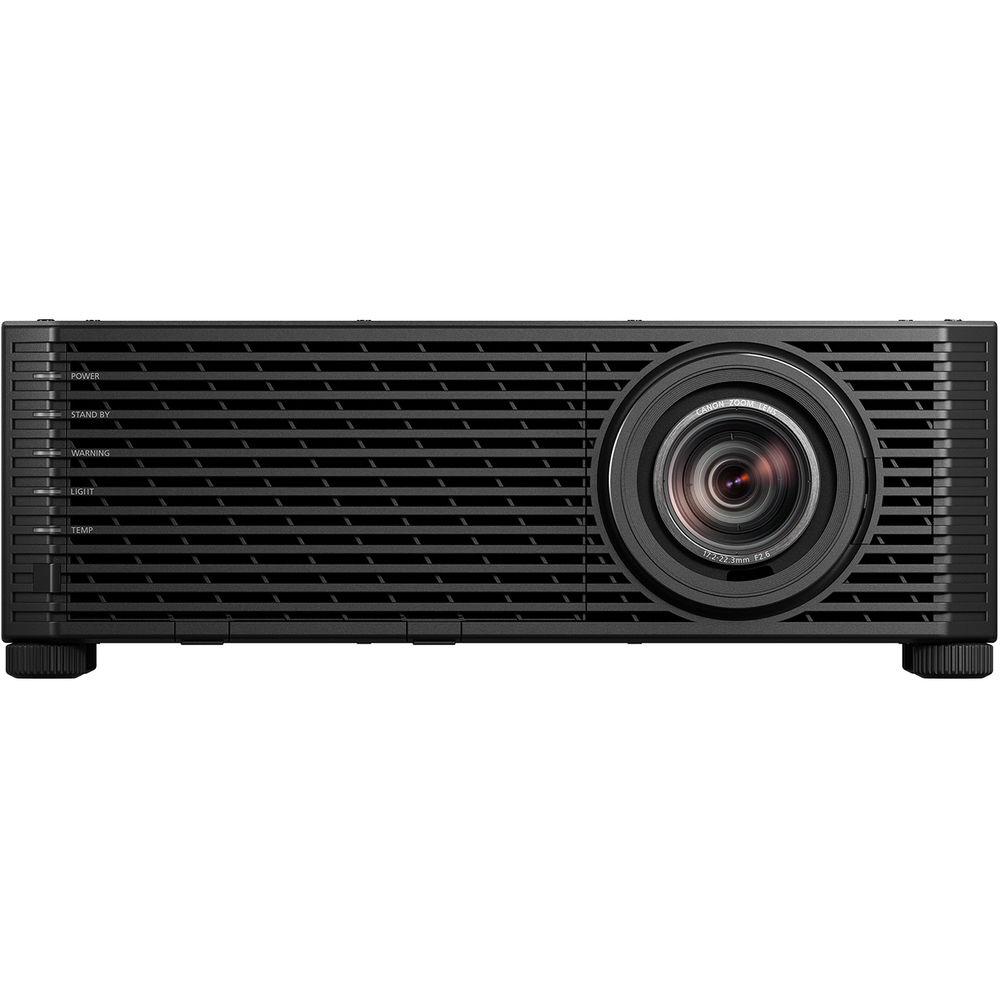

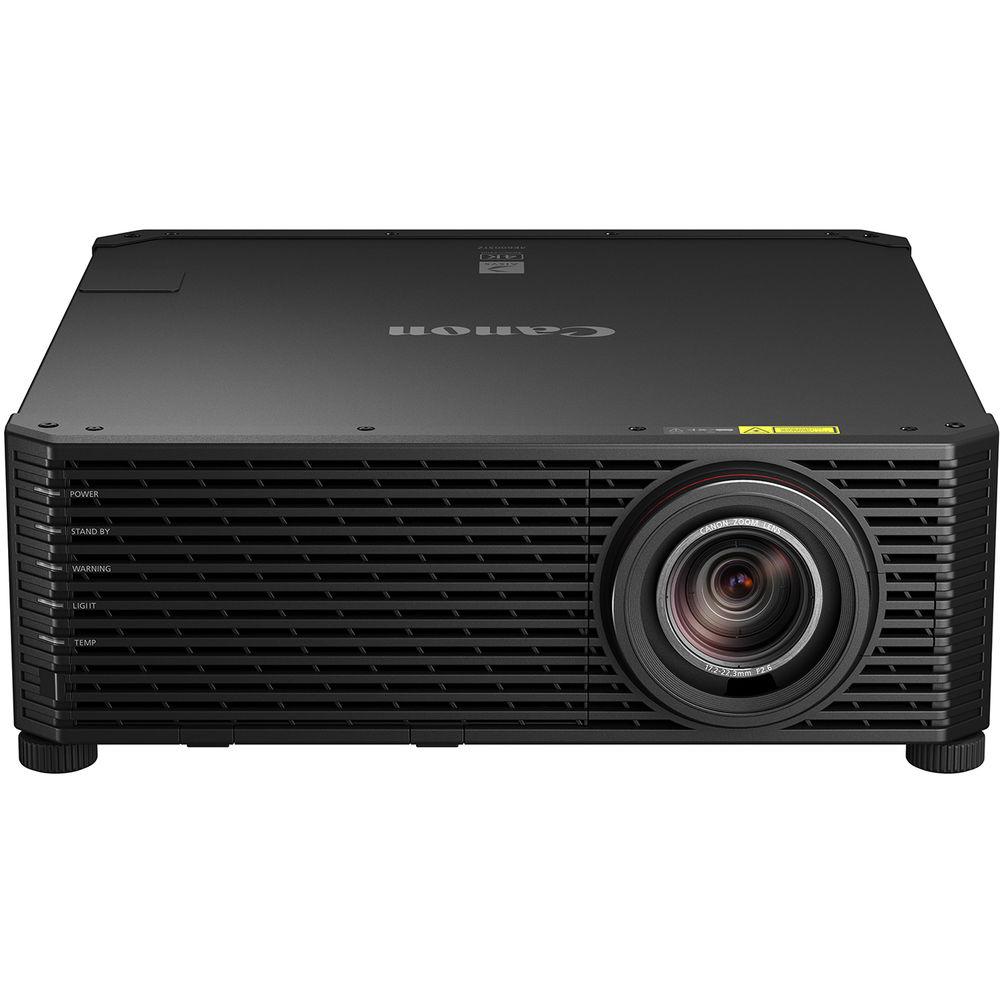

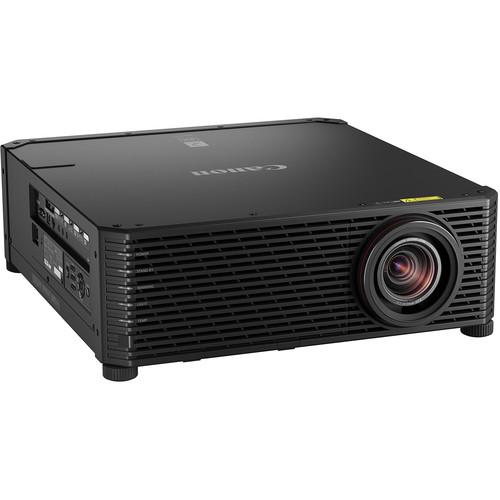

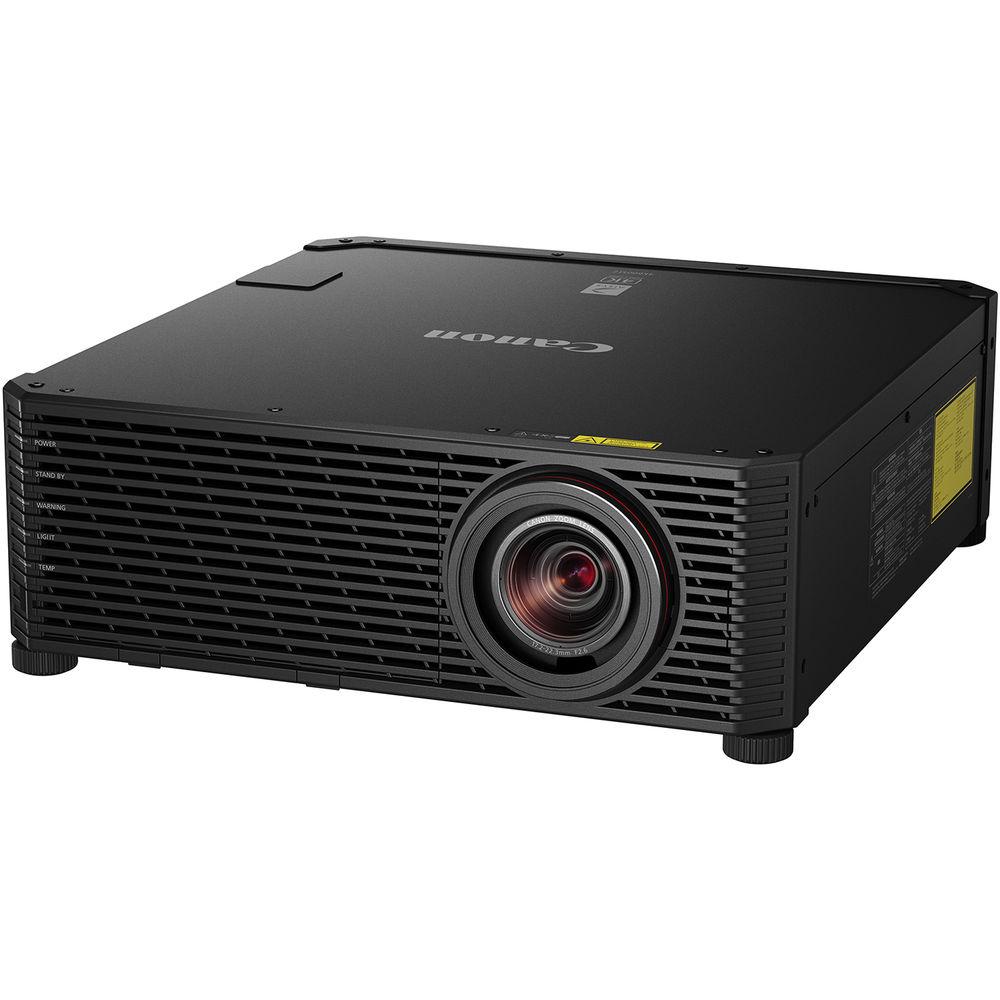

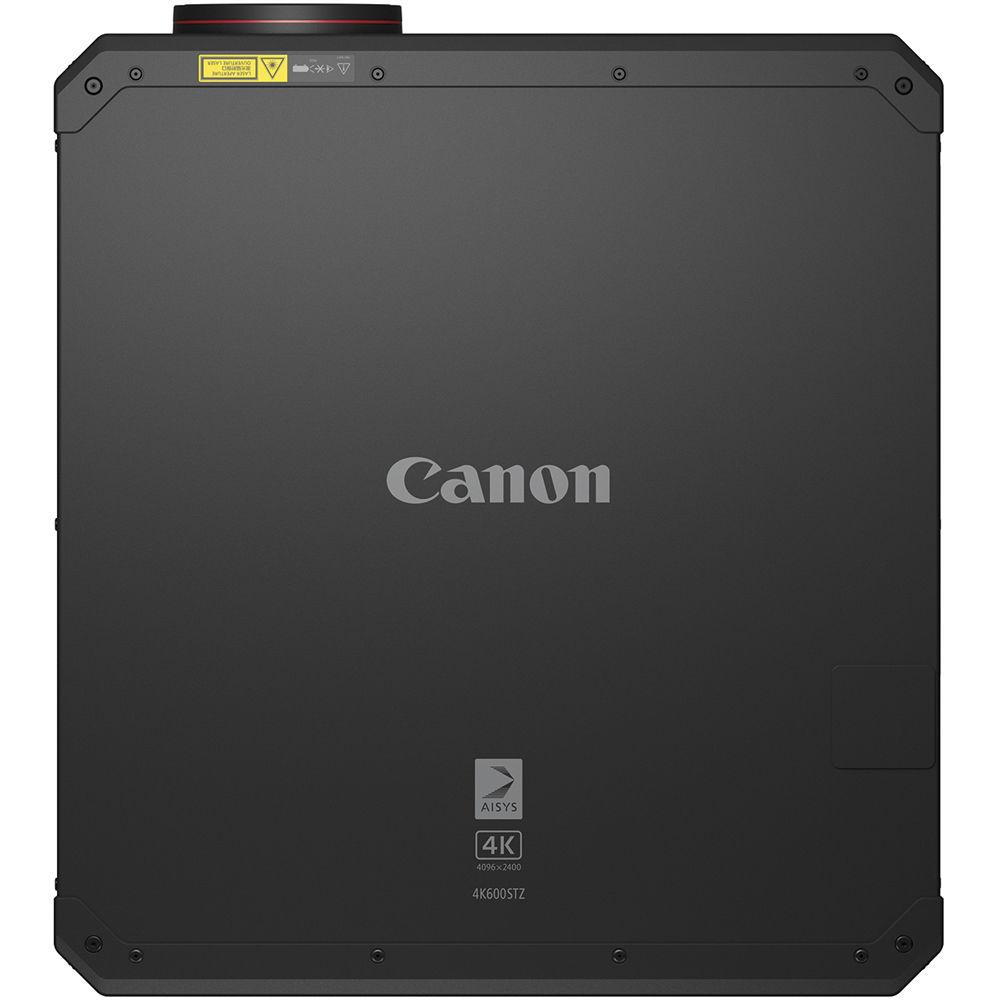

Product description The Realis 4K600STZ 4K Laser LCOS Projector from Canon utilizes LCOS technology with Canon's advanced AISYS optical system and combines it with a high brightness of 6000 lumens and dynamic contrast ratio of up to 10,000:1 to produce a native 4K resolution of 4096 x 2400. Its high performance, virtually maintenance-free operation, and compact, lightweight design, make it an ideal choice for a wide range of industries, from simulation and training, to museums and galleries and more. - General
-
- 4K Resolution (4096 x 2400)
- Laser light source with up to 20,000 or more hours
- 6000 lumens
- Up to 10,000:1 dynamic contrast ratio and up to 4000:1 native contrast ratio
- Marginal focus for projecting on spherically domed surfaces
- LCOS Technology with AISYS enhancement
- Dual image processing engines for uncompressed 4K 60p playback
- Applications
-
- Simulation and training
- Museums and galleries
- Design and engineering
- Higher education
- Corporate
- Houses of worship
- Medical education and training
- Film and TV
- Government
- Rental and staging

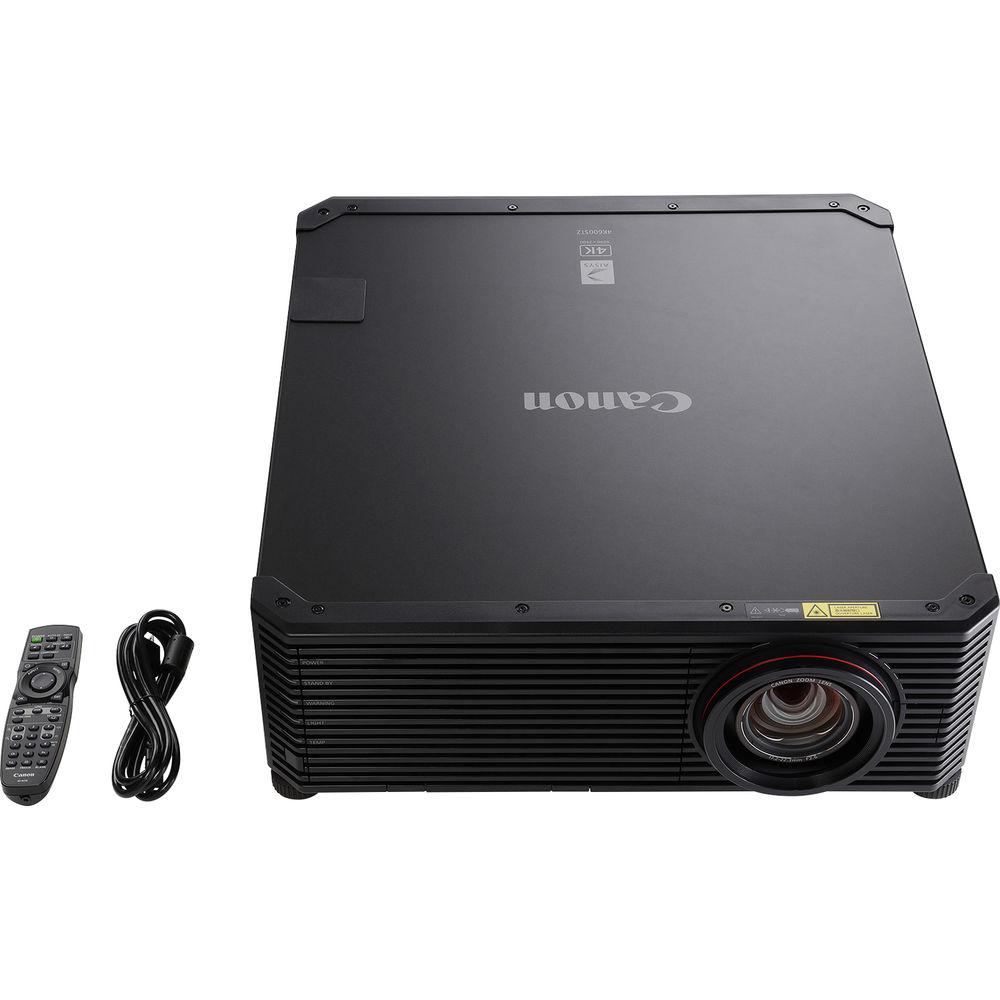

UPC: 013803286762 In the Box Canon Realis 4K600STZ 4K Laser LCOS Projector Lens Cap Power Cord Remote Control RS-RC05 2 x AA Battery Limited 120-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Realis 4K600STZ 4K Laser LCOS Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 4K600STZ Specs | | | Display System | 3-Chip 0.76" LCoS | | Native Chip Resolution | 4096 x 2400 | | Max Brightness | 6000 Lumens | | Uniformity | 80% | | Aspect Ratio | 17:10 | | Contrast Ratio | 4000:1 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 18 to 149 kHz
Vertical: 23.9 to 60 Hz | | | | Lens Shift | Vertical: ± 60%
Horizontal: ± 10% | | Throw Ratio | 1.0 - 1.3:1 | | Projection Size | 40 - 600" / 101.60 - 1524.00 cm | | | | Keystone Correction | Vertical: ± 20°

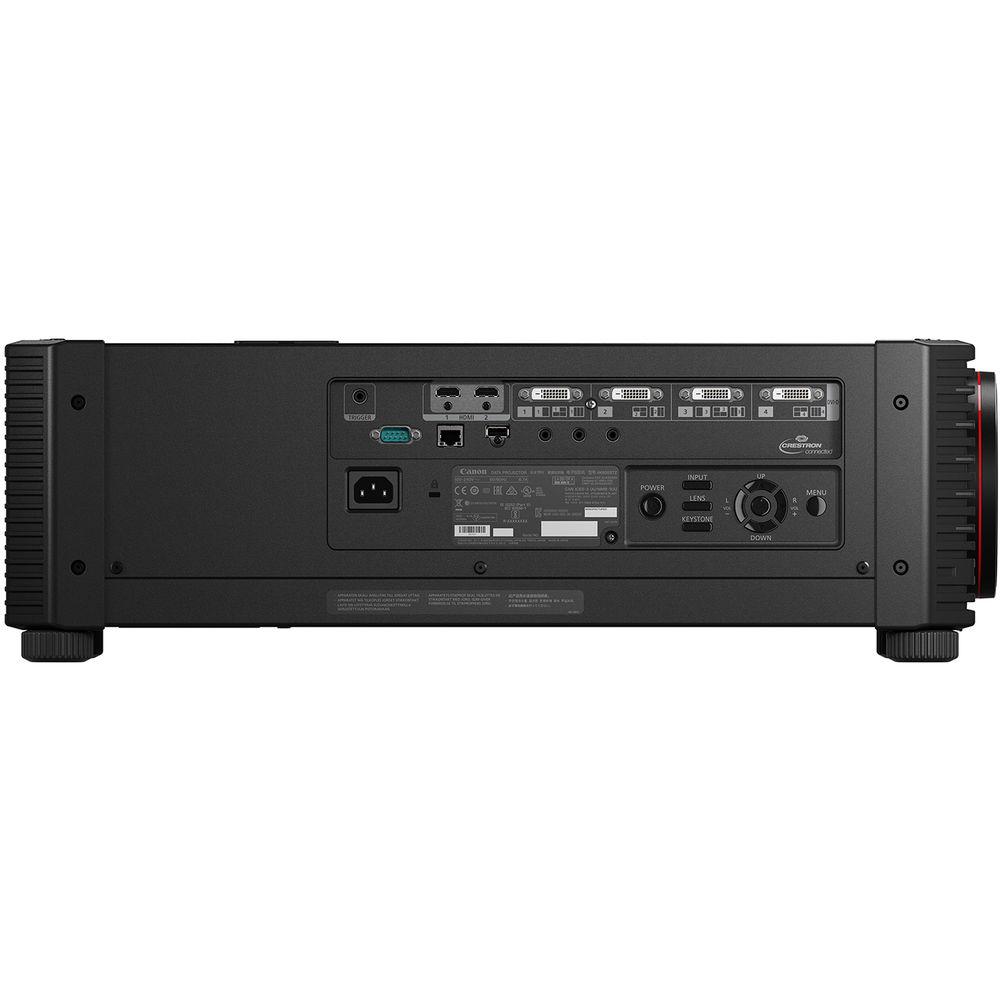

Horizontal: ± 20° | | | | Inputs/Outputs | 4 x DVI-D Video (Input)
2 x HDMI Video (Input)
1 x Unspecified Signal (DE-9) Control (Input/Output)
1 x USB Type-A Male (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 32 dB
Low Brightness: 29 dB | | Power Consumption | Medium Brightness: 665 W | | Temperature | Operating
32 to 113°F (0 to 45°C)
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 22.0 x 7.9 x 24.5" / 55.9 x 20.1 x 62.2 cm | | Weight | 57.3 lb / 26.0 kg | | | | Package Weight | 70.0 lb | | Box Dimensions (LxWxH) | 31.0 x 21.0 x 15.0" |
