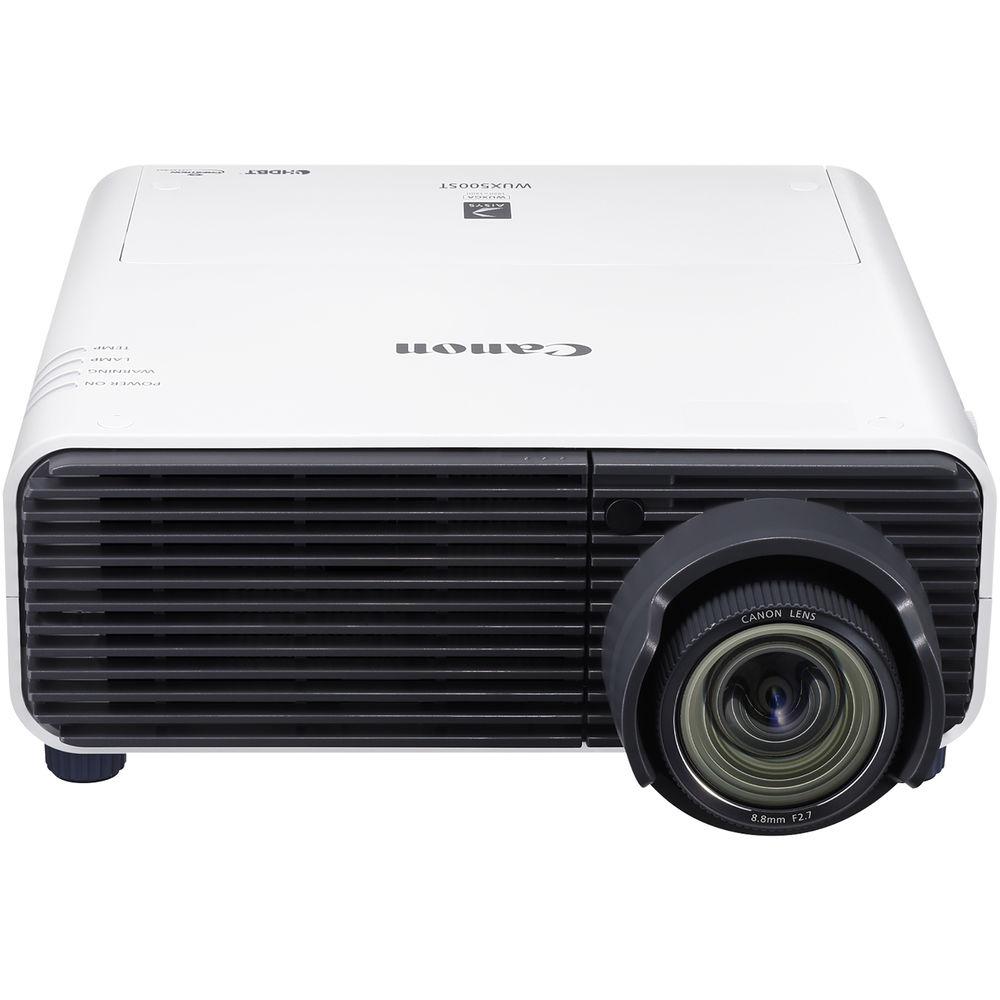

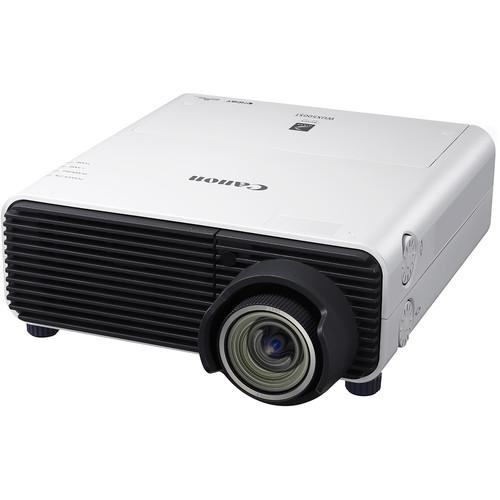

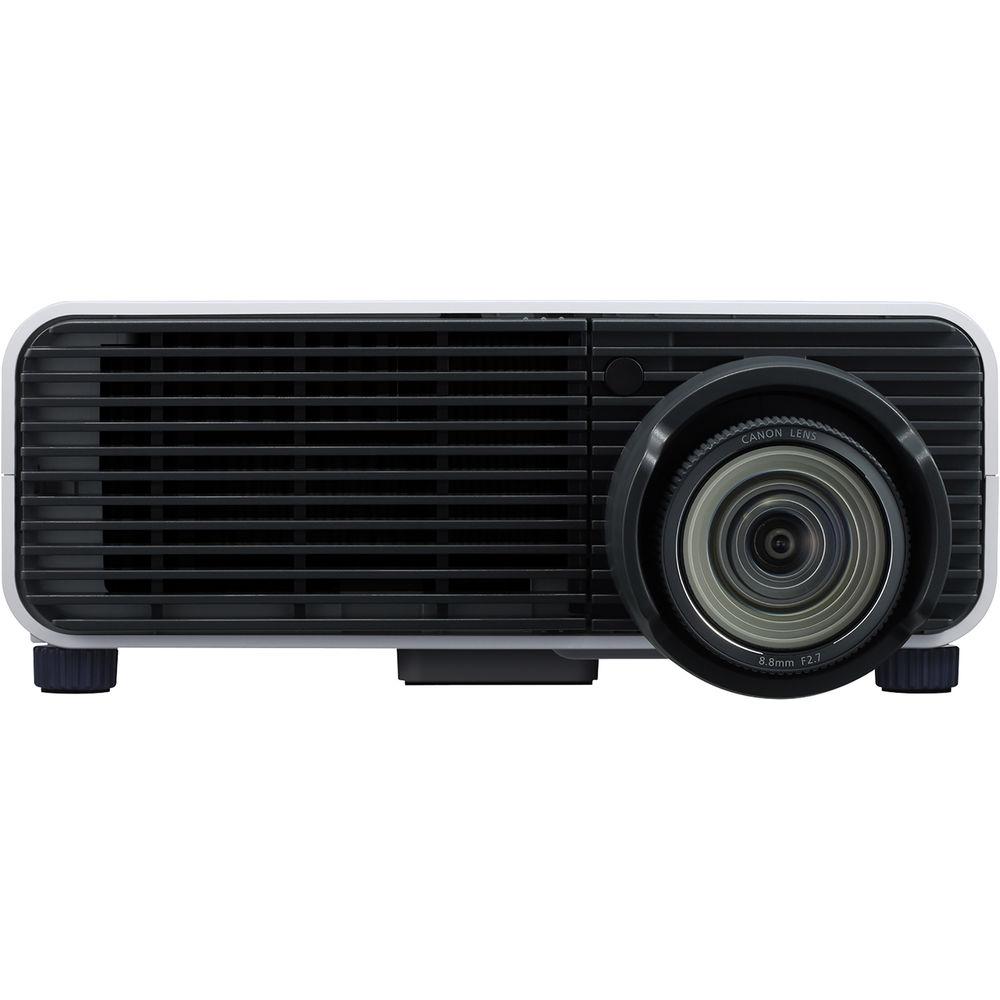

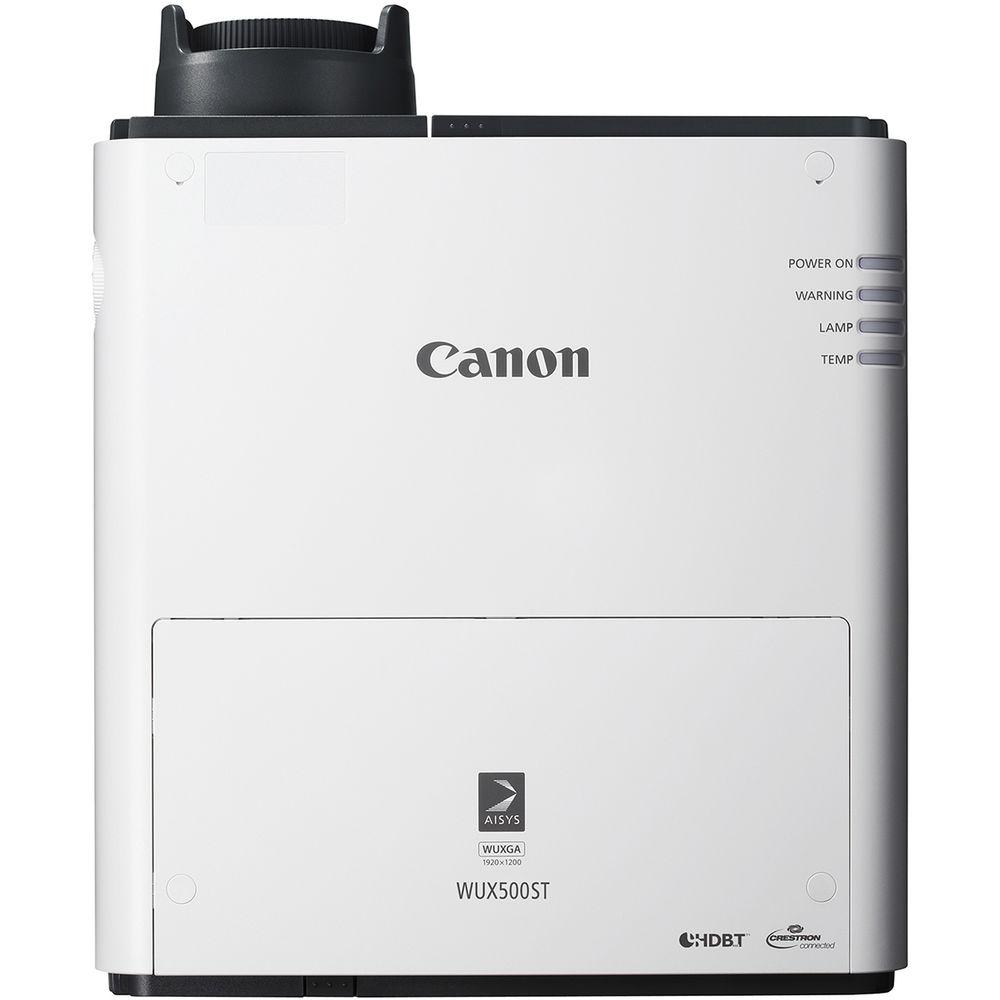

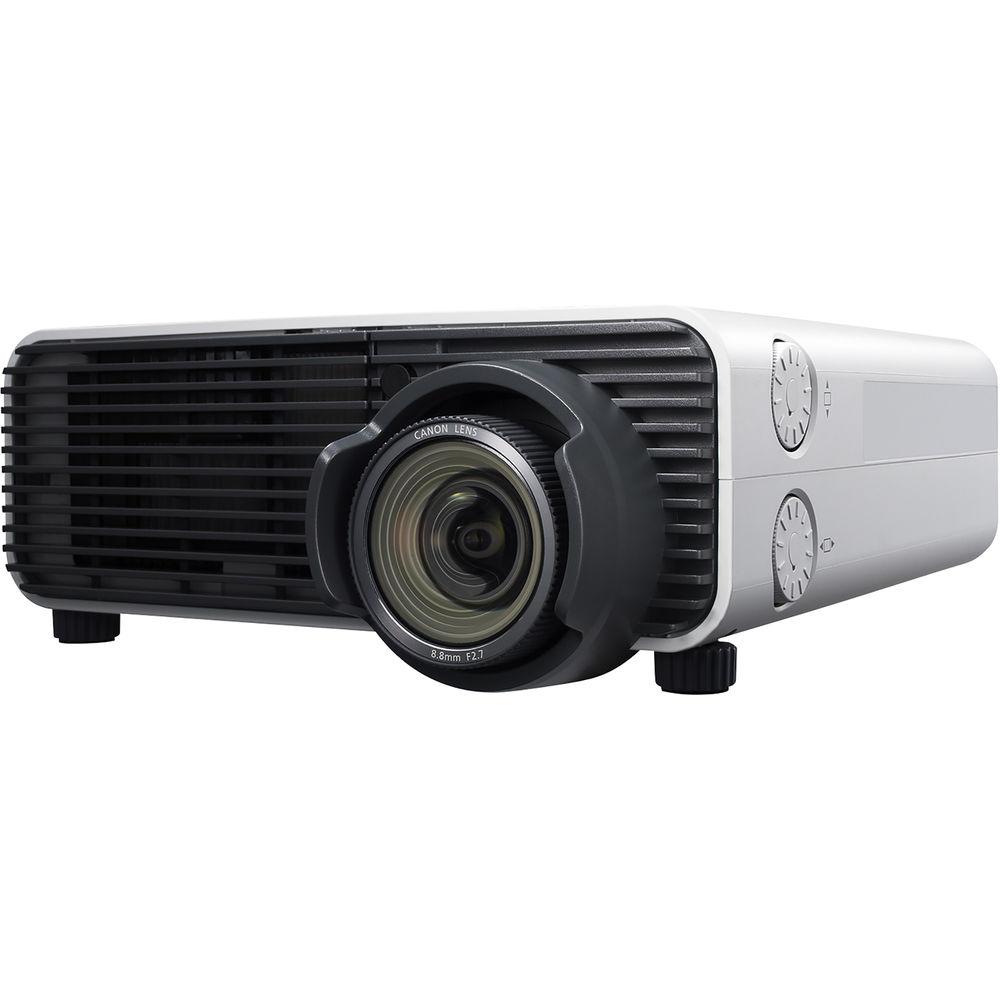

User Manual for Canon REALiS 5000-Lumen Pro AV LCOS Projector Click to enlarge the picture
Contents of the user manual for the Canon REALiS 5000-Lumen Pro AV LCOS
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon REALiS 5000-Lumen Pro AV LCOS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Equipped with HDBaseT, Wi-Fi connectivity, LCOS Technology with AISYS-enhancement, and built-in edge blending, the REALiS 5000-Lumen Pro AV LCOS Projector from Canon is suitable for museums and galleries, higher education, business, training, and digital signage. With a 0.56:1 short throw ratio and lens shift (vertical: 0 to 75%, horizontal: ±10%), it provides high-quality image projection with minimal distortion at short distances. This projector can fit comfortably behind a presenter to eliminate long cable runs. It also prevents shadows and provides a reduction in glare that may distract the presenter. - Three 0.71" LCOS reflective panels
- HDMI and DVI connectivity
- Crestron connectivity and AMX device discovery support
- Color level, color balance, color temperature, gains of RGB, and offsets of RGB
- Screen Color Correction: Normal, Green Board, and Adjust

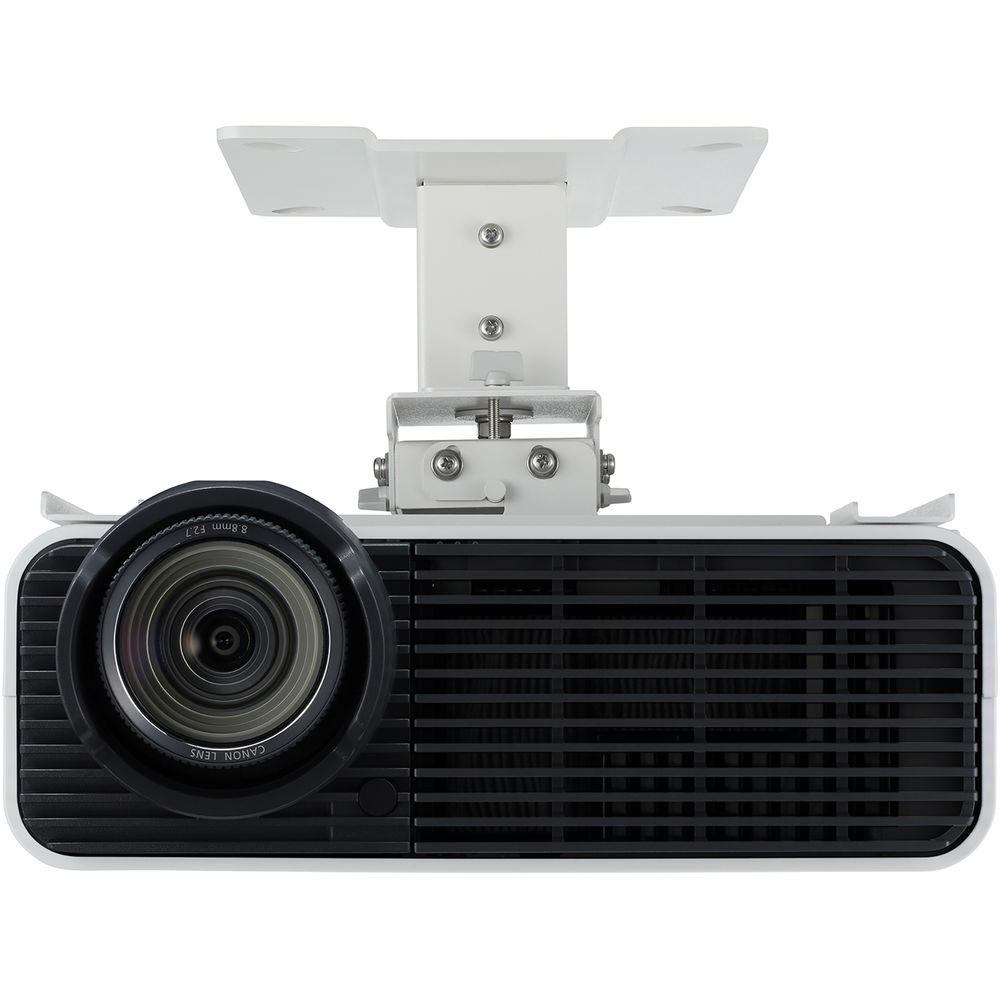

- Upward, downward, table, and ceiling mounting
- Adjustable feet (bottom front): two places (maximum elevation 6°)
- Component video input: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Digital video input: 1080p / 1080i / 720p / 576p / 480p
- RJ-45 network connection (1000BASE-T / 100BASE-TX / 10BASE-T)
- RJ-45 (HDBaseT) input (image, audio, control signal and network)
- Wireless remote infrared (supplied) / wired (optional)
- 5 W, monaural internal amplifier
UPC: 013803289978 In the Box Canon REALiS 5000-Lumen Pro AV LCOS Projector Lens Cap Power Cord VGA to VGA Connection Cable (Mini Dsub15-Mini Dsub15) LV-RC06 Projector Remote Control 2 x AA Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon REALiS 5000-Lumen Pro AV LCOS Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon WUX500ST Specs | | | Display System | 3-Chip LCoS | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA
UXGA
WSXGA+
SXGA+
WXGA+
FWXGA
WXGA
SXGA
XGA
SVGA
VGA | | Max Brightness | 5000 Lumens
3460 Lumens | | Uniformity | 80% | | Aspect Ratio | 16:10 | | Contrast Ratio | 2000:1 | | Scan | Horizontal: 15.734 to 75.000 kHz
Vertical: 24.000 to 60.317 Hz | | | | Lens | f/2.7 (f = 8.8 mm) | | Lens Shift | Vertical: 0 to 75%
Horizontal: ± 10% | | Throw Ratio | 0.56:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 12°

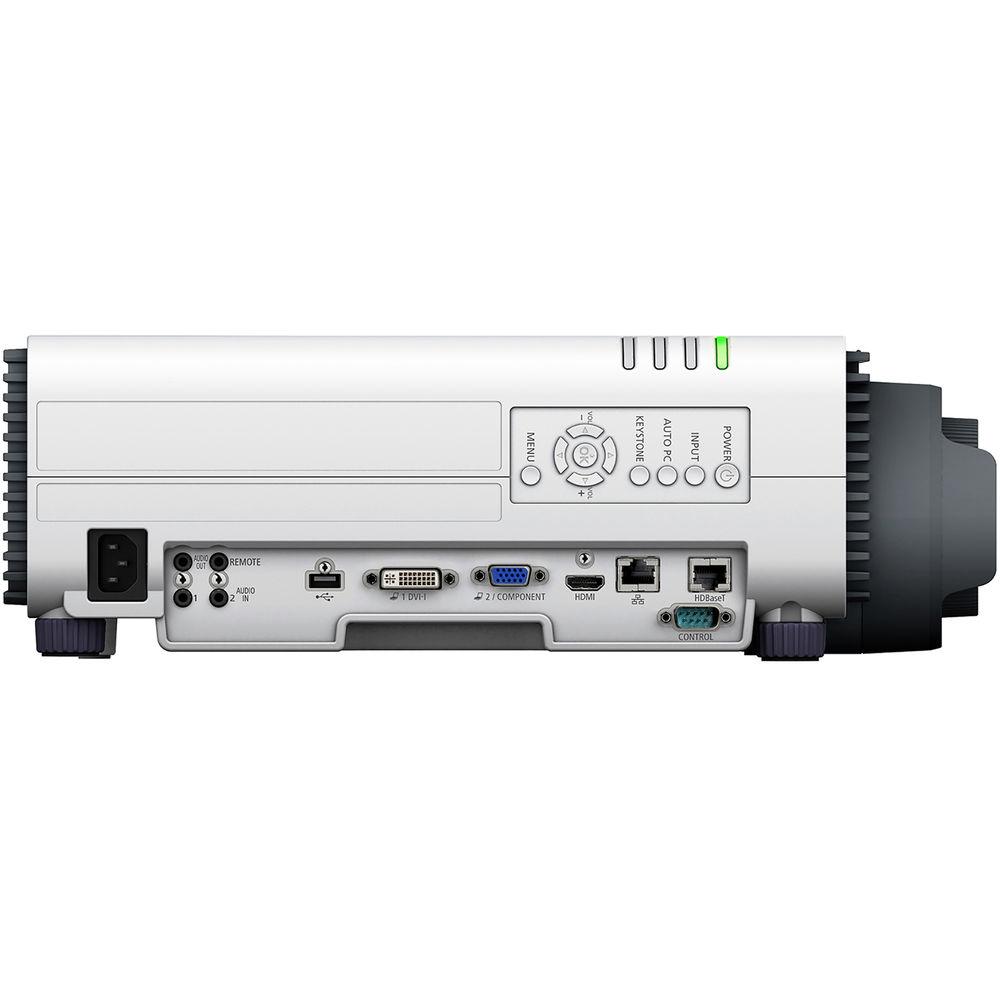

Horizontal: ± 12° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x DVI-D Audio/Video
1 x HDMI Video (Input)
1 x HDBaseT (RJ45) Audio/Video
1 x RS-232C (Unspecified Connector) Control | | | | Lamp Power | 280 W
200 W | | Fan Noise | Medium Brightness: 38 dB
Medium Brightness: 30 dB | | Power Consumption | Medium Brightness: 395/295 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 85%
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 13.3 x 5.4 x 16.3" / 337.8 x 137.2 x 414.0 mm | | Weight | 13.9 lb / 6.3 kg | | | | Package Weight | 19.95 lb | | Box Dimensions (LxWxH) | 21.26 x 17.638 x 13.228" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
