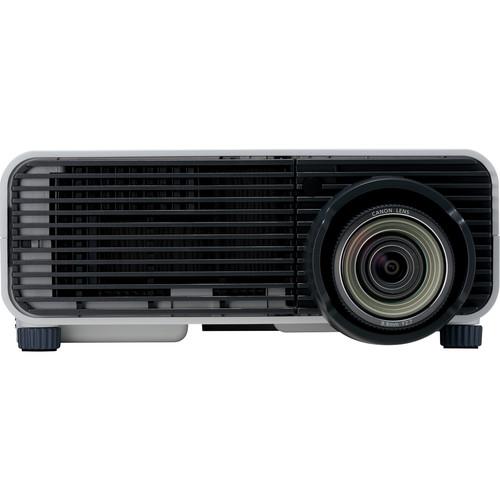

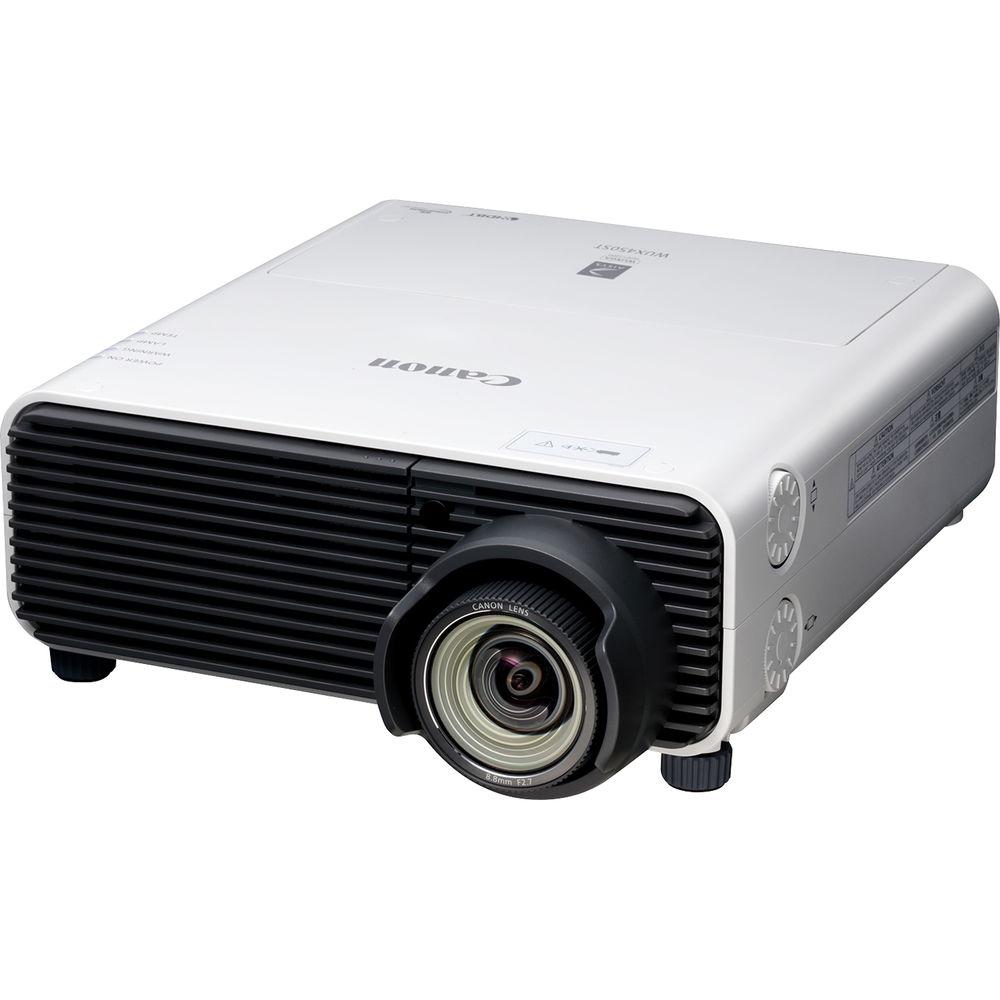

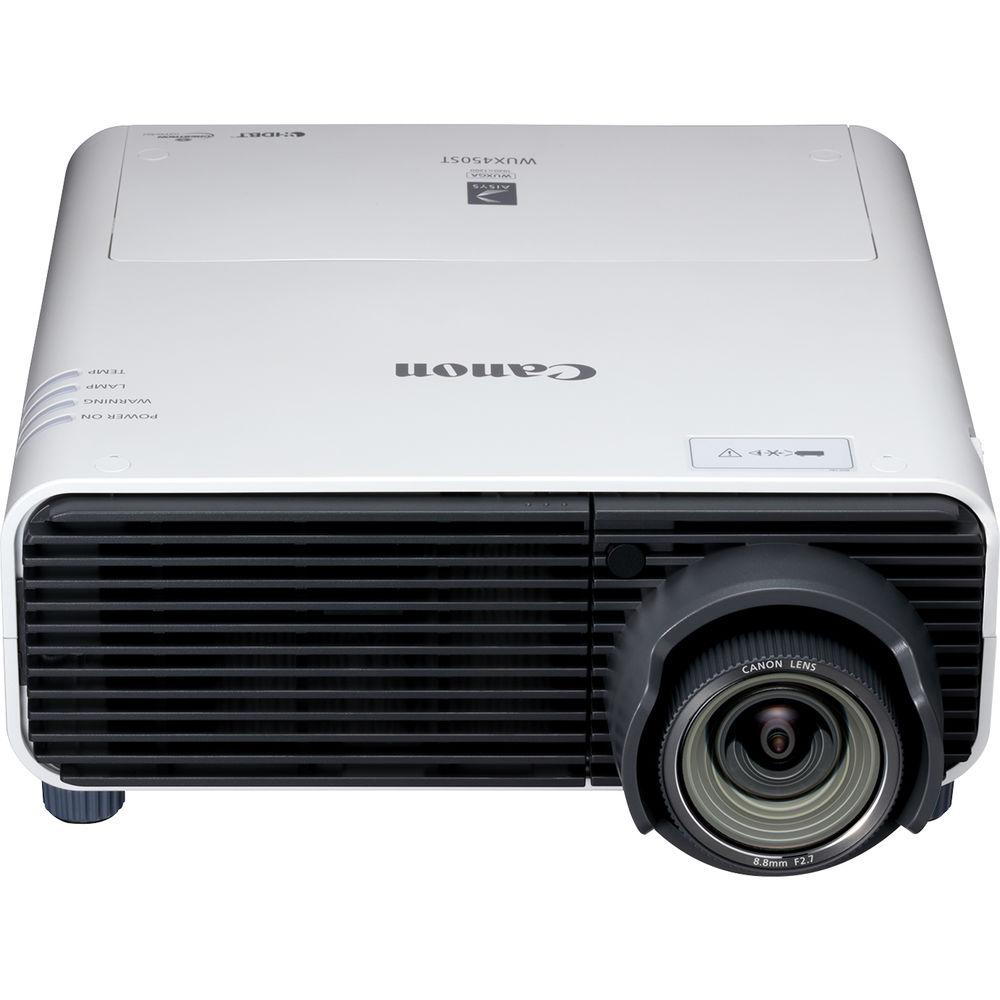

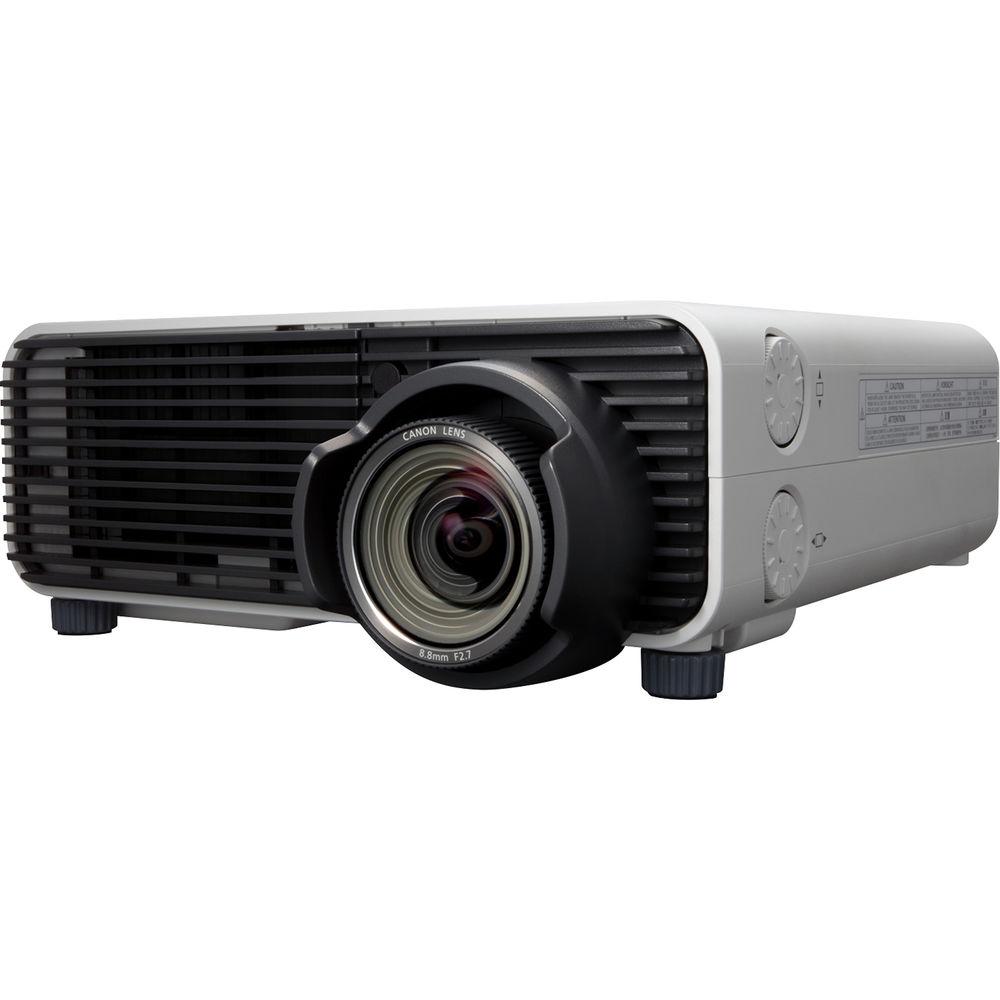

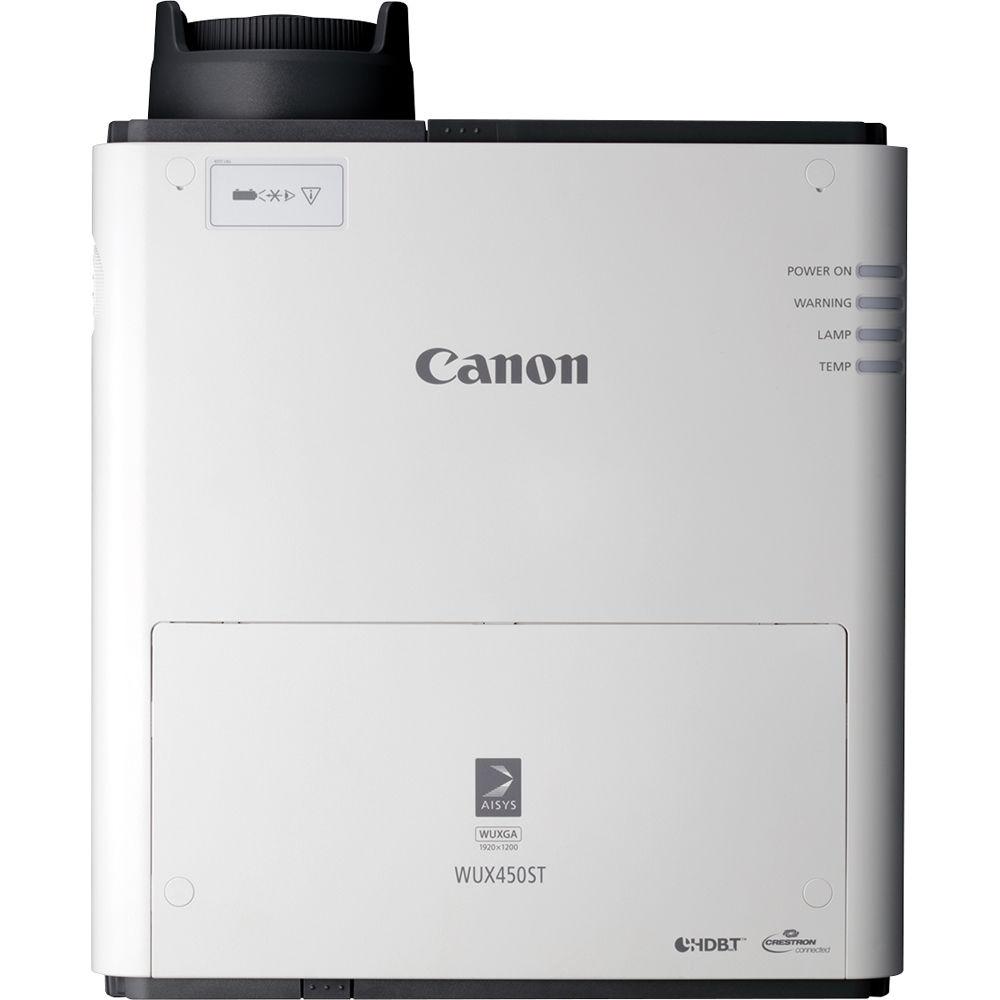

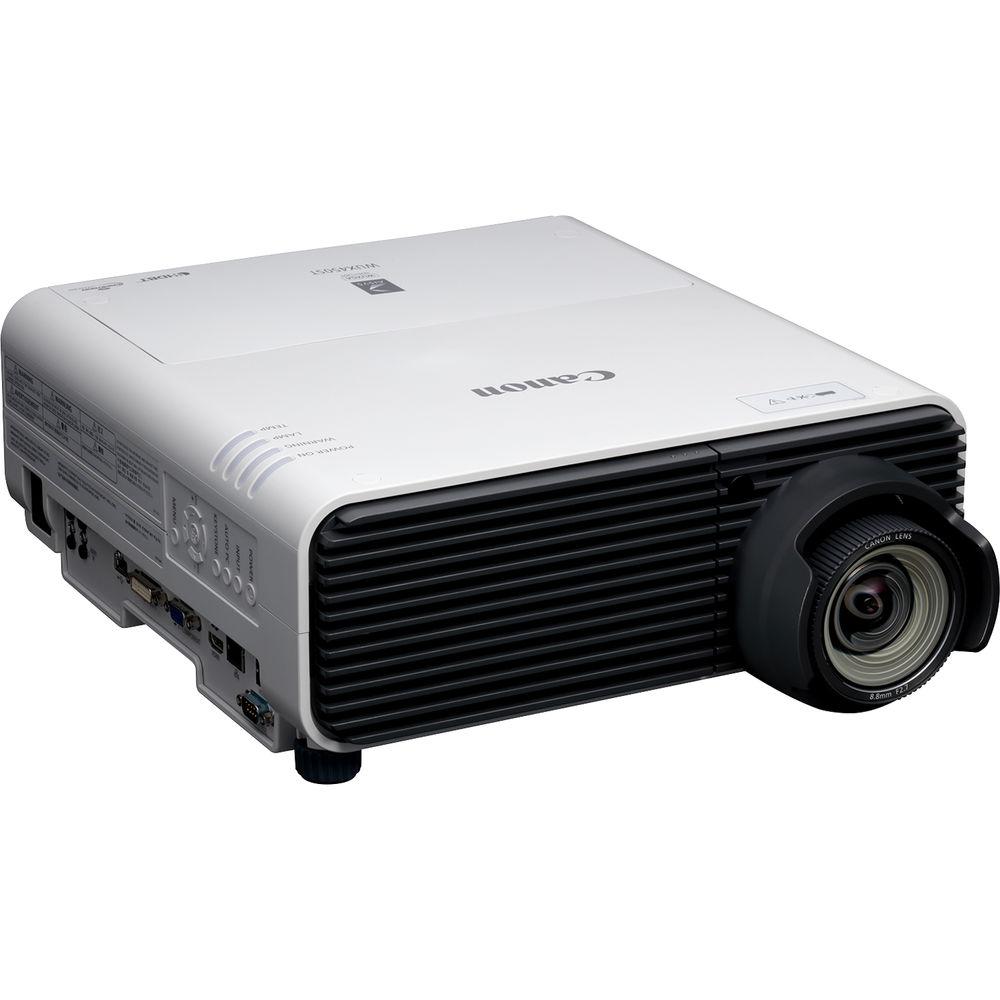

User Manual for Canon REALiS WUX450ST D Pro AV with DICOM 4500L WUXGA Short Throw LCoS Projector Click to enlarge the picture
Contents of the user manual for the Canon REALiS WUX450ST D Pro AV with DICOM
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon REALiS WUX450ST D Pro AV with DICOM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon REALiS WUX450ST D Pro AV with DICOM 4500-Lumen WUXGA Short Throw LCoS Projector provides a native WUXGA (1920 x 1200) resolution enhanced by Canon's AISYS LCoS technology. The projector provides 4500 lumens of brightness with a contrast ratio of 2000:1 for high-resolution photo and video displays. Its short 0.56:1 throw ratio will allow you to place it near the screen to avoid shadows of passers-by.
The WUX450ST D features HDMI, DVI-I, and VGA video inputs to connect to nearly any source. Its analog audio input and output and built-in 5W speaker will allow you to get audio to the projector's speaker and out to an external set of speakers. It is controllable via Ethernet and RS-232 by systems such as PJLink, Crestron, and AMX. It includes a VGA cable and an IR remote control.
The REALiS WUX450ST D offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, making the REALiS WUX450ST D useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only. - 4500 Lumens with up to 2000:1 contrast ratio deliver bright, stunning images
- Native WUXGA resolution (1920 x 1200)
- LCoS technology with AISYS-enhancement
- Genuine Canon lens and advanced color management system
- Short throw ratio of 0.56:1 with a vertical lens shift of 0 to 75%
- Advanced professional calibration settings including edge blending
- Multiple adjustments for optimal image quality reproduction

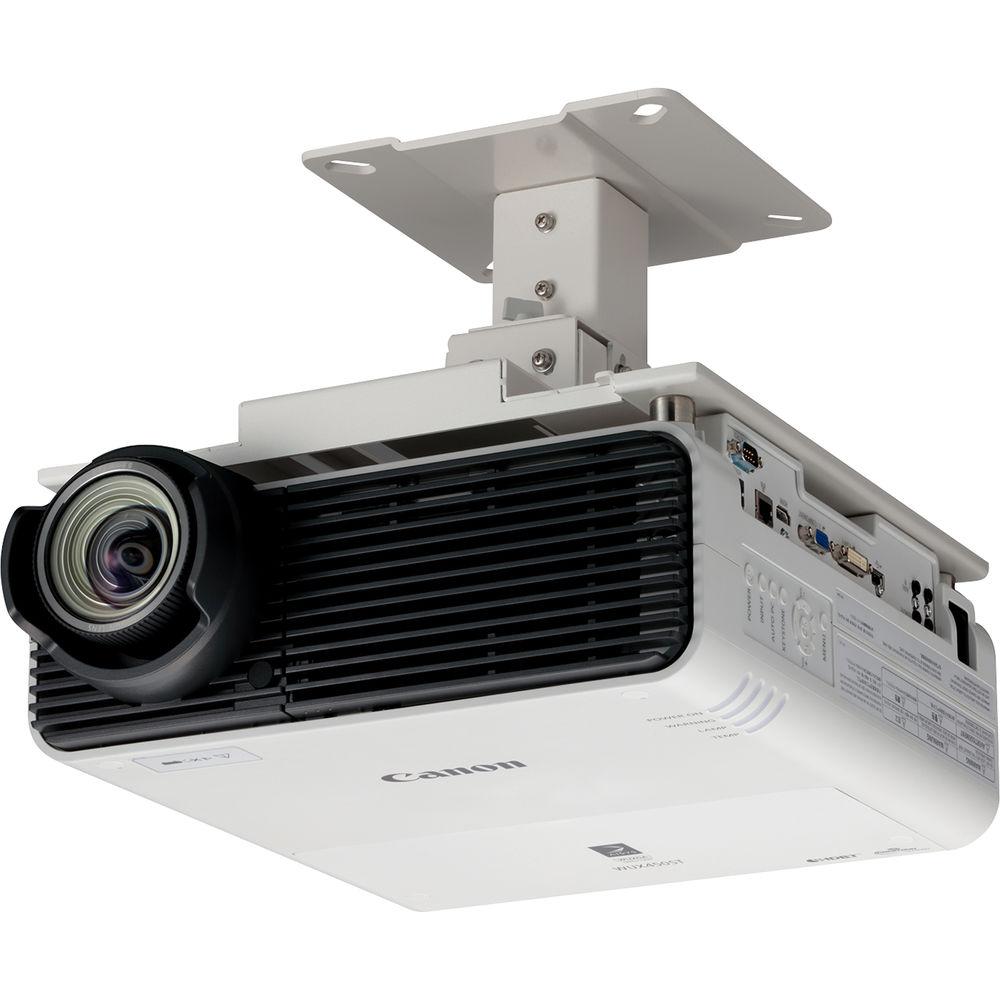

- Installation convenience including a compact design, four-point keystone correction, 360° vertical installation, and various advanced installation features

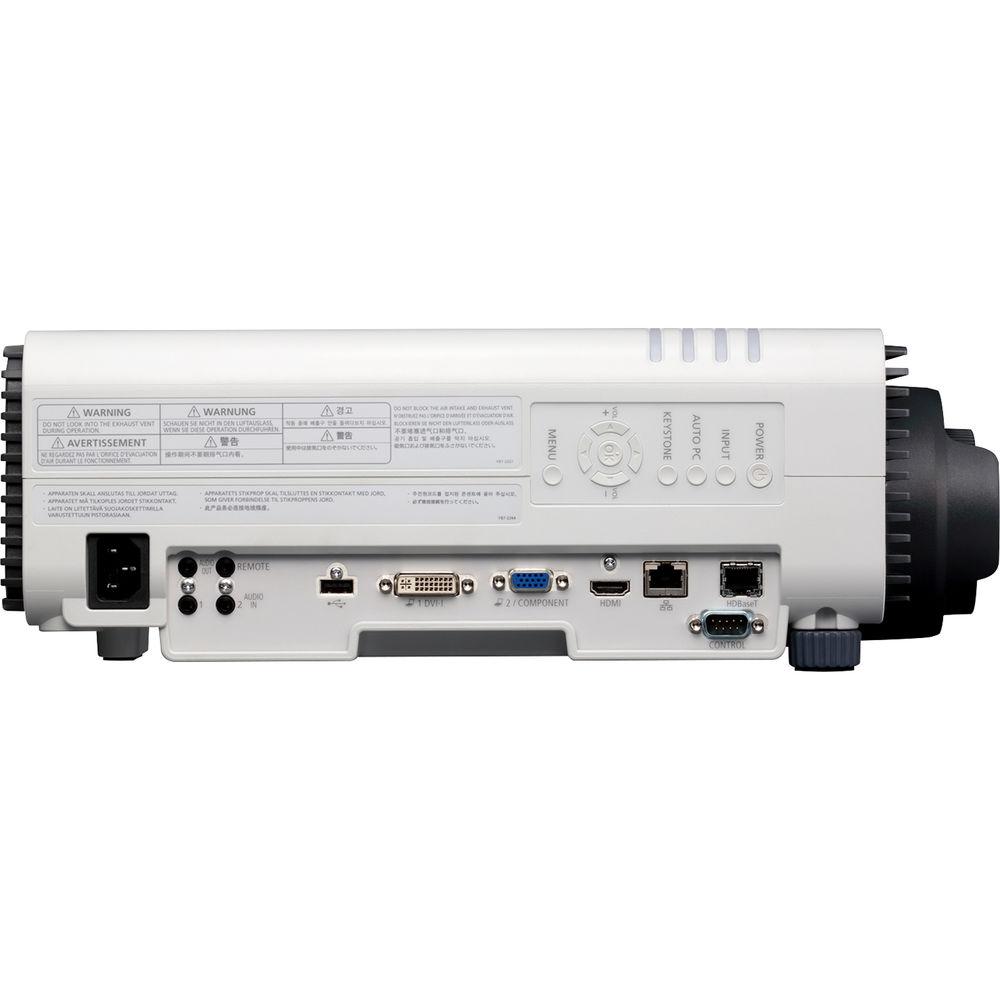

- Versatile connectivity (HDMI, DVI-I, USB Type-A, RJ-45, RS-232)
- Network management via PJLink, Crestron connectivity, and AMX device discovery
- NMPJ (Network Multi-Projection) over Wi-Fi
- Various power consumption settings and simplified maintenance
In the Box Canon REALiS WUX450ST D Pro AV with DICOM 4500L WUXGA Short Throw LCoS Projector Remote Control 2 x AA Batteries Lens Cap Power Cord Limited 3-Year Warranty on Projector Limited 120-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon REALiS WUX450ST D Pro AV with DICOM 4500L WUXGA Short Throw LCoS Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon WUX450STD Specs | | | Display System | 3-Chip LCoS | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 4500 Lumens
3460 Lumens | | Uniformity | 80% | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 2000:1 | | Scan | Horizontal: 15.734 to 75 kHz
Vertical: 24 to 60.317 Hz | | | | Lens | f/2.7 (f = 8.8 mm) | | Lens Shift | Vertical: 0 to 75%
Horizontal: ± 10% | | Throw Ratio | 0.56:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 12°
Horizontal: ± 12° | | Digital Zoom | 12x | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 5W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x DVI-I Video (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x VGA (DE-15) Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x USB Type-A Female (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Control | | | | Light Source | Lamp (1 x SHP) | | Lamp Power | 260 W
200 W | | Expected Lamp Life | Full Brightness: 3000 Hours
Low Brightness: 5000 Hours | | Fan Noise | Full Brightness: 37 dB
Medium Brightness: 30 dB | | Supported Photo File Types | JPEG | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 365 W
Low Brightness: 295 W
Standby Mode (Lamp Off): 1.8 W
Standby Mode (Lamp Off): 0.2 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 85%
Storage
-4 to 140°F (-20 to 60°C) | | Dimensions (W x H x D) | 13.3 x 5.4 x 16.3" / 337.0 x 136.0 x 415.0 mm | | Weight | 13.9 lb / 6.3 kg |
