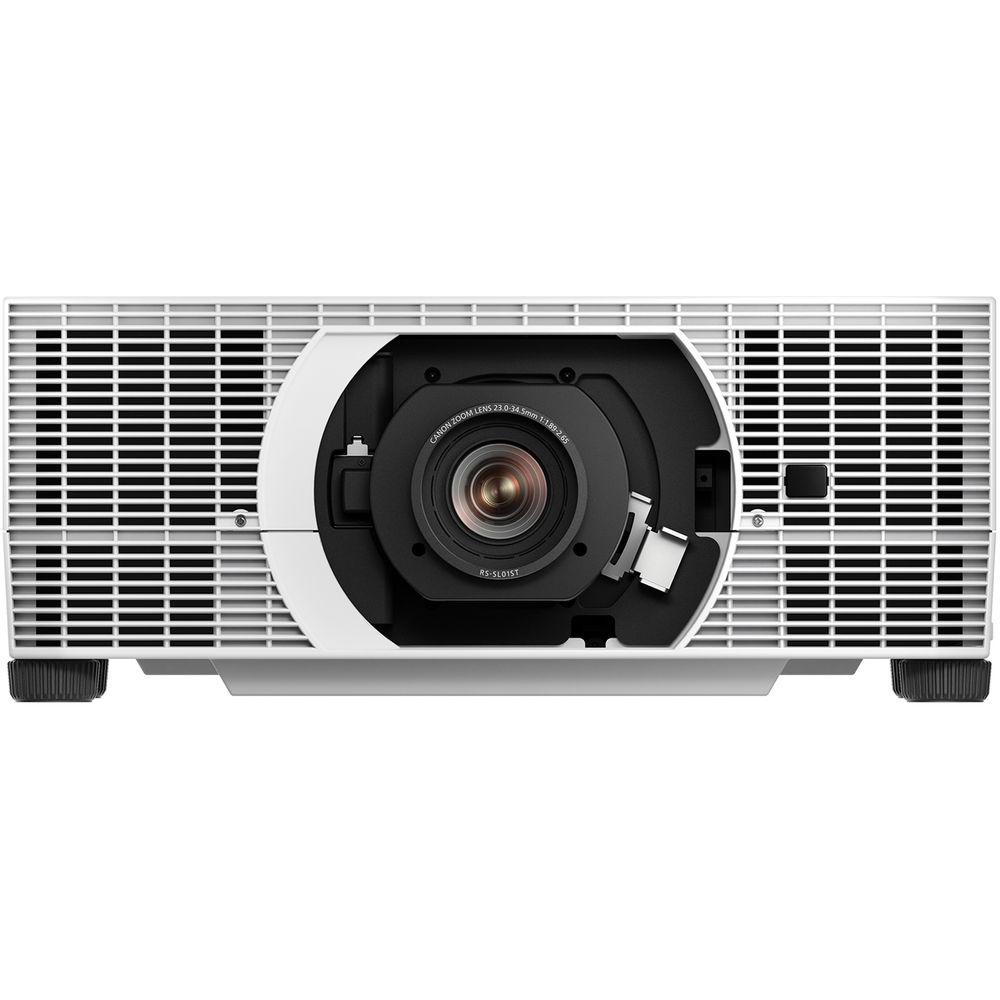

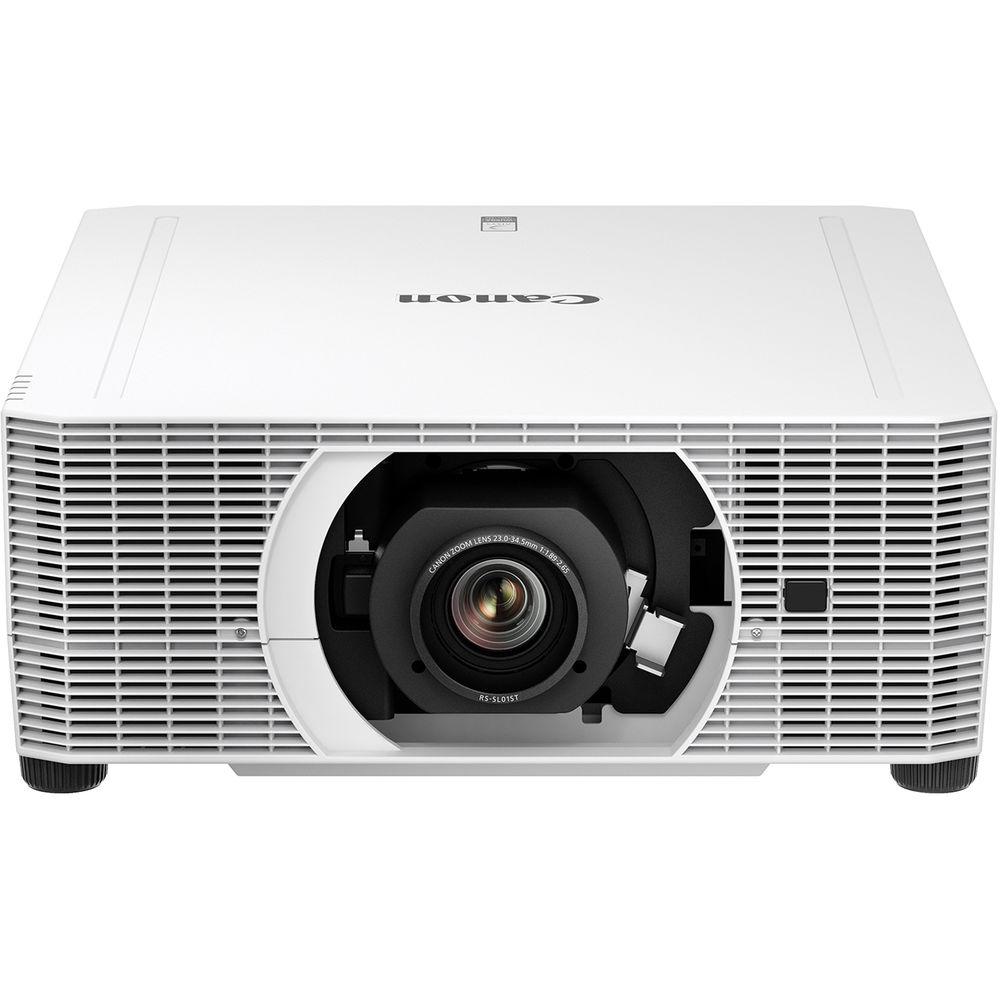

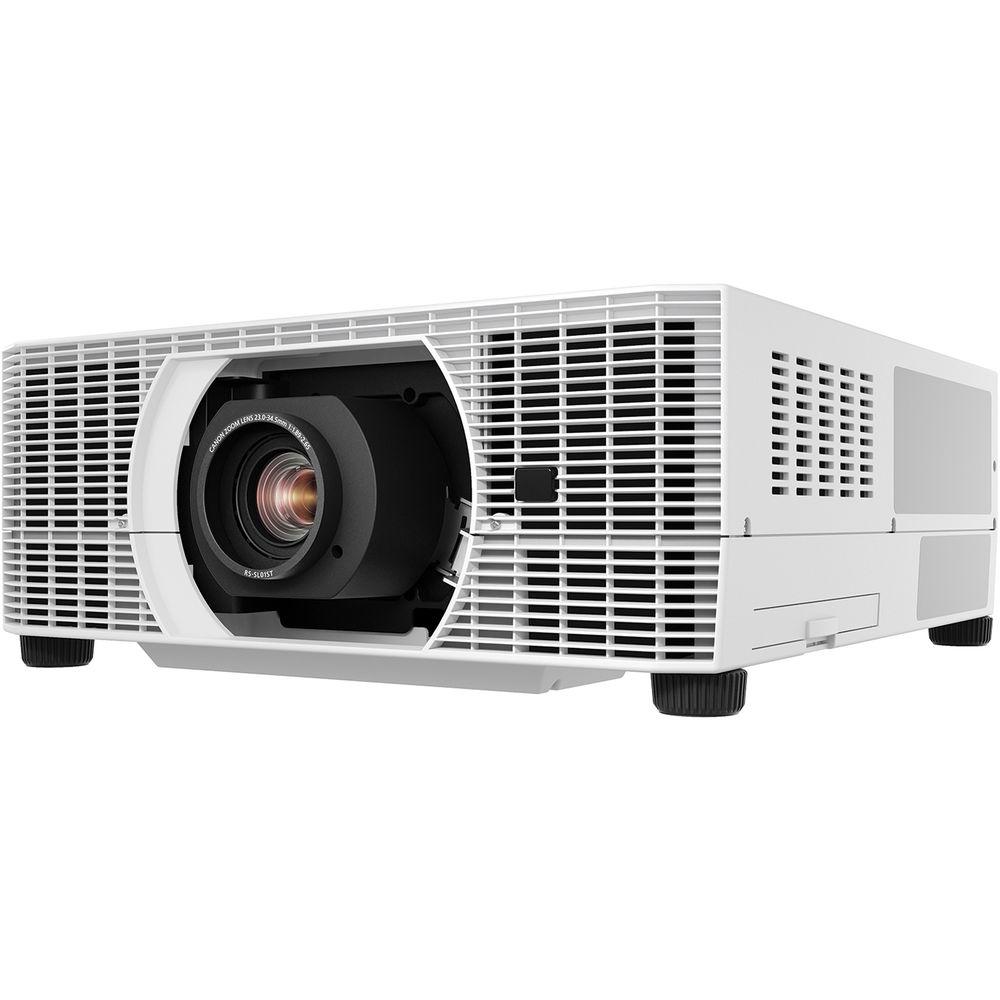

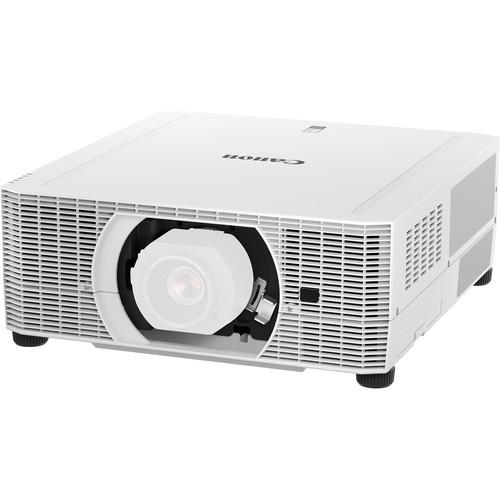

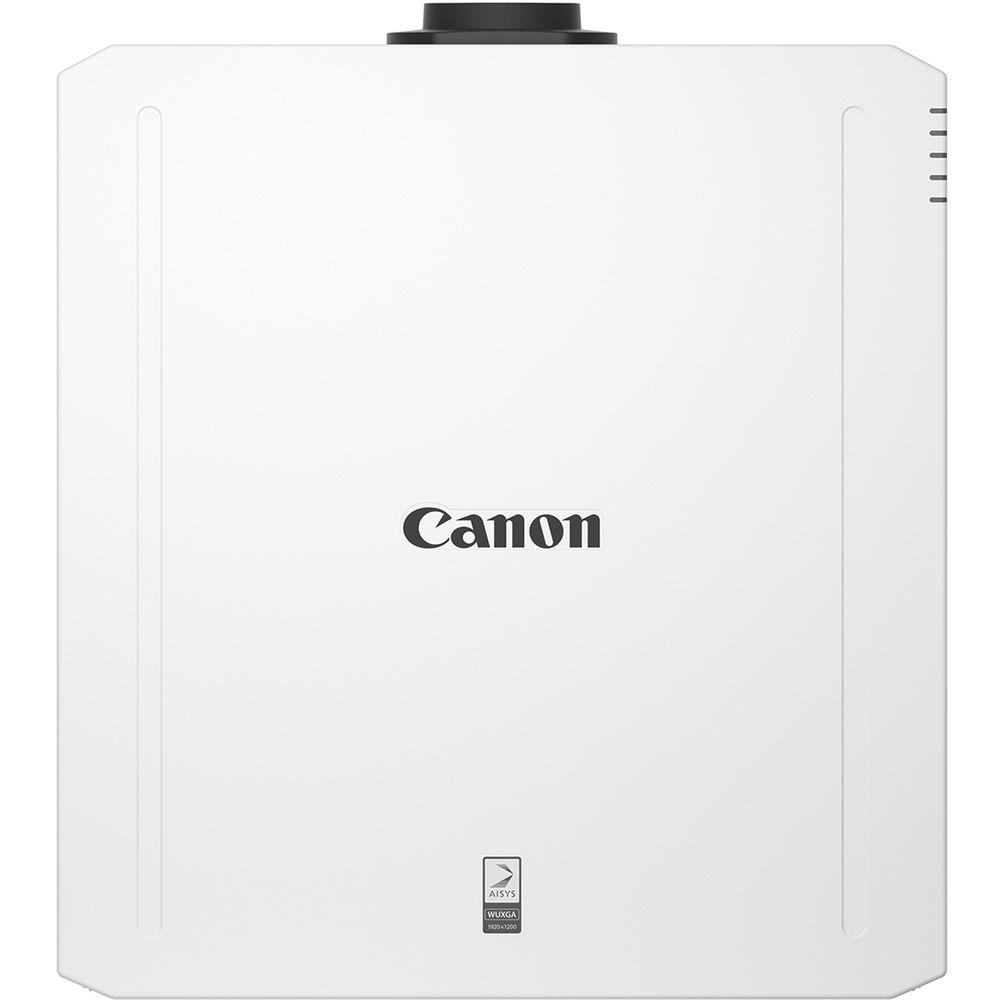

User Manual for Canon REALiS WUX5800 5800-Lumen WUXGA LCoS Projector Click to enlarge the picture
Contents of the user manual for the Canon REALiS WUX5800 5800-Lumen WUXGA LCoS
- Product category: Multimedia Projectors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Multimedia Projectors
 |
User manual for the Canon REALiS WUX5800 5800-Lumen WUXGA LCoS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The REALiS WUX5800 5800-Lumen WUXGA LCoS Projector from Canon provides high brightness with 5800 lumens for consistently high-quality images. Six interchangeable Genuine Canon lens options can be installed quickly and securely, providing flexibility in many fields. The projector features native WUXGA (1920 x 1200) resolution, a high contrast ratio of 2000:1, quiet operation at 27 dB, and advanced features for high-quality images. With high brightness and versatility, this projector is ideal for a variety of fields including higher education, corporate applications, advertising, marketing, houses of worship, simulation, training, museums, and galleries.
The WUX5800 includes HDBaseT, HDMI, DVI-I, DisplayPort, USB, RJ45, RS-232, and audio inputs, as well as Network Multi Projection (NMPJ) over Wi-Fi. A 1W spekaer is built into the projector. - 5800 Lumens with up to 2000:1 Contrast Ratio
- The REALiS WUX5800 projects a bright 5800 lumen picture with up to a 2000:1 contrast ratio that helps ensure deep blacks, bright whites, and outstanding color. The results are images with crisp depth and dimension and accurate color, which is critical to those with discerning needs.
- Native WUXGA Resolution (1920 x 1200)
- Canon's WUXGA resolution brings bright, true widescreen display of highly detailed HD video content and still images with enhanced color richness to large-room installations in high resolution WUXGA (1920 x 1200). Widescreen graphics, text, and other visual content from laptops and desktop computers are shown in accurate proportions from edge to edge with sharp detail.
- LCOS Technology with AISYS Enhancement
- The imaging performance of the projector starts with Canon's proprietary AISYS (Aspectual Illumination System) Optical Engine. This engine utilizes advanced light management technology to maximize the contrast and brightness benefits of the projector's LCOS (Liquid Crystal on Silicon) display panels, which deliver enhanced reflectivity and durability while accomplishing high luminance. The result is highly detailed, seamless, ultra-sharp image projection in virtually any environment.

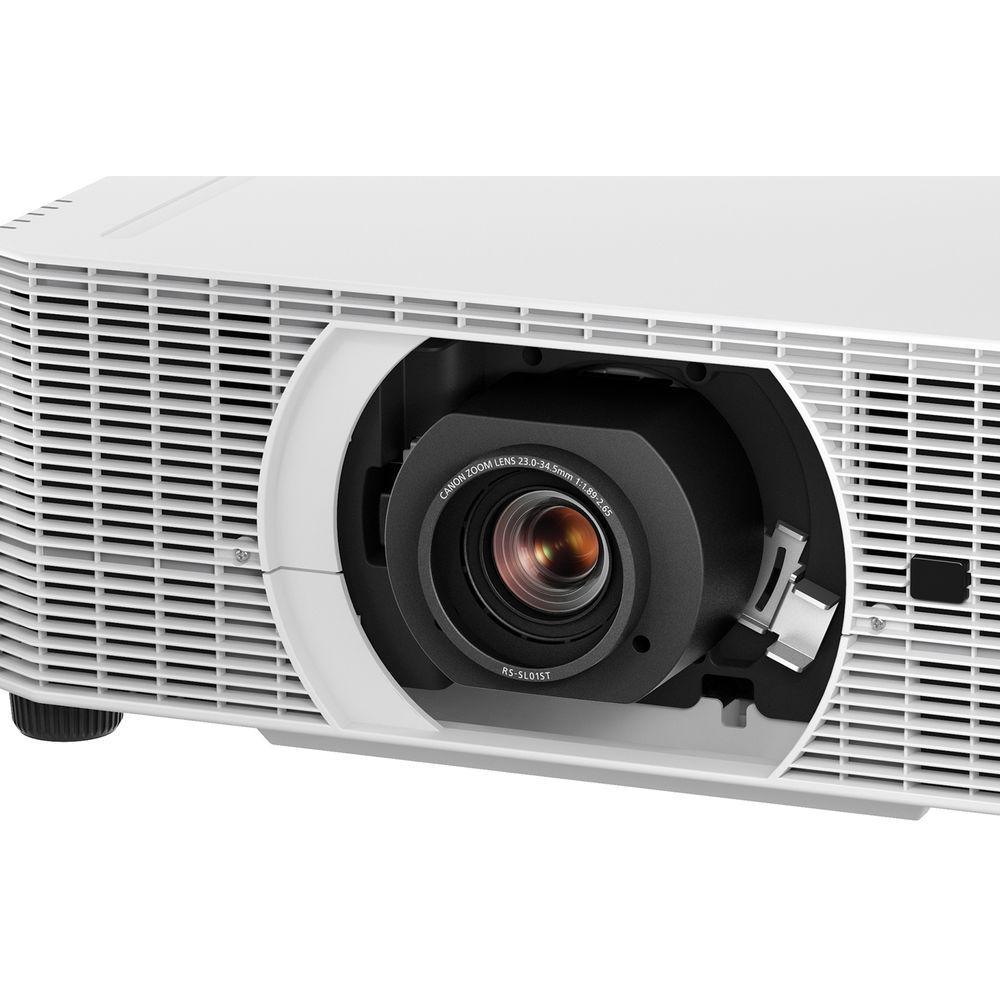

- Six Optional Genuine Canon Interchangeable Lenses
- Six optional interchangeable Genuine Canon lenses enable a wide variety of applications for exceptional image quality and flexibility. A spigot lens mount system is designed so that the lens can be quickly and securely installed in virtually seconds. Optional lenses include the Ultra Short Fixed Lens RS-SL06UW, which features compatibility with Marginal Focus for accurate projection onto a spherical surface, a 0.54:1 throw ratio and a generous vertical lens shift of V: -15 - 75%, H:
|
Upload User Manual
Have you got an user manual for the Canon REALiS WUX5800 5800-Lumen WUXGA LCoS Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon WUX5800 Specs | | | Display System | 3-Chip 0.71" LCoS | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA
UXGA
WSXGA+
SXGA+
WXGA+
FWXGA
WXGA
SXGA
XGA
SVGA
VGA | | Max Brightness | 5800 Lumens | | Uniformity | 90% | | Contrast Ratio | 2000:1 | | Scan | Horizontal: 15.625 to 75 kHz
Vertical: 24 to 60 Hz | | | | Projection Size | 40 - 600" / 1.02 - 15.24 m When standard RS-SL01ST projection lens used | | | | Keystone Correction | Vertical: ± 20°
Horizontal: ± 20° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x DVI-I Video (Input)
1 x HDMI Audio/Video (Input)
1 x DisplayPort Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Control (Input)
1 x HDBaseT (RJ45) LAN (Input)
1 x RS-232C (DE-9) Control (Input)
1 x 1/8" (3.5 mm) Mini Control/Service (Input) | | Inputs/Outputs | 1 x Component (DE-15) Video Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 3500 Hours
Low Brightness: 4000 Hours | | Fan Noise | Full Brightness: 35 dB
Medium Brightness: 29 dB
Low Brightness: 27 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 1171 BTU | | Power Consumption | Full Brightness: 343 W
Medium Brightness: 300 W
Low Brightness: 262 W
Standby Mode (Lamp Off): 1.6 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 19.0 x 7.7 x 20.0" / 48.3 x 19.6 x 50.8 cm | | Weight | 28.6 lb / 12.97 kg | | | | Package Weight | 48.8 lb | | Box Dimensions (LxWxH) | 29.0 x 27.0 x 17.0" |
