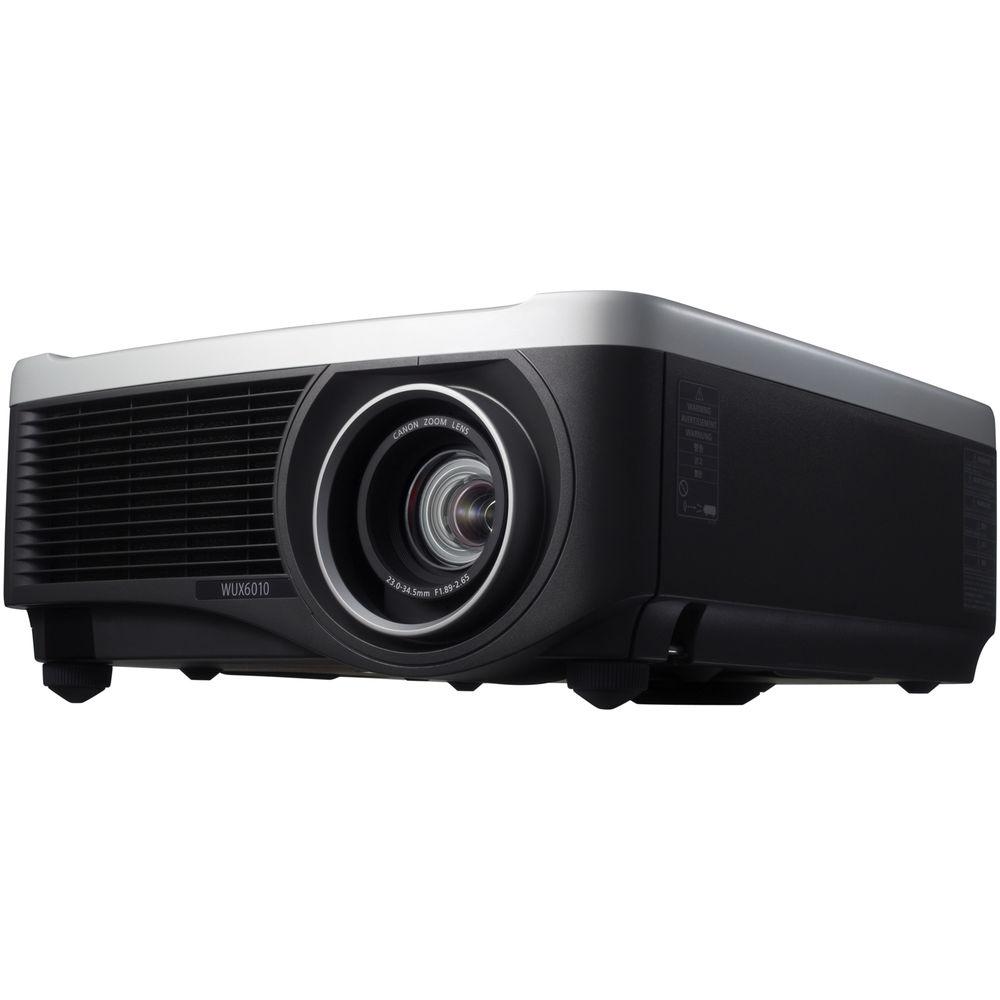

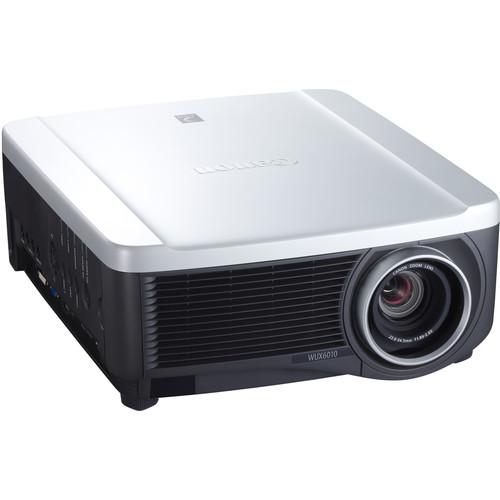

Product description

DICOM Simulation Mode
• The REALiS WUX6010D offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, which makes the REALiS WUX6010D useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.

6000 Lumens with Up to 2000:1 Contrast Ratio
• The REALiS WUX6010D projects a bright 6000 lumen picture with up to a 2000:1 contrast ratio that helps ensure deep blacks, bright whites, and outstanding color. The results are images with crisp depth and dimension and accurate color, which is critical to those with discerning needs.

Native WUXGA Resolution (1920 x 1200)
• Canon's REALiS WUX6010D brings bright, true widescreen display of HD video content and still images with rich color to large-room installations in high resolution WUXGA (1920 x 1200). The REALiS WUX6010D projects 1080p content without compression, and displays widescreen graphics, text, and other visual content from laptops and desktop computers in accurate proportions, just as it appears on most monitor screens.

LCOS Technology with AISYS-Enhancement
• The imaging performance of the REALiS WUX6010D starts with Canon's AISYS (Aspectual Illumination System) Optical Engine, which utilizes light management technology to maximize the contrast and brightness benefits of the projector's LCOS (Liquid Crystal on Silicon) display panels, which deliver enhanced reflectivity and durability while accomplishing high luminance. The result is a detailed, seamless image projection in virtually any environment.

Advanced Image Processor
• The REALiS WUX6010D incorporates an advanced image processor that facilitates a wide variety of color and image adjustment options to help ensure that color reproduction is accurate.

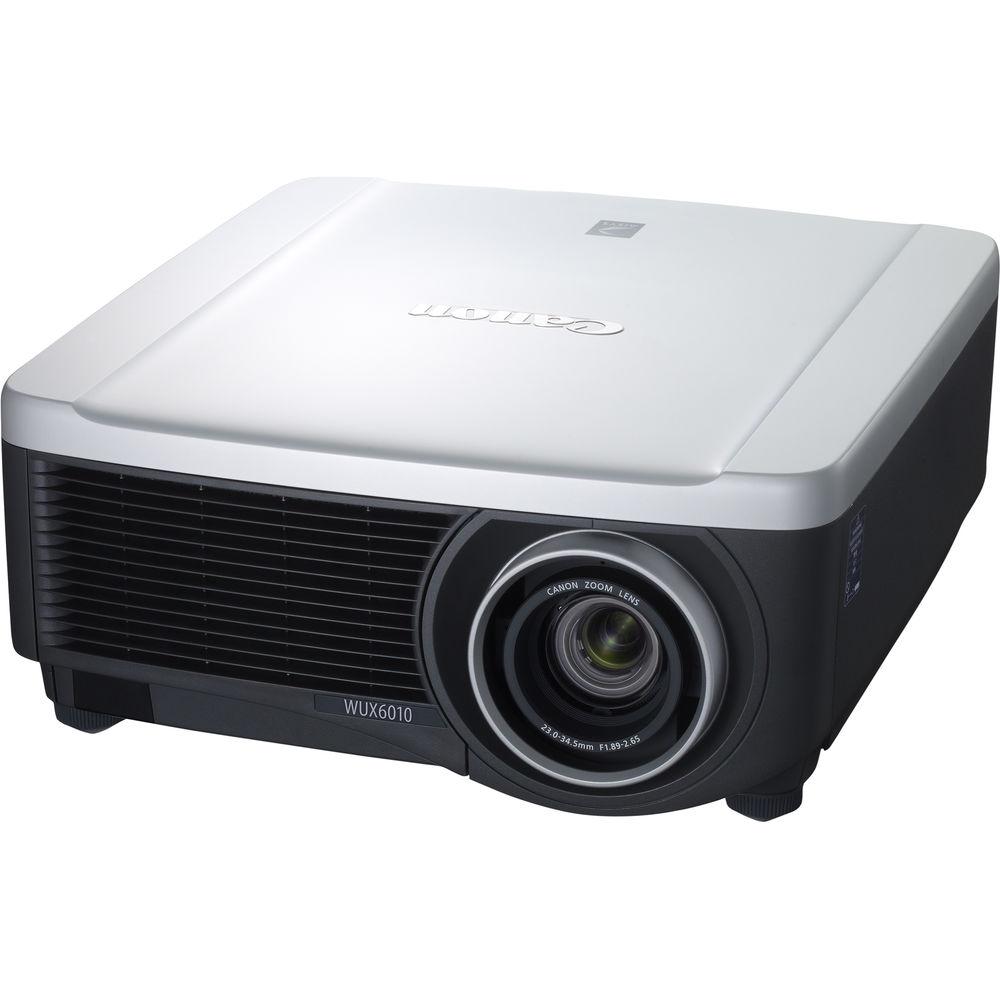

Interchangeable Lenses Add Flexibility
• The REALiS WUX6010D projector gives users the choice of multiple optional interchangeable Canon projection lenses, sold separately. All lenses are similarly-sized and can be attached to the REALiS WUX6010D to suit a variety of applications, screen sizes, and installation environments.

HDBaseT
• The REALiS WUX6010D is equipped with a built-in HDBaseT receiver, allowing uncompressed HD video, audio, and control signals to be transmitted over one LAN cable with a maximum distance of 328.1'. This reduces complex wiring schemes used for a typical setup, maximizing long cable runs with minimal image quality degradation.

Easy Installation, Motorized Lens Shift, Four-Point Keystone Correction, and Lens Position Memory

Motorized Lens Shift
• The horizontal/vertical Motorized Lens Shift capability of all compatible projection lenses allows for maximum flexibility for a wide variety of installation environments. Users can be virtually assured that the REALiS WUX6010D can be optimally positioned, and since lens shift doesn't degrade the image the way other types of correction can, the quality of your projected images is not compromised.

Four-Point Keystone Correction
• Additional installation convenience is provided by Four-Point Keystone Correction, which includes independent corner image adjustments to accurately correct for situations in which the position of the projector may be slightly angled with respect to the projection screen. This feature is also critical for applications that require precise projection stacking.

Lens Position Memory
• The REALiS WUX6010D can store up to three lens positions in memory, making it easy to switch between settings. This feature can be utilized in a classroom to adjust the position of the image if the unit is used to sometimes project on a screen, and other times on a blackboard. Memorized items include:
  • Zoom
  • Focus
  • Lens Shift
  • Keystone
  • Aspect
  • Screen Color Adjustment
  • Digital Image Shift

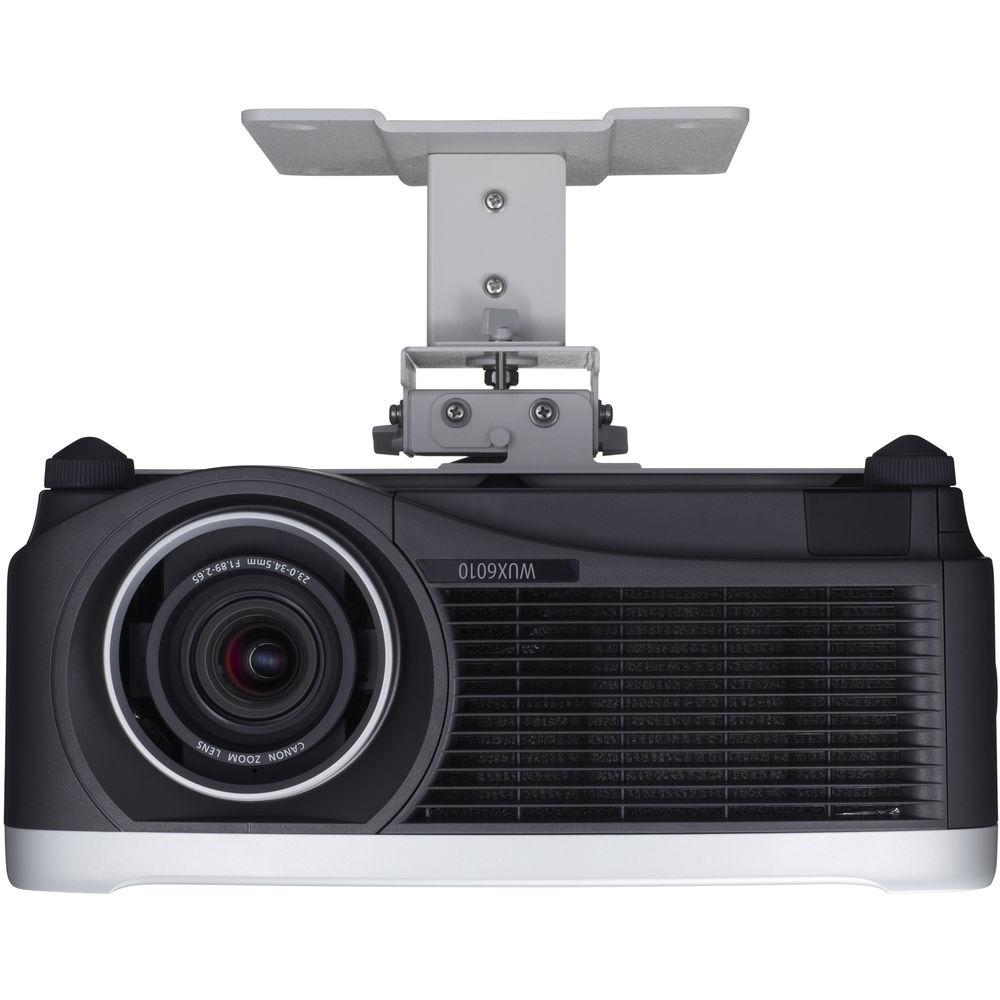

360° Installation
• The REALiS WUX6010D offers 360° installation on the vertical axis, and includes a Vertical Projection Mode to maximize lamp life. Fan speed is adjusted depending on whether the projector is facing upward or downward.

Screen Color Correction
• Screen Color Correction enables users to fine-tune the colors of images based on the color of the projection surface. Adjustments can be made from Normal and Greenboard, as well as additional tuning for projecting onto virtually any other colored surface.

Split Screen
• A Picture-by-Picture feature enables two high-quality images from two digital inputs (via DVI and HDMI) to be projected simultaneously side-by-side in one letterboxed image.

Test Patterns
• More than 25 test patterns are provided to enable smooth installation and adjustment.

Advanced Professional Calibration Settings, Including Edge Blending

Edge Blending
• Edge Blending enables the user to combine multiple images to create a seamless, extra-wide projection. Advanced functions allow for color blending and black level adjustments to maximize image quality.

Micro-Digital Image Shift
• Micro-Digital Image Shift electrically shifts the image, using the surplus pixels on the LCOS panel.

Registration
• Registration is a function that modifies the registration by electronically correcting color shift due to changes in alignment of each RGB panel position.

Fan Mode
• Fan Mode allows you to adjust the fan speed to support different environmental work spaces.

Vertical Projection
• Vertical Projection automatically adjusts fan speeds and other configurations to support vertical installations.

Multiple Modes and Adjustments for Optimal Image Quality

Image Modes
• Image Modes provide different variations of color reproduction characteristics suitable for the image type and projection environment. They include:
  • Standard – for viewing still images and TV broadcasts under slightly suppressed lighting.
  • Presentation – for viewing image reference material under standard lighting.
  • Dynamic – for viewing movies under standard lighting.
  • Vivid Photo – renders rich colors brilliantly and reproduces skin tones naturally.
  • Photo/sRGB – reproduces colors in the sRGB standard.
  • Video – for viewing movies shot by a video camera under slightly dark lighting.
  • Cinema – for viewing theatrical image content in a room without lighting.
  • Five Customizable Modes – up to five user-selected combinations of image quality settings can be stored in the memory and selected as an image mode.

Image Adjustments
• The Image Adjustment settings allow users to customize the image and color characteristics to fulfill their specific imaging needs. These include:
  • Brightness
  • Contrast
  • Sharpness
  • Gamma
  • Color Adjustments – color level, color balance, color temperature, gain (RGB), offset (RGB)

Advanced Image Adjustments
• Advanced Image Adjustments provide greater flexibility to professional users with more options to adjust the image as desired. These settings include:
  • Ambient Light - allows the user to select the color temperature, lamp type, and other characteristics that are in the active environment.
  • Random Noise Reduction - eliminates minute noise that may appear in the image.
  • MPEG Noise Reduction - eliminates block noise that may appear when playing back compressed digital images, and "mosquito noise" that may appear in a dot pattern near the edges.
  • Mosquito Noise Reduction - eliminates "mosquito noise" exclusively from still images.
  • Dynamic Gamma - optimizes the detail in dark or low-contrast moving images by analyzing the image and making contrast adjustments for ideal viewing in brighter viewing conditions.
  • Memory Color Correct - emphasizes skin tones and blues to make images more attractive and more memorable. This function works by moving colors in the skin-tone gamut closer to the standard skin tones.
  • Six-Axis Color Adjust - lets users fine-tune the hue and saturation of each of the primary and secondary colors. This high degree of control can make each projected image a "masterpiece."

Lamp Mode
• Allows the user to select either Full Power to project images at full brightness, or Power Saver which reduces lamp brightness to save energy.

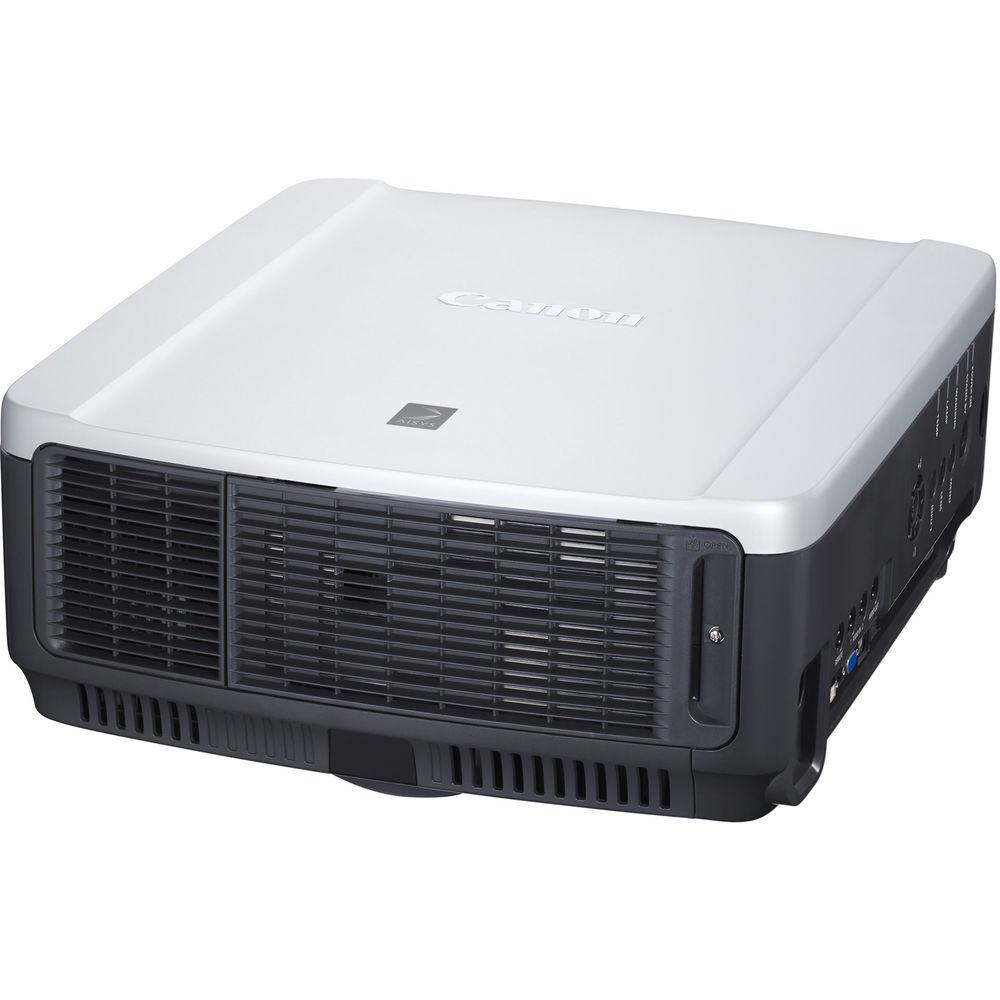

Versatile Connectivity

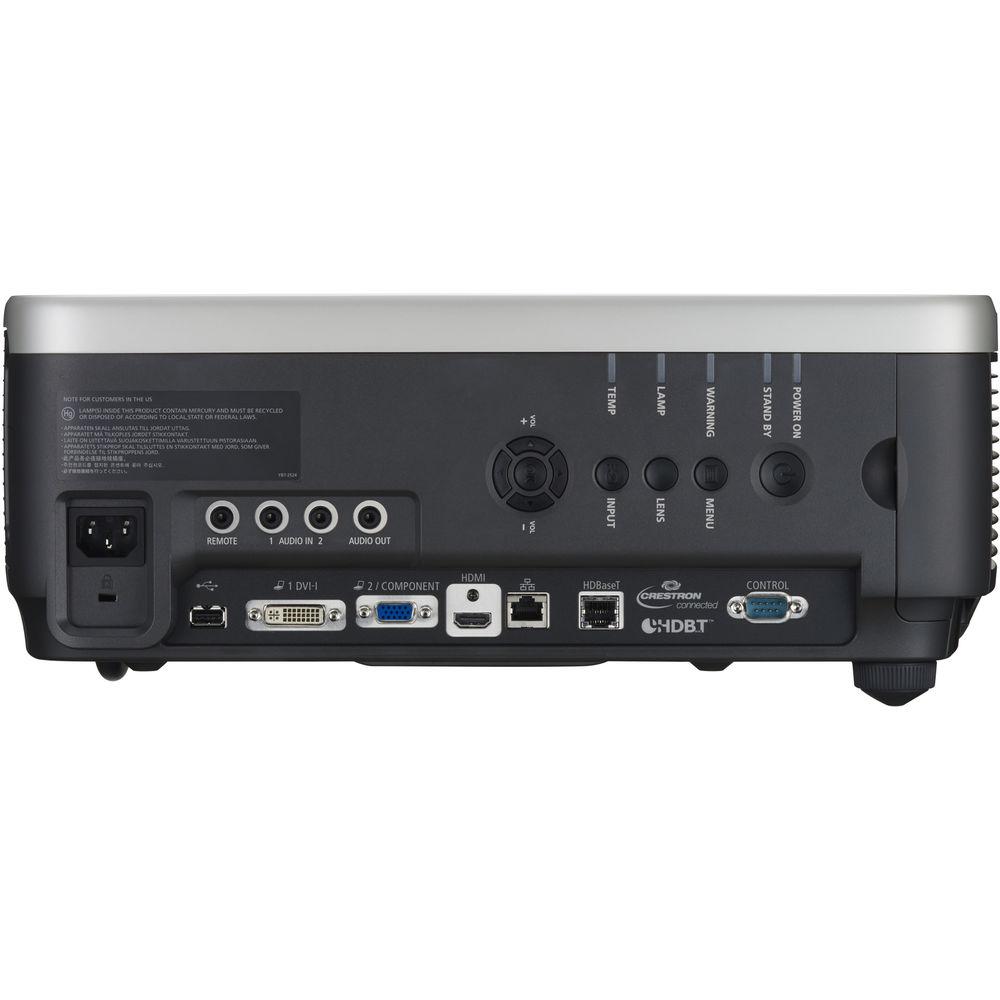

• Connections include HDMI, DVI-I, and analog RGB computer connectors; stereo audio inputs, and an audio output for connecting to external speakers or sound system. Industry-standard control and networking inputs include a network-ready RJ-45 port, enabling authorized users to manage and control multiple projectors from any computer on a network (Gigabit data transfer speeds are supported), an RS-232 serial connection for monitoring the projector locally through a third-party control system, a USB Type A port for easy installation of firmware upgrades, and a mini-jack for connecting an optional handheld wired remote controller.

Network Multi Projection (NMPJ)
• A built-in network multi projection (NMPJ) function enables the Canon REALiS WUX6010D to project the output of one or more locally or remotely networked computers. Four NMPJ modes enable selective sharing of visual information:
  • Direct Mode: The user can connect directly to the projector using a network cable or can connect directly to the network where the projector is located. The user can connect one PC and use one projector.
  • Meeting Mode: This is for sharing materials among all meeting attendees, enabling remote operation and sharing via the internet between bases in different locations. The benefit of this mode is that each PC can select multiple projectors as projector operation is enabled from each PC. This mode allows the user to connect up to ten PCs and six projectors.
  • Classroom Mode: The instructor can decide which attendee PCs will connect with which projectors and can switch the attendee projections as the class progresses. The benefit of this mode is that one PC (instructor) selects which PCs (students) to project from and controls the projectors. Certain operations are enabled from the client PCs (students), however they're limited. In this mode the user can connect up to ten PCs and six projectors.
  • Broadcast Mode: This mode enables one PC to connect up to 12 projectors.

PJ Link
• The REALiS WUX6010D also supports PJLink for networked projector control and monitoring of lamp hours, usage, and other variables.

Network Management
• The Canon REALiS WUX6010D is compatible with Crestron Roomview and AMX Device Discovery.

Low Power Consumption
• The power consumption of the Canon REALiS WUX6010D is only 0.078W/lm (465W/6000lm). It also offers multiple power-management settings that allow the user to preset stand-by duration, execute power operations, and auto-assign functions to the power button.

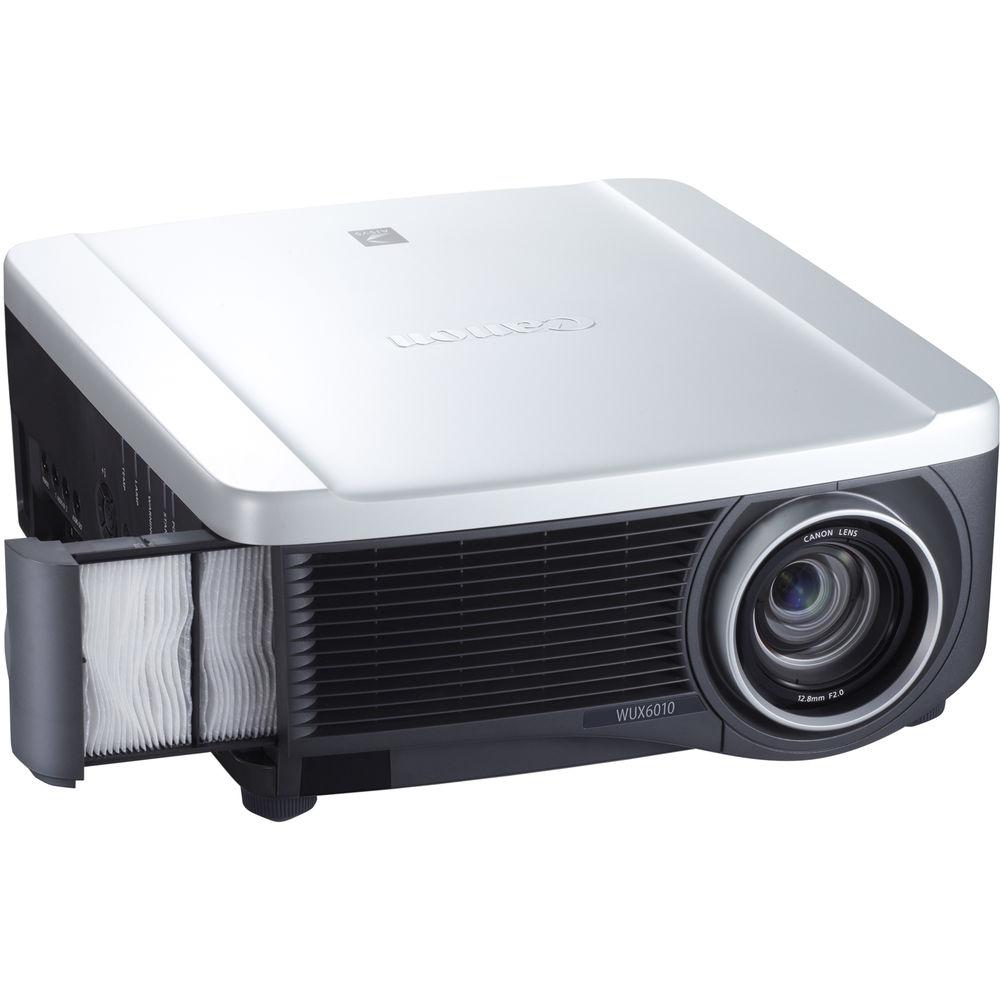

Simplified Maintenance
• The design of the REALiS WUX6010D also allows for simplified maintenance. The air filters and projection lamp can be replaced while the projector remains ceiling-mounted. The replacement interval on the projection lamp is 3000 hours in Standard mode, and 4000 hours in Silent mode. Optical filters can also be replaced to maintain high image quality for extended periods and additional economy.
