Product description

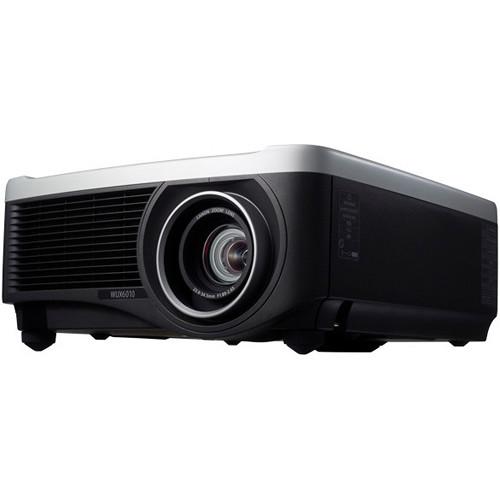

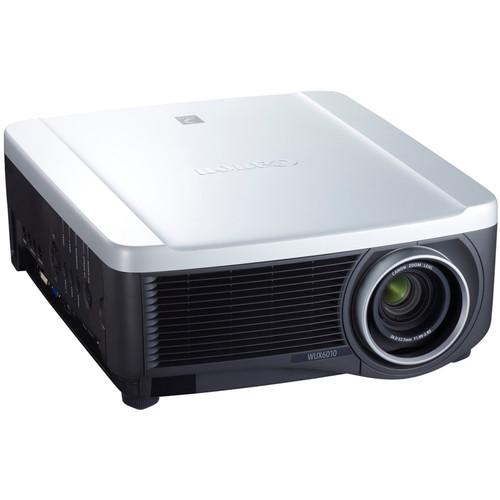

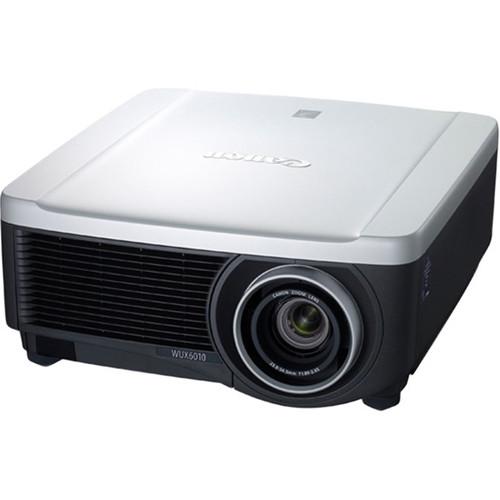

• REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS Projector (No Lens) Project in nearly any setting with the Canon REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS Projector. Its 6000-lumen brightness can overcome most ambient light, and the 2000:1 contrast ratio helps enhance detail. Its 1920 x 1200 resolution add to its image clarity, particularly for those sitting near the screen. The projector features a DICOM Simulation Mode, allowing it to simulate the results of DICOM devices for training purposes.

  The WUX6010D has DVI-I, HDMI, VGA, and HDBaseT video inputs, along with an analog audio input and output for connecting to an external speaker system. If separate speakers aren't an option, the projector has a 5W speaker built in. It uses interchangeable lenses, which are all sold separately, to offer a wide variety of throw distances and image sizes. It can be controlled via Ethernet, RS-232, the included IR remote, or third party programs such as Crestron, AMX, or PJLink. In addition to the IR remote, a VGA cable is also included for instant connectivity.
  DICOM Simulation Mode
  • The REALiS WUX6010D offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, which makes the REALiS WUX6010D useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
  6000 Lumens with Up to 2000:1 Contrast Ratio
  • The REALiS WUX6010D projects a bright 6000 lumen picture with up to a 2000:1 contrast ratio that helps ensure deep blacks, bright whites, and outstanding color. The results are images with crisp depth and dimension and accurate color, which is critical to those with discerning needs.
  Native WUXGA Resolution (1920 x 1200)
  • Canon's REALiS WUX6010D brings bright, true widescreen display of HD video content and still images with rich color to large-room installations in high resolution WUXGA (1920 x 1200). The REALiS WUX6010D projects 1080p content without compression, and displays widescreen graphics, text, and other visual content from laptops and desktop computers in accurate proportions, just as it appears on most monitor screens.
  LCOS Technology with AISYS-Enhancement
  • The imaging performance of the REALiS WUX6010D starts with Canon's AISYS (Aspectual Illumination System) Optical Engine, which utilizes light management technology to maximize the contrast and brightness benefits of the projector's LCOS (Liquid Crystal on Silicon) display panels, which deliver enhanced reflectivity and durability while accomplishing high luminance. The result is a detailed, seamless image projection in virtually any environment.
  Advanced Image Processor
  • The REALiS WUX6010D incorporates an advanced image processor that facilitates a wide variety of color and image adjustment options to help ensure that color reproduction is accurate.
  Interchangeable Lenses Add Flexibility
  • The REALiS WUX6010D projector gives users the choice of multiple optional interchangeable Canon projection lenses, sold separately. All lenses are similarly-sized and can be attached to the REALiS WUX6010D to suit a variety of applications, screen sizes, and installation environments.
  HDBaseT
  • The REALiS WUX6010D is equipped with a built-in HDBaseT receiver, allowing uncompressed HD video, audio, and control signals to be transmitted over one LAN cable with a maximum distance of 328.1'. This reduces complex wiring schemes used for a typical setup, maximizing long cable runs with minimal image quality degradation.

  Easy Installation, Motorized Lens Shift, Four-Point Keystone Correction, and Lens Position Memory

  Motorized Lens Shift
  • The horizontal/vertical Motorized Lens Shift capability of all compatible projection lenses allows for maximum flexibility for a wide variety of installation environments. Users can be virtually assured that the REALiS WUX6010D can be optimally positioned, and since lens shift doesn't degrade the image the way other types of correction can, the quality of your projected images is not compromised.
  Four-Point Keystone Correction
  • Additional installation convenience is provided by Four-Point Keystone Correction, which includes independent corner image adjustments to accurately correct for situations in which the position of the projector may be slightly angled with respect to the projection screen. This feature is also critical for applications that require precise projection stacking.
  Lens Position Memory
  • The REALiS WUX6010D can store up to three lens positions in memory, making it easy to switch between settings. This feature can be utilized in a classroom to adjust the position of the image if the unit is used to sometimes project on a screen, and other times on a blackboard. Memorized items include:
    • Zoom
    • Focus
    • Lens Shift
    • Keystone
    • Aspect
    • Screen Color Adjustment
    • Digital Image Shift
  360° Installation

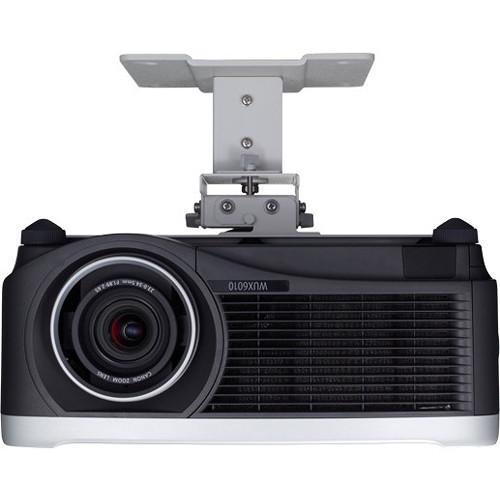

  • The REALiS WUX6010D offers 360° installation on the vertical axis, and includes a Vertical Projection Mode to maximize lamp life. Fan speed is adjusted depending on whether the projector is facing upward or downward.
  Screen Color Correction
  • Screen Color Correction enables users to fine-tune the colors of images based on the color of the projection surface. Adjustments can be made from Normal and Greenboard, as well as additional tuning for projecting onto virtually any other colored surface.
  Split Screen
  • A Picture-by-Picture feature enables two high-quality images from two digital inputs (via DVI and HDMI) to be projected simultaneously side-by-side in one letterboxed image.
  Test Patterns
  • More than 25 test patterns are provided to enable smooth installation and adjustment.

  Advanced Professional Calibration Settings, Including Edge Blending

  Edge Blending
  • Edge Blending enables the user to combine multiple images to create a seamless, extra-wide projection. Advanced functions allow for color blending and black level adjustments to maximize image quality.
  Micro-Digital Image Shift
  • Micro-Digital Image Shift electrically shifts the image, using the surplus pixels on the LCOS panel.
  Registration
  • Registration is a function that modifies the registration by electronically correcting color shift due to changes in alignment of each RGB panel position.
  Fan Mode
  • Fan Mode allows you to adjust the fan speed to support different environmental work spaces.
  Vertical Projection
  • Vertical Projection automatically adjusts fan speeds and other configurations to support vertical installations.

  Multiple Modes and Adjustments for Optimal Image Quality

  Image Modes
  • Image Modes provide different variations of color reproduction characteristics suitable for the image type and projection environment. They include:
    • Standard – for viewing still images and TV broadcasts under slightly suppressed lighting.
    • Presentation – for viewing image reference material under standard lighting.
    • Dynamic – for viewing movies under standard lighting.
    • Vivid Photo – renders rich colors brilliantly and reproduces skin tones naturally.
    • Photo/sRGB – reproduces colors in the sRGB standard.
    • Video – for viewing movies shot by a video camera under slightly dark lighting.
    • Cinema – for viewing theatrical image content in a room without lighting.
    • Five Customizable Modes – up to five user-selected combinations of image quality settings can be stored in the memory and selected as an image mode.
  Image Adjustments
  • The Image Adjustment settings allow users to customize the image and color characteristics to fulfill their specific imaging needs. These include:
    • Brightness
    • Contrast
    • Sharpness
    • Gamma
    • Color Adjustments – color level, color balance, color temperature, gain (RGB), offset (RGB)
  Advanced Image Adjustments
  • Advanced Image Adjustments provide greater flexibility to professional users with more options to adjust the image as desired. These settings include:
    • Ambient Light - allows the user to select the color temperature, lamp type, and other characteristics that are in the active environment.
    • Random Noise Reduction - eliminates minute noise that may appear in the image.
    • MPEG Noise Reduction - eliminates block noise that may appear when playing back compressed digital images, and "mosquito noise" that may appear in a dot pattern near the edges.
    • Mosquito Noise Reduction - eliminates "mosquito noise" exclusively from still images.
    • Dynamic Gamma - optimizes the detail in dark or low-contrast moving images by analyzing the image and making contrast adjustments for ideal viewing in brighter viewing conditions.
    • Memory Color Correct - emphasizes skin tones and blues to make images more attractive and more memorable. This function works by moving colors in the skin-tone gamut closer to the standard skin tones.
    • Six-Axis Color Adjust - lets users fine-tune the hue and saturation of each of the primary and secondary colors. This high degree of control can make each projected image a "masterpiece."

Lamp Mode
• Allows the user to select either Full Power to project images at full brightness, or Power Saver which reduces lamp brightness to save energy.

Versatile Connectivity

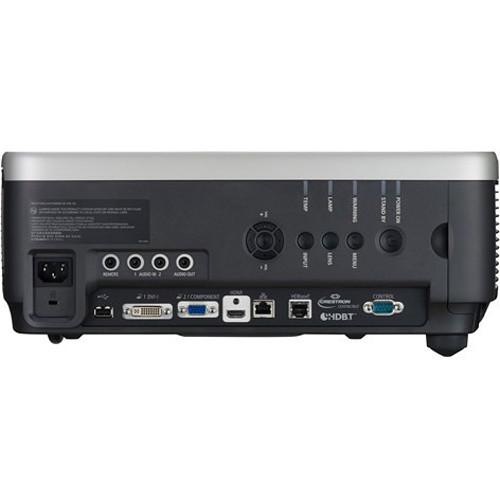

• Connections include HDMI, DVI-I, and analog RGB computer connectors; stereo audio inputs, and an audio output for connecting to external speakers or sound system. Industry-standard control and networking inputs include a network-ready RJ-45 port, enabling authorized users to manage and control multiple projectors from any computer on a network (Gigabit data transfer speeds are supported), an RS-232 serial connection for monitoring the projector locally through a third-party control system, a USB Type A port for easy installation of firmware upgrades, and a mini-jack for connecting an optional handheld wired remote controller.

Network Multi Projection (NMPJ)
• A built-in network multi projection (NMPJ) function enables the Canon REALiS WUX6010D to project the output of one or more locally or remotely networked computers. Four NMPJ modes enable selective sharing of visual information:
  • Direct Mode: The user can connect directly to the projector using a network cable or can connect directly to the network where the projector is located. The user can connect one PC and use one projector.
  • Meeting Mode: This is for sharing materials among all meeting attendees, enabling remote operation and sharing via the internet between bases in different locations. The benefit of this mode is that each PC can select multiple projectors as projector operation is enabled from each PC. This mode allows the user to connect up to ten PCs and six projectors.
  • Classroom Mode: The instructor can decide which attendee PCs will connect with which projectors and can switch the attendee projections as the class progresses. The benefit of this mode is that one PC (instructor) selects which PCs (students) to project from and controls the projectors. Certain operations are enabled from the client PCs (students), however they're limited. In this mode the user can connect up to ten PCs and six projectors.
  • Broadcast Mode: This mode enables one PC to connect up to 12 projectors.

PJ Link
• The REALiS WUX6010D also supports PJLink for networked projector control and monitoring of lamp hours, usage, and other variables.

Network Management
• The Canon REALiS WUX6010D is compatible with Crestron Roomview and AMX Device Discovery.

Low Power Consumption
• The power consumption of the Canon REALiS WUX6010D is only 0.078W/lm (465W/6000lm). It also offers multiple power-management settings that allow the user to preset stand-by duration, execute power operations, and auto-assign functions to the power button.

Simplified Maintenance
• The design of the REALiS WUX6010D also allows for simplified maintenance. The air filters and projection lamp can be replaced while the projector remains ceiling-mounted. The replacement interval on the projection lamp is 3000 hours in Standard mode, and 4000 hours in Silent mode. Optical filters can also be replaced to maintain high image quality for extended periods and additional economy.

• Lens Cap

• VGA to VGA Cable

• Remote Control

• 2 x AA Batteries for Remote

• Power Cord

• Limited 3-Year Warranty on Projector

• Limited 120-Day Warranty on Lamp

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REALiS WUX6010D 6000-Lumen WUXGA DICOM LCoS Projector (No Lens)

  Display System	3-Chip 0.7" LCoS
  Native Chip Resolution	1920 x 1200 (WUXGA)
  Supported Resolutions	WUXGA UXGA WSXGA+ SXGA+ WXGA+ FWXGA WXGA SXGA XGA SVGA VGA
  Max Brightness	6000 Lumens 4660 Lumens
  Uniformity	88%
  Aspect Ratio	Native: 16:10
  Contrast Ratio	2000:1
  Scan	Horizontal: 27 - 75 kHz Vertical: 24 - 60 Hz

  Keystone Correction	Vertical: ± 20° Horizontal: ± 20°
  Ceiling Mountable	Yes
  Built-In Speaker	Yes (Mono)
  Speaker Power	5W

  Inputs/Outputs	1 x DVI-I Video (Input) 1 x HDMI Audio/Video (Input) 1 x VGA (DE-15) Video (Input) 2 x 1/8" (3.5 mm) Mini Audio (Input) 1 x 1/8" (3.5 mm) Mini Audio (Output) 1 x 1/8" (3.5 mm) Mini Remote (Input) 1 x RS-232C (Unspecified Connector) Control (Input) 1 x USB Type-A Female (Input) 1 x Ethernet (RJ45) LAN (Input) 1 x HDBaseT (RJ45) Audio/Video (Input)

  Light Source	Lamp (1 x NSHA)
  Lamp Power	340 W 264 W
  Expected Lamp Life	Full Brightness: 3000 Hours Low Brightness: 4000 Hours
  Fan Noise	Full Brightness: 40 dB Low Brightness: 36 dB
  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Consumption	Medium Brightness: 465 W Low Brightness: 370 W Standby Mode (Lamp Off): 2 W Standby Mode (Lamp Off): 0.3 W
  Temperature	Operating 32 to 104°F (0 to 40°C) Humidity: 20 - 85% Storage -22 to 140°F (-30 to 60°C)
  Dimensions (W x H x D)	14.9 x 6.6 x 16.9" / 37.8 x 16.8 x 42.9 cm Including protrusions
  Weight	18.73 lb / 8.50 kg

  Box Dimensions (LxWxH)	21.2 x 19.6 x 11.8"

• RS-IL01ST 1.49 to 2.24:1 1.5x Zoom Projector Lens

  Compatibility	Canon REALiS WUX4000 Canon REALiS WUX6000 Canon REALiS WUX6010 Canon REALiS WUX6010D
  Lens Type	Zoom

  Throw Ratio	1.49 to 2.24:1
  Aperture	f/1.89 to 2.65
  Focal Length	f = 23 to 34.5mm
  Projection Size	40 to 600" / 101.6 to 1524.0 cm
  Lens Shift Percentage	Vertical: 15 to 55% Horizontal: Rating 80% users recommend this product to others. And what about you? This product has already been rated by 07 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
