Canon REALiS WUX6500 6500-Lumen WUXGA LCoS

User Manual for Canon REALiS WUX6500 6500-Lumen WUXGA LCoS Projector and 1.49 to 2.24:1 Lens Bundle

• Product category: Multimedia Projectors Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Multimedia Projectors

Product description

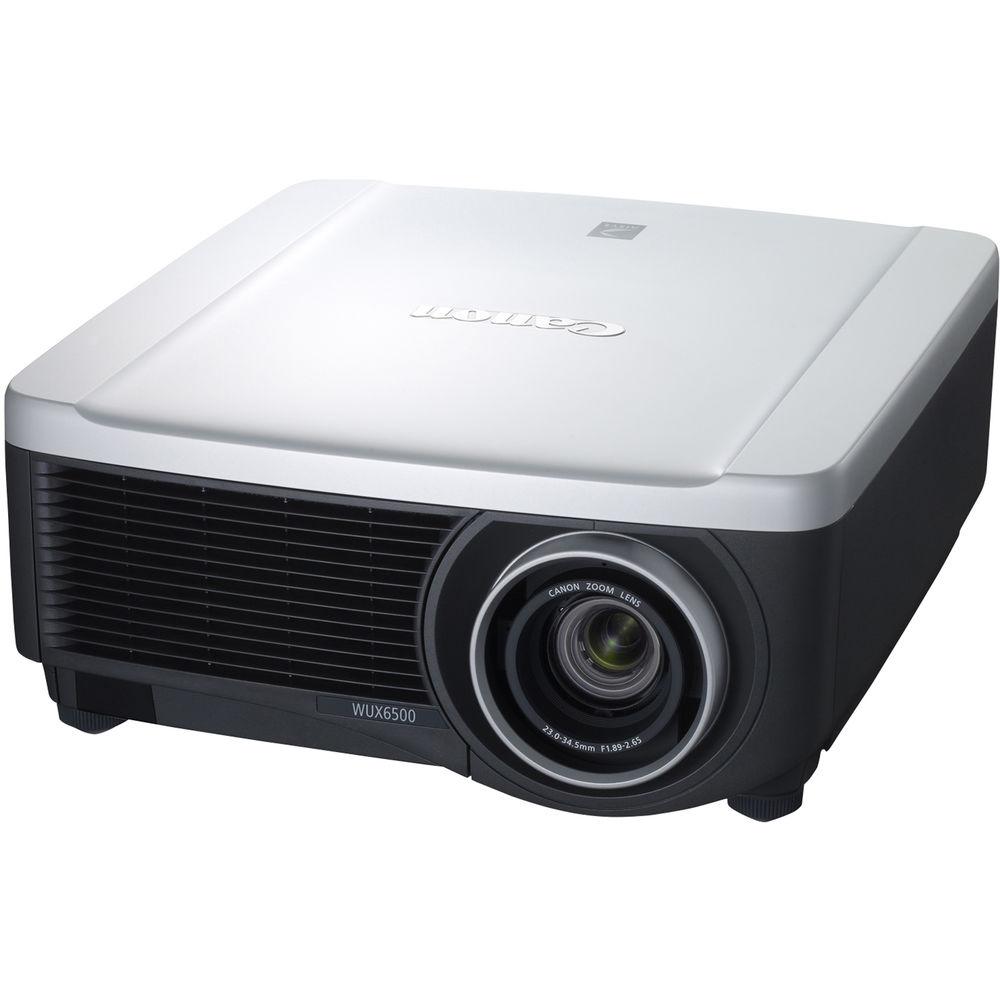

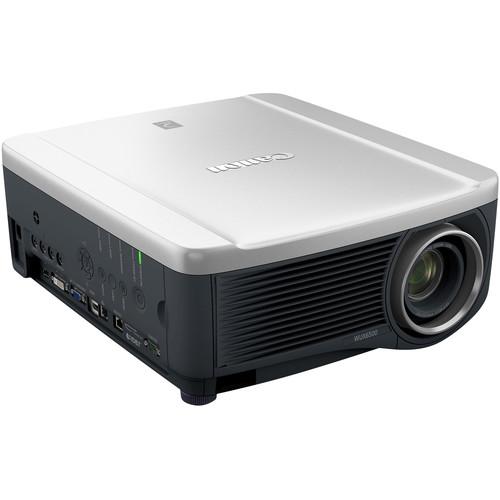

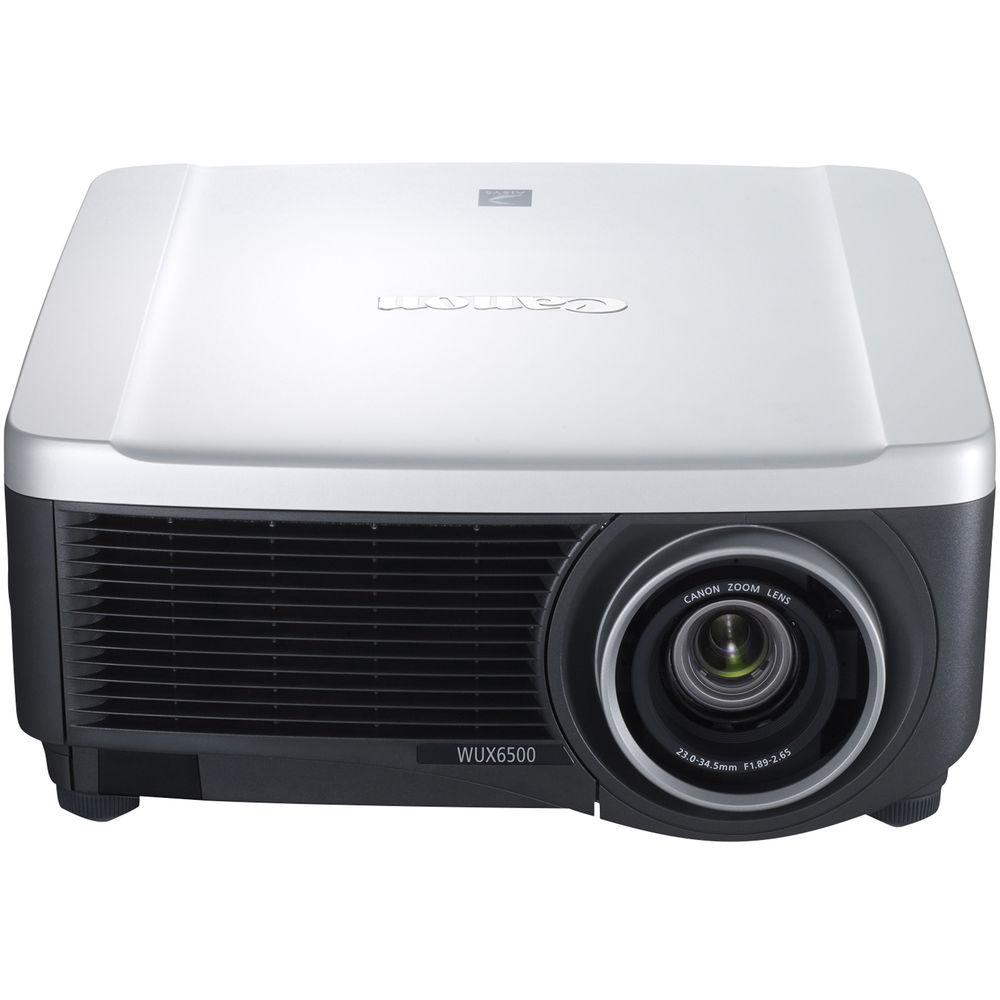

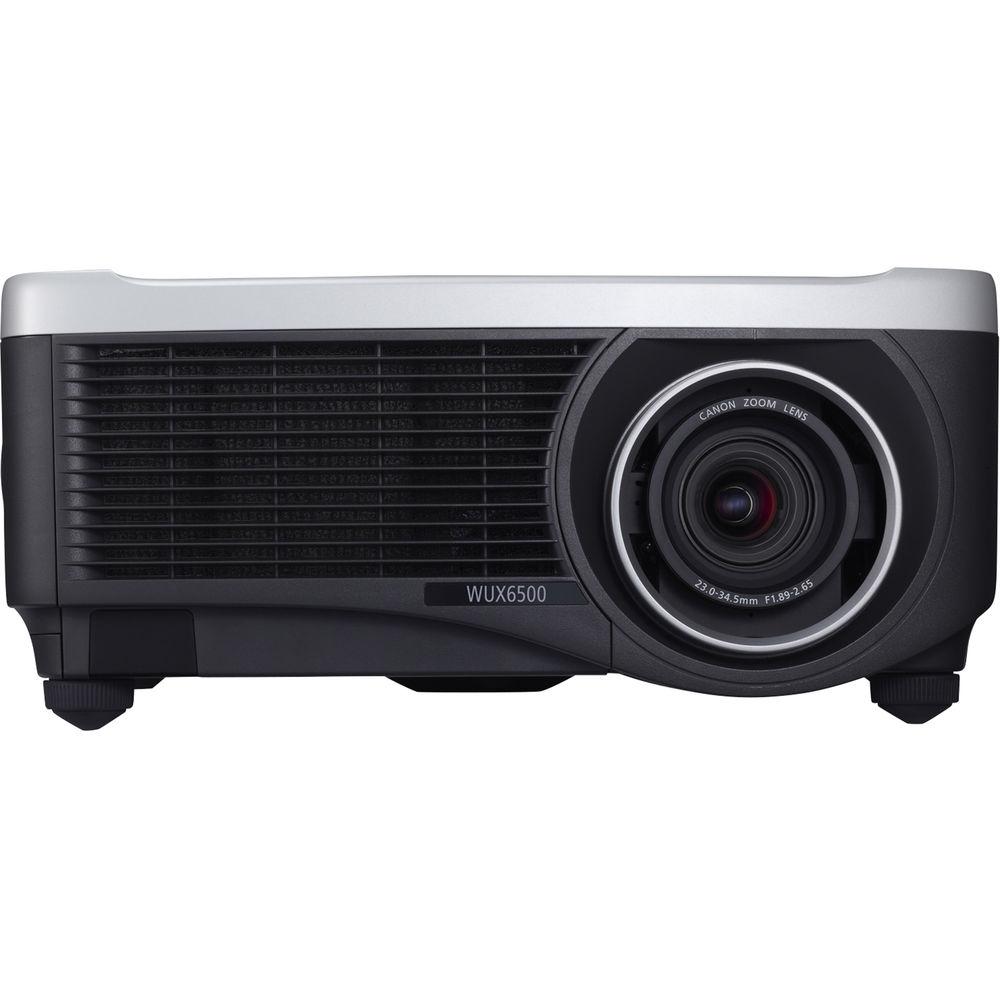

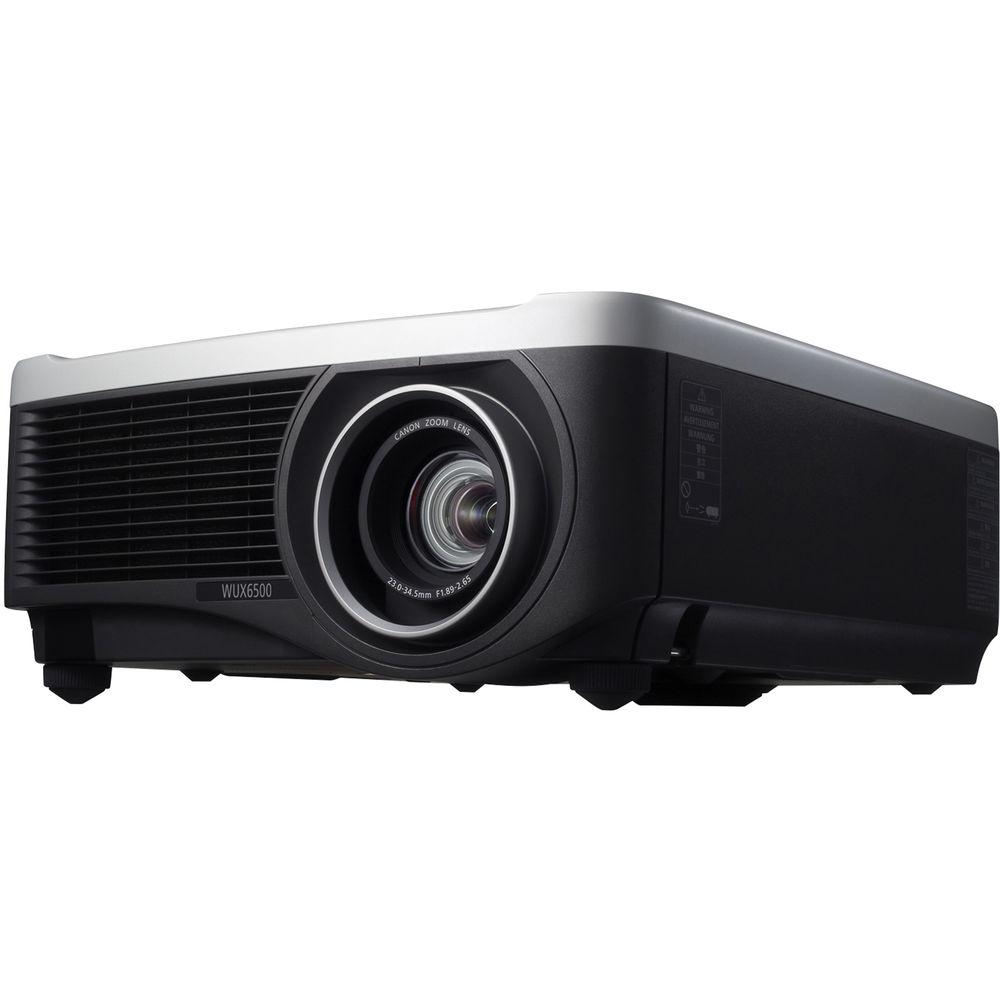

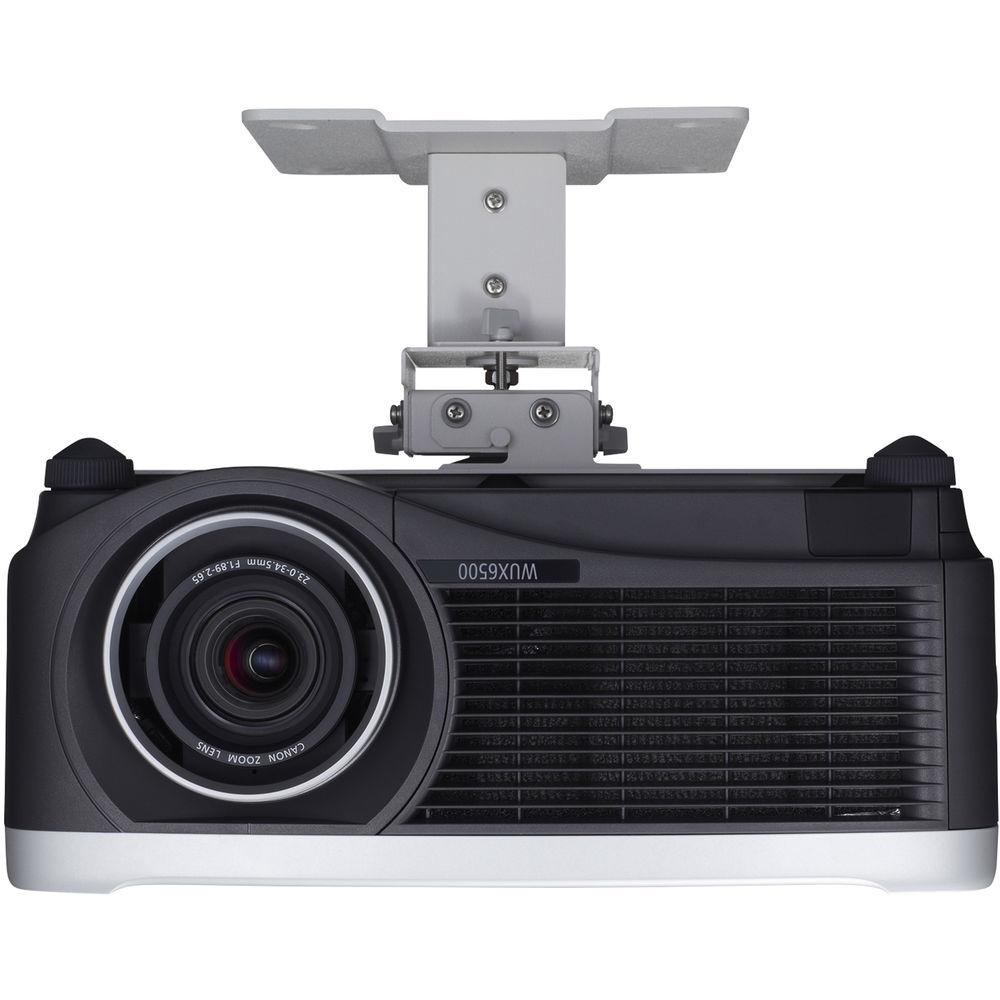

• REALiS WUX6500 WUXGA 6500-Lumens Pro AV LCOS Projector (No Lens) The REALiS WUX6500 WUXGA 6500-Lumens Pro AV LCOS Projector from Canon delivers bright, 6500 lumen high-resolution WUXGA (1920 x 1200) widescreen video and still images in a variety of environments. It is equipped with Canon’s LCOS Technology with AISYS-enhancement where the space between pixels is relatively small for a smooth, realistic film-like quality, so details are sharp and motion is natural. It also features an advanced image processing engine. This projector displays vivid, seamless images with intricate detail, accurate color, high contrast, and deep blacks. Its connection options include industry standards such as HDBaseT, HDMI, and DVI.

  This projector is well suited for a wide range of applications such as large conference rooms, auditoriums, digital signage, simulation, and training applications. The range of applicable industries for this projector is wide and includes higher education, corporate, museums, and galleries, houses of worship as well as more.
  Image Quality
  • Offering a native, highly detailed WUXGA (1920 x 1200) resolution image, the WUX6500 produces bold widescreen images. Genuine Canon optics combined with Canon's advanced LCOS technology with AISYS-enhancement provide a high brightness of 6500 lumens, a 2000:1 contrast ratio, and color reproduction. With LCOS technology, the space between pixels is relatively small for a smooth, realistic film-like quality, so details are sharp and motion is natural.
  Installation Convenience
  • The WUX6500 provides versatility for installation. The advanced 4-point keystone correction allows independent corner adjustment for optimized performance. Built-in edge blending also makes it possible to create impressive displays by joining multiple images from different projectors seamlessly.
  Versatile Connectivity and Network Management
  • Connectivity is simple and versatile with comprehensive inputs covering multiple industry standard interfaces. As well as connecting video and sound via HDMI, DVI-I, and audio inputs, the WUX6500 is equipped with a built-in HDBase receiver so uncompressed HD video, audio and control signals can be transmitted over a single network cable over a distance of up to 100 meters.

    There are inputs for RS-232 control as well as RJ-45, and a USB Type-A input makes installing firmware updates simple. The WUX6500 is also compatible with network management systems including PJLink, Extron, Crestron RoomView, and AMX Device Discovery, allowing integration with existing systems to provide additional control and monitoring.
  Multiple Image Modes for Optimal Image Quality Reproduction
  • This projector includes pre-set Image Modes and additional customizable Image Modes to suit a wide range of user preferences and projection environments.

    Multiple Image Modes: The Image Adjustment settings allow you to customize the image and color characteristics to fulfill their specific imaging needs. These include:
    • Standard: Ideal for bright rooms, and when using content from computer screens or motion picture content
    • Presentation: Ideal for somewhat bright rooms when text needs to be clear, such as when part of a video presentation
    • Dynamic: Ideal for rooms that are somewhat bright, and when showing motion picture content
    • Vivid Photo: Ideal for rendering rich color brilliantly and reproducing skin tones naturally
    • Photo/sRGB: Ideal for projecting images from sRGB-supported digital cameras
    • Video: Ideal for rooms that are somewhat dark, and for video content
    • Cinema: Ideal for viewing theatrical image content in a room without lighting
    • 5 Customizable Modes: Suitable for custom set-ups, it provides up to 5 user-selected combinations of image quality settings that can be stored in the memory and selected as an image mode
  Image Adjustment
  • The Image Adjustment settings allow you to customize the image and color characteristics to fulfill specific imaging needs. These include:
    • Brightness
    • Contrast
    • Sharpness
    • Gamma
    • Color Adjustments: Color Level, Color Balance, Color Temperature, Gain (RGB), Offset (RGB)
  Advanced Image Adjustments
  • These adjustments provide flexibility to professional users with more options to adjust the image as desired. These settings include:
    • Ambient Light: This technology allows you to select the color temperature, lamp type and other characteristics that are in the active environment.
    • Random Noise Reduction: This feature eliminates minute noise that may appear in the image.
    • MPEG Noise Reduction: This feature eliminates block noise that may appear when playing back compressed digital images and "mosquito noise" that may appear in a dot pattern near the edges.
    • Mosquito Noise Reduction: This feature eliminates "mosquito noise" exclusively from still images.
    • Dynamic Gamma: When applied, this feature analyzes individual areas of the image for specific, independent contrast adjustment so light and dark areas do not appear over or under exposed.
    • Memory Color Correction: This Canon technology can be used to enhance skin tones and other color features for rich, vivid results that look striking to the human eye.
    • 6-Axis Color Adjust: This technology lets you fine-tune the hue and saturation of each of the primary and secondary colors, providing a high degree of control that can make each projected image a masterpiece.
    • Fine-Tune Gamma: This setting enables the adjustment of gamma curve, allowing the user to adjust white, red, green and blue.
    • Lamp Control: This setting suppresses the amount of luminance by reducing the lamp power when the input image signal is of an all-black image. It also improves the contrast ratio.
  Lamp Mode
  • It allows you to select either Full Power to project images at full brightness, or Power Saver which reduces lamp brightness to save energy.
  Motion Blur Reduction
  • This projector includes Canon's Motion Blur Reduction feature for improved visibility when movement is fast. By inserting extra frames to video content, motion blur is reduced and the clarity of graphics and text on fast-moving objects is preserved. Three different modes (Strong, Low and Off) are included for flexibility, with each depending on the level of movement and type of video content.
  Advanced Professional Installation Settings including Built-in Edge Blending and Advanced Registrati
  • • Edge Blending: The Edge Blending function enables the user to combine multiple images to create a seamless, extra-wide projection. Advanced functions allow for color blending and black level adjustments to maximize image quality.
    • Advanced Registration: Advanced Registration allows independent position adjustment of the three primary colors (RGB) with high accuracy (0.1 pixel) ultimately reducing blurred colors or lines often projected at the edge of an image.
    • Micro-Digital Image Shift: The Micro-Digital Image Shift function shifts the image electrically, using the surplus pixels on the LCOS panel.
    • Registration: The Registration function modifies the registration by electronically correcting color shift due to changes in alignment of each RGB panel position.
    • Fan Mode: Fan Mode gives the user the ability to adjust the fan speed to support different environmental workspaces.
    • Vertical Projection:The Vertical Projection function automatically adjusts fan speeds and other configurations to support vertical installations.
  Network Multi Projection (NMPJ)
  • A built-in network multi-projection (NMPJ) function enables this projector to project the output of one or more locally or remotely networked computers. Four NMPJ modes enable selective sharing of visual information:
    • Direct Mode: In this mode the user can connect directly to the projector using a network cable or can connect directly to the network where the projector is located. The user can connect 1 computer and use 1 projector.
    • Meeting Mode: This mode is for sharing materials among all meeting attendees. It also enables remote operation and sharing via the internet between bases in different locations. The benefit of this mode is that each computer can select multiple projectors as projector operation is enabled from each computer. This mode allows the user to connect up to 10 computers and 6 projectors.
    • Classroom Mode: The instructor can decide which attendees' computer will connect with which projectors and can switch the attendee projections as the class progresses. The benefit of this mode is that one computer (instructor) selects which computers (students) to project from and controls the projectors. Certain operations are enabled from the client computers (students), however they're limited. In this mode the user can connect up to 10 computers and 6 projectors.
    • Broadcast Mode: This mode enables one computer to connect up to 12 projectors.
  Low Power Consumption
  • Uses a relatively low amount of power per lumens. It offers multiple power-management settings that allow the user to preset stand-by duration, execute power operations, and auto-assign functions to the power button.
  UPC: 013803286618

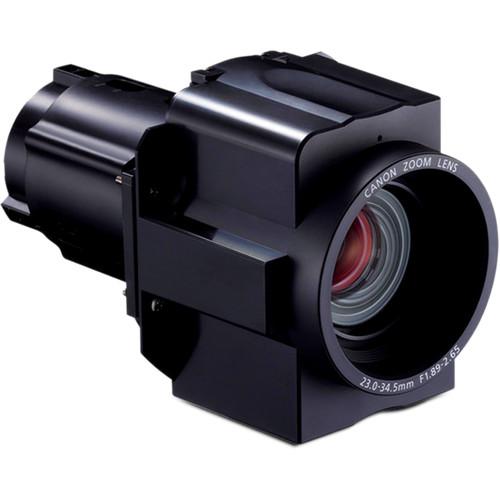

• RS-IL01ST 1.49 to 2.24:1 1.5x Zoom Projector Lens The Canon RS-IL01ST 1.49 to 2.24:1 1.5x Zoom Projector Lens is designed for use with the Canon REALiS WUX4000, WUX6000, WUX6010, and WUX6010D projectors. Its throw ratio of 1.49 to 2.24:1 will allow you to place the projector a moderate distance from the screen, while its powered focus, lens shift, and 1.5x zoom will allow you to fine-tune your image for the proper size, placement, and clarity. It is designed to produce images ranging from 40 to 600". UPC: 013803131666

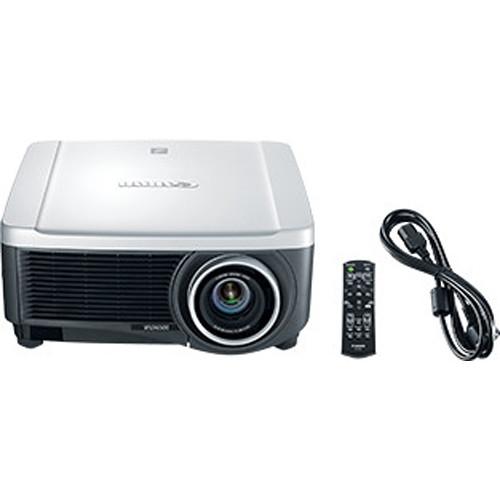

• Lens Cap

• Power Cord

• VGA to VGA Connection Cable (Mini D-Sub 15-Pin)

• RS-RC04 Remote Controller

• RS-IL01ST 1.49 to 2.24:1 1.5x Zoom Projector Lens

• Limited 120-Day Warranty on Lamp

• Limited 3-Year Warranty on Projector

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REALiS WUX6500 WUXGA 6500-Lumens Pro AV LCOS Projector (No Lens)

  Display System	3-Chip 0.71" LCoS
  Native Chip Resolution	1920 x 1200 (WUXGA)
  Max Brightness	6500 Lumens 5270 Lumens
  Uniformity	88%
  Aspect Ratio	16:10
  Contrast Ratio	2000:1
  Scan	Horizontal: 27 to 75 kHz Vertical: 24 to 60 Hz

  Keystone Correction	Vertical: ± 20° Horizontal: ± 20°

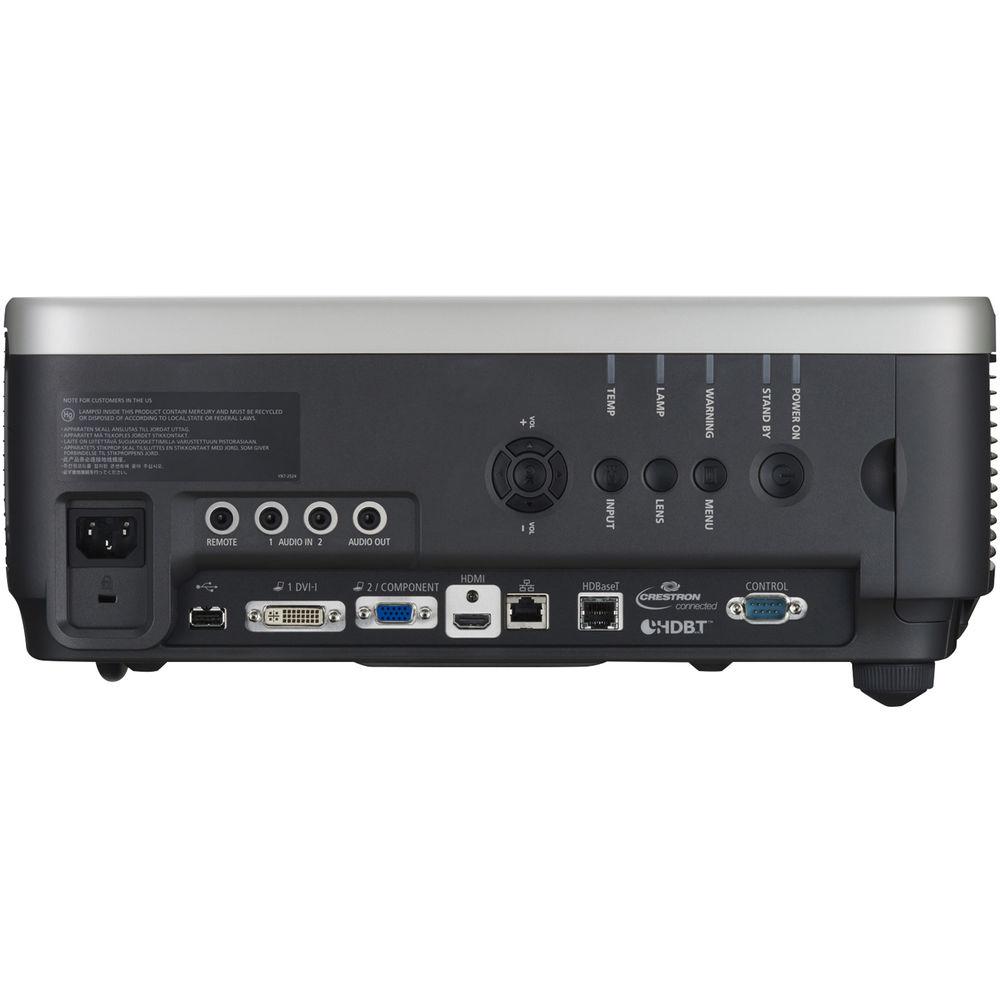

  Inputs/Outputs	1 x DVI-I Video (Input) 1 x HDMI Video (Input) 1 x VGA (DE-15) Video (Input) 3 x 1/8" (3.5 mm) Mini Audio (Input/Output) 1 x 1/8" (3.5 mm) Mini Control (Input) 1 x Unspecified Signal (DE-9) Video (Input) 1 x HDBaseT (RJ45) Control/Service (Input) 1 x Ethernet (RJ45) LAN

  Lamp Power	370 W 300 W
  Expected Lamp Life	Medium Brightness: 3000 Hours Low Brightness: 4000 Hours
  Fan Noise	Medium Brightness: 43 dB Medium Brightness: 39 dB
  Heat Dissipation	1706 BTU
  Power Consumption	Medium Brightness: 500 W Low Brightness: 410 W
  Temperature	Operating 32 to 104°F (0 to 40°C) Humidity: 20 - 85% Storage -22 to 140°F (-30 to 60°C)

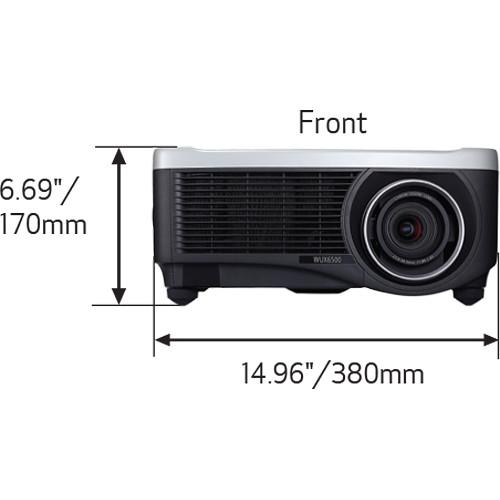

  Dimensions (W x H x D)	15.0 x 7.0 x 17.0" / 38.1 x 17.8 x 43.2 cm including protrusion
  Weight	18.7 lb / 8.5 kg

  Box Dimensions (LxWxH)	21.0 x 19.5 x 12.0"

• RS-IL01ST 1.49 to 2.24:1 1.5x Zoom Projector Lens

  Compatibility	Canon REALiS WUX4000 Canon REALiS WUX6000 Canon REALiS WUX6010 Canon REALiS WUX6010D
  Lens Type	Zoom

  Throw Ratio	1.49 to 2.24:1
  Aperture	f/1.89 to 2.65
  Focal Length	f = 23 to 34.5mm
  Projection Size	40 to 600" / 101.6 to 1524.0 cm
  Lens Shift Percentage	Vertical: 15 to 55% Horizontal: Rating 100% users recommend this product to others. And what about you? This product has already been rated by 56 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
