Product description

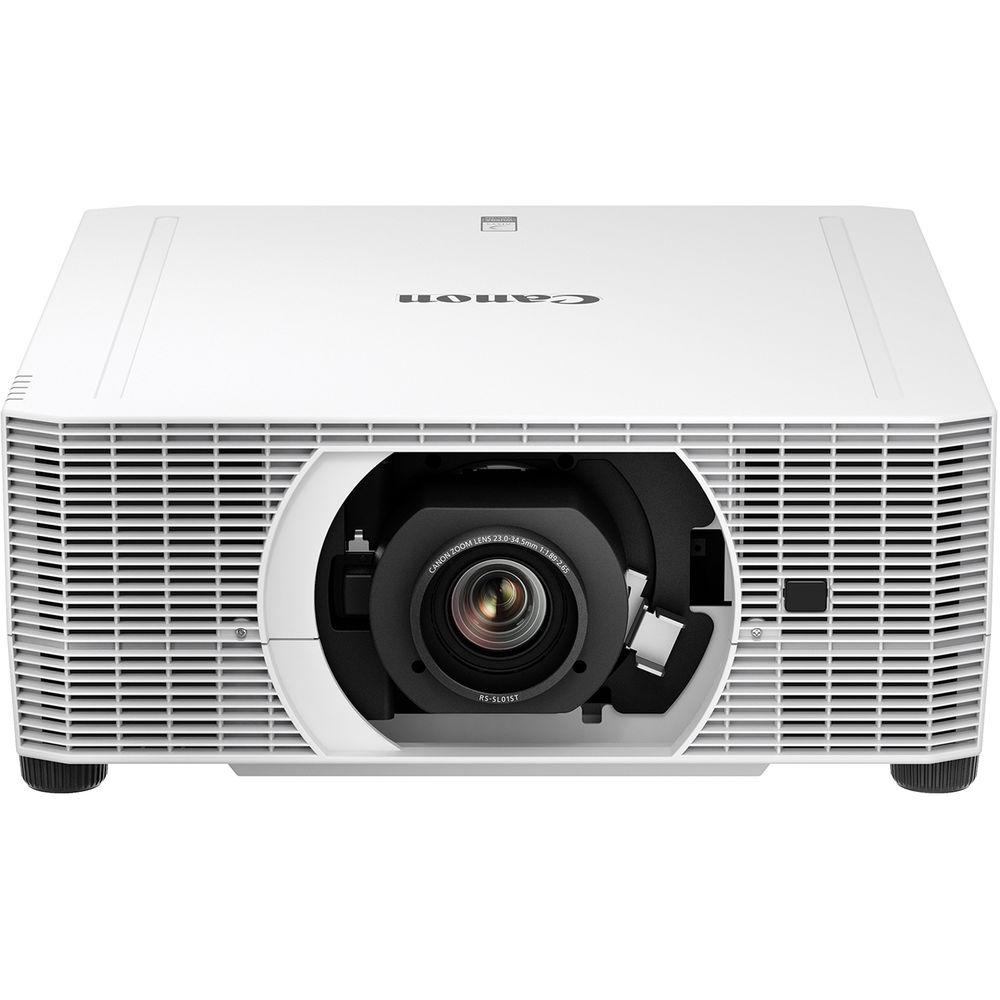

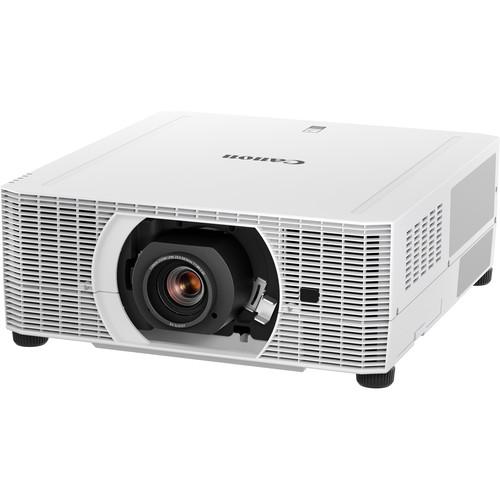

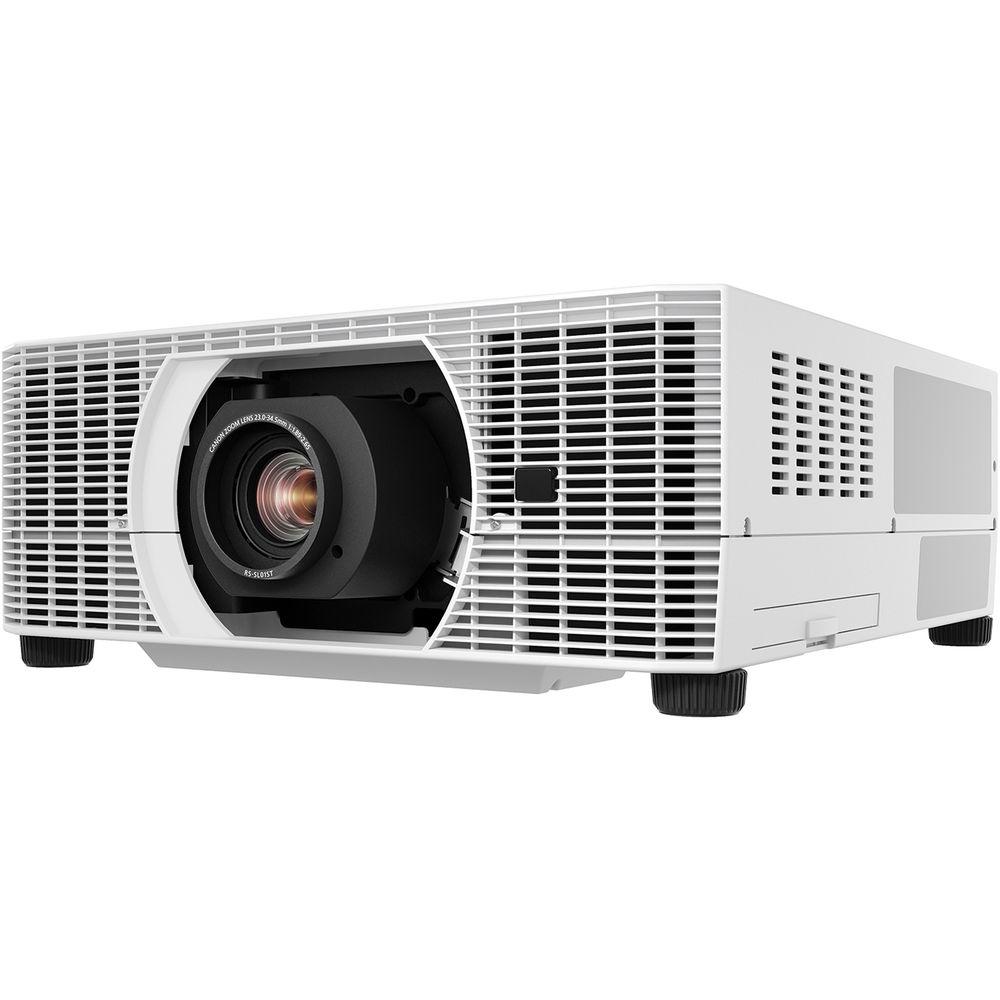

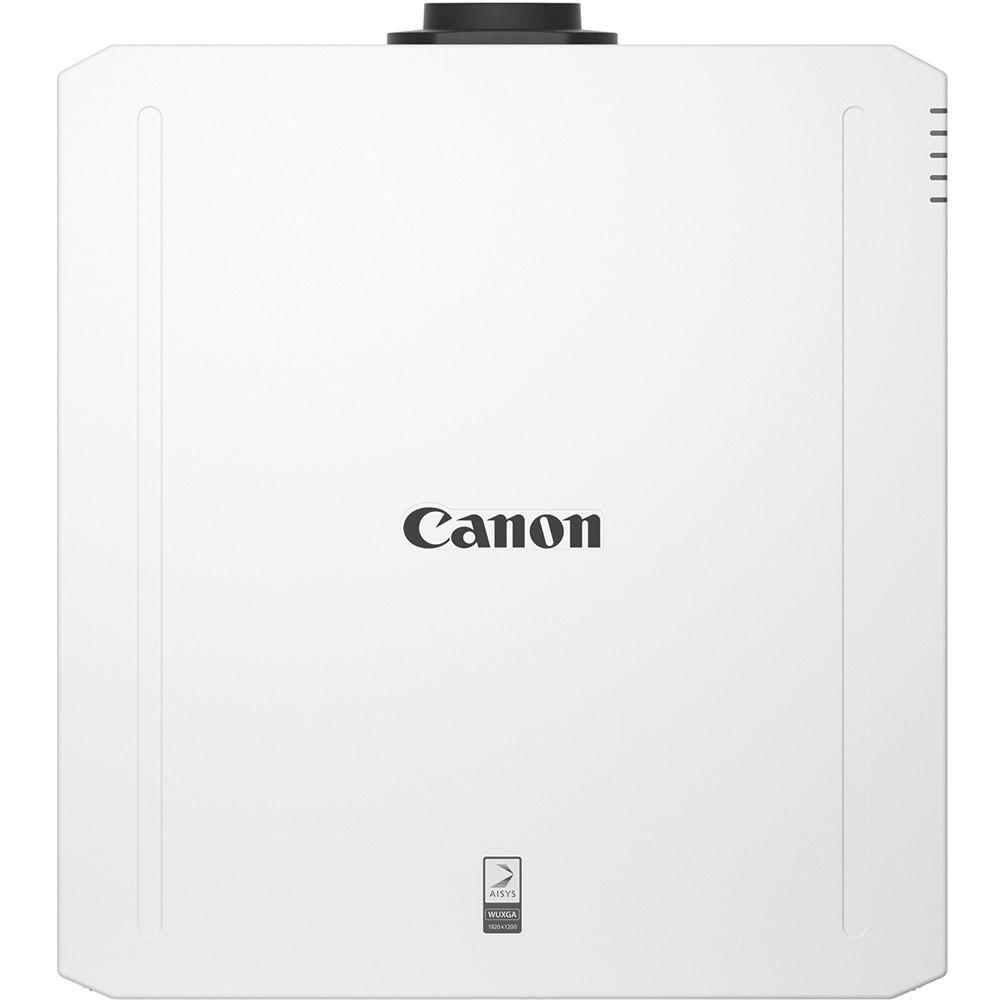

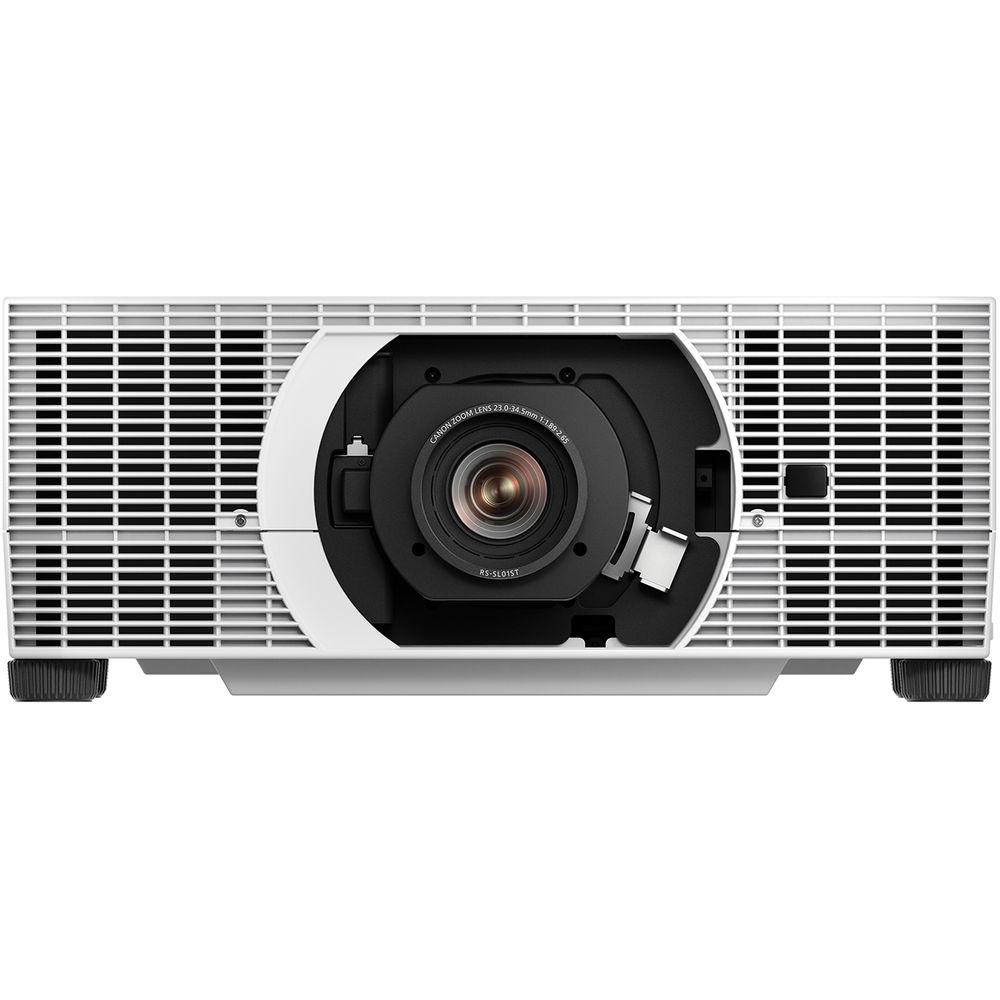

• REALiS WUX7500 7500-Lumen WUXGA LCoS Projector (No Lens) The REALiS WUX7500 7500-Lumen WUXGA LCoS Projector from Canon provides high brightness with 7500 lumens for consistently high-quality images. Six interchangeable Genuine Canon lens options can be installed quickly and securely, providing flexibility in many fields. The projector features native WUXGA (1920 x 1200) resolution, a high contrast ratio of 2000:1, quiet operation at 27 dB, and advanced features for high-quality images. With high brightness and versatility, this projector is ideal for a variety of fields including higher education, corporate applications, advertising, marketing, houses of worship, simulation, training, museums, and galleries.

  The WUX7500 includes HDBaseT, HDMI, DVI-I, DisplayPort, USB, RJ45, RS-232, and audio inputs, as well as Network Multi Projection (NMPJ) over Wi-Fi. A 1W spekaer is built into the projector.
  7500 Lumens with up to 2000:1 Contrast Ratio
  • The REALiS WUX7500 projects a bright 7500 lumen picture with up to a 2000:1 contrast ratio that helps ensure deep blacks, bright whites, and outstanding color. The results are images with crisp depth and dimension and accurate color, which is critical to those with discerning needs.
  Native WUXGA Resolution (1920 x 1200)
  • Canon's WUXGA resolution brings bright, true widescreen display of highly detailed HD video content and still images with enhanced color richness to large-room installations in high resolution WUXGA (1920 x 1200). Widescreen graphics, text, and other visual content from laptops and desktop computers are shown in accurate proportions from edge to edge with sharp detail.
  LCOS Technology with AISYS Enhancement
  • The imaging performance of the projector starts with Canon's proprietary AISYS (Aspectual Illumination System) Optical Engine. This engine utilizes advanced light management technology to maximize the contrast and brightness benefits of the projector's LCOS (Liquid Crystal on Silicon) display panels, which deliver enhanced reflectivity and durability while accomplishing high luminance. The result is highly detailed, seamless, ultra-sharp image projection in virtually any environment.
  Six Optional Genuine Canon Interchangeable Lenses
  • Six optional interchangeable Genuine Canon lenses enable a wide variety of applications for exceptional image quality and flexibility. A spigot lens mount system is designed so that the lens can be quickly and securely installed in virtually seconds. Optional lenses include the Ultra Short Fixed Lens RS-SL06UW, which features compatibility with Marginal Focus for accurate projection onto a spherical surface, a 0.54:1 throw ratio and a generous vertical lens shift of V: -15 - 75%, H:

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REALiS WUX7500 7500-Lumen WUXGA LCoS Projector (No Lens)

  Display System	3-Chip 0.71" LCoS
  Native Chip Resolution	1920 x 1200 (WUXGA)
  Supported Resolutions	WUXGA UXGA WSXGA+ SXGA+ WXGA+ FWXGA WXGA SXGA XGA SVGA VGA
  Max Brightness	7500 Lumens
  Uniformity	90%
  Contrast Ratio	2000:1
  Scan	Horizontal: 15.625 to 75 kHz Vertical: 24 to 60 Hz

  Projection Size	40 - 600" / 1.02 - 15.24 m When standard RS-SL01ST projection lens used

  Keystone Correction	Vertical: ± 20° Horizontal: ± 20°
  Ceiling Mountable	Yes
  Rear Screen Projection	Yes
  Built-In Speaker	Yes
  Speaker Power	1W

  Inputs/Outputs	1 x DVI-I Video (Input) 1 x HDMI Audio/Video (Input) 1 x DisplayPort Audio/Video (Input) 1 x 1/8" (3.5 mm) Mini Audio (Input) 1 x 1/8" (3.5 mm) Mini Audio (Output) 1 x USB Control (Input) 1 x HDBaseT (RJ45) LAN (Input) 1 x RS-232C (DE-9) Control (Input) 1 x 1/8" (3.5 mm) Mini Control/Service (Input)
  Inputs/Outputs	1 x Component (DE-15) Video Input
  Memory Card Slot	None

  Light Source	Lamp
  Expected Lamp Life	Full Brightness: 3500 Hours Low Brightness: 4000 Hours
  Fan Noise	Full Brightness: 40 dB Medium Brightness: 29 dB Low Brightness: 27 dB
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Heat Dissipation	1468 BTU
  Power Consumption	Full Brightness: 430 W Medium Brightness: 300 W Low Brightness: 262 W Standby Mode (Lamp Off): 1.6 W
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Dimensions (W x H x D)	19.0 x 7.7 x 20.0" / 48.3 x 19.6 x 50.8 cm
  Weight	28.6 lb / 12.97 kg

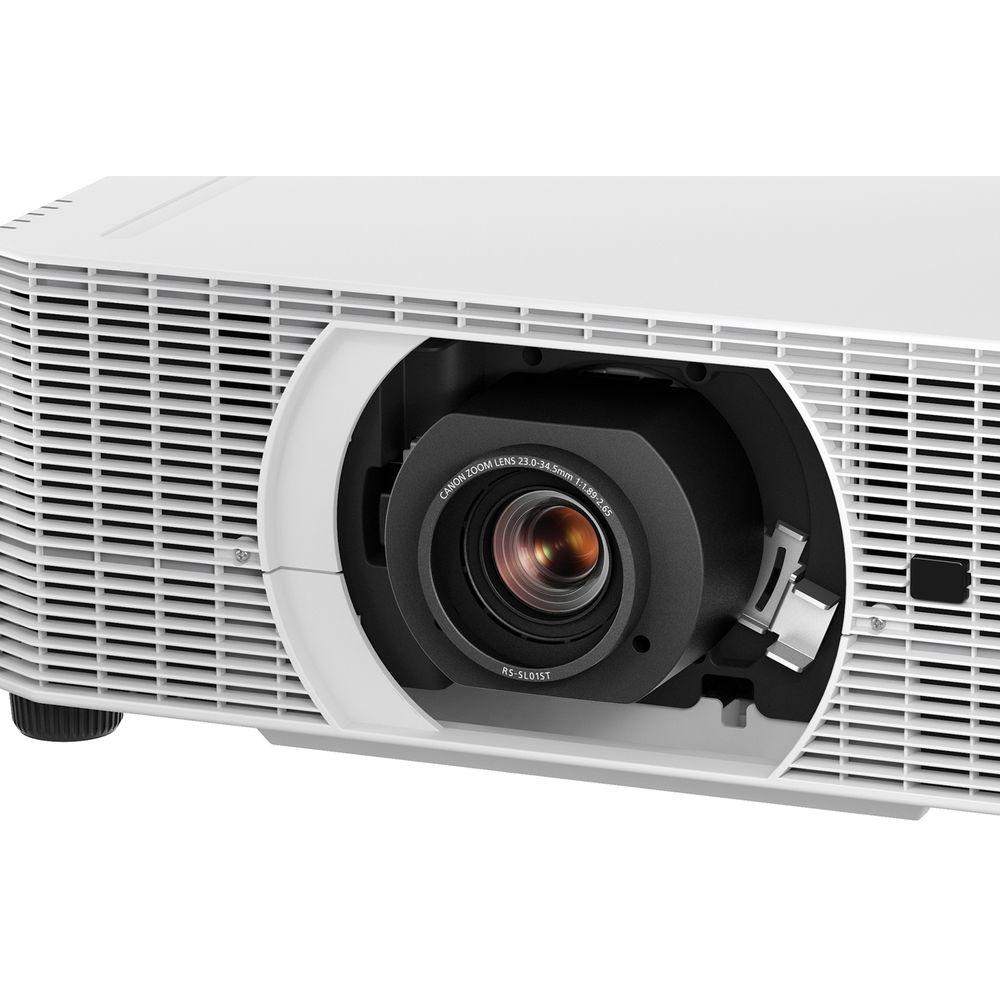

• RS-SL01ST 1.49 to 2.24:1 Standard Zoom Lens for Select REALiS Projectors

  Compatibility	Canon REALiS WUX7000Z Canon REALiS WUX6600Z Canon REALiS WUX5800Z Canon REALiS WUX7500 Canon REALiS WUX6700 Canon REALiS WUX5800

  Throw Ratio	1.49 to 2.24:1
  Aperture	f/1.89 to 2.65
  Focal Length	f = 23 to 34.5mm
  Throw Distance	10.5 to 15.7' / 3.2 to 4.8 m
  Projection Size	40 to 600" / 1.0 to 15.2 m
  Lens Shift Percentage	Vertical: -15 to 55% Horizontal: Rating 100% users recommend this product to others. And what about you? This product has already been rated by 15 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
