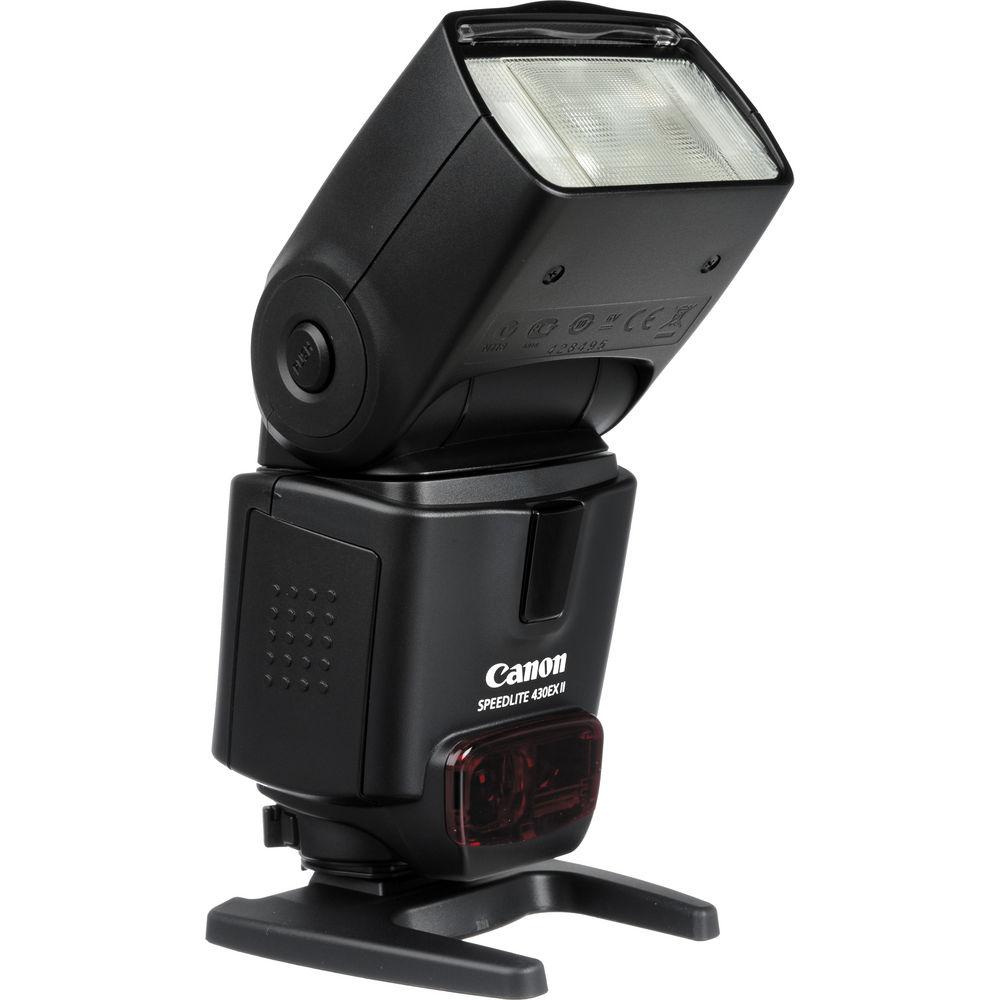

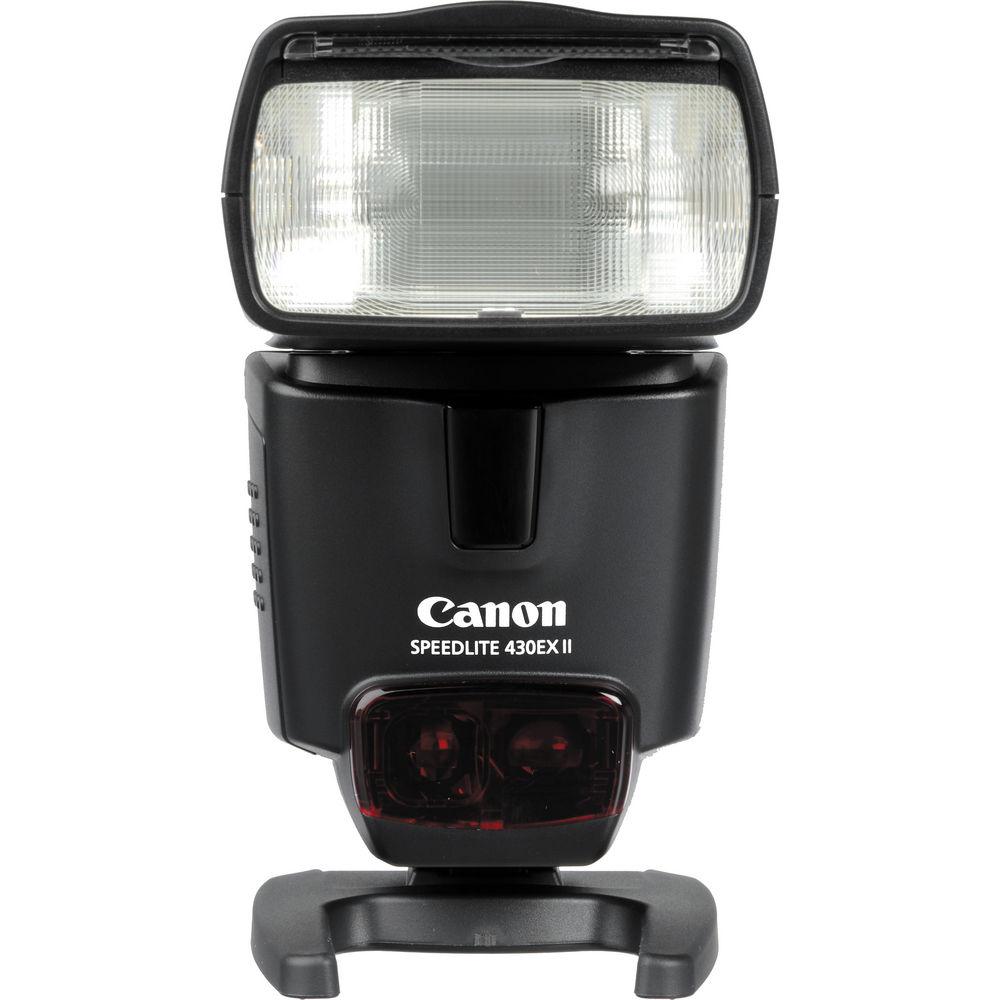

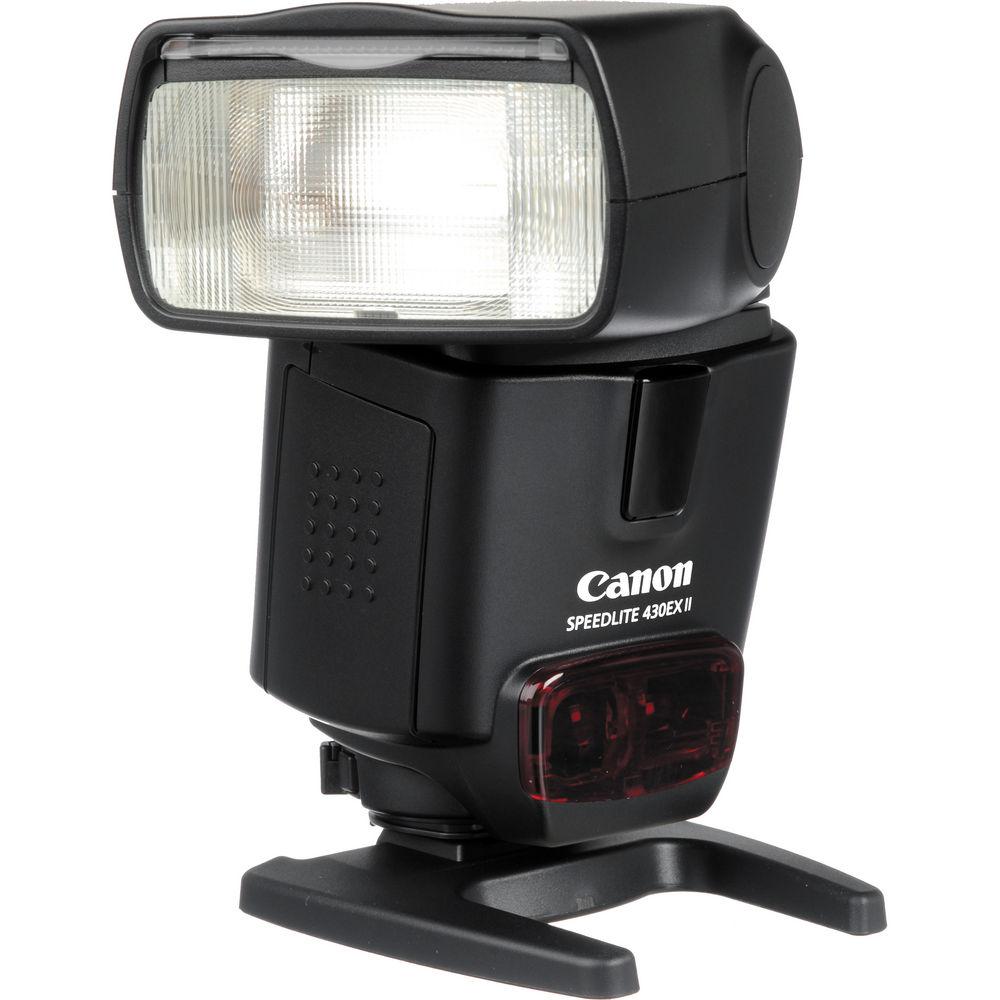

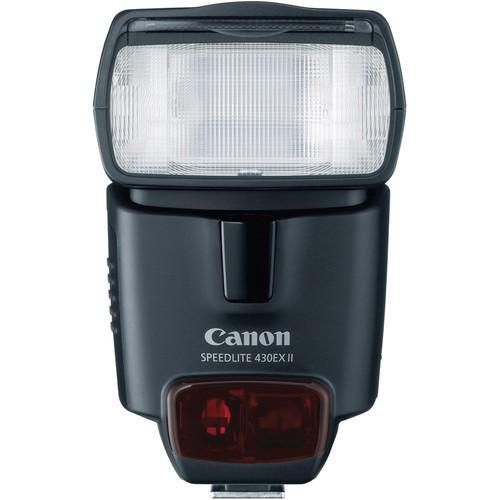

Product description Balancing power with size, the Speedlite 430EX II from Canon offers a very useful guide number of 141' at ISO 100 and 105mm as well as complete compatibility with Canon's E-TTL / E-TTL II flash metering system. The flash head also offers an excellent zoom range of 24-105mm, which is expanded to 14mm with the use of the wide-angle diffusion panel. There is even the option to tilt the flash upwards 90° as well as rotate it right 90° or left 180° for bounce capabilities.
Wireless slave TTL functionality is possible with Canon's optical pulse transmission system. This is possible with one of 4 channels and 3 groups at up to 39.4'. This enables photographers to setup off-camera lighting without running cables. Other features include an AF assist beam, modeling flash, and high-speed, first and second curtain sync modes. It also recycles in 0.1-3.7 seconds and runs on 4 AA batteries. Additionally, it comes with a mini stand and a case. - When used as a wireless slave, the 430EX II supports stroboscopic flash from the master unit

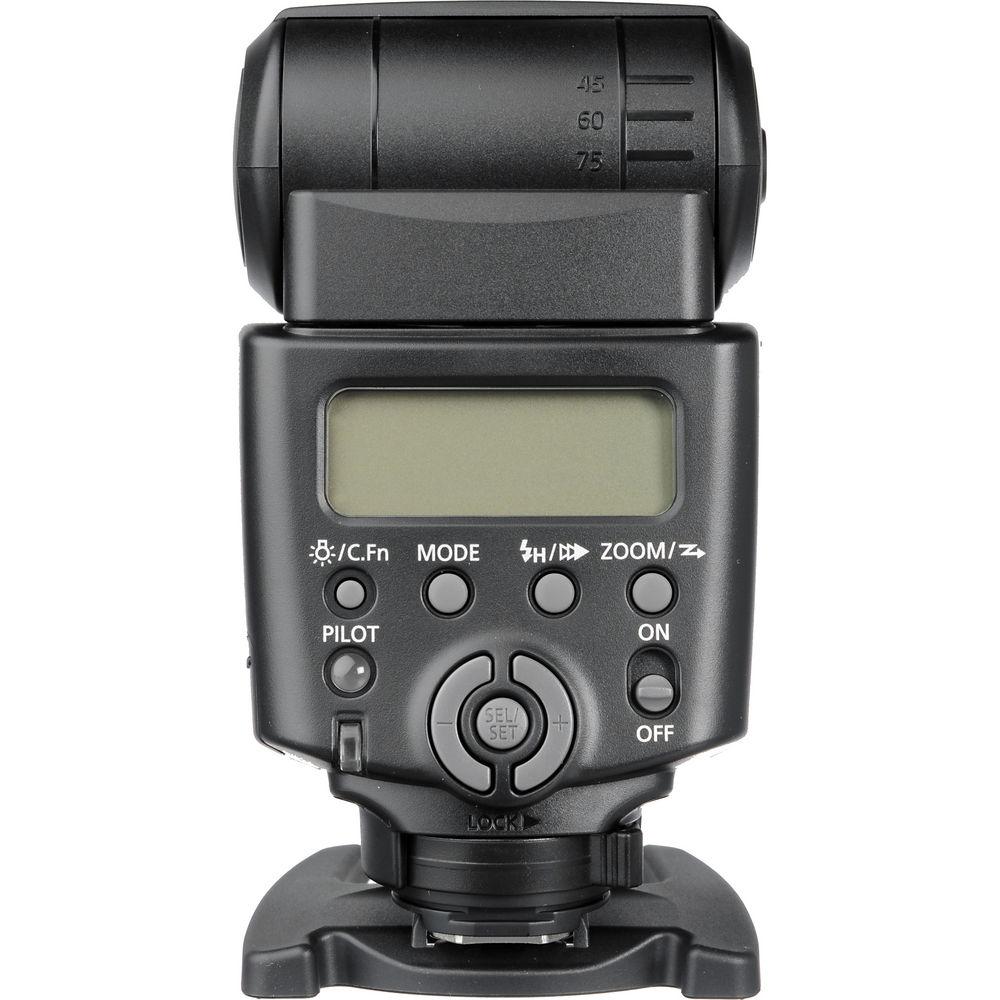

- LCD panel on rear for viewing and changing settings
- Nine user-adjustable custom functions with 20 settings
- Effective flash range of 2.3 to 79.7'
- AF assist beam works with 1-9 AF points and has a range of up to 32.8'
- Battery life of about 200-1400 flashes

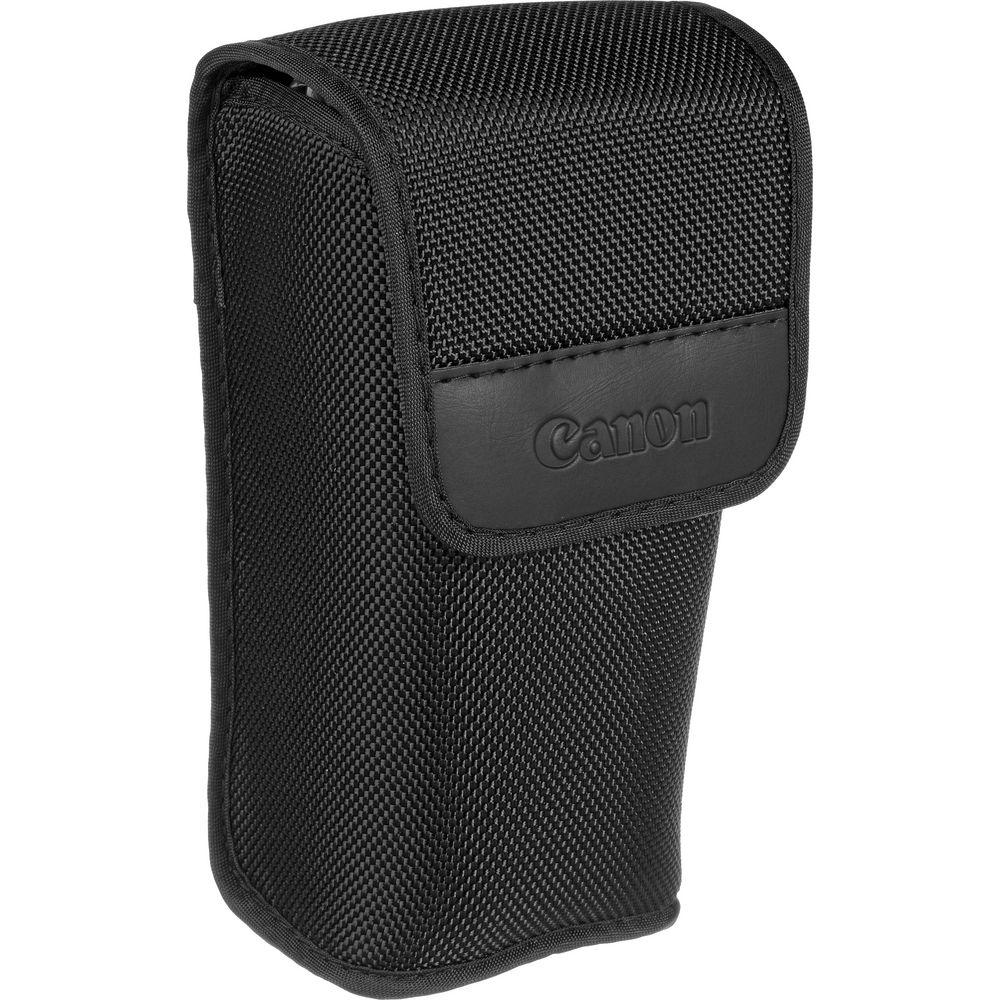

In the Box Canon Speedlite 430EX II Hot Shoe Stand Soft Case 90-Day Refurbished Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite 430EX II - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 2805B009AA Specs | Mount | Shoe | | Guide No. | 141.08' / 43 m ISO 100 at 105 mm Position | | Angle of Coverage | 84° - 23.3°
Wide-Angle Adapter: 114° | | Vari-Power | 1/1 to 1/64 | | Bounce Head | 0 to +90° | | Swivel Head | 270° | | Coverage | 14 - 105 mm (Full Frame) | | Distance Range | 2.30 to 79.72' (0.7 to 24.3 m) at f/1.4 | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 3.7 Seconds | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 and 1/2 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to 39.37' / 12 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.8 x 4.8 x 4.0" / 72.0 x 122.0 x 101.0 mm | | Weight | 11.29 oz / 320 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.1 x 5.3 x 3.8" |
