User Manual for Canon Speedlite 470EX-AI Click to enlarge the picture
Contents of the user manual for the Canon Speedlite 470EX-AI
- Product category: On Camera Flashes Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon On Camera Flashes
 |
User manual for the Canon Speedlite 470EX-AI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Testing the Intelligence of the Canon Speedlite 470EX-AI Read More - First Look: Canon SPEEDLITE 470EX-AI

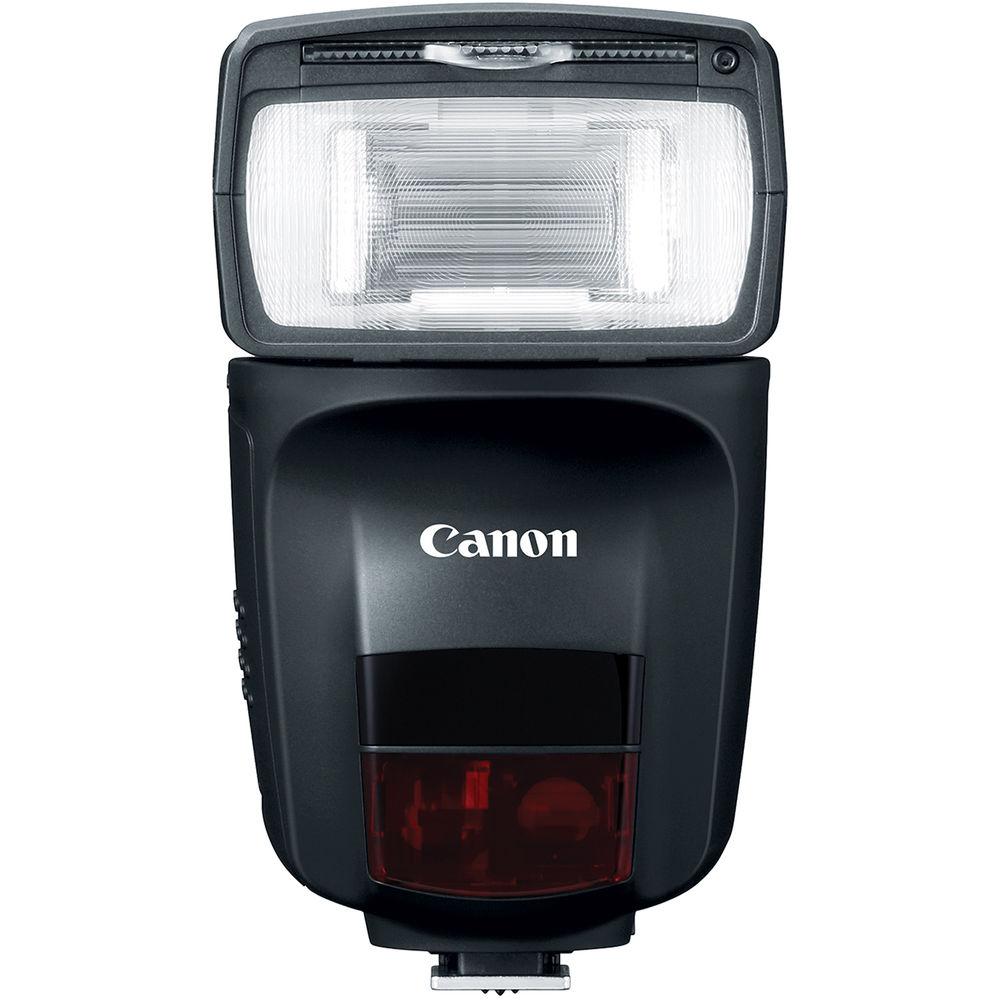

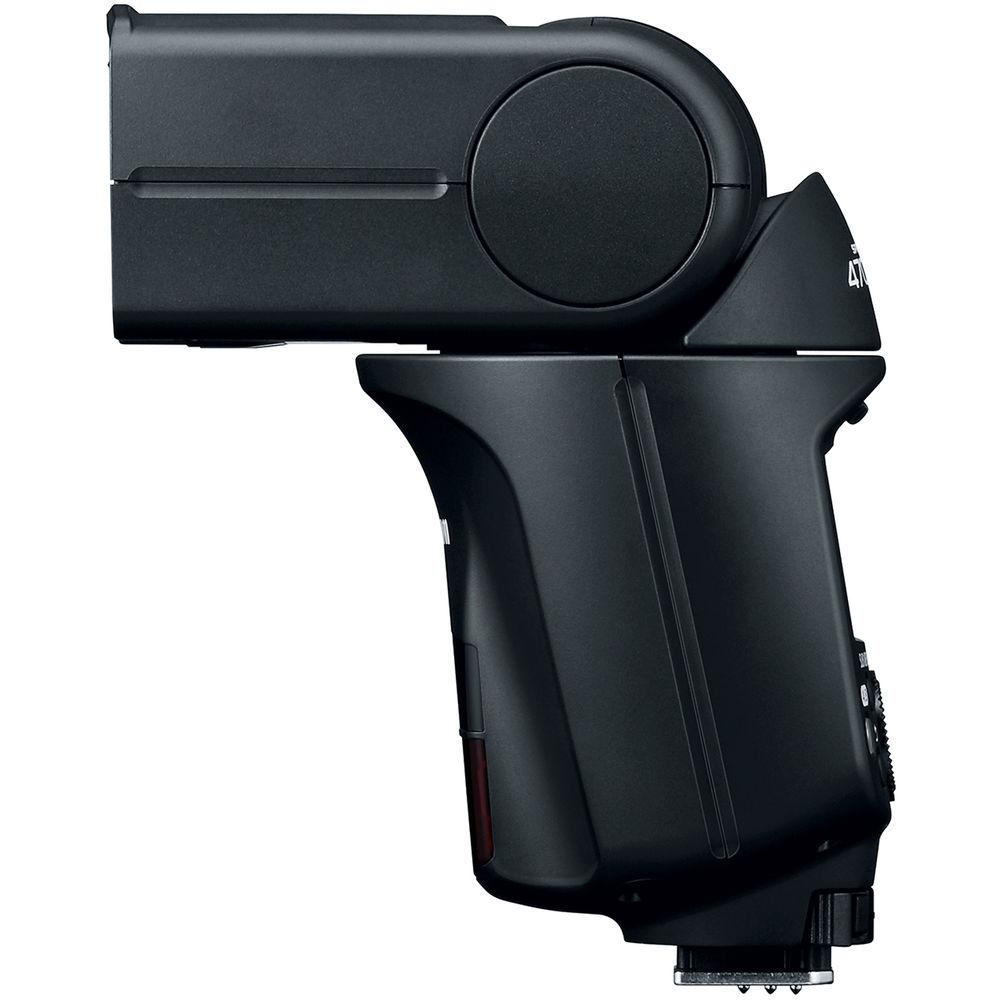

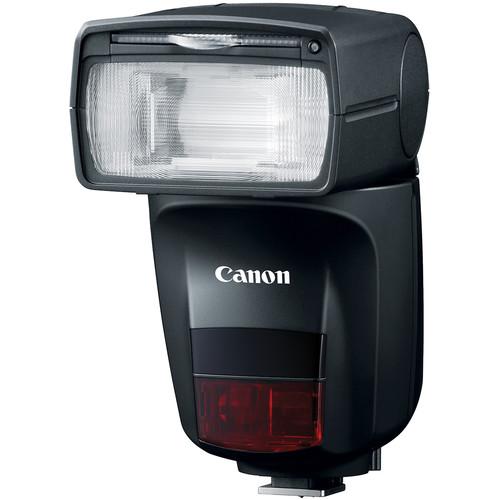

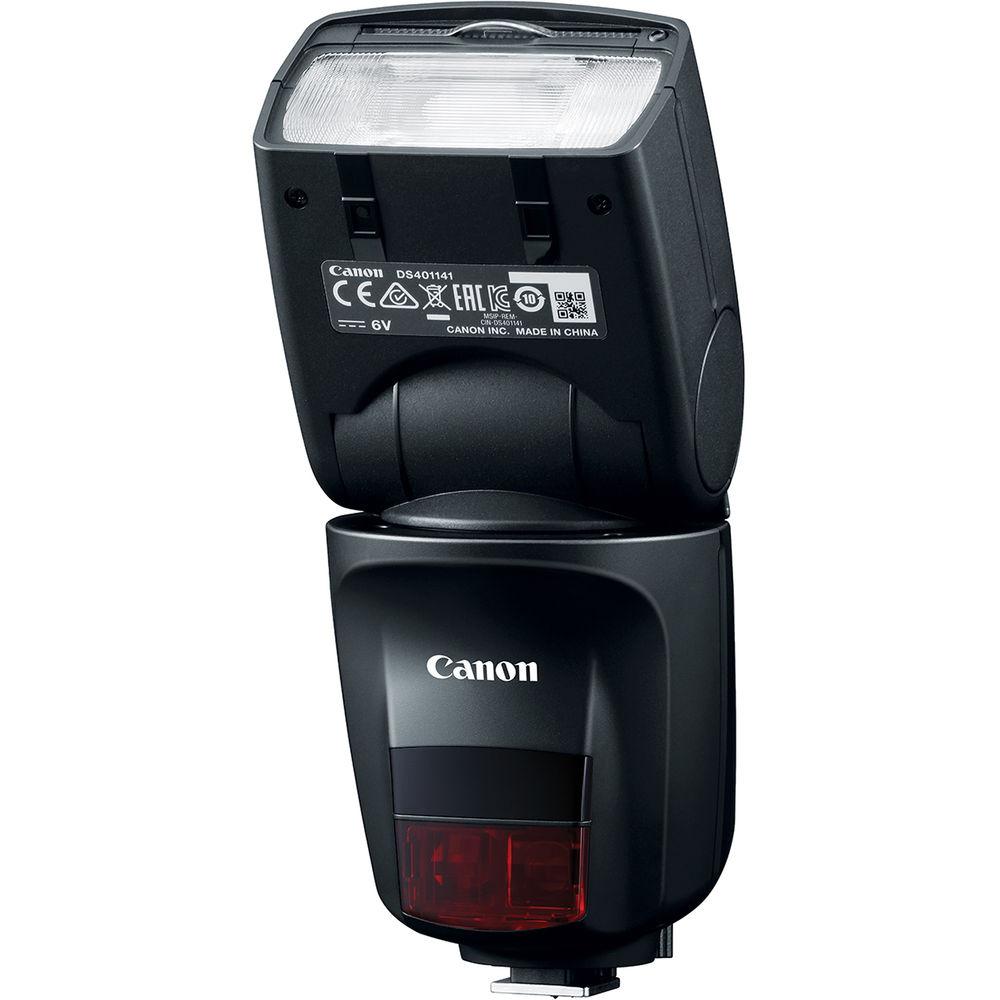

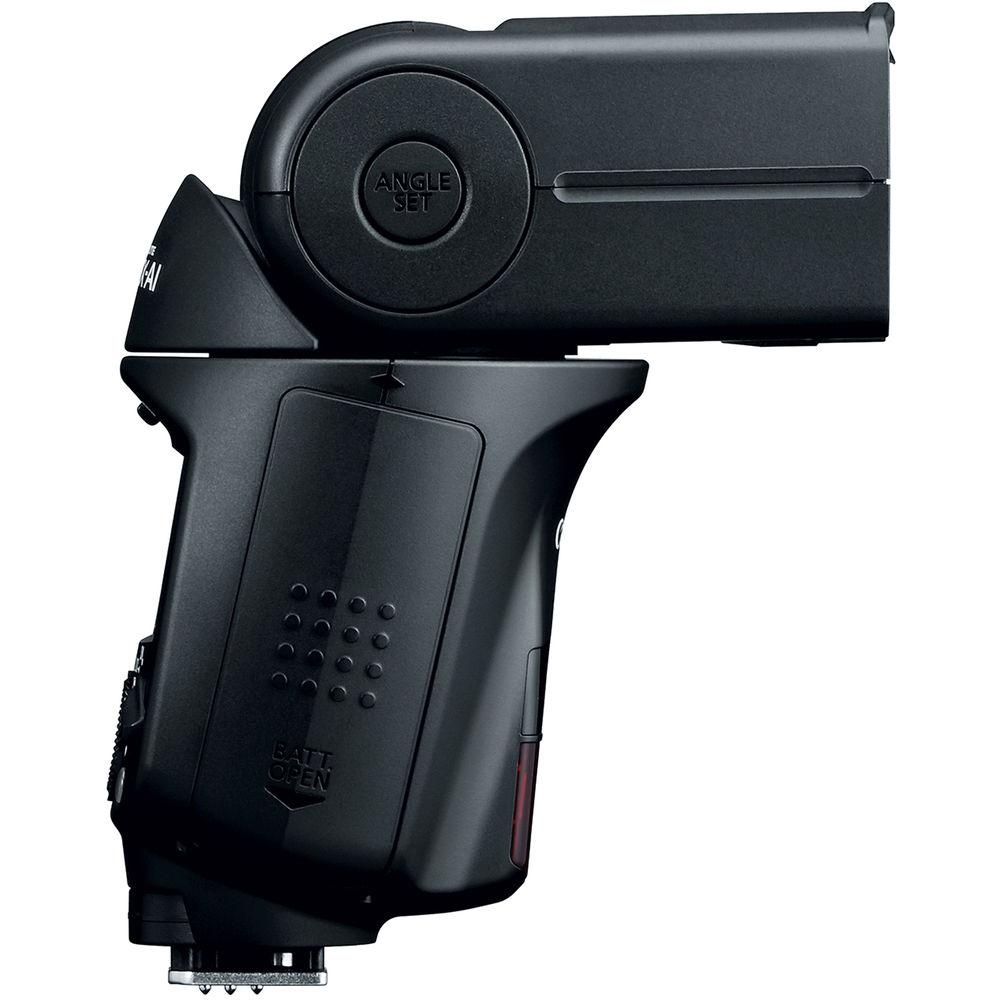

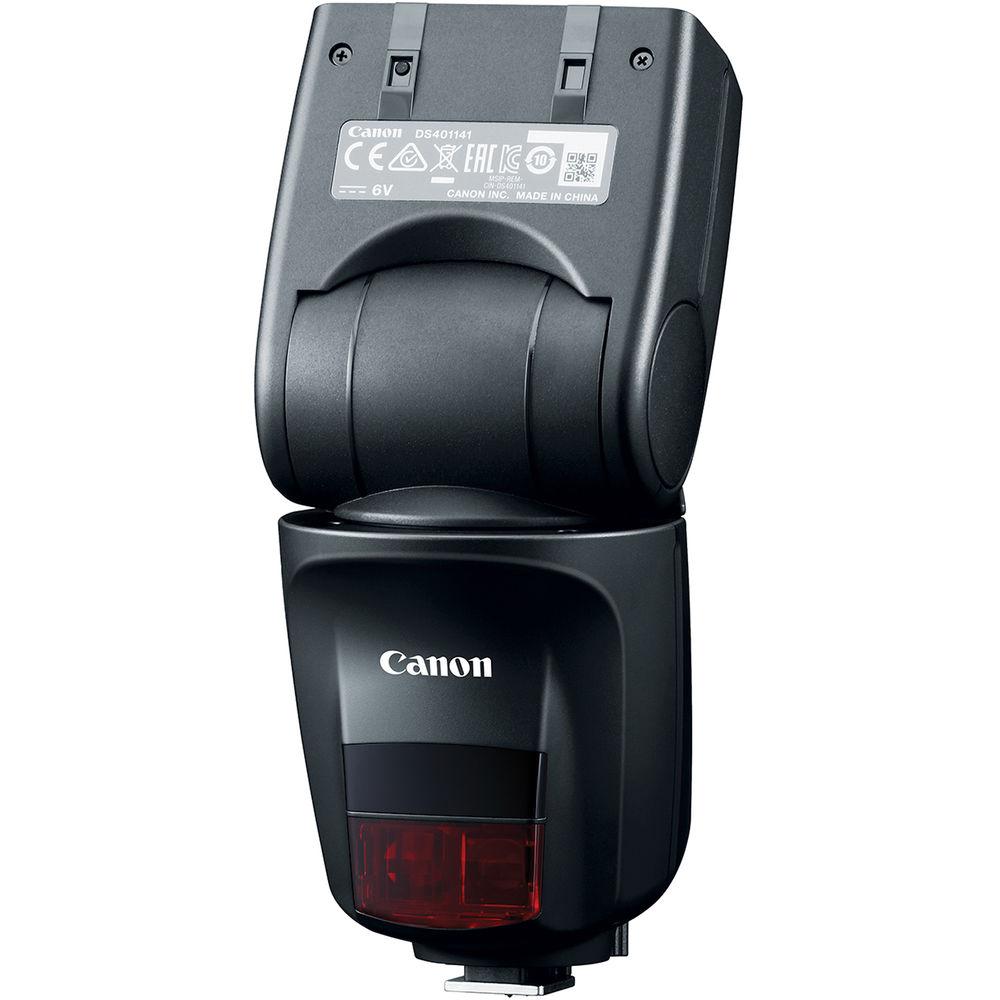

Helping to reduce the intimidation of flash photography, the Speedlite 470EX-AI from Canon is a unique on-camera light featuring Auto Intelligent Bounce technology. This function measures the room you are working in, along with the set focus distance, in order to automatically tilt and rotate the flash head to produce even, diffuse, and clean bounce flash results. This function can be used in full-auto mode, where the flash automatically determines all settings, or in semi-auto mode, where you can set the angle of the flash and it will automatically rotate depending on the specific camera position or orientation in use.
Beyond its distinct automated capabilities, the 470EX-AI is also distinguished by its apt flash specs, including E-TTL/E-TTL II compatibility, a guide number of 154' at ISO 100 and 105mm, a zoom head with coverage from 24-105mm, and a pull-out diffuser to widen this coverage to 14mm. Manual stepless adjustment over bounce is possible with a tilting range up to 120° along with +/- 180° rotation, and off-camera triggering is possible using the optical slave mode. - By automatically taking measurements of the room in conjunction with the set focus distance, Auto Intelligent Bounce (AI.B) automatically tilts and rotates the flash head in order to bounce the light and produce a diffuse and even quality of light
- AI.B full-auto mode automatically adjusts the flash angle and rotation by measuring the distance to the closest wall or ceiling along with the subject distance. AI.B semi-auto mode allows you to set the bounce angle yourself and then will automatically rotate the flash head as the camera is moved or the shooting orientation is changed
- Guide number of 154' at 105mm and ISO 100

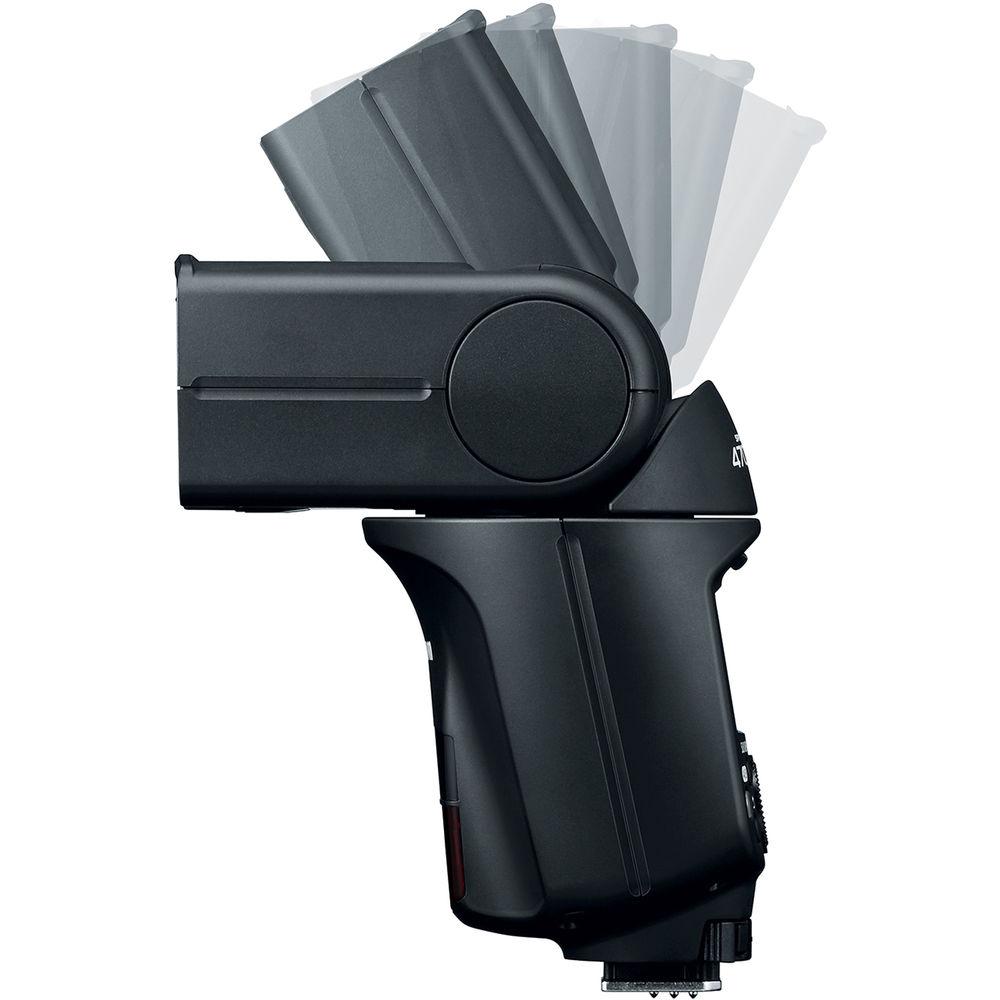

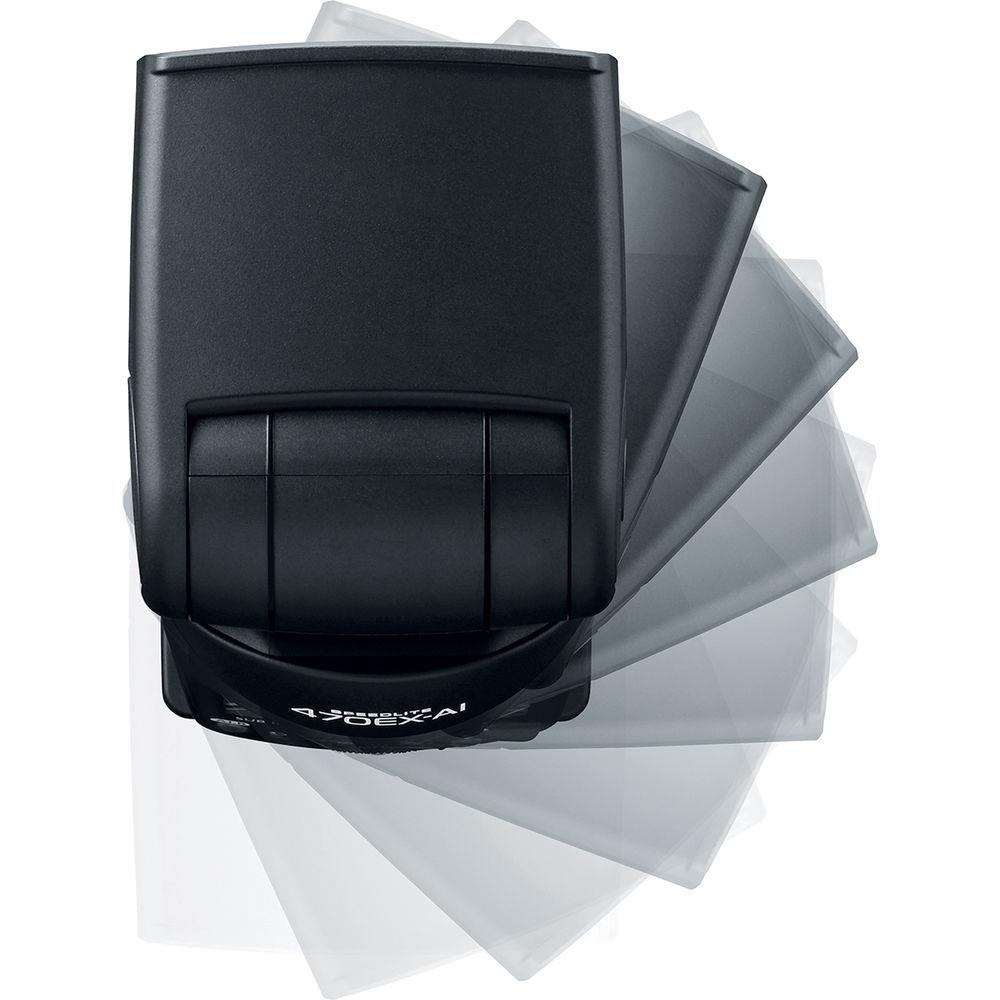

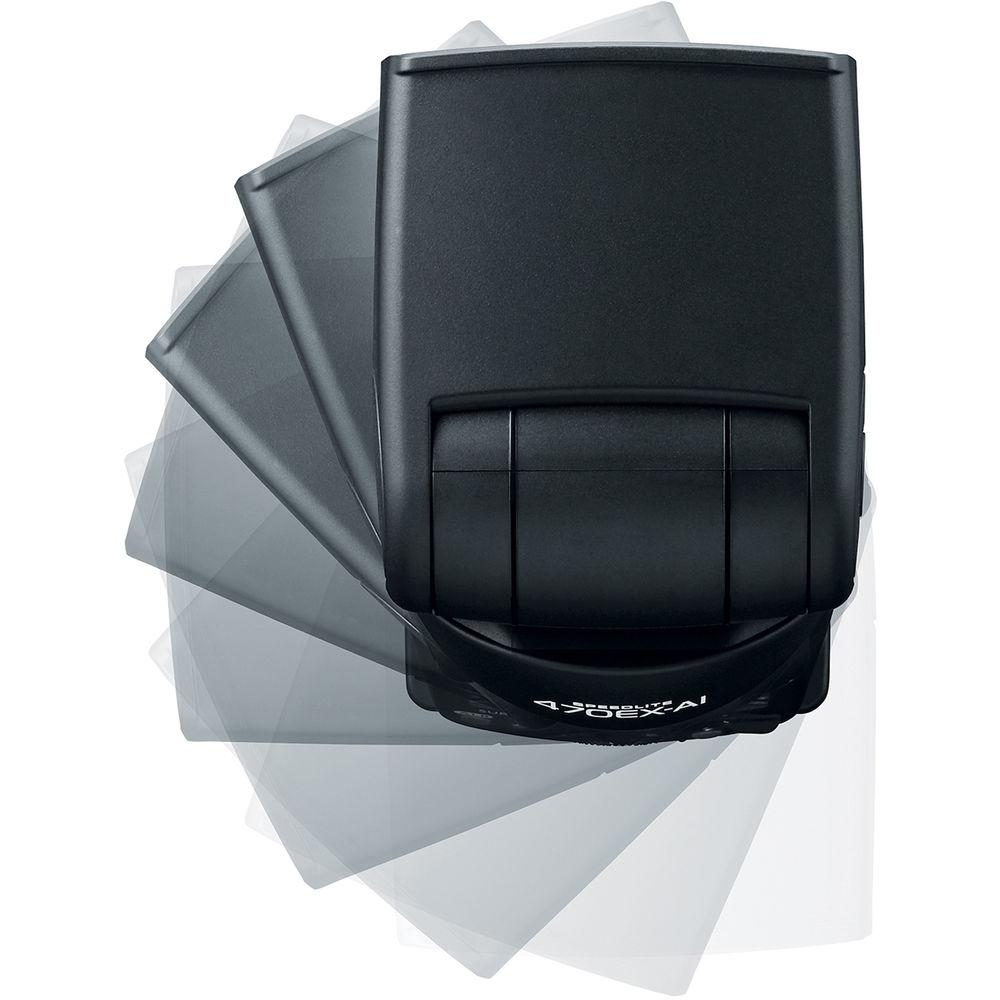

- Flash head offers 0 to 120° of tilt along with +/-180° of rotation for full bounce flash capabilities
- Zoom head range of 24-105mm and a wide panel can be slid into place for coverage up to 14mm
- Exposure compensation of ±3 EV in 1/3 or 1/2 step increments
- Optical receiver mode for off-camera triggering

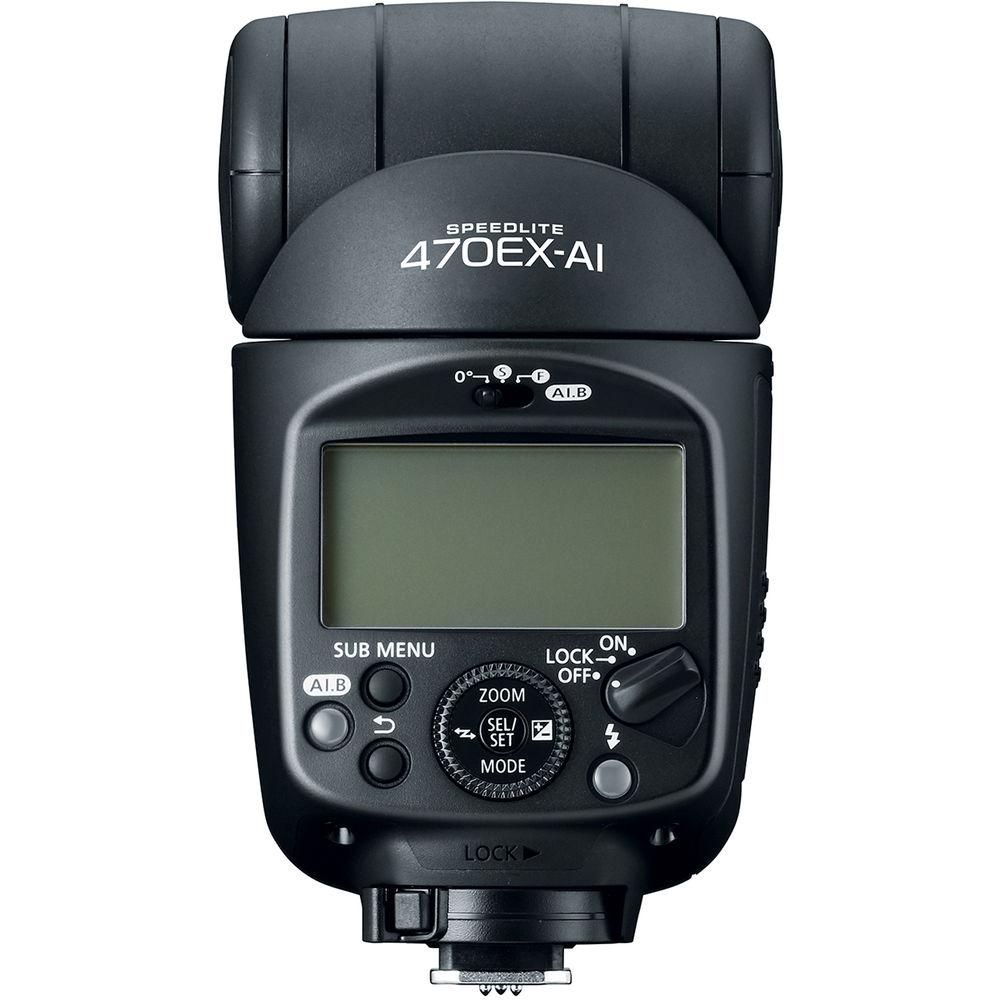

- LCD panel on rear for viewing and changing settings
- AF assist beam benefits focusing performance in low light
- Accepts four AA batteries as its power source
UPC: 013803286793 In the Box Canon Speedlite 470EX-AI SBA-E4 Bounce Adapter Stand Speedlite Soft Case Limited 1-Year Warranty WPPI 2018: Canon Reveals M50 4K Mirrorless and AI Bounce Speedlite Shawn C. Steiner 02/25/2018 A Guide to On-Camera Flash Bjorn Petersen 04/12/2019 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite 470EX-AI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Canon Speedlite 470EX-AI can be downloaded in PDF format at the link stated below.
Technical parametersCanon 470EX-AI Specs | Mount | Shoe | | Guide No. | 154.2' / 47 m ISO 100 at 105 mm Position | | Exposure Control | E-TTL / E-TTL II | | Bounce Head | 0 to +120° | | Swivel Head | 360° | | Coverage | 14 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 and 1/2 EV steps) | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.9 x 5.1 x 4.1" / 73.7 x 129.5 x 104.1 mm | | Weight | 13.6 oz / 385.6 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.25 x 5.25 x 4.25" |
