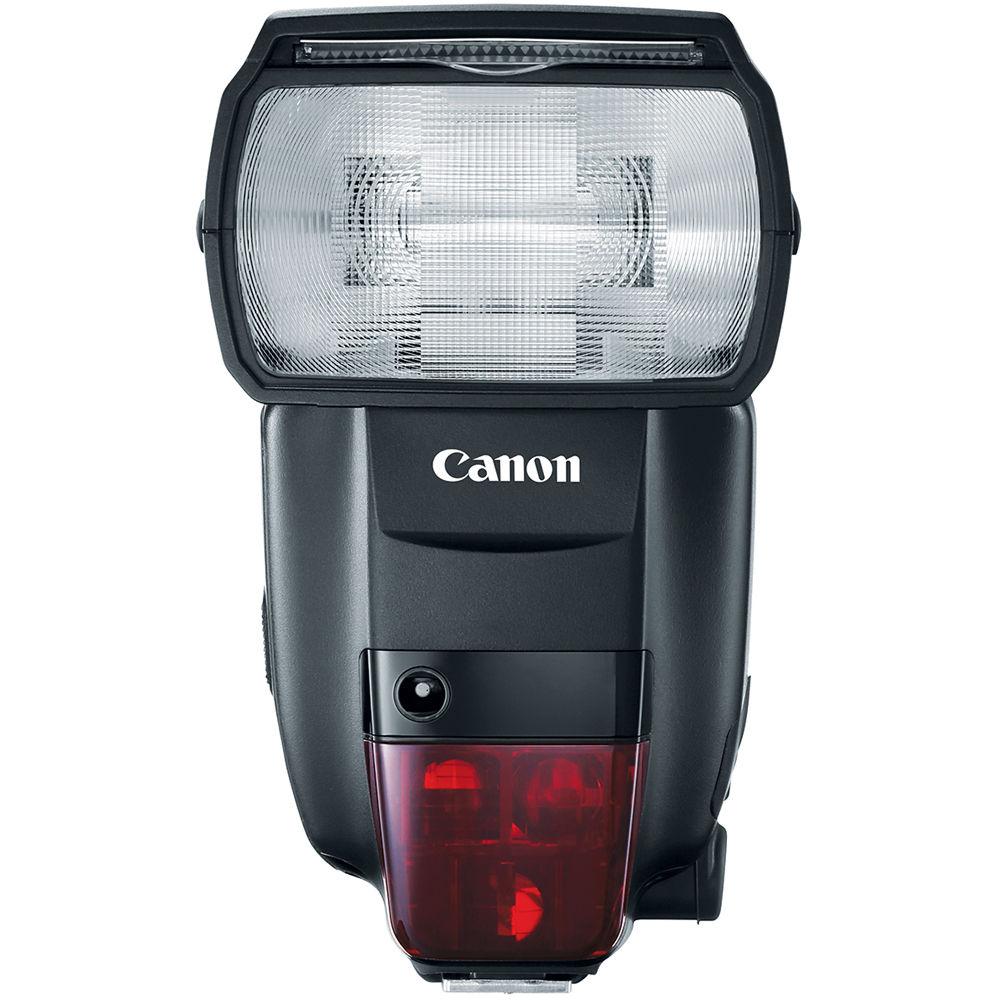

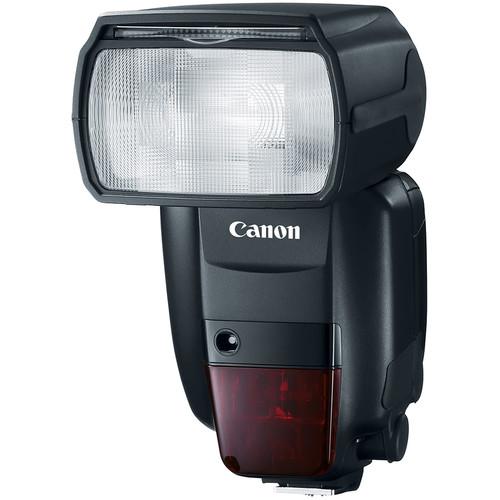

Product description Complete with built-in radio transmission wireless functionality, the Speedlite 600EX II-RT sits at the top of Canon's on-camera E-TTL / E-TTL II compatible flash lineup with a powerful guide number of 197' at ISO 100 and 200mm. This revision improves continuous flash performance by 1.1-1.5x, or up to 2.0x with optional battery pack, simplifies the menu system for faster operation, and includes a specially designed bounce adapter, a hard color filter, and an updated soft case. The two-way 2.4 GHz radio system provides added reliability and a range up to 98.4' among up to 5 groups with a total of 15 individual Speedlites. This system also does not need direct line-of-site like traditional optical-based transmission and will work through obstacles.

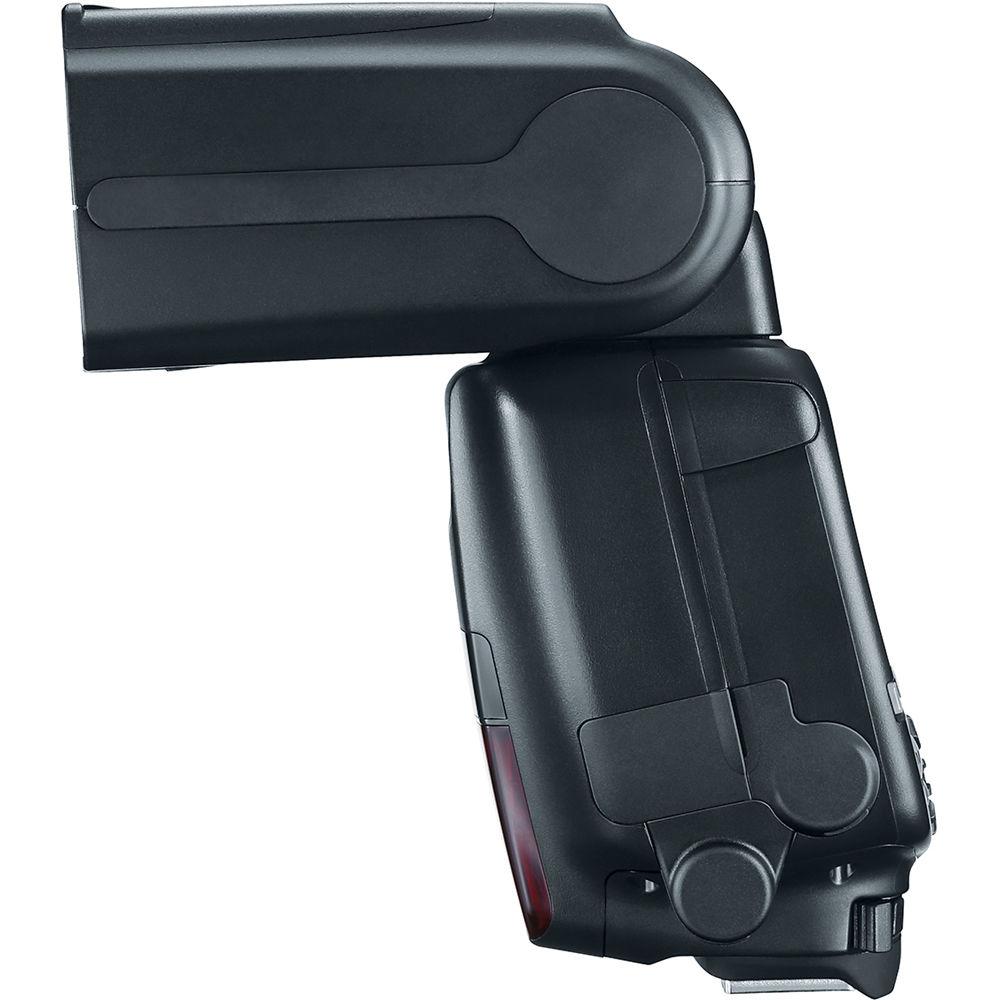

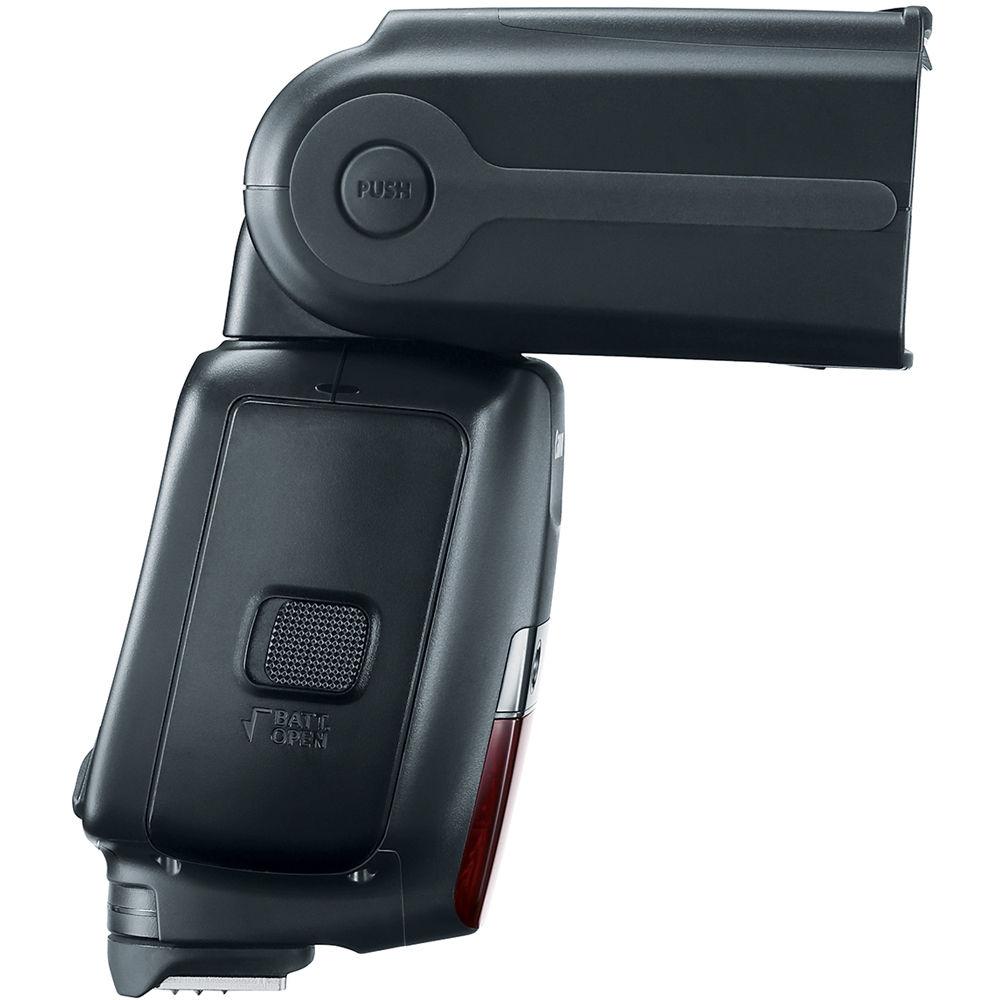

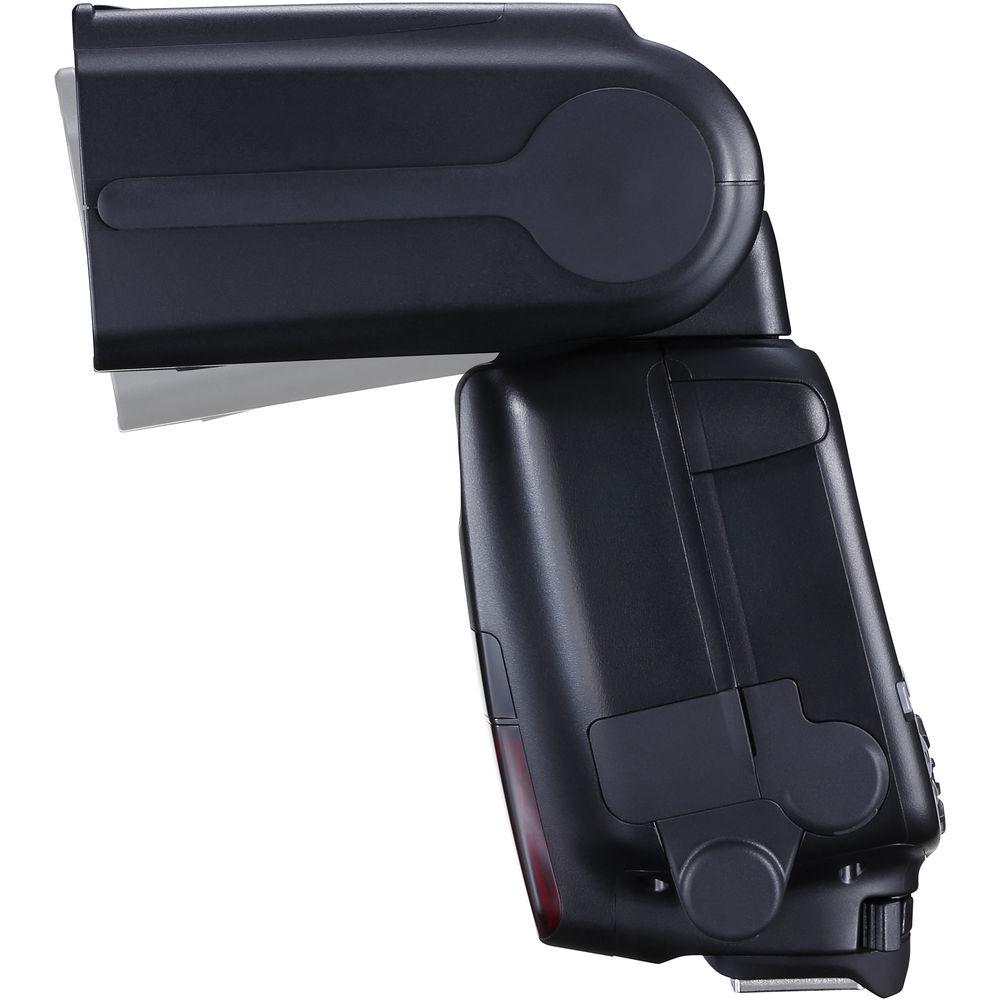

For added coverage and functionality, the flash's zoom head can reach from 20-200mm, with the option for wide 14mm coverage when the built-in diffusion panel is used. Also, the unit can tilt from -7 to +90° and rotate 180° either left or right for complete bounce capabilities. On the back of the 600EX II-RT is a backlit dot-matrix LCD panel that displays the status and allows users to easily access and change settings. Additionally, the flash is durable with a redesigned contact construction and improved dust and water resistant sealing.
Other capabilities of the 600EX II-RT include a stroboscopic mode as well as high-speed, first and second curtain sync settings for more control over your image's final look. The flash is powered by 4 AA batteries and has a port for an optional external power pack. The rated recycle time is 0.1-5.5 seconds, but can be sped up to 0.1-3.3 seconds in Quick Flash mode. It comes with a bounce adapter, a hard CTO filter set, a mini stand, and an updated soft case that holds the flash and accessories. - AF assist beam works with up to 61-point High Density Reticular AF system
- There are 15 custom functions and 6 personal functions for maximum customization
- Optical transmission is available in addition to radio transmission
- Quick Flash settings speeds up recycle time and flash duration
- Manual power settings from 1/1 to 1/128 power in 1/3-stop increments
- Flash color temperature information is automatically transmitted to the camera
- Automatic power off function
- Flash exposure compensation from -3 to +3 EV in 1/2 or 1/3 EV steps
- PC sync port and remote release terminal for off-camera triggering
- Flash duration of 1.8 ms or less, or 2.3 ms or less in Quick Flash mode
- Stroboscopic setting from 1-500 Hz, or 1-199 Hz during optical transmission wireless shooting
- Wireless flash ratio control from 1:8 to 1:1 to 8:1 in ½-stop increments
- Compatible with ST-E3 Speedlite Transmitter
- Approximately 100-700 flashes with AA alkaline batteries

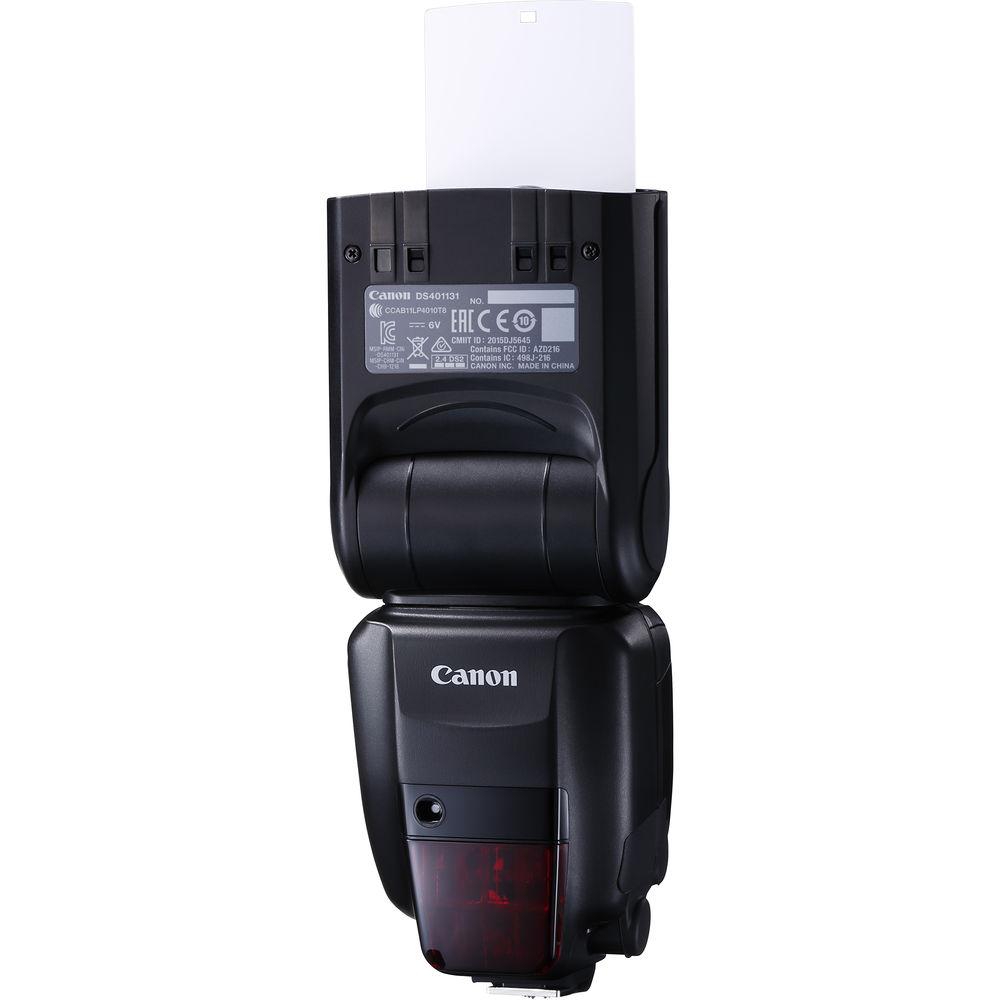

- Built-in retractable bounce card
UPC: 013803270891 In the Box Canon Speedlite 600EX II-RT SBA-E3 Bounce Adapter for 600EX II-RT SCF-E3 Color Filter for 600EX II-RT Mini Stand Speedlite Case Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite 600EX II-RT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 600EX II-RT Specs | Mount | Shoe | | Guide No. | 197' / 60.05 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Angle of Coverage | 94° - 12°
Wide-Angle Adapter: 114° | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Distance Range | 1.64 to 98.43' (0.5 to 30 m) at f/1.4 | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | PC, Proprietary | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash Duration | 0.0018 to 0.0023 sec @ Full Power | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/2 and 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Method: Optical Pulse
Distance: Up to 49.21' / 15 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 5 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.1 x 5.6 x 4.9" / 80.0 x 143.0 x 125.0 mm | | Weight | 15.00 oz / 425.25 g without batteries | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.6 x 5.9 x 4.6" |
