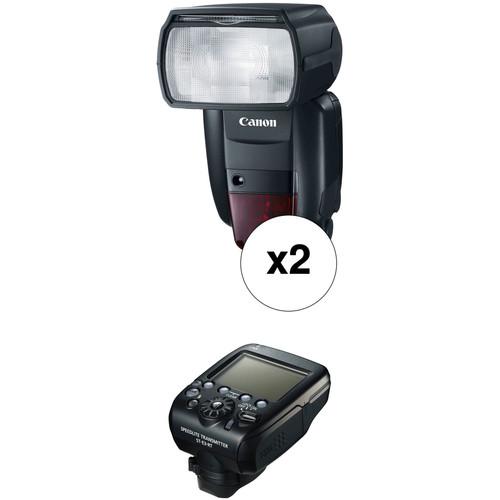

User Manual for Canon Speedlite 600EX II-RT Essential Wireless Two Flash Kit Click to enlarge the picture
Contents of the user manual for the Canon Speedlite 600EX II-RT Essential Wireless
- Product category: On Camera Flashes Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon On Camera Flashes
|
User manual for the Canon Speedlite 600EX II-RT Essential Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More Do wireless flash the right way by picking up this Canon Speedlite 600EX II-RT Essential Wireless Two Flash Kit from . It features two flagship Speedlite 600EX II-RT flashes, which are equipped natively with 2.4 GHz radio systems, along with the ST-E3-RT Speedlite Transmitter, which provides excellent control over the flashes when they are off camera. This setup supports Canon's E-TTL / E-TTL II metering system. - 2 x Canon Speedlite 600EX II-RT Complete with built-in radio transmission wireless functionality, the Speedlite 600EX II-RT sits at the top of Canon's on-camera E-TTL / E-TTL II compatible flash lineup with a powerful guide number of 197' at ISO 100 and 200mm. This revision improves continuous flash performance by 1.1-1.5x, or up to 2.0x with optional battery pack, simplifies the menu system for faster operation, and includes a specially designed bounce adapter, a hard color filter, and an updated soft case. The two-way 2.4 GHz radio system provides added reliability and a range up to 98.4' among up to 5 groups with a total of 15 individual Speedlites. This system also does not need direct line-of-site like traditional optical-based transmission and will work through obstacles.
For added coverage and functionality, the flash's zoom head can reach from 20-200mm, with the option for wide 14mm coverage when the built-in diffusion panel is used. Also, the unit can tilt from -7 to +90° and rotate 180° either left or right for complete bounce capabilities. On the back of the 600EX II-RT is a backlit dot-matrix LCD panel that displays the status and allows users to easily access and change settings. Additionally, the flash is durable with a redesigned contact construction and improved dust and water resistant sealing.
Other capabilities of the 600EX II-RT include a stroboscopic mode as well as high-speed, first and second curtain sync settings for more control over your image's final look. The flash is powered by 4 AA batteries and has a port for an optional external power pack. The rated recycle time is 0.1-5.5 seconds, but can be sped up to 0.1-3.3 seconds in Quick Flash mode. It comes with a bounce adapter, a hard CTO filter set, a mini stand, and an updated soft case that holds the flash and accessories. - AF assist beam works with up to 61-point High Density Reticular AF system
- There are 15 custom functions and 6 personal functions for maximum customization
- Optical transmission is available in addition to radio transmission
- Quick Flash settings speeds up recycle time and flash duration
- Manual power settings from 1/1 to 1/128 power in 1/3-stop increments
- Flash color temperature information is automatically transmitted to the camera
- Automatic power off function
- Flash exposure compensation from -3 to +3 EV in 1/2 or 1/3 EV steps
- PC sync port and remote release terminal for off-camera triggering
- Flash duration of 1.8 ms or less, or 2.3 ms or less in Quick Flash mode
- Stroboscopic setting from 1-500 Hz, or 1-199 Hz during optical transmission wireless shooting
- Wireless flash ratio control from 1:8 to 1:1 to 8:1 in ½-stop increments
- Compatible with ST-E3 Speedlite Transmitter
- Approximately 100-700 flashes with AA alkaline batteries
- Built-in retractable bounce card
UPC: 013803270891 - Canon ST-E3-RT Speedlite Transmitter The Canon ST-E3-RT Speedlite Transmitter can help you take full advantage of all the features on Canon's Speedlite 600EX-RT and 430EX III-RT flashes. The ST-E3-RT makes complex lighting setups simple by facilitating radio-controlled, two-way wireless transmission up to 98.4' away, among up to five groups or fifteen individual Speedlites. It has controls similar to the Speedlite 600EX-RT, including multiple flash metering options, and a variety of flash modes. Compact design with highly reliable construction combined with a clearly laid-out information panel and buttons with back lighting make this an indispensible tool for advanced professional flash photography. The ST-E3-RT represents the next generation in wireless flash systems. Note: Because it does not have an optical transmission function, the Speedlite Transmitter ST-E3-RT is not compatible with earlier Speedlite models such as 580EX II.
- Newly-designed wireless system uses 2-way radio wave communication for enhanced communication among master and slave units. Achieves a transmission distance of up to 98.4' (30 m), all at a 360 degree angle.
- Up to 5 groups, or 15 individual flashes can be controlled via 1 transmitter.
- Supports E-TTL II flash, manual flash, stroboscopic and auto external flash metering.
- Dot matrix LCD panel displays all pertinent information simultaneously and backlit control panel means easy operation.
- 8 types of custom functions, 3 types of personal functions.
- Improved hot shoe contacts for more reliable information transmission and operation.
- Slave operation confirmation:
Green Light--Lit: Radio Transmissions Okay
Red Light--Lit: Not Connected
Blinking: Transmission Error/ Too many units
Orange Light--Lit: Sub-master transmission
Blinking: Receiving remote release shooting, linked shooting signal - Not compatible with earlier Speedlite models such as 580EX II
UPC: 013803142488 In the Box - 2 x Speedlite 600EX II-RT wuyffsrqrsbvucdwedwdwtyvcaq
- SBA-E3 Bounce Adapter for 600EX II-RT
- SCF-E3 Color Filter for 600EX II-RT
- Mini Stand
- Speedlite Case
- Limited 1-Year Warranty
- ST-E3-RT Speedlite Transmitter
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite 600EX II-RT Essential Wireless Two Flash Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Canon Speedlite 600EX II-RT
| Mount | Shoe | | Guide No. | 197' / 60.05 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Angle of Coverage | 94° - 12°
Wide-Angle Adapter: 114° | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Distance Range | 1.64 to 98.43' (0.5 to 30 m) at f/1.4 | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | PC, Proprietary | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash Duration | 0.0018 to 0.0023 sec @ Full Power | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/2 and 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Method: Optical Pulse
Distance: Up to 49.21' / 15 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 5 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.1 x 5.6 x 4.9" / 80.0 x 143.0 x 125.0 mm | | Weight | 15.00 oz / 425.25 g without batteries | | | | Box Dimensions (LxWxH) | 6.6 x 5.9 x 4.6" | - Canon ST-E3-RT Speedlite Transmitter
| Type | Radio transmissions wireless Speedlite transmitter | | Transmission Range | Approx. 98.4 ft. (30m) | | Flash Control | Ratio control: 1:8 - 1:1 - 8:1, power 1/2-stop increments | | Coverage | Flash coverage: Transmission Angle: 360° all around | | Power Source | 2x AA/LRG Alkaline Batteries (Ni-MH and Lithium batteries can also be used)
Battery Life: Approx. 10 hours continuously when using AA/LR6 alkaline batteries (At a room temperature of 73°F/+23°C). | | Dimensions | 2.65 x 2.42 x 3.05" (67.4 x 61.5 x 77.4 mm) | | Weight | 3.9 oz (110 g) excluding battery | | | | Box Dimensions (LxWxH) | 6.3 x 4.7 x 4.4" |
