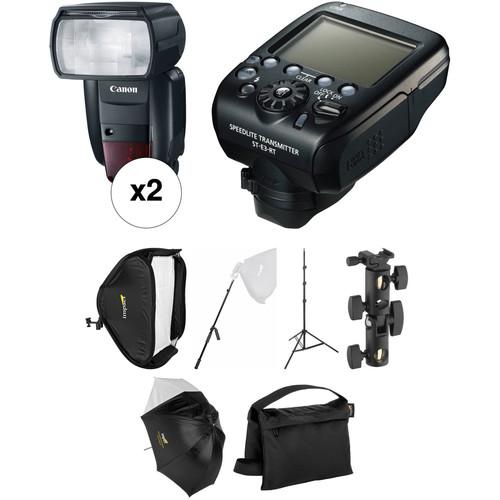

User Manual for Canon Speedlite 600EX II-RT Wireless Two Flash Location Kit

• Product category: On Camera Flashes Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon On Camera Flashes

Product description

• 2 x Canon Speedlite 600EX II-RT
  Complete with built-in radio transmission wireless functionality, the Speedlite 600EX II-RT sits at the top of Canon's on-camera E-TTL / E-TTL II compatible flash lineup with a powerful guide number of 197' at ISO 100 and 200mm. This revision improves continuous flash performance by 1.1-1.5x, or up to 2.0x with optional battery pack, simplifies the menu system for faster operation, and includes a specially designed bounce adapter, a hard color filter, and an updated soft case. The two-way 2.4 GHz radio system provides added reliability and a range up to 98.4' among up to 5 groups with a total of 15 individual Speedlites. This system also does not need direct line-of-site like traditional optical-based transmission and will work through obstacles.

  For added coverage and functionality, the flash's zoom head can reach from 20-200mm, with the option for wide 14mm coverage when the built-in diffusion panel is used. Also, the unit can tilt from -7 to +90° and rotate 180° either left or right for complete bounce capabilities. On the back of the 600EX II-RT is a backlit dot-matrix LCD panel that displays the status and allows users to easily access and change settings. Additionally, the flash is durable with a redesigned contact construction and improved dust and water resistant sealing.

  Other capabilities of the 600EX II-RT include a stroboscopic mode as well as high-speed, first and second curtain sync settings for more control over your image's final look. The flash is powered by 4 AA batteries and has a port for an optional external power pack. The rated recycle time is 0.1-5.5 seconds, but can be sped up to 0.1-3.3 seconds in Quick Flash mode. It comes with a bounce adapter, a hard CTO filter set, a mini stand, and an updated soft case that holds the flash and accessories.
  • AF assist beam works with up to 61-point High Density Reticular AF system
  • There are 15 custom functions and 6 personal functions for maximum customization
  • Optical transmission is available in addition to radio transmission
  • Quick Flash settings speeds up recycle time and flash duration
  • Manual power settings from 1/1 to 1/128 power in 1/3-stop increments
  • Flash color temperature information is automatically transmitted to the camera
  • Automatic power off function
  • Flash exposure compensation from -3 to +3 EV in 1/2 or 1/3 EV steps
  • PC sync port and remote release terminal for off-camera triggering
  • Flash duration of 1.8 ms or less, or 2.3 ms or less in Quick Flash mode
  • Stroboscopic setting from 1-500 Hz, or 1-199 Hz during optical transmission wireless shooting
  • Wireless flash ratio control from 1:8 to 1:1 to 8:1 in ½-stop increments
  • Compatible with ST-E3 Speedlite Transmitter
  • Approximately 100-700 flashes with AA alkaline batteries
  • Locking metal foot
  • Bracket mounting hole
  • Built-in retractable bounce card
  UPC: 013803270891
• Canon ST-E3-RT Speedlite Transmitter
  The Canon ST-E3-RT Speedlite Transmitter can help you take full advantage of all the features on Canon's Speedlite 600EX-RT and 430EX III-RT flashes. The ST-E3-RT makes complex lighting setups simple by facilitating radio-controlled, two-way wireless transmission up to 98.4' away, among up to five groups or fifteen individual Speedlites. It has controls similar to the Speedlite 600EX-RT, including multiple flash metering options, and a variety of flash modes. Compact design with highly reliable construction combined with a clearly laid-out information panel and buttons with back lighting make this an indispensible tool for advanced professional flash photography. The ST-E3-RT represents the next generation in wireless flash systems. Note: Because it does not have an optical transmission function, the Speedlite Transmitter ST-E3-RT is not compatible with earlier Speedlite models such as 580EX II.
  • Newly-designed wireless system uses 2-way radio wave communication for enhanced communication among master and slave units. Achieves a transmission distance of up to 98.4' (30 m), all at a 360 degree angle.
  • Up to 5 groups, or 15 individual flashes can be controlled via 1 transmitter.
  • Supports E-TTL II flash, manual flash, stroboscopic and auto external flash metering.
  • Dot matrix LCD panel displays all pertinent information simultaneously and backlit control panel means easy operation.
  • 8 types of custom functions, 3 types of personal functions.
  • Improved hot shoe contacts for more reliable information transmission and operation.
  • Slave operation confirmation:
    Green Light--Lit: Radio Transmissions Okay
    Red Light--Lit: Not Connected
    Blinking: Transmission Error/ Too many units
    Orange Light--Lit: Sub-master transmission
    Blinking: Receiving remote release shooting, linked shooting signal
  • Not compatible with earlier Speedlite models such as 580EX II
  UPC: 013803142488
• Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
  The Impact Quikbox (24 x 24") is a great way to expand the capabilities of your on-camera, shoe-mount flash. The Quikbox lives up to its name by popping open and assembling in a couple of minutes. Just pop open the softbox, add the diffusers and included adapter ring and shoe adapter, mount on a lightstand and you're ready to shoot. Using a softbox with your shoe-mounted flash will help to diffuse and to evenly distribute the light output of the flash. This will help to reduce those harsh shadows which are often the result of flash photography. Also included is an internal diffuser, to minimize the possibility of hotspots. In addition, the recessed front face helps to control light spill. The included flash bracket is adjustable vertically, and features a universal shoe which is adjustable horizontally. These adjustments make this unit compatible with virtually all standard flash units (incl. Nikon SB-900 & SB-910), as well as radio receivers. In addition, for those receivers that do not feature a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly, to accommodate receivers of various sizes.
  • Folds completely flat
  • Sets up in minutes - no troublesome rods
  • Minimal light loss
  • Portable
  • Color-neutral fabric
  UPC: 847628012479
• Impact QuickStik+ Telescopic Handle
  The Impact QuikStik+ Telescopic Handle adds flexibility and functionality to your shoe-mount flash or small strobe with light modifiers, such as Impact's Quikboxes or umbrellas. Ideal for use as a hair light, fill light or backlight, the QuikStik+ allows you to extend light sources weighing up to five pounds as high as 5.3' overhead.The QuikStik+ features an adjustable swivel handle with several unique features that promote comfort and precise placement of your light source. Using the QuickStick+ with two hands allows the hand grasping the swivel handle to act as a fulcrum on which the telescopic section pivots, in order to adjust the height. Since the handle can be moved along the length of the pole section, you're able to adjust the center of gravity for ideal balance. What sounds technical is really fast, simple, and intuitive, with the bottom line being overall comfort. You can make your handle adjustment in less time than it took to read this sentence.The included webbed nylon flag holder-type strap adds another level of comfort. The holder, in conjunction with the swivel handle, allows you to shift nearly all of the weight to your hip for one-hand operation over an extended period of time, leaving your other hand free for multi-tasking. The top stud accepts any standard 5/8" female accessory, such as the Impact Umbrella Bracket or Multi-Shoe Bracket. It is topped with a screw that also permits the use of 1/4"-20 accessories. UPC: 847628564367
• Impact Air-Cushioned Light Stand (Black, 8')
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• Impact Deluxe Umbrella Mount with Adjustable Shoe
  A useful and versatile addition to any lighting kit, the Deluxe Umbrella Mount with Adjustable Shoe from Impact is designed to maximize the utility small lights or shoe-mount flashes while the heavy-duty mount has a socket that can support umbrellas up to 60" in diameter.Able to tilt 180-degrees and swivel 360-degrees, the anodized black aluminum Umbrella Mount can be installed on any industry-standard light stand with a 5/8" top stud from either end of the mount. Additional 5/8" holes are tapped into to unit to allow you to mount it vertically or horizontally for maximum versatility. The Deluxe Umbrella Mount includes removable 3/8"-16 and 1/4"-20 brass stud adapters to support accessories. One of them, for example, fastens a cold shoe with a knurled locking knob for a secure connection to your flash.
  Tilt and Swivel
  • 180-degree tilt and 360-degree swivel
  Vertical or Horizontal Mounting
  • Bottom and side taps allow space-saving mounting options
  Adjustable Cold Shoe
  • Allows you to maximize the potential of your shoe-mount flash
  Umbrella Socket
  • Supports up to 60" umbrellas
  Included Adapters
  • Female 3/8"-16 and male 1/4"-20 stud adapters add compatibility with various accessories
  Mounting Options and Adjustments
  • Adds significant flexibility to a simple light stand
  UPC: 847628000636
• Impact Convertible Umbrella - White Satin with Removable Black Backing - 45"
  This is an Impact 45" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. This size is perfect for a 1 - 2 person half-length portrait, or a 3x4 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013308
• Impact Filled Saddle Sandbag (15 lb, Black)
  Made of thick, weather- and water-resistant Cordura nylon, the 15 lb Impact Filled Black Saddle Sandbag is a staple in studios or on location for stabilizing light stands, booms, tripods, and backgrounds. The bag features rugged and durable assembly throughout. A double-zipper design is employed for safe containment and removal of the sand, as well as a webbed handle for hanging or moving.
  Saddle-Style Sandbag
  • The two-winged saddle sandbag is designed to conform to studio equipment such as light stands, tripods, backgrounds, or any other equipment that needs support and stabilization
  Sturdy Handles
  • Strong top and bottom handles made with nylon webbing offer options for providing a counterweight to boom arms and make transporting the sandbag easy
  Weather and Water Resistant
  • The thick Cordura fabric stands up to the elements and keeps the contents dry
  Double-Zipper Design
  • The double-zipper design ensures that the contents of the bag do not spill out
  UPC: 847628589964

• 2 x Speedlite 600EX II-RT yeeavzxwtvdyddccxcsrdxcuewfsdssttq
• SBA-E3 Bounce Adapter for 600EX II-RT
• SCF-E3 Color Filter for 600EX II-RT
• Mini Stand
• Speedlite Case
• Limited 1-Year Warranty

• ST-E3-RT Speedlite Transmitter

• Impact - Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")

• Impact - QuickStik+ Telescopic Handle

• Impact - Air-Cushioned Light Stand (Black, 8')

• Impact - Deluxe Umbrella Mount with Adjustable Shoe

• Impact - Convertible Umbrella - White Satin with Removable Black Backing - 45"

• Impact - Filled Saddle Sandbag (15 lb, Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Canon Speedlite 600EX II-RT

  Mount	Shoe
  Guide No.	197' / 60.05 m ISO 100 at 200 mm Position
  Exposure Control	E-TTL / E-TTL II, Manual
  Angle of Coverage	94° - 12° Wide-Angle Adapter: 114°
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Distance Range	1.64 to 98.43' (0.5 to 30 m) at f/1.4
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	PC, Proprietary
  Recycle Time	Approximately 0.1 to 5.5 Seconds
  Flash Duration	0.0018 to 0.0023 sec @ Full Power
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/2 and 1/3 EV steps)
  Wireless Operation	Method: RF Distance: Up to 98.43' / 30 m Method: Optical Pulse Distance: Up to 49.21' / 15 m
  Wireless Communication Channels	4 Channels
  Wireless Groups	5 Groups
  Power Source	4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	3.1 x 5.6 x 4.9" / 80.0 x 143.0 x 125.0 mm
  Weight	15.00 oz / 425.25 g without batteries

  Box Dimensions (LxWxH)	6.6 x 5.9 x 4.6"

• Canon ST-E3-RT Speedlite Transmitter

  Type	Radio transmissions wireless Speedlite transmitter
  Transmission Range	Approx. 98.4 ft. (30m)
  Flash Control	Ratio control: 1:8 - 1:1 - 8:1, power 1/2-stop increments
  Coverage	Flash coverage: Transmission Angle: 360° all around
  Power Source	2x AA/LRG Alkaline Batteries (Ni-MH and Lithium batteries can also be used) Battery Life: Approx. 10 hours continuously when using AA/LR6 alkaline batteries (At a room temperature of 73°F/+23°C).
  Dimensions	2.65 x 2.42 x 3.05" (67.4 x 61.5 x 77.4 mm)
  Weight	3.9 oz (110 g) excluding battery

  Box Dimensions (LxWxH)	6.3 x 4.7 x 4.4"

• Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")

  Shape	Square
  Interior	Silver
  Requires Speed Ring	Yes, Included
  Accepts Grids	Yes
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 24.0 x H: 24.0" / W: 61.0 x H: 61.0 cm
  Weight	2.8 lb / 1.270 kg (with Case)

  Box Dimensions (LxWxH)	24.0 x 13.5 x 3.8"

• Impact QuickStik+ Telescopic Handle

  Construction	Aluminum alloy, foam grips, nylon strap
  Mount	5/8" (16 mm) top stud with male 1/4"-20 screw
  Load Capacity	5 lb (2.26 kg)
  Dimensions	Retracted: 25.25" (64.1 cm) Extended: 64" (162.5 cm)
  Weight	1.1 lb (0.49 kg)

  Box Dimensions (LxWxH)	27.0 x 4.0 x 4.0"

• Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• Impact Deluxe Umbrella Mount with Adjustable Shoe

  Adjustments	360° swivel, 180° tilt
  Material of Construction	Anodized black aluminum
  Mount	5/8" (16 mm) receiver 3/8"-16 female stud adapter 1/4"-20 male stud adapter

  Box Dimensions (LxWxH)	8.3 x 4.2 x 1.7"

• Impact Convertible Umbrella - White Satin with Removable Black Backing - 45"

  Size	45.0" / 114.3 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 29.8" / L: 75.5 cm

  Box Dimensions (LxWxH)	31.2 x 4.0 x 1.6"

• Impact Filled Saddle Sandbag (15 lb, Black)

  Design	Saddle Bag
  Weight Capacity	15 lb / 6.8 kg
  Number of Bags	1
  Fill Material	Sand
  Closure Type	Zipper
  Water Resistance	Water Resistant
  Material	Nylon
  Dimensions (L x W)	17.8 x 11.0" / 45.0 x 28.0 cm
  Strap Width	1.5" / 4.0 cm

  Box Dimensions (LxWxH)	10.0 x 9.9 x 4.3"
