Canon Speedlite 600EX II-RT Wireless Two

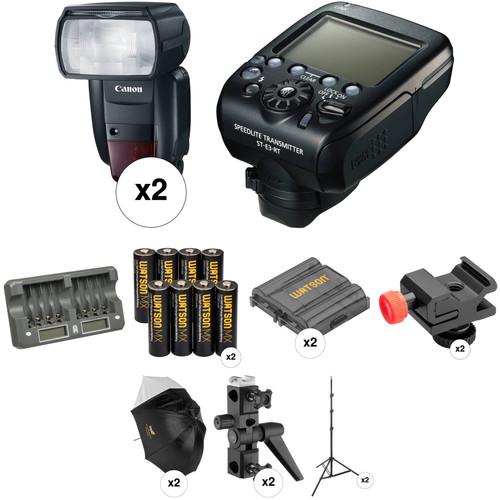

User Manual for Canon Speedlite 600EX II-RT Wireless Two Flash Portrait Kit

• Product category: On Camera Flashes Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon On Camera Flashes

Product description

• 2 x Canon Speedlite 600EX II-RT
  Complete with built-in radio transmission wireless functionality, the Speedlite 600EX II-RT sits at the top of Canon's on-camera E-TTL / E-TTL II compatible flash lineup with a powerful guide number of 197' at ISO 100 and 200mm. This revision improves continuous flash performance by 1.1-1.5x, or up to 2.0x with optional battery pack, simplifies the menu system for faster operation, and includes a specially designed bounce adapter, a hard color filter, and an updated soft case. The two-way 2.4 GHz radio system provides added reliability and a range up to 98.4' among up to 5 groups with a total of 15 individual Speedlites. This system also does not need direct line-of-site like traditional optical-based transmission and will work through obstacles.

  For added coverage and functionality, the flash's zoom head can reach from 20-200mm, with the option for wide 14mm coverage when the built-in diffusion panel is used. Also, the unit can tilt from -7 to +90° and rotate 180° either left or right for complete bounce capabilities. On the back of the 600EX II-RT is a backlit dot-matrix LCD panel that displays the status and allows users to easily access and change settings. Additionally, the flash is durable with a redesigned contact construction and improved dust and water resistant sealing.

  Other capabilities of the 600EX II-RT include a stroboscopic mode as well as high-speed, first and second curtain sync settings for more control over your image's final look. The flash is powered by 4 AA batteries and has a port for an optional external power pack. The rated recycle time is 0.1-5.5 seconds, but can be sped up to 0.1-3.3 seconds in Quick Flash mode. It comes with a bounce adapter, a hard CTO filter set, a mini stand, and an updated soft case that holds the flash and accessories.
  • AF assist beam works with up to 61-point High Density Reticular AF system
  • There are 15 custom functions and 6 personal functions for maximum customization
  • Optical transmission is available in addition to radio transmission
  • Quick Flash settings speeds up recycle time and flash duration
  • Manual power settings from 1/1 to 1/128 power in 1/3-stop increments
  • Flash color temperature information is automatically transmitted to the camera
  • Automatic power off function
  • Flash exposure compensation from -3 to +3 EV in 1/2 or 1/3 EV steps
  • PC sync port and remote release terminal for off-camera triggering
  • Flash duration of 1.8 ms or less, or 2.3 ms or less in Quick Flash mode
  • Stroboscopic setting from 1-500 Hz, or 1-199 Hz during optical transmission wireless shooting
  • Wireless flash ratio control from 1:8 to 1:1 to 8:1 in ½-stop increments
  • Compatible with ST-E3 Speedlite Transmitter
  • Approximately 100-700 flashes with AA alkaline batteries
  • Locking metal foot
  • Bracket mounting hole
  • Built-in retractable bounce card
  UPC: 013803270891
• Canon ST-E3-RT Speedlite Transmitter
  The Canon ST-E3-RT Speedlite Transmitter can help you take full advantage of all the features on Canon's Speedlite 600EX-RT and 430EX III-RT flashes. The ST-E3-RT makes complex lighting setups simple by facilitating radio-controlled, two-way wireless transmission up to 98.4' away, among up to five groups or fifteen individual Speedlites. It has controls similar to the Speedlite 600EX-RT, including multiple flash metering options, and a variety of flash modes. Compact design with highly reliable construction combined with a clearly laid-out information panel and buttons with back lighting make this an indispensible tool for advanced professional flash photography. The ST-E3-RT represents the next generation in wireless flash systems. Note: Because it does not have an optical transmission function, the Speedlite Transmitter ST-E3-RT is not compatible with earlier Speedlite models such as 580EX II.
  • Newly-designed wireless system uses 2-way radio wave communication for enhanced communication among master and slave units. Achieves a transmission distance of up to 98.4' (30 m), all at a 360 degree angle.
  • Up to 5 groups, or 15 individual flashes can be controlled via 1 transmitter.
  • Supports E-TTL II flash, manual flash, stroboscopic and auto external flash metering.
  • Dot matrix LCD panel displays all pertinent information simultaneously and backlit control panel means easy operation.
  • 8 types of custom functions, 3 types of personal functions.
  • Improved hot shoe contacts for more reliable information transmission and operation.
  • Slave operation confirmation:
    Green Light--Lit: Radio Transmissions Okay
    Red Light--Lit: Not Connected
    Blinking: Transmission Error/ Too many units
    Orange Light--Lit: Sub-master transmission
    Blinking: Receiving remote release shooting, linked shooting signal
  • Not compatible with earlier Speedlite models such as 580EX II
  UPC: 013803142488
• Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries
  The Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries. Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's. Eight individual LCD indicators give the charging status for each battery. Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.

  The charger's intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging. Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging. Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly. There's also a discharge function, allowing you to refresh the batteries prior to charging.

  The charger features an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation. The charger is powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go.
  • Charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries.
  • Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's.
  • Eight individual LCD indicators give the charging status for each battery.
  • Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.
  • Intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging.
  • Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging.
  • Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly.
  • There's also a discharge function, allowing you to refresh the batteries prior to charging.
  • Has an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation.
  • Powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go.
  UPC: 847628532922
• 2 x Watson MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh)
  Power various electronics, including photo equipment, flashlights, gaming devices, and more, with this 8-pack of 1.2V MX AA NiMH Batteries from Watson. The Japanese-made cells come pre-charged and ready for use with a capacity of 2550mAh, making them ideal for use in high-drain devices. Thanks to their very low self-discharge rate, they are capable of retaining up to 85% of their capacity after 1 year in storage. The batteries can be recharged up to 500 times before their usable capacity starts to diminish. Additionally, they are durable enough to function in temperatures as low as -4°F. UPC: 847628596856
• 2 x Watson Case for 4 AA or AAA Batteries (Black)
  This plastic Watson Battery Storage Case holds up to 4 AA or AAA batteries in dedicated slots. It has a compact form factor for easy storage in your pocket or a small compartment in your gear bag. The case has a snap closure and features an attachment point for connecting a second identical case, which could in turn be connected to another to create a chain, giving you an easy expansion option for storing more batteries. UPC: 847628006782
• 2 x Vello Universal Accessory Shoe Mount With 1/4" Screw and Knob
  The Vello Universal Accessory Shoe Mount With 1/4" Screw and Knob is a convenient, adjustable cold shoe that's designed to provide a secure fit for a wide variety of proprietary accessory shoes. A low-profile 1/4" screw with a low-profile knob is included for use with flash brackets.
  • Standard 1/4"-20 mounting thread
  • Includes 1/4" screw, low-profile knob
  • Accepts a variety of shoe-mounted accessories
  • Spring-tensioned adjustment allows one-handed use
  • Durable extruded aluminum alloy construction with discreet anodized finish
  • Attaches quickly and easily to flash brackets, tripods, light stands, super-clamps, etc
  UPC: 847628028913
• 2 x Impact 32" Convertible Umbrella
  This is an Impact 32" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This size is perfect for a 1 - 2 person head shot, or a 2x3 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013247
• 2 x Impact Umbrella Bracket
  The Impact Shoe Mount Umbrella Bracket is a versatile bracket that will fit on almost any light stand. It includes two removable, reversible studs to adapt to light stands with top studs smaller than the standard 5/8". This bracket tilts and swivels to make aiming the light or flash easy. It also includes a cold shoe mount, which will accept virtually any shoe-mount flash unit (except Minolta/Sony). Note: Not compatible with Nikon SB-900, SB-910, or Canon 600EX-RT. As an alternative, please see Impact #9101880.
  Two Removable Studs
  • The provided studs can be removed from the interior of the bracket by totally loosening the wing knobs and letting them slide out. These studs can be used to mount the bracket to a 1/4"-20 (standard) and 3/8" threaded stand or tripod tops. One stud is used for the flash shoe. The shoe may be unscrewed from this stud.
  Top Swivel Section
  • Identified by the small round umbrella socket and locking knob
  Bottom Section
  • Contains the locking swivel lever
  Vertical Or Horizontal Use
  • Once the stud is removed, the bracket may be mounted vertically, or horizontally out from the top of almost any stand with a 5/8" (Baby) top.
  UPC: 847628010819
• 2 x Impact Air-Cushioned Light Stand (Black, 8')
  This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 2 x Speedlite 600EX II-RT bzczdacfdyevrwvveyfzwwraswceycx
• SBA-E3 Bounce Adapter for 600EX II-RT
• SCF-E3 Color Filter for 600EX II-RT
• Mini Stand
• Speedlite Case
• Limited 1-Year Warranty

• ST-E3-RT Speedlite Transmitter bzczdacfdyevrwvveyfzwwraswceycx

• Watson - 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries

• 2 x Watson - MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh)

• 2 x Watson - Case for 4 AA or AAA Batteries (Black)

• 2 x Vello - Universal Accessory Shoe Mount With 1/4" Screw and Knob bzczdacfdyevrwvveyfzwwraswceycx

• 2 x Impact - Convertible Umbrella - White Satin with Removable Black Backing - 32"

• 2 x Impact - Umbrella Bracket

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Canon Speedlite 600EX II-RT

  Mount	Shoe
  Guide No.	197' / 60.05 m ISO 100 at 200 mm Position
  Exposure Control	E-TTL / E-TTL II, Manual
  Angle of Coverage	94° - 12° Wide-Angle Adapter: 114°
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Distance Range	1.64 to 98.43' (0.5 to 30 m) at f/1.4
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	PC, Proprietary
  Recycle Time	Approximately 0.1 to 5.5 Seconds
  Flash Duration	0.0018 to 0.0023 sec @ Full Power
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/2 and 1/3 EV steps)
  Wireless Operation	Method: RF Distance: Up to 98.43' / 30 m Method: Optical Pulse Distance: Up to 49.21' / 15 m
  Wireless Communication Channels	4 Channels
  Wireless Groups	5 Groups
  Power Source	4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	3.1 x 5.6 x 4.9" / 80.0 x 143.0 x 125.0 mm
  Weight	15.00 oz / 425.25 g without batteries

  Box Dimensions (LxWxH)	6.6 x 5.9 x 4.6"

• Canon ST-E3-RT Speedlite Transmitter

  Type	Radio transmissions wireless Speedlite transmitter
  Transmission Range	Approx. 98.4 ft. (30m)
  Flash Control	Ratio control: 1:8 - 1:1 - 8:1, power 1/2-stop increments
  Coverage	Flash coverage: Transmission Angle: 360° all around
  Power Source	2x AA/LRG Alkaline Batteries (Ni-MH and Lithium batteries can also be used) Battery Life: Approx. 10 hours continuously when using AA/LR6 alkaline batteries (At a room temperature of 73°F/+23°C).
  Dimensions	2.65 x 2.42 x 3.05" (67.4 x 61.5 x 77.4 mm)
  Weight	3.9 oz (110 g) excluding battery

  Box Dimensions (LxWxH)	6.3 x 4.7 x 4.4"

• Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Charging Bays	8 x AA, AAA
  Supported Battery Chemistry	Ni-Cd, Ni-MH
  Charging Voltage	1.5 VDC
  Charging Amperage	250 to 500 mA
  DC Input Power	12 VDC at 1300 mA
  Charger Dimensions	7.8 x 3.1 x 1.2" / 198.00 x 79.00 x 31.00 mm
  Charger Weight	4.2 oz / 120 g

  Certifications	ETL, RoHS, as per Manufacturer

  Box Dimensions (LxWxH)	7.9 x 6.0 x 3.4"

• 2 x Watson MX AA NiMH Batteries (8-Pack, 1.2V, 2550mAh)

  Battery Type	8 x AA
  Battery Chemistry	NiMH
  Battery Voltage	1.2 V
  Capacity (mAh)	2550 mAh

  Box Dimensions (LxWxH)	5.984 x 2.756 x 0.551"

• 2 x Watson Case for 4 AA or AAA Batteries (Black)

  Battery Type	4 x AA, AAA
  Material	Plastic
  Closure Type	Snap Fastener
  Dimensions (W x H x D)	2.5 x 2.0 x 0.5" / 6.3 x 5.1 x 1.3 cm
  Weight	0.4 oz / 11 g

  Box Dimensions (LxWxH)	2.0 x 2.0 x 1.0"

• 2 x Vello Universal Accessory Shoe Mount With 1/4" Screw and Knob

  Construction	Anodized aluminum alloy
  Color	Semi-matte black
  Mounting Thread	1/4"-20
  Adjustment Range	0.75" - 1.1875" (19.1 - 30.2 mm)
  Dimensions	Bottom plate: 1.125 x 0.75" (28.6 x 19.1 mm) Height: 0.625" (15.9 mm) [excluding bottom screw] Minimum width including adjustment screw: 1.75" (44.5 mm) Maximum width including adjustment screw: 2.0" (51.0 mm)

  Box Dimensions (LxWxH)	3.0 x 2.3 x 0.8"

• 2 x Impact 32" Convertible Umbrella

  Size	32.0" / 81.3 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 23.0" / L: 58.4 cm

  Box Dimensions (LxWxH)	24.0 x 2.1 x 0.2"

• 2 x Impact Umbrella Bracket

  Box Dimensions (LxWxH)	8.45 x 5.95 x 2.7"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
