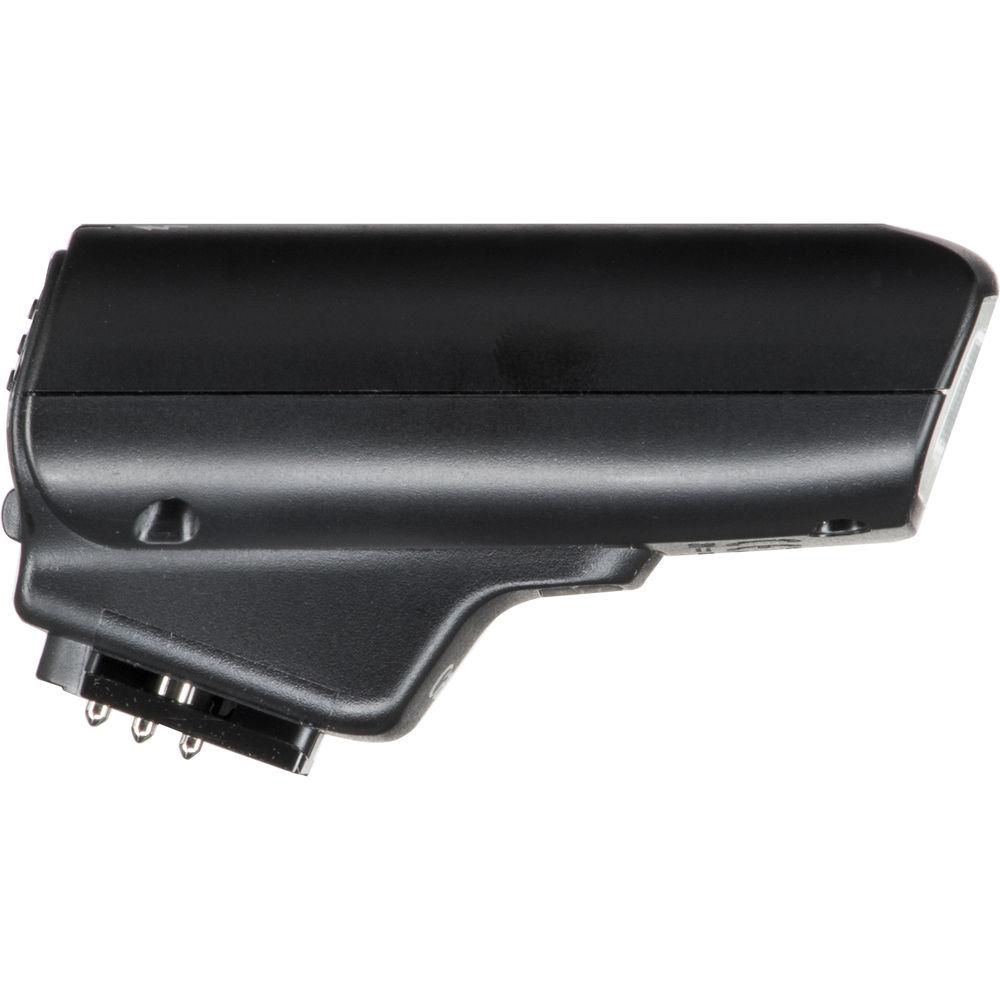

User Manual for Canon Speedlite 90EX Click to enlarge the picture
Contents of the user manual for the Canon Speedlite 90EX
- Product category: On Camera Flashes Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon On Camera Flashes
 |
User manual for the Canon Speedlite 90EX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

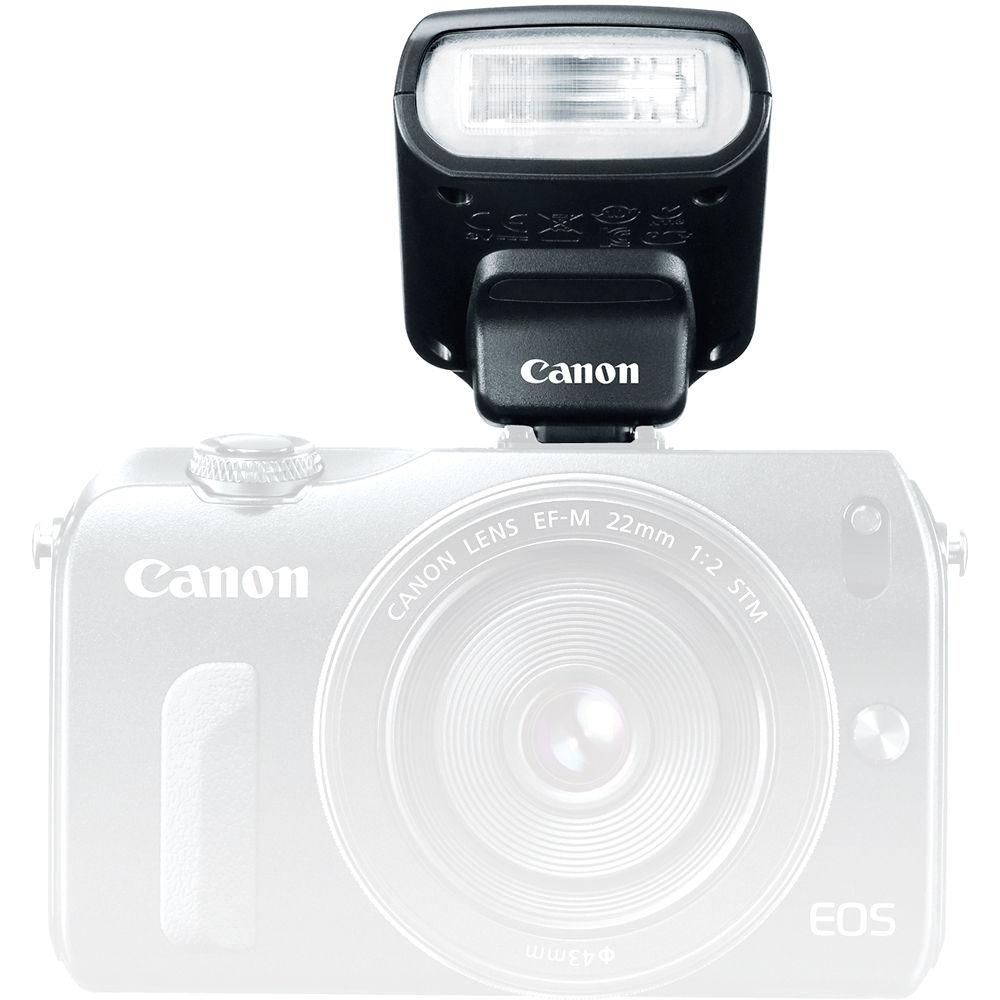

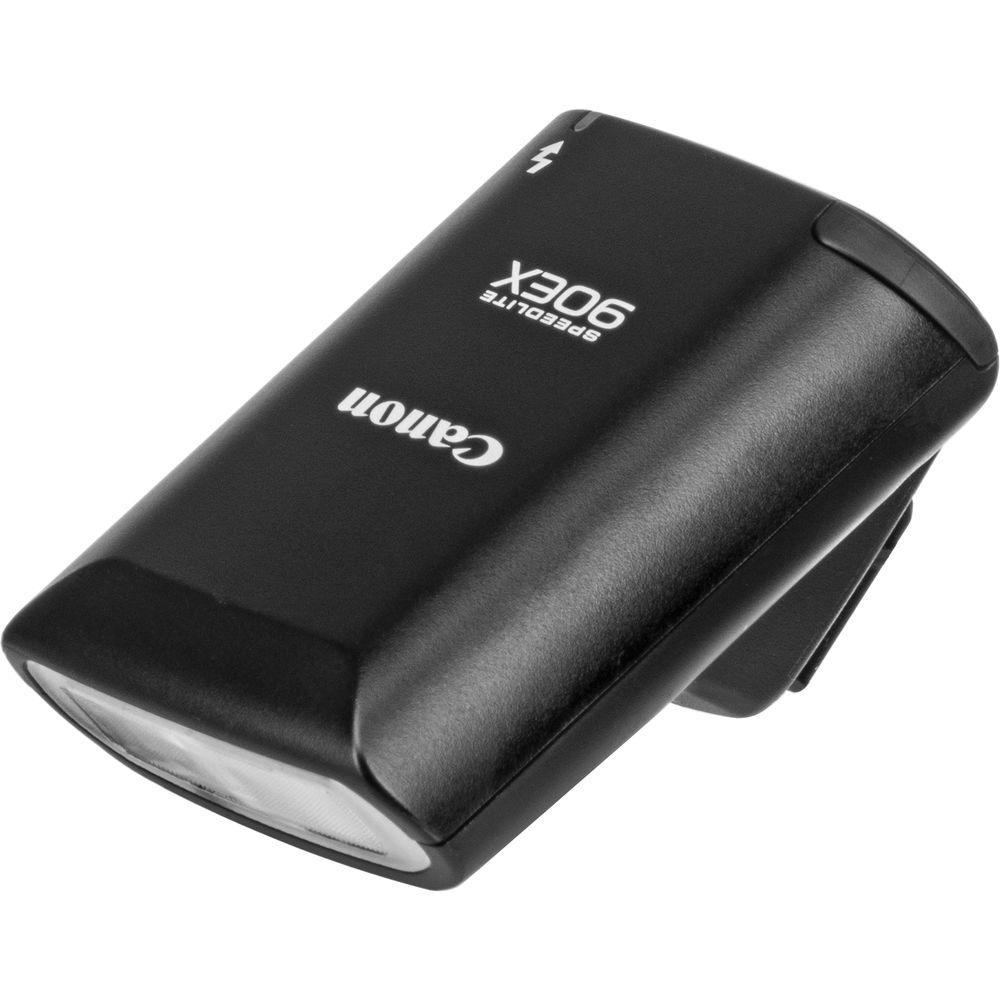

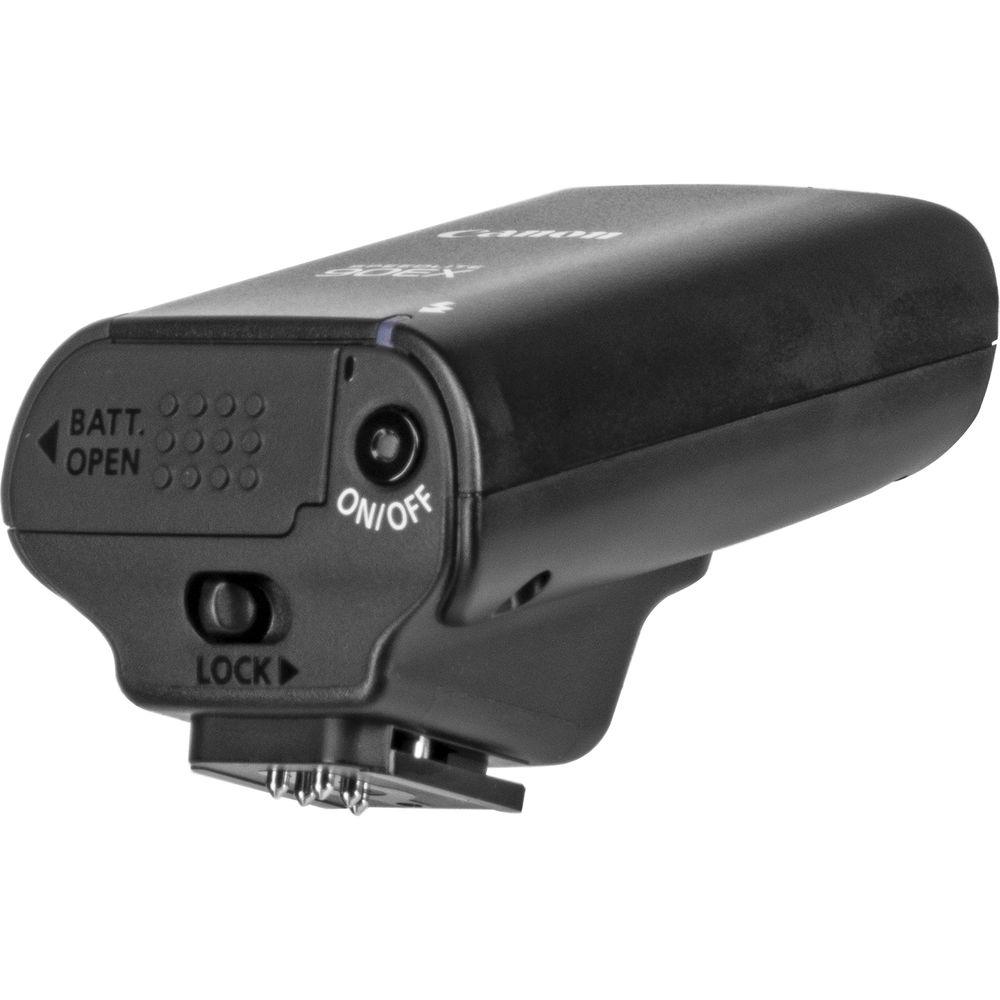

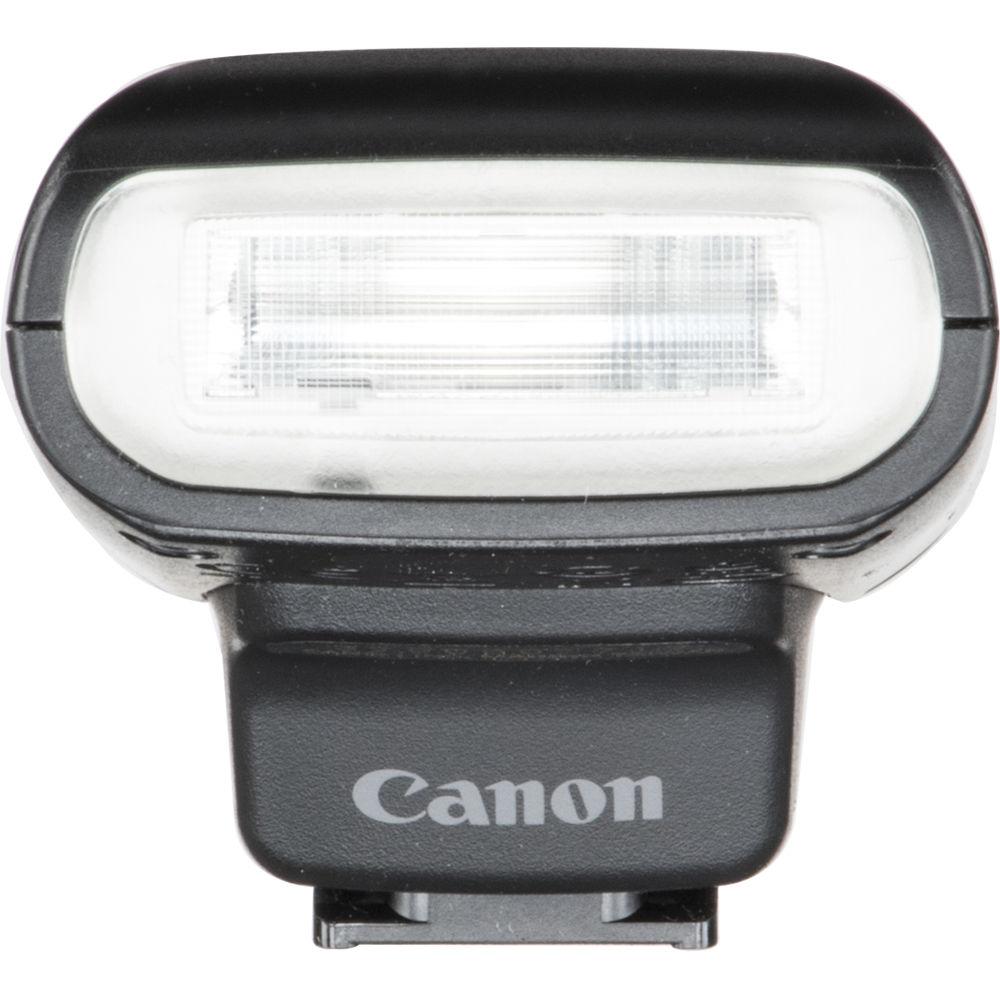

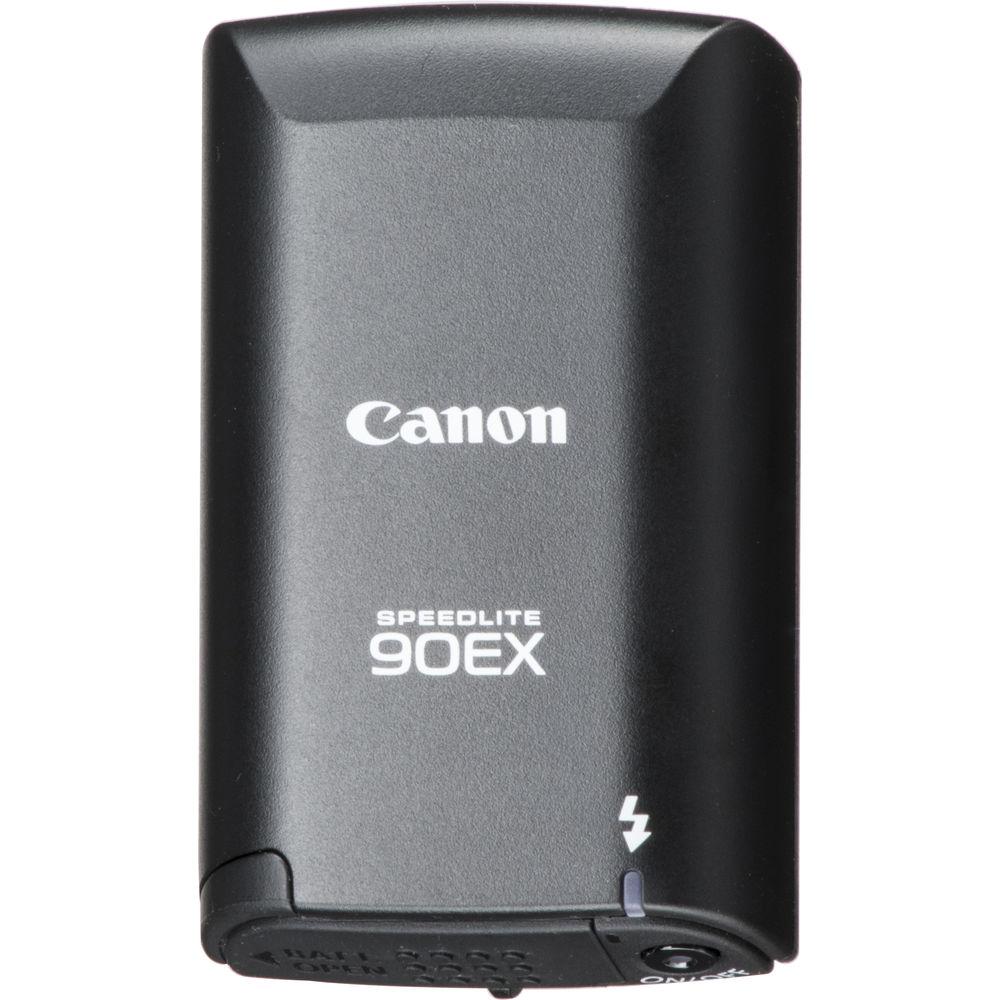

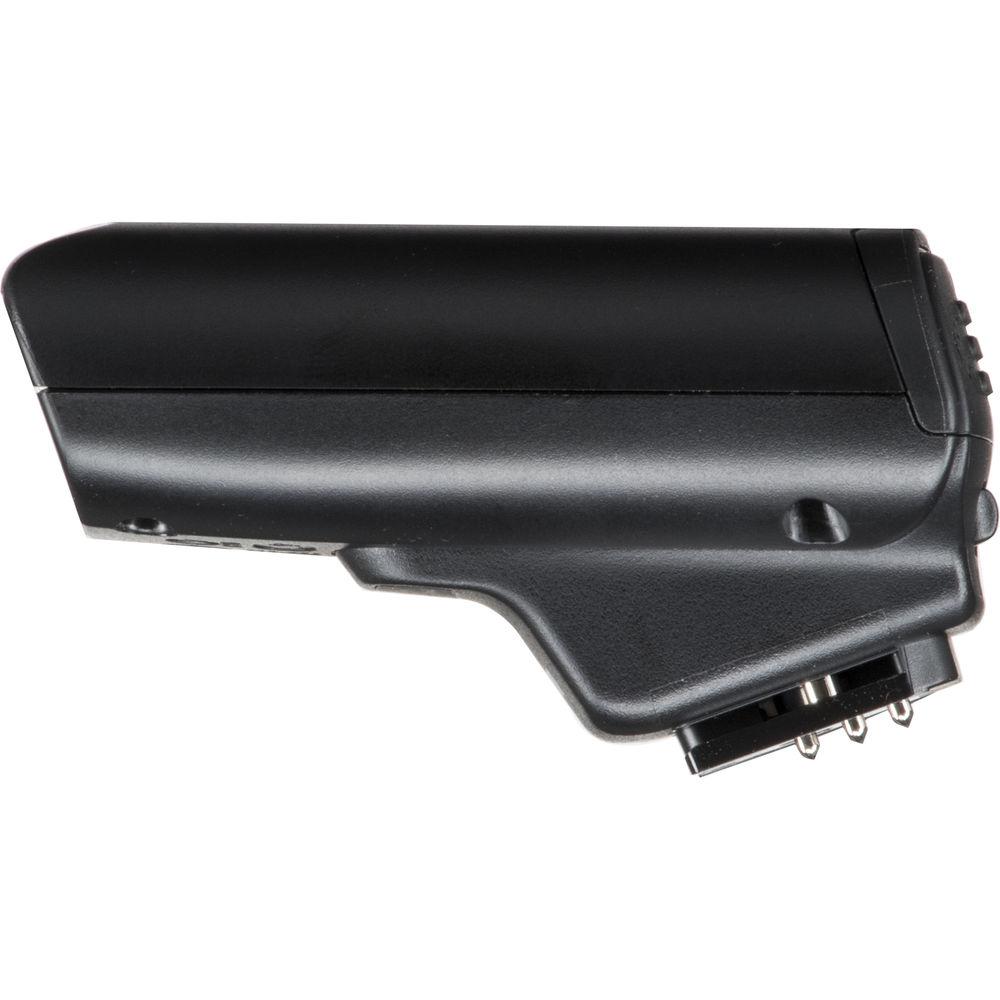

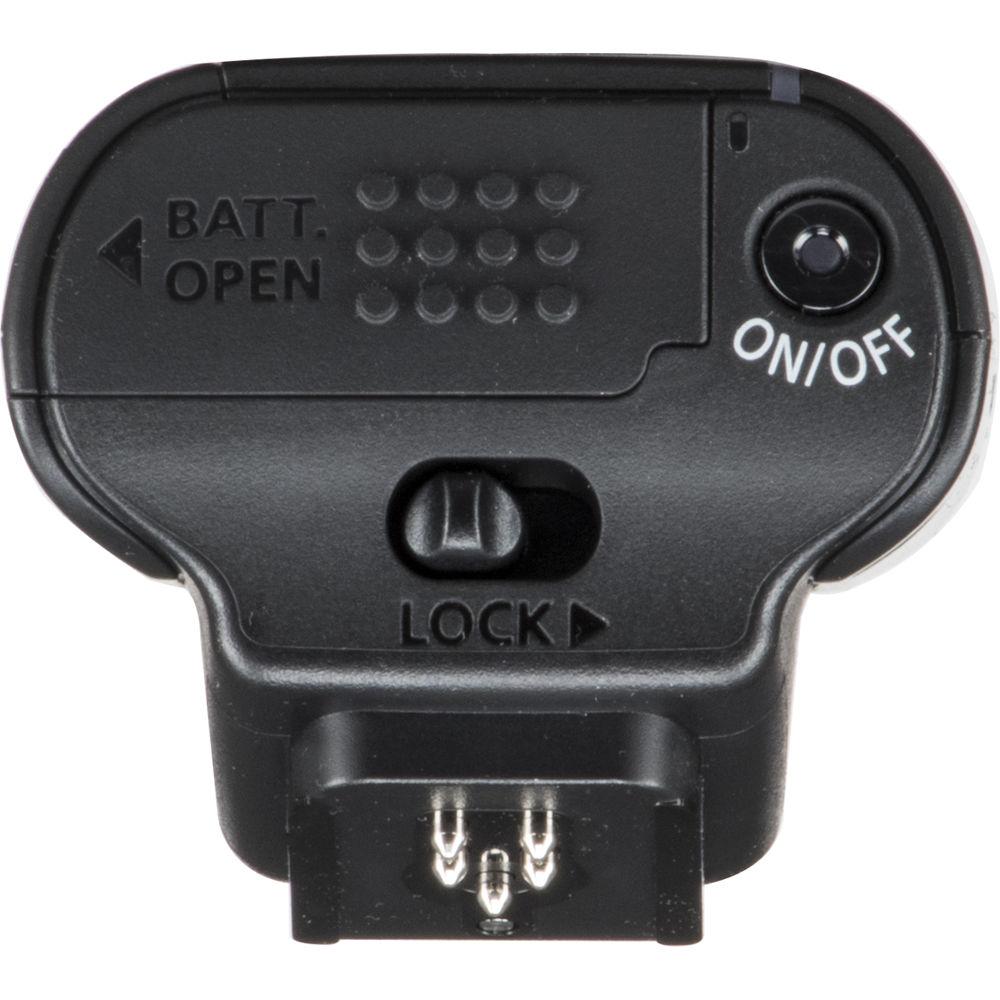

Product description A Guide to On-Camera Flash Read More The Speedlite 90EX from Canon is a featherweight (1.76 oz) shoe mount flash that's ideal for the Canon mirrorless EOS M digital camera. It has a guide number of 30' and provides coverage for lenses as wide as 24mm (35mm format equivalent). Many functions can be controlled effortlessly through the camera’s menu system, such as the AF assist beam (used to ensure accurate AF in low light situations), Canon’s amazing E-TTL II flash metering, FE lock and flash exposure compensation. Even color temperature information can be transmitted back to the camera. A wireless master function (optical) is built-in that allows multiple flash units to be controlled for creative lighting effects. Through 4-channel optical light pulse transmission, the 90EX can control up to three groups of slave-enabled flashes, controlling power from 8:1 to 1:8 in 1/2-stop increments. It can transmit up to approximately 16.4 ft. indoors, up to 23 ft. outdoors. Best of all, the 90EX has a standard Canon hot shoe mount that makes it compatible with all Canon EOS SLR cameras.
The product comes supplied in a plain white box, instead of the manufacturer's packaging. It includes all the manufacturer's accessories. - Many functions can be controlled through the camera's menu system, such as the AF assist beam (used to ensure accurate AF in low light situations), Canon's amazing E-TTL II flash metering, FE lock and flash exposure compensation. Even color temperature information can be transmitted back to the camera with a simple touch.
- For a number of advanced lighting setups, the Speedlite 90EX can be used as a master transmitter to control multiple flash units-wirelessly! Through 4 channel optical light pulse transmission, the Speedlite 90EX can control up to three groups of slave-enabled flashes, controlling power from 8:1 to 1:8 in 1/2-stop increments. It can transmit up to approximately 16.4 ft. indoors, up to 23 ft. outdoors.
- With wide-angle coverage up to 15mm (24mm in 35mm terms) the Speedlite 90EX is designed to work perfectly with a number of popular wide-angle zoom and fixed length lenses.

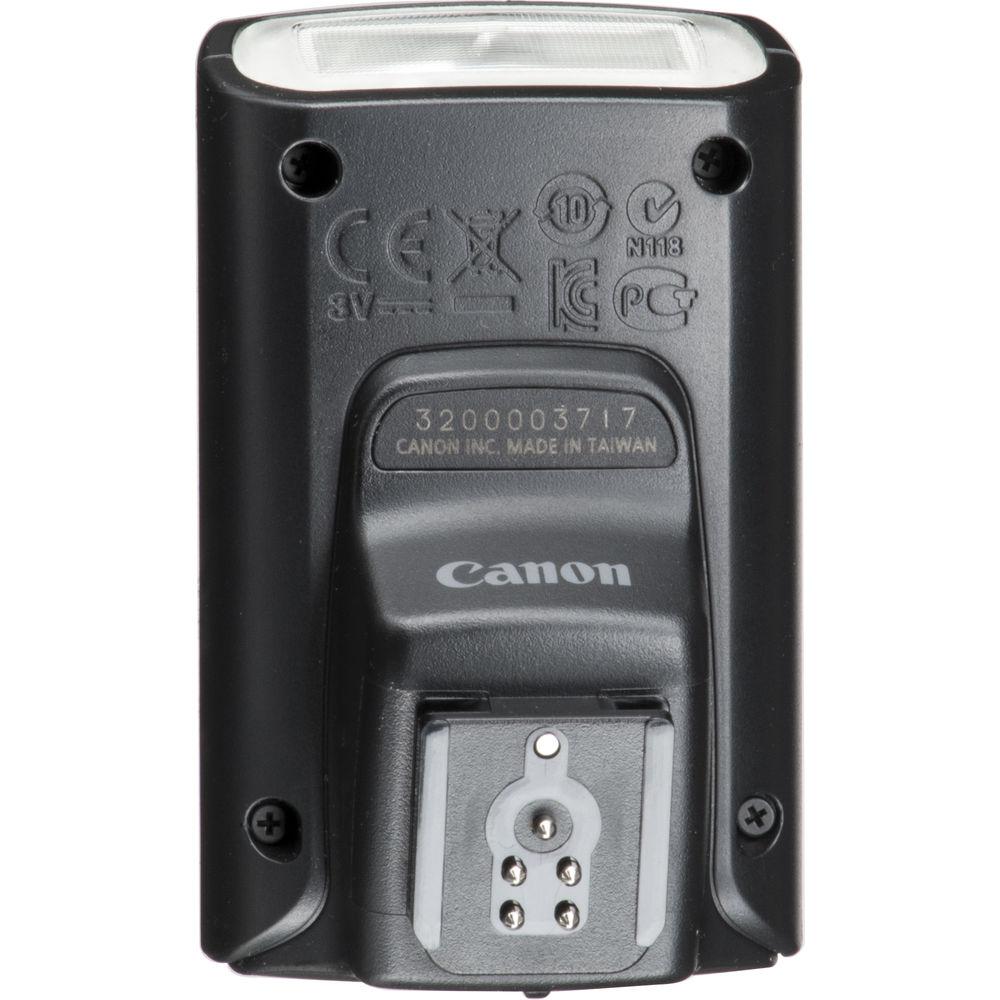

- Standard Canon hot shoe mount for compatibility with all EOS SLRs
In the Box Canon Speedlite 90EX (White Box) Soft Case User Manual PDF 5.3mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite 90EX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 90EX Specs | Mount | Shoe | | Guide No. | 30' / 9.14 m ISO 100 | | Angle of Coverage | 84° | | Bounce Head | None | | Swivel Head | None | | Coverage | - mm (Full Frame) | | Distance Range | 3.28 to 14.76' (1 to 4.5 m) at f/2 | | Zoom Head | None | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) In-camera control | | Wireless Operation | Method: Optical Pulse
Distance: Up to 22.97' / 7 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 2 x AAA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 1.7 x 2.0 x 2.6" / 44.3 x 52.0 x 65.0 mm | | Weight | 1.76 oz / 50 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.8 x 3.4 x 3.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
