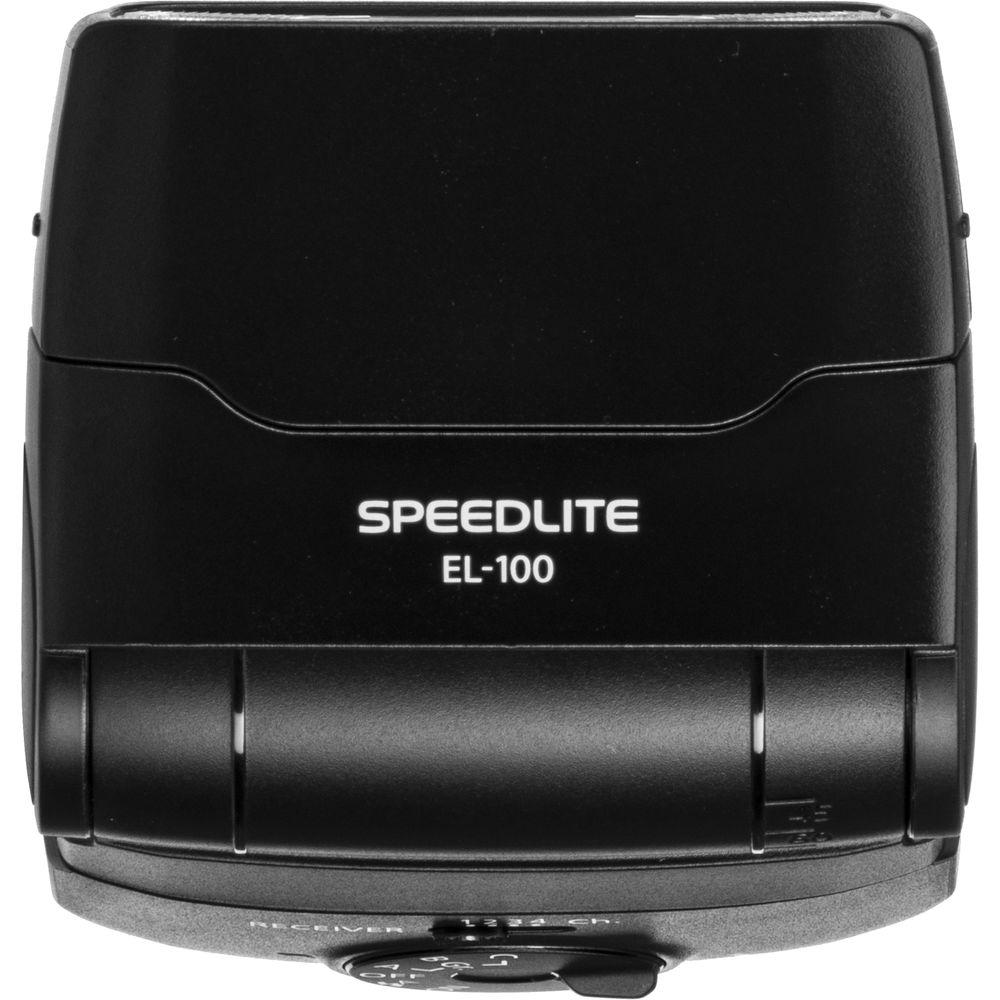

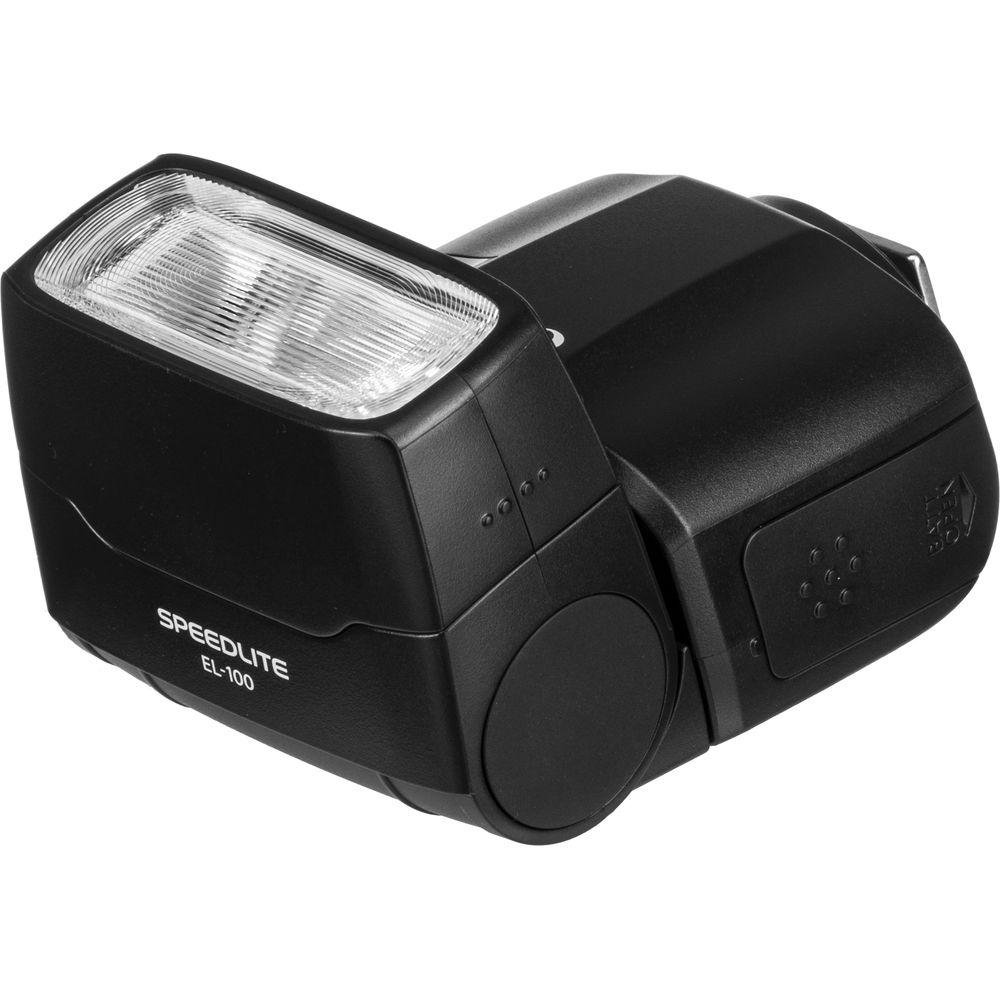

User Manual for Canon Speedlite EL-100 Click to enlarge the picture
Contents of the user manual for the Canon Speedlite EL-100
- Product category: On Camera Flashes Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon On Camera Flashes
 |
User manual for the Canon Speedlite EL-100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

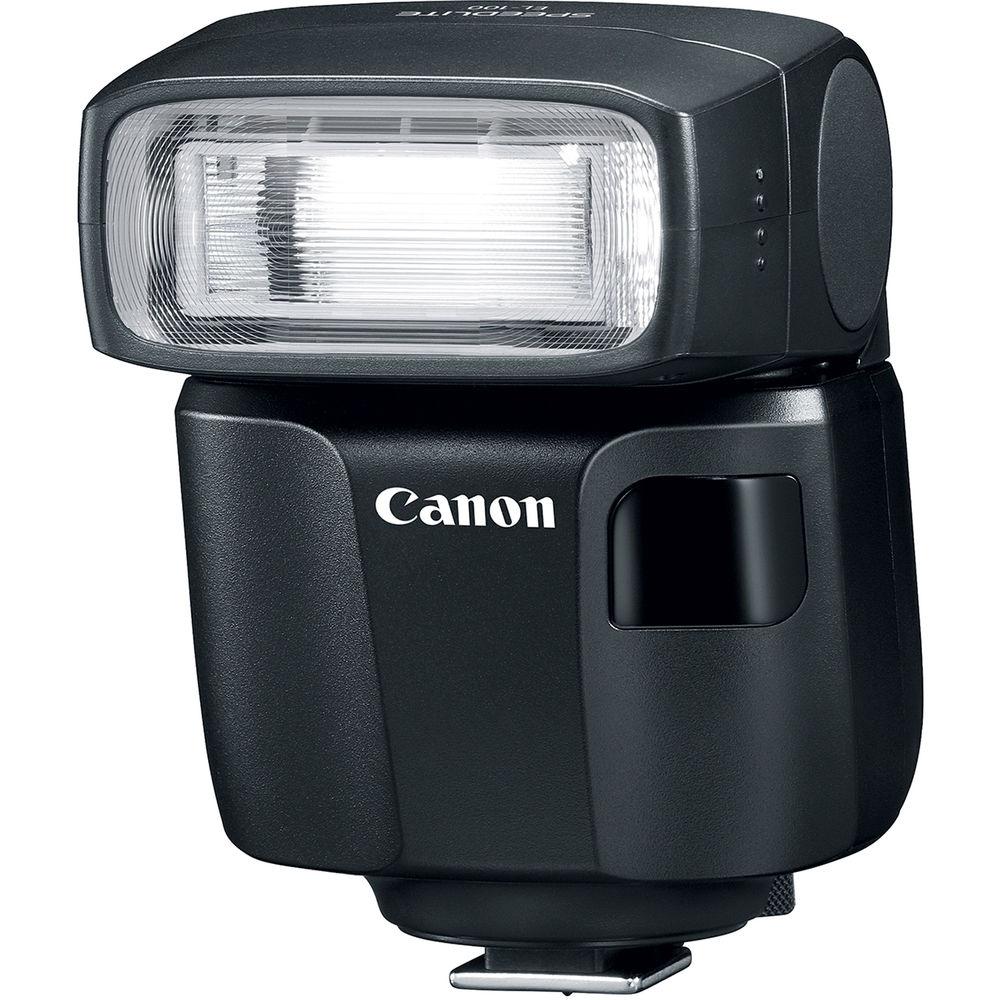

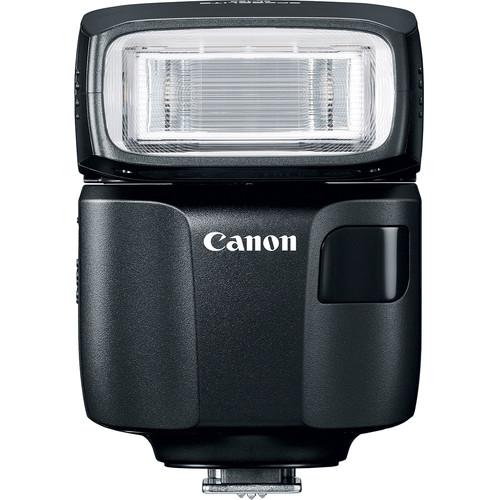

Product description A Guide to On-Camera Flash Read More Simple and compact, the Speedlite EL-100 from Canon is a sleek strobe designed to give you more control, flexibility, and power than your camera's built-in flash. Offering a guide number of 85.3' at ISO 100 and 50mm, this flash also has a 90° tilting range, 330° rotating, and a similar spread to that of a 24mm to suit working in a variety of indoor and outdoor situations. The mode dial on the rear allows for easy group selection or it can also be set to AUTO to allow your camera to determine when flash is necessary. Also, for off-camera use, an optical receiver allows for triggering from up to 36' away. For creative applications, a stroboscopic mode can be used for unique effects during long exposures or second-curtain sync helps to emphasize moving subjects. - Guide number of 85.3' at 50mm and ISO 100

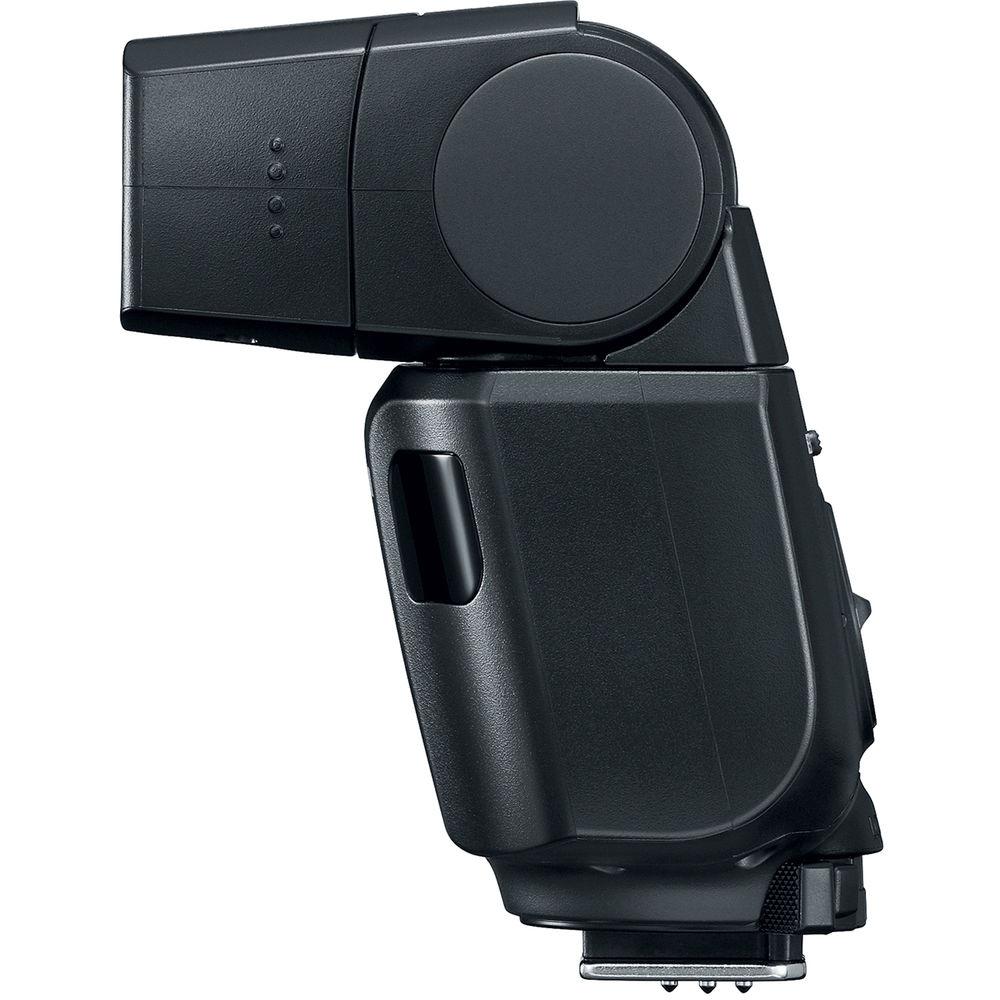

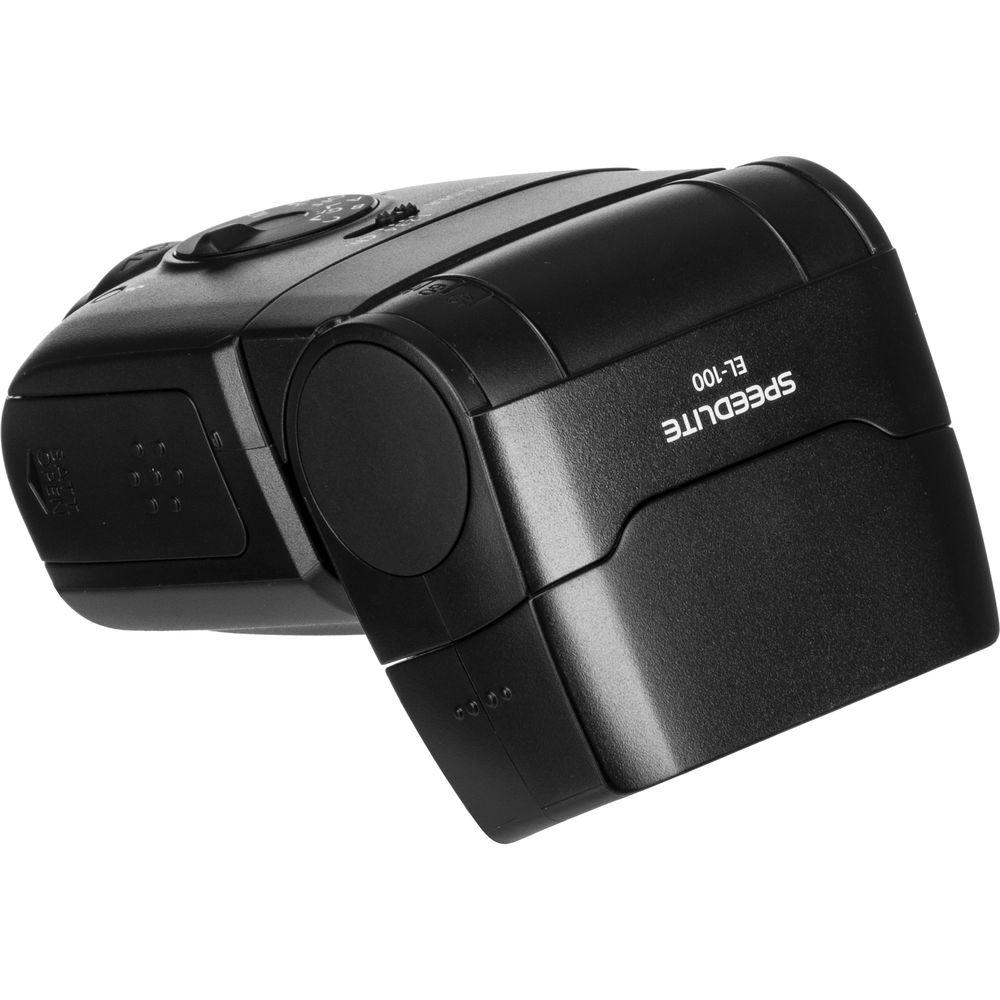

- Flash head offers 0 to 90° of tilt along with 150°/180° of rotation for full bounce flash capabilities
- Both 24mm and 50mm focal length positions to better suit working with different lenses
- Adjustable output settings from 1/1 to 1/128 power

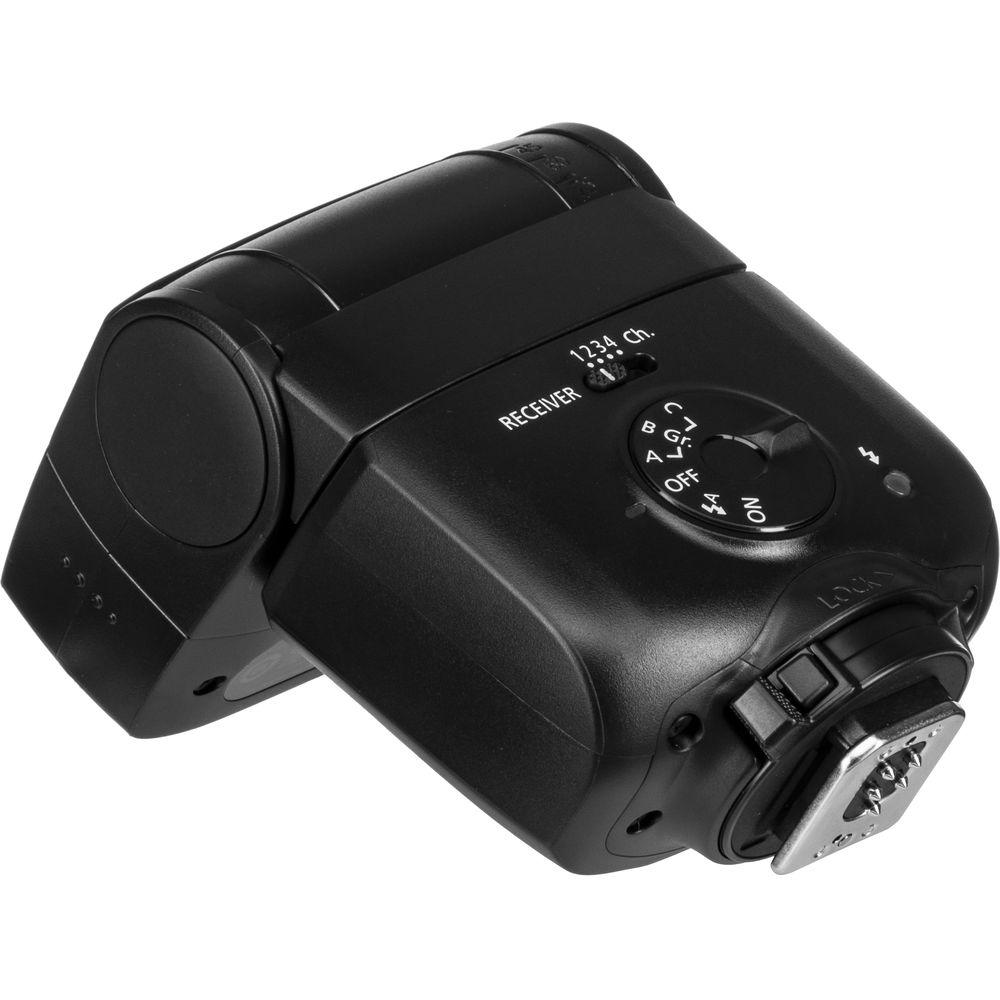

- Mode dial features an AUTO setting to allow your camera to determine whether or not the flash is needed and will fire when necessary

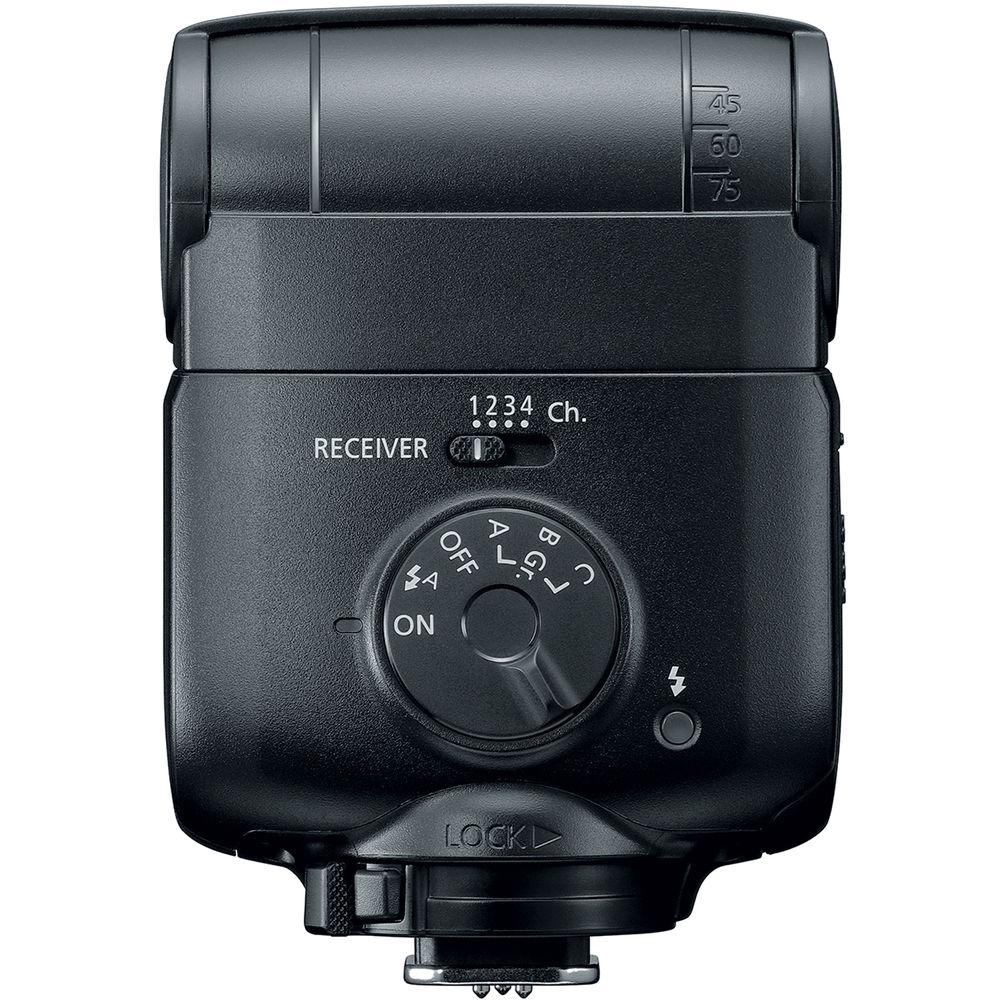

- Mode dial also permits choosing between three flash groups and a slider permits selecting between four channels
- Optical receiver mode for off-camera triggering
- Stroboscopic setting for rapid, repeating firing that can be used for creative effects during long exposures
- AF assist beam benefits focusing performance in low light

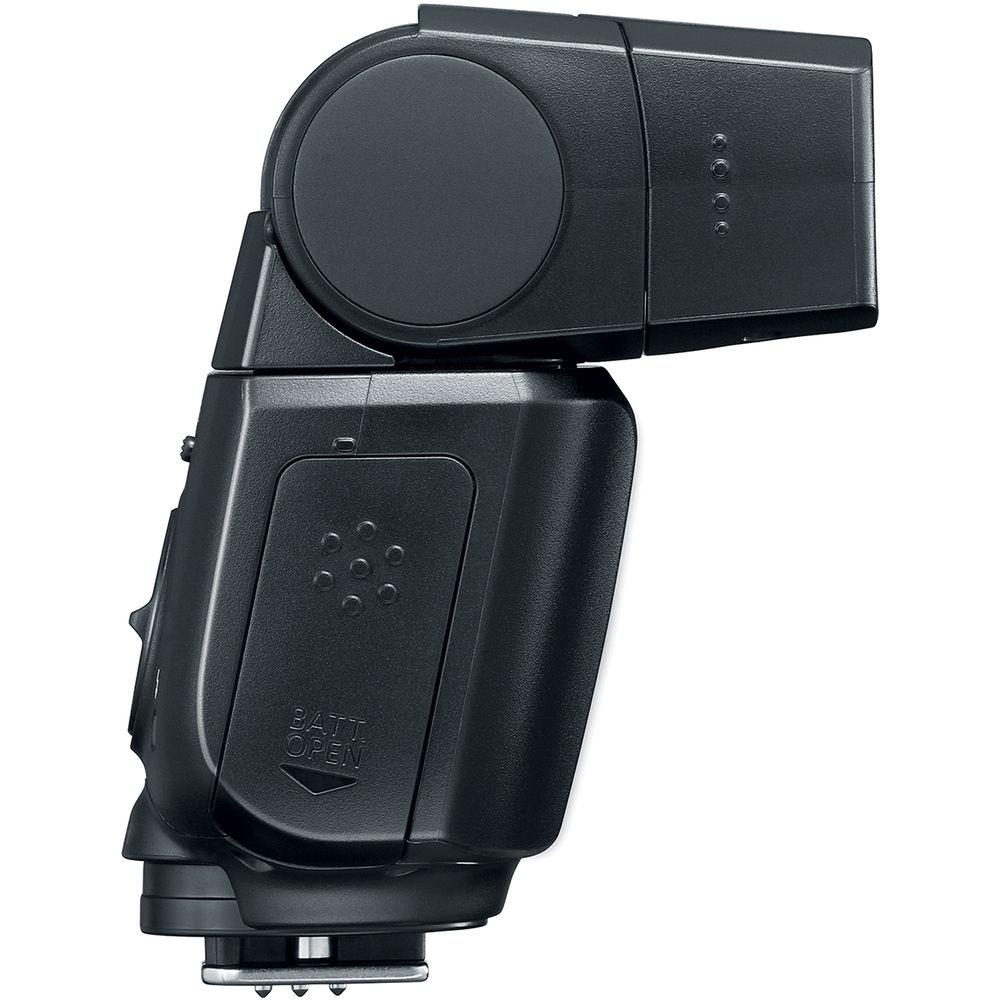

- Accepts two AA batteries as its power source
UPC: 013803309621 In the Box Canon Speedlite EL-100 Soft Case Mini Stand Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Speedlite EL-100 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

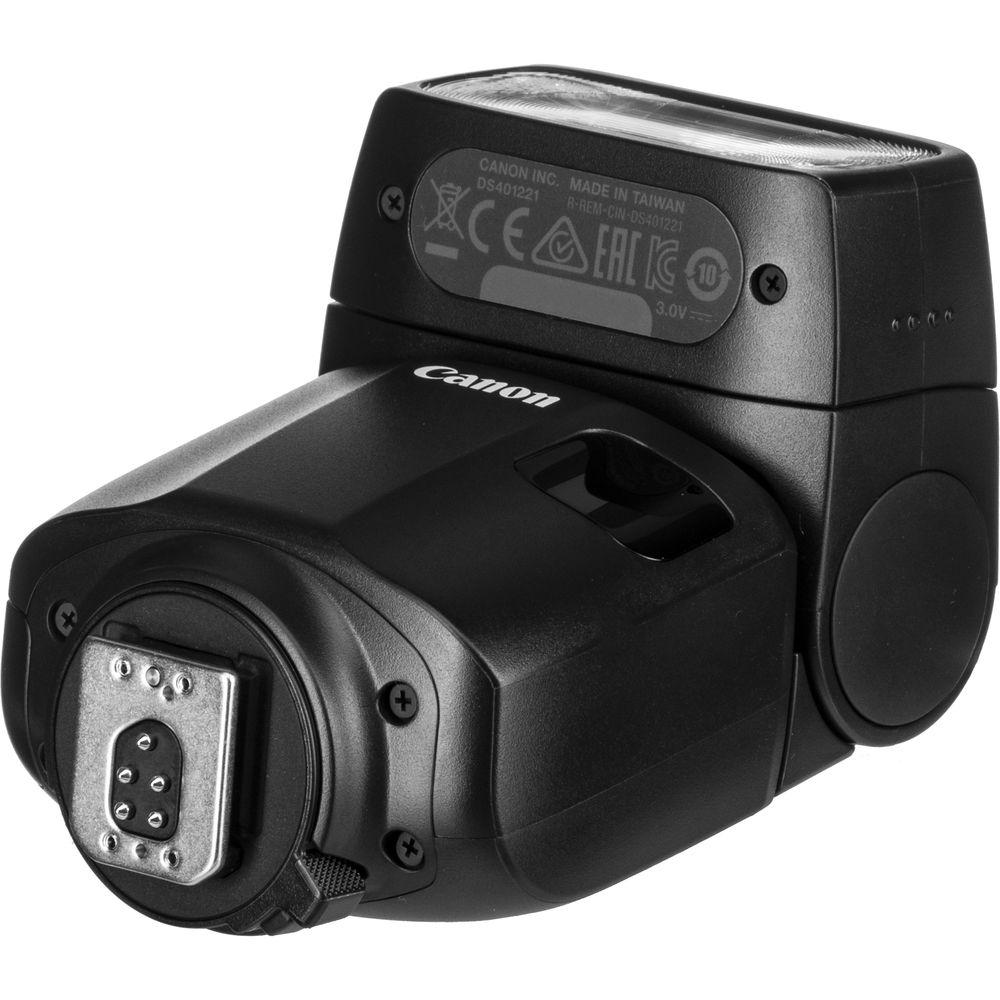

Technical parametersCanon EL-100 Specs | Mount | Shoe | | Guide No. | 85.3' / 26 m ISO 100 at 50 mm Position | | Exposure Control | E-TTL / E-TTL II | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | 0 to +90° | | Swivel Head | 330° | | Coverage | Up to 24 - 50 mm (Full Frame) | | Distance Range | 2.30 to 61.02' (0.7 to 18.6 m) at f/1.4 | | Zoom Head | Full Frame: 24 - 50 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 5.8 Seconds | | Flash-Ready Indicator | Yes | | Slave Timing Modes | None | | Wireless Operation | Method: Infrared
Distance: Up to 36.09' / 11 m | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 2 x AA Batteries | | Dimensions (W x H x D) | 2.5 x 3.6 x 2.8" / 64.6 x 91.7 x 71.0 mm | | Weight | 6.70 oz / 190 g without batteries | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 2.5" |
