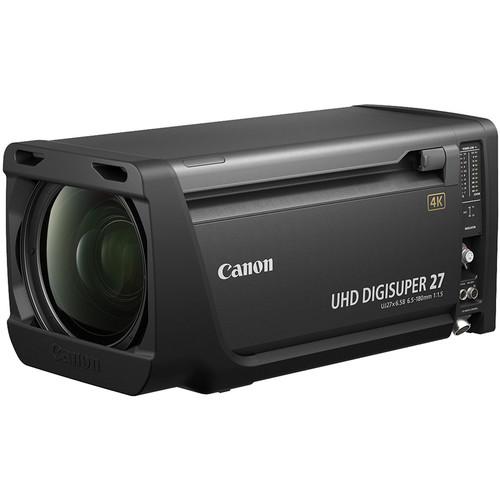

User Manual for Canon UHD DIGISUPER 27 4K Studio Lens Click to enlarge the picture
Contents of the user manual for the Canon UHD DIGISUPER 27 4K Studio
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon UHD DIGISUPER 27 4K Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The UHD DIGISUPER 27 4K Studio Lens (Semi Servo) is Canon's flagship 2/3" box-style studio lens. This wide lens features a 27x zoom range (6.5-180mm) and a maximum aperture of f/1.5 at 6.5-123mm. When using the built-in 2x extender, the zoom range becomes 13-360mm. The UHD DIGISUPER 27 is constructed with a proprietary lens coating and anti-reflection materials, improving contrast and color reproduction, while minimizing ghosting and flares. The resulting images enhance your camera's HDR (high dynamic range) feature. The 4K-quality resolution is maintained even when using the UHD DIGISUPER 27's 2x extender. This Semi Servo version of the UHD DIGISUPER 27 includes a ZDJ-P01 Zoom Demand, an SMJ-E01 Servo Module, an FFP-T61 Focus Demand, and a 36" Flex Cable. The lens is compatible with these and other established Canon servo components. The UHD DIGISUPER 27 also features 16-bit optical rotary encoders to capture the lens data required when shooting with virtual or robotic systems. Key Features - 6.5-180mm zoom lens for 2/3" cameras with integrated 2x extender producing a 13-360mm range
- Fast f/1.5 maximum aperture at 6.5-123mm and f/2.2 at 180mm, with f/3.0 at 13-246mm and f/4.4 at 360mm using the 2x extender
- The lens's 4K UHD image quality is preserved even when using the 2x extender
- 16-bit optical rotary encoders capture lens data for use with virtual and robotic systems
- Anti-reflective materials and a proprietary lens coating help to minimize internal reflections, ghosting and flares
- Focus and zoom servo components are included; focus and zoom operation has been improved over prior models
In the Box Canon UHD DIGISUPER 27 4K Studio Lens (Semi Servo) ZDJ-P01 Digital Servo Zoom Demand rxbrbzafcsdxbbxw SMJ-E01 Servo Module FFP-T61 Flexible Focus Controller for DIGISUPER Series Lenses Flexible Cable for Flexible Zoom/Focus Control (36") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon UHD DIGISUPER 27 4K Studio Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 6.5-180mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 6.5 to 180mm
With Extender: 13 to 360mm | | Built-In Extender | 2x | | Zoom Ratio | 27x | | Angle of View | 16:9
Wide: 72.9 x 45.1° (H x V)
Tele: 3.1 x 1.7° (H x V)
16:9 With 2x Extender
Wide: 40.5 x 23.5° (H x V)
Tele: 1.5 x 0.9° (H x V) | | Maximum Aperture | f/1.5 to 2.2
With Extender: f/3 to 4.4 | | Minimum Object Distance | 2' / 0.6 m | | Dimensions | 21.7 x 9.9 x 10.1" / 550.0 x 250.6 x 255.5 mm (L x W x H) | | Weight | 47.4 lb / 21.5 kg |
