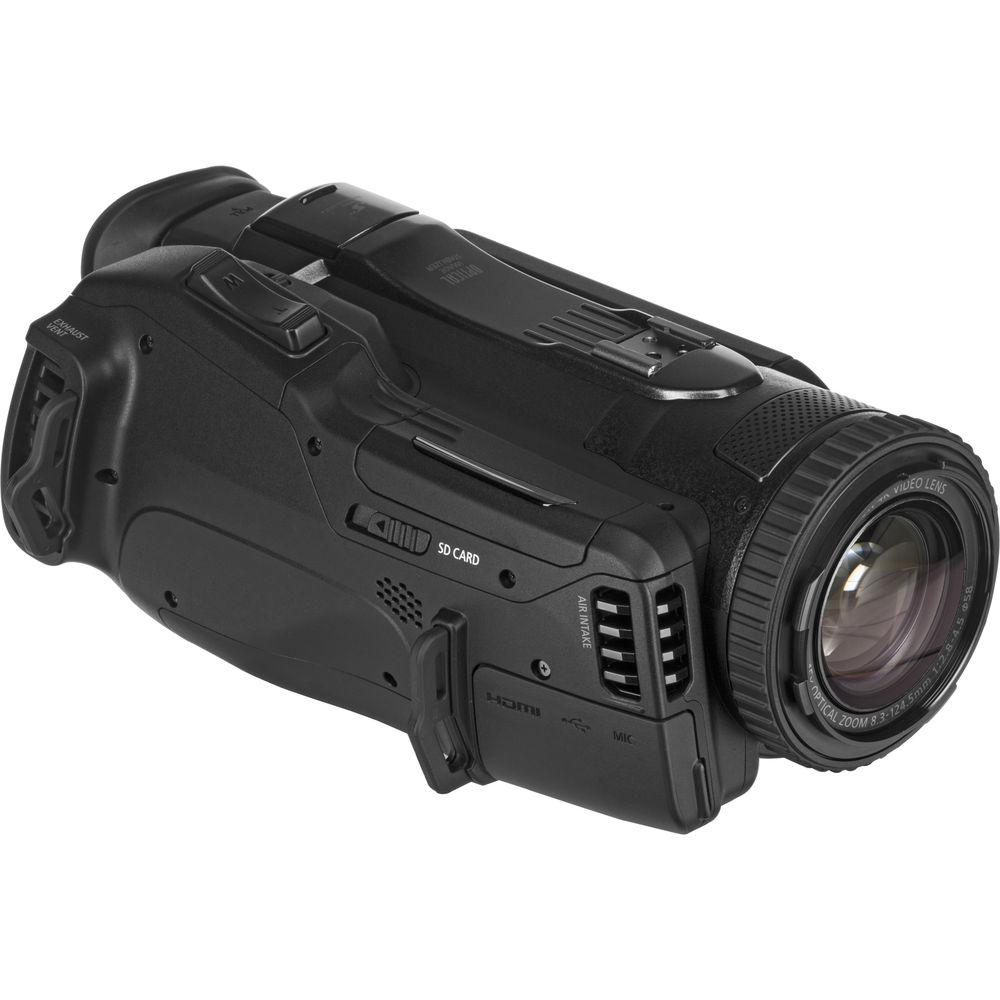

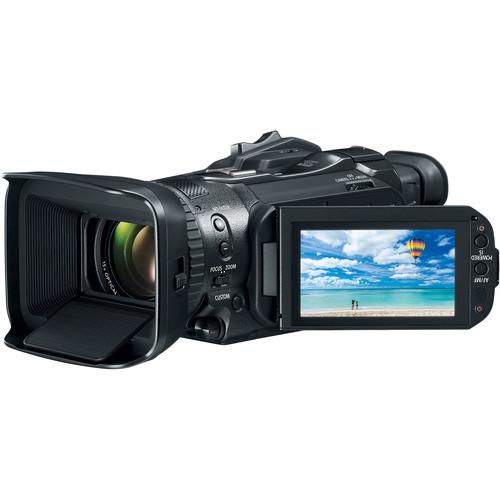

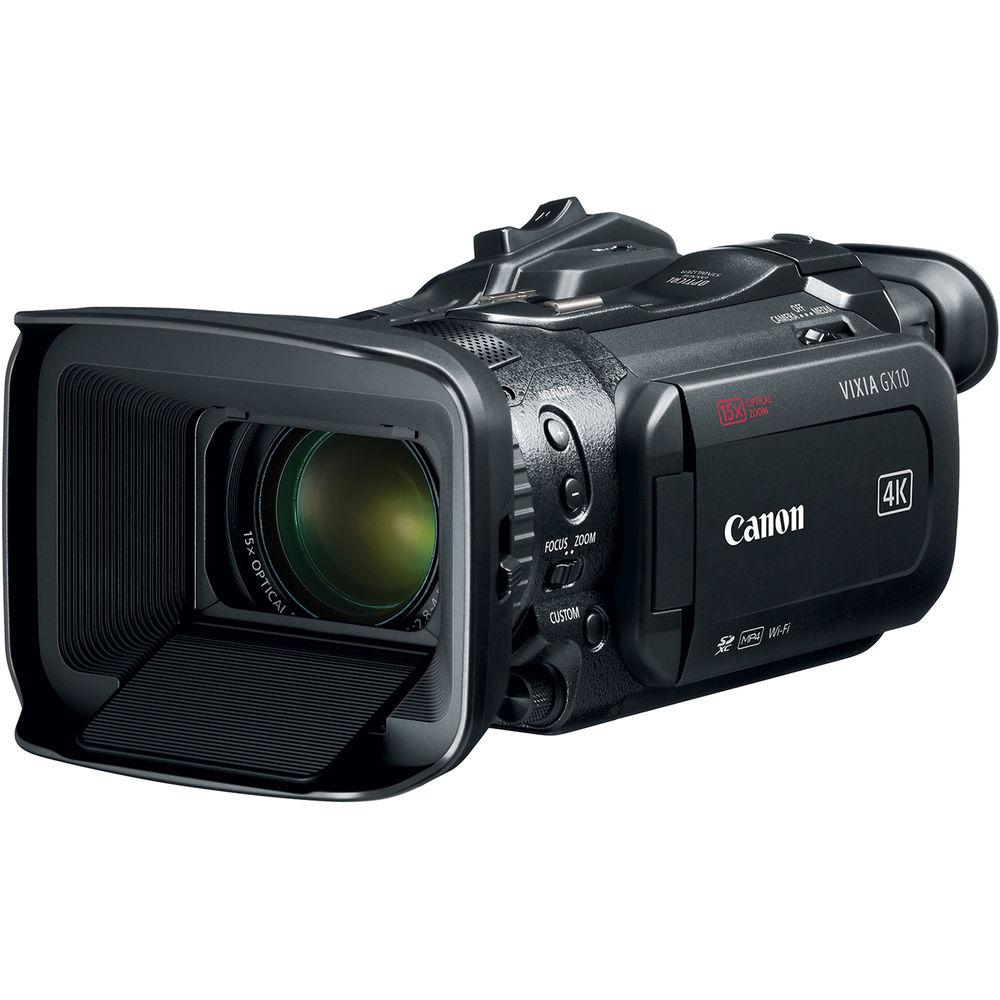

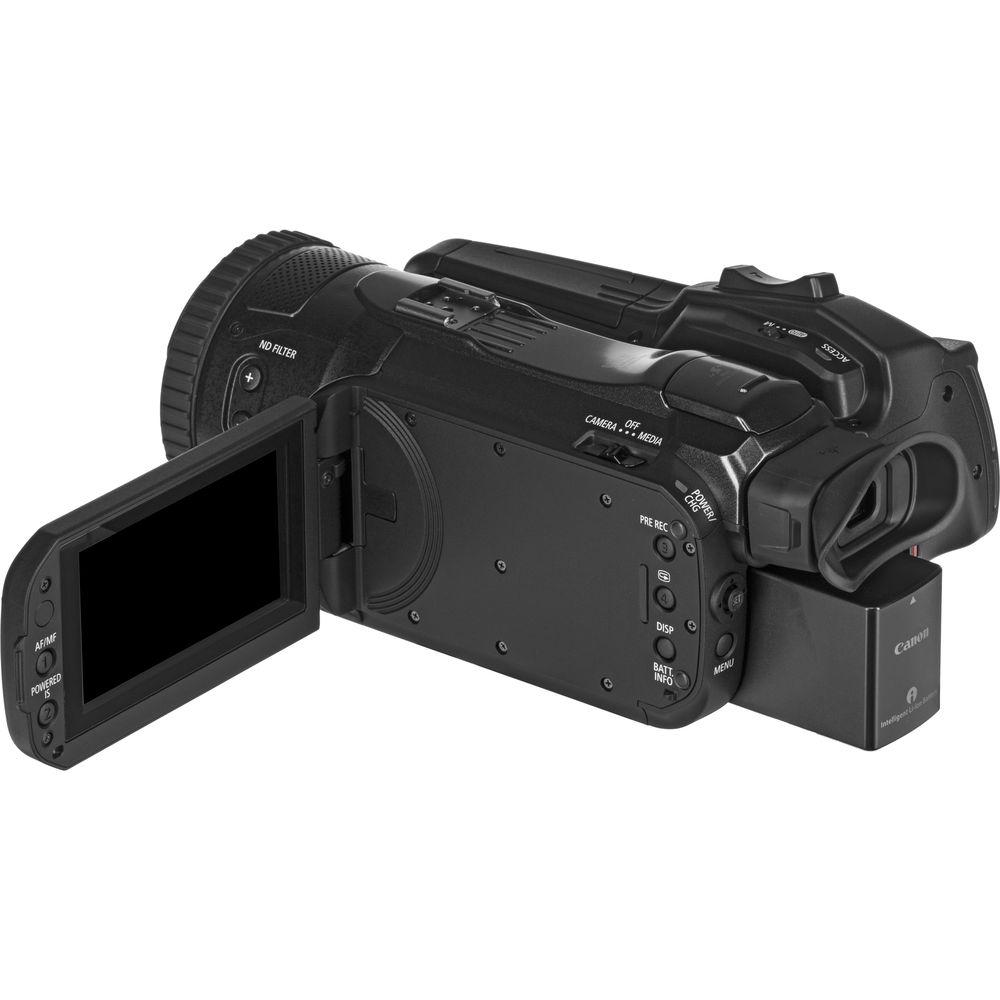

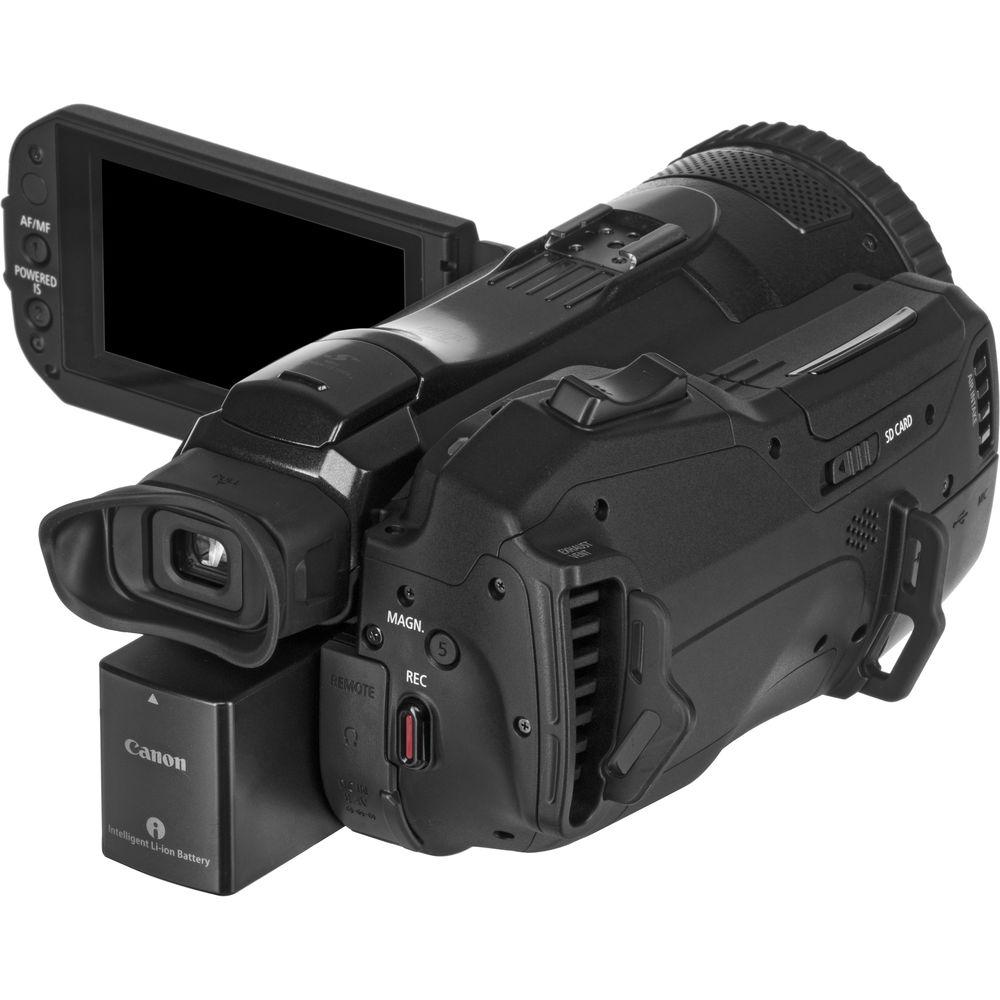

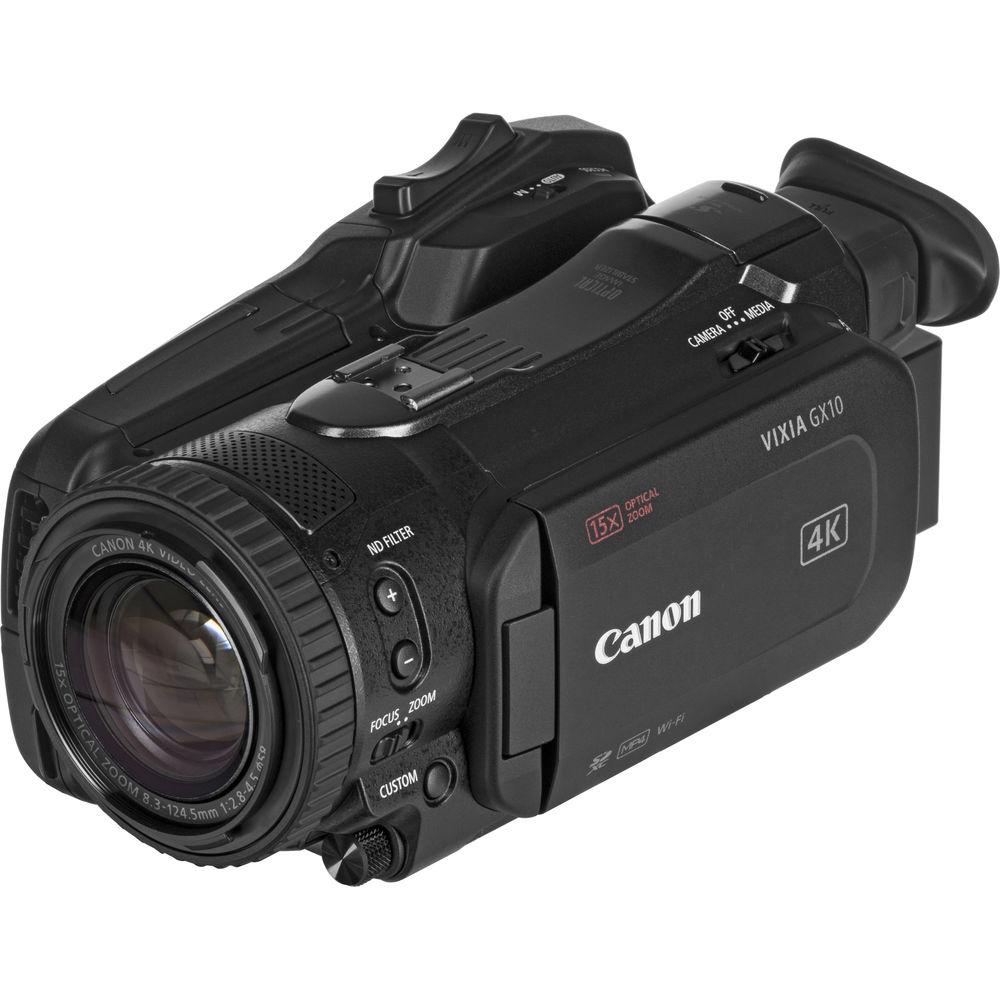

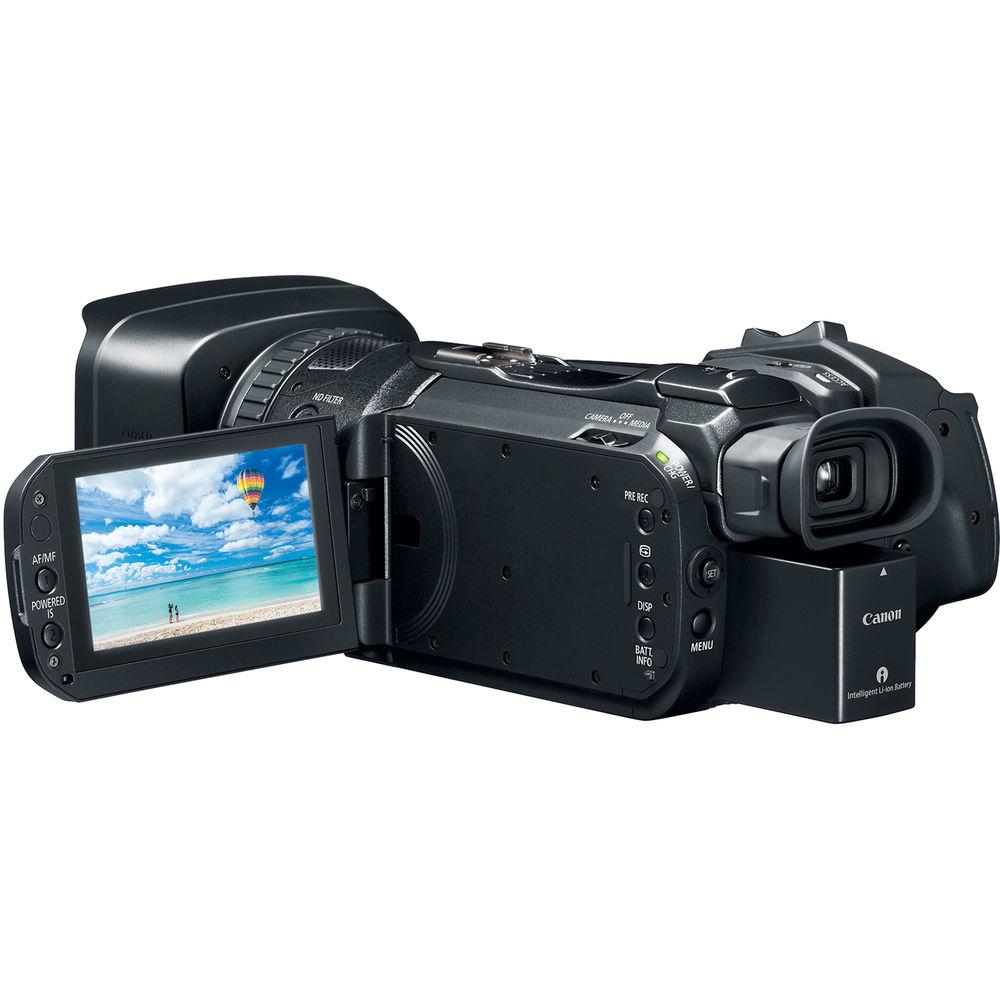

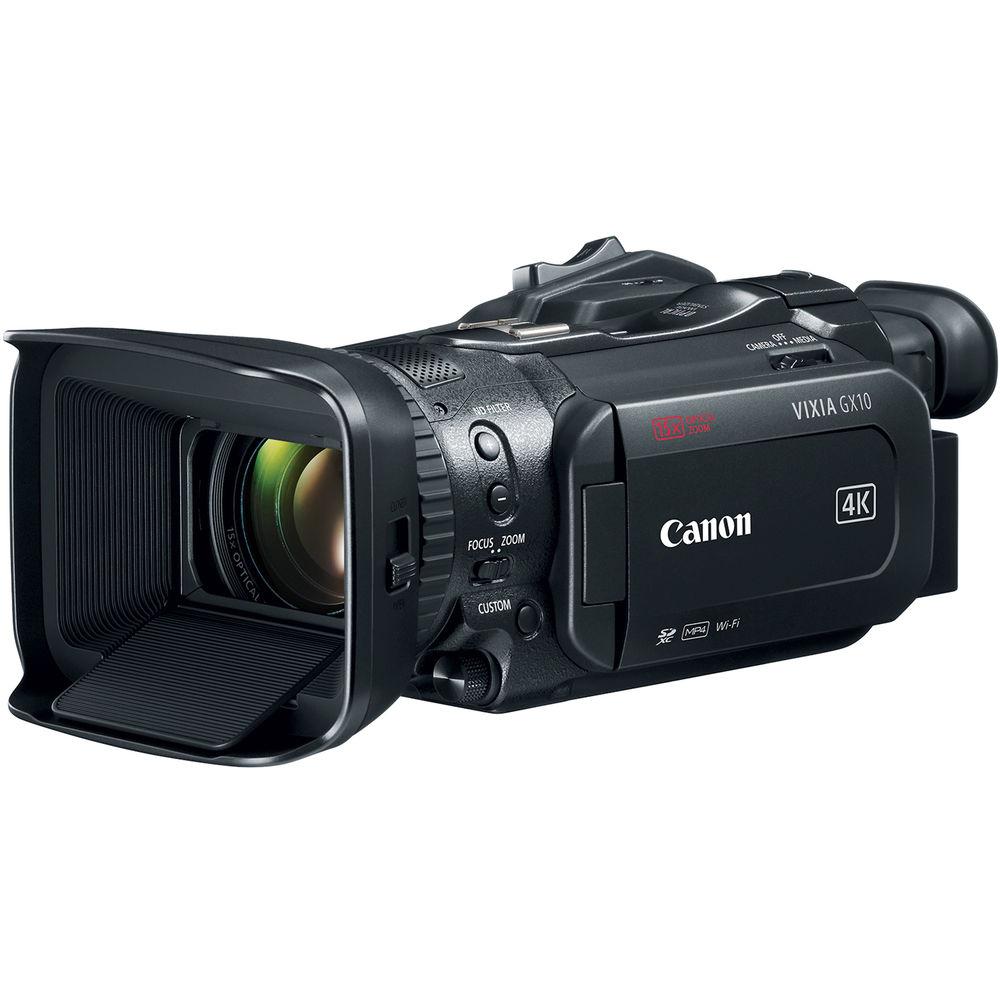

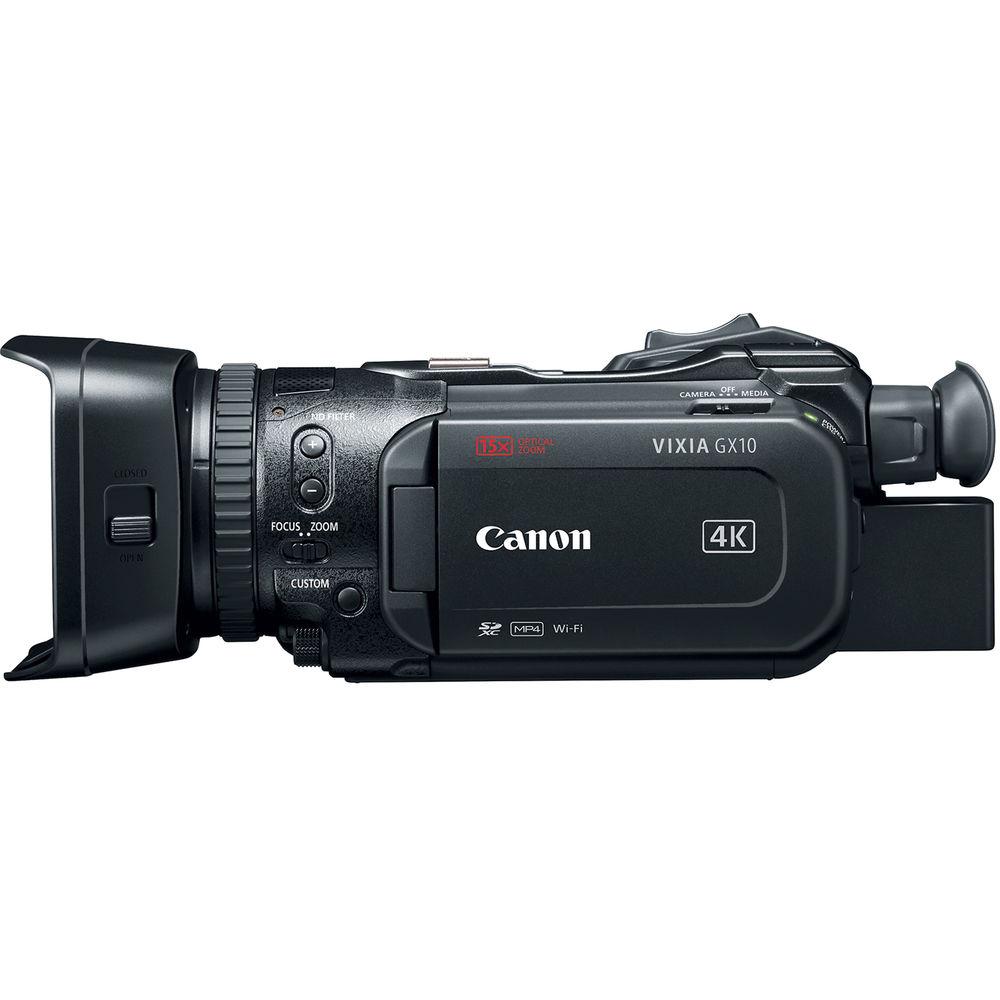

User Manual for Canon VIXIA GX10 UHD 4K Camcorder with 1" CMOS Sensor & Dual-Pixel CMOS AF Click to enlarge the picture
Contents of the user manual for the Canon VIXIA GX10 UHD 4K Camcorder
- Product category: Consumer Camcorders Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Consumer Camcorders
 |
User manual for the Canon VIXIA GX10 UHD 4K Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Canons VIXIA GX10 Captures UHD 4K with a 15x Zoom, 5-Axis Optical Image Stabilizer, and More Read More Use the Canon VIXIA GX10 Camcorder to capture UHD 4K video at 60 fps, recording in MP4 to dual SD memory card slots. This camcorder packs several pro-style features into its compact form, including Dual-Pixel Autofocus (DPAF). The GX10's 1" 8.29MP CMOS sensor and dual DIGIC DV 6 image processors support Wide DR Gamma with high sensitivity and low noise. Slow and fast-motion recording up to 120 fps offers special looks for highlighting sports and other special events. Smooth, steady shooting is assisted by the GX10's five-axis optical image stabilization. For composing and viewing your footage, the VIXIA GX10 incorporates a flip-out 3.5" touchscreen LCD, and a 0.24" electronic viewfinder.High-resolution UHD 4K imaging extends throughout the entire range of the GX10's integrated 15x zoom, enabling you to get both the close-up and wide shots you need. Optical imaging features include a nine-blade iris, built-in ND filters, and a switchable focus/zoom ring. Expand your framing capabilities with optional 1.5x telephoto and 0.8x wide-angle converters (not included).Dual-Pixel CMOS AF technology uses phase-difference AF to offer millions of focus detection points, resulting in faster, more natural-looking, and more accurate autofocusing—a boon to individual operators. Use the touchscreen and the Face Detection AF function for even more focus control.Additional GX10 features include an HDMI 2.0 port for outputting your 4K UHD footage, assignable user buttons, and remote control using the included WL-D89 controller. Wi-Fi connectivity offers live streaming, FTP file sharing, and remote control via iOS and Android apps. - General Features
-
- 1" 8.29MP CMOS sensor for high-sensitivity and low-noise capture
- Canon Wide DR gamma for accurate capture of highlights and shadow areas
- Dual DIGIC DV 6 image processors
- Integrated 15x optical zoom lens
- Dual-Pixel CMOS Autofocus (DPAF), for more accurate autofocusing
- Captures UHD 4K and Full HD video to dual SD card slots
- Slow and fast-motion recording up to 120 fps
- 3.5" touchscreen LCD display and 0.24" electronic viewfinder
- HDMI 2.0 port supports UHD 4K 60p output
- Compact, lightweight design
- Wi-Fi connectivity for live streaming, FTP file transfer, and iOS or Android remote control app
UPC: 013803290097 In the Box Canon VIXIA GX10 UHD 4K Camcorder with 1" CMOS Sensor & Dual-Pixel CMOS AF BP-828 Lithium-Ion Battery Pack (2670mAh) CA-946 Compact Power Adapter for Select Canon Cinema EOS Cameras and Camcorders Lens Hood with Cap WL-D89 Wireless Controller CR2025 Lithium Battery 6' HDMI Male to Mini HDMI Male Cable (Ver. 1.3) IFC-300 PCU/S Interface Cable Limited 1-Year Warranty User Manual PDF 7.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon VIXIA GX10 UHD 4K Camcorder with 1" CMOS Sensor & Dual-Pixel CMOS AF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon GX10 Specs | | | Sensor | 1-Chip 1.0" CMOS | | Sensor Resolution | 13.4 MP | | Effective Pixels | 8.29 MP (Video) | | | | Focal Length | 8.3 to 124.5mm | | 35mm-Equivalent Focal Length | 25.5 to 382.5 | | Maximum Aperture | f/2.8 | | Minimum Focusing Distance | 23.6" / 60.0 cm 23.6" (60 cm) across zoom range
4" (10 cm) at wide end | | Fixed Focus | No | | Zoom | Optical: 15x 4K | | Filter Size | 58 mm | | Built-In ND Filters | Clear, 1/4, 1/16, 1/64 | | | | System | NTSC | | Recording Media | x SD Dual SD card slots | | Recording Time | SD/SDHC/SDXC 8 GB
3840 x 2160 5 minutes at 150 Mbps
1920 x 1080 25 minutes at 35 Mbps
1920 x 1080 55 minutes at 17 Mbps
1280 x 720 120 minutes at 8 Mbps
1280 x 720 245 minutes at 4 Mbps
SD/SDHC/SDXC 16 GB
3840 x 2160 10 minutes at 150 Mbps
1920 x 1920 55 minutes at 35 Mbps
1920 x 1080 120 minutes at 17 Mbps
1280 x 720 255 minutes at 8 Mbps
1280 x 720 515 minutes at 4 Mbps
SD/SDHC/SDXC 32 GB
3480 x 2160 25 minutes at 150 Mbps
1920 x 1080 115 minutes at 35 Mbps
1920 x 1080 245 minutes at 17 Mbps
1280 x 720 520 minutes at 8 Mbps
1280 x 720 1045 minutes at 4 Mbps
SD/SDHC/SDXC 64 GB
3480 x 2160 55 minutes at 150 Mbps
1920 x 1080 240 minutes at 35 Mbps
1920 x 1080 495 minutes at 17 Mbps
1280 x 720 1055 minutes at 8 Mbps
1280 x 720 2115 minutes at 4 Mbps
SD/SDHC/SDXC 128 GB
3480 x 2160 110 minutes at 150 Mbps
1920 x 1080 485 minutes at 35 Mbps
1920 x 1080 995 minutes at 17 Mbps
1280 x 720 2120 minutes at 8 Mbps
1280 x 720 4245 minutes at 4 Mbps | | Video Format | 3840 x 2160p at 24/30/60 fps (MP4 via MPEG-4)
1920 x 1080p at 24/30/60 fps (MP4 via MPEG-4)
1280 x 720p at 30/60 fps (MP4 via MPEG-4) | | Aspect Ratio | 16:9 | | Slow Motion Mode | 120 fps Recorded at 1920 x 1080p | | Channels | 2.0-Channel Stereo | | Audio Format | AAC-LC MPEG-4 AAC-LC | | Sampling Frequency | AAC: 48.0 kHz | | Bit Rate | AAC: 16.0-Bit | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3.5" | | Screen Resolution | 1,560,000 Dots | | Rotation | Turning Angle: 60° | | | | Screen Size | .24" | | EVF Resolution | 1,560,000 Dots | | | | Shutter Speed | 1/2 - 1/2000 Second (Video) | | Exposure Modes | Modes: Auto, Low Light, Manual, Program | | Shooting Modes | A (Aperture Priority)
Auto
Beach
Fireworks
Low Light
M (Manual)
Night
Portrait
Smart Shutter
Snow
Sports
Spotlight
Sunset | | Remote Control | WL-D89 Wireless (Included) | | | | Image Stabilization | Optical & Digital 5-axis
Yaw and Pitch are electronically corrected Modes:
Dynamic IS, Powered IS, Standard IS, IS Off | | Lux | 1.7 (Program Mode)
.1 (Low Light Mode) | | White Balance Modes | 3000K
5500K
6500K
Auto
Daylight
Preset Manual
Tungsten Color Temperature Settings: 2000 - 15,000 K | | Built-In Mic | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes | | Accessory Shoe | 1 x Cold | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB Mini-B | | Outputs | 1 x Mini-HDMI (Type C) 2.0
1 x 1/8" / 3.5 mm Stereo
1 x USB Mini-B Hi-speed USB supported on output only | | Microphone Input | Yes 3.5 mm | | Headphone Jack | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 7.4 VDC BP-828 | | Charging Method | AC Adapter | | Power Adapter | 8.4 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C
Humidity: 85% | | Dimensions (W x H x D) | 5.9 x 3.8 x 10.5" / 15.0 x 9.7 x 26.7 cm With battery and lens hood | | Weight | 2.94 lb / 1335 g With battery and lens hood | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 14.6 x 13.6 x 12.4" |
