User Manual for Canon WP-DC53 Waterproof Case for PowerShot G1 X Mark II Click to enlarge the picture
Contents of the user manual for the Canon WP-DC53 Waterproof Case for PowerShot
- Product category: Still Cameras & Housings Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Still Cameras & Housings
|
User manual for the Canon WP-DC53 Waterproof Case for PowerShot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

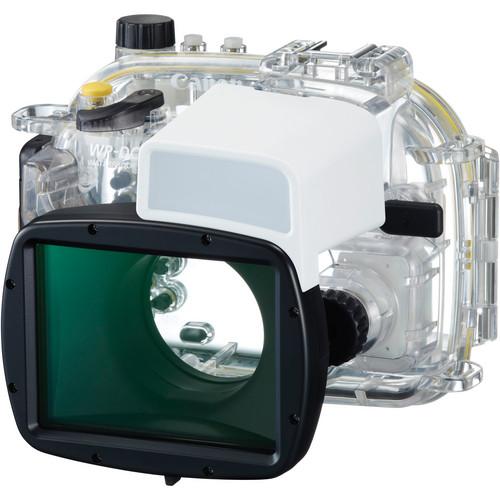

Product description The WP-DC53 Waterproof Case from Canon enables you to shoot underwater with their PowerShot G1 X Mark II Digital Camera. It features a depth rating of 130'. Mechanical controls afford access to virtually all camera functions, and the built-in, flat polycarbonate port with anti-reflective coating accommodates the lens.
The Mark II's built-in, pop-up flash is also usable, and an included diffusion plate softens its light to eliminate backscatter, glare, and hard shadows in your images. Additionally, the case comes configured with a cold shoe mount for accessories, such as an optional lighting arm or an external strobe in a separate housing, which can be connected via fiber-optic cable. You can also use the camera's flash to trigger a strobe as a wireless slave.
Built for durability, the WP-DC53 is constructed from a strong plastic polymer, which is clear to enable you to monitor the waterproof seal and the camera. A neck strap and wrist strap are included, as is a container of silicone grease for O-ring lubrication, which is necessary to maintain the housing's waterproof seal. - Depth Rating
- Can be used at a maximum depth of 130'.
- Controls
- Mechanical controls provide access to essentially all camera functions. The only limitation is that you have partial, and not full, access to the dual control rings. The control dial is usable, though the housing has a different method of activating it: Just move the zoom lever while pressing the DISP button.
- Construction Details
- Made from a durable plastic polymer, which is clear to enable you to monitor the waterproof seal and the camera.
- Buoyancy
- Optional WW-DC1 case weights are available separately for ideal buoyancy.
- Lens Port
- Built-in, flat polycarbonate port with anti-reflective coating accommodates the camera's lens.
- Flash Use
- The Mark II's built-in, pop-up flash is usable, and an included diffusion plate softens its light to eliminate backscatter, glare, and hard shadows in your images. Additionally, the case comes configured with a cold shoe mount for accessories, such as an optional lighting arm or an external flash in a separate housing. An external strobe can be connected via fiber-optic cable, which is available separately. An attachment that positions the cable in front of the Mark II's flash is supplied. You can also use the camera's flash to trigger a strobe as a wireless slave.
- Mounting
- Equipped with a standard 1/4"-20 tripod mount.
UPC: 013803240597 In the Box Canon WP-DC53 Waterproof Case for PowerShot G1 X Mark II Flash Diffuser Neck Strap Wrist Strap Silicone Grease Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon WP-DC53 Waterproof Case for PowerShot G1 X Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon WP-DC53 Specs | Depth Rating | 130' / 39.6 m | | Control Type | Mechanical | | Controls | Provide access to virtually all camera functions, though control ring access has limitations
Move zoom lever while pressing DISP to access control dial | | Material of Construction | Body: Plastic polymer
Lens port: Polycarbonate | | Lens Port | Built-in flat port with anti-reflective coating | | Buoyancy | Optional WW-DC1 case weights are available for ideal buoyancy
Use 3 weights in seawater or 2 weights in fresh water | | Internal Flash Usable | Yes, camera's built-in, pop-up flash
Diffusion plate included | | External Flash Connector | Optional fiber-optic cable for optional strobe (attachment supplied)
Camera's flash can trigger strobe as wireless slave | | Mounting | Cold shoe
1/4"-20 tripod mount | | Dimensions | 6.9 x 5.3 x 5.8" / 17.5 x 13.5 x 14.7 cm | | Weight | 2.0 lb / 32 oz | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 8.9 x 6.8 x 5.9" |
