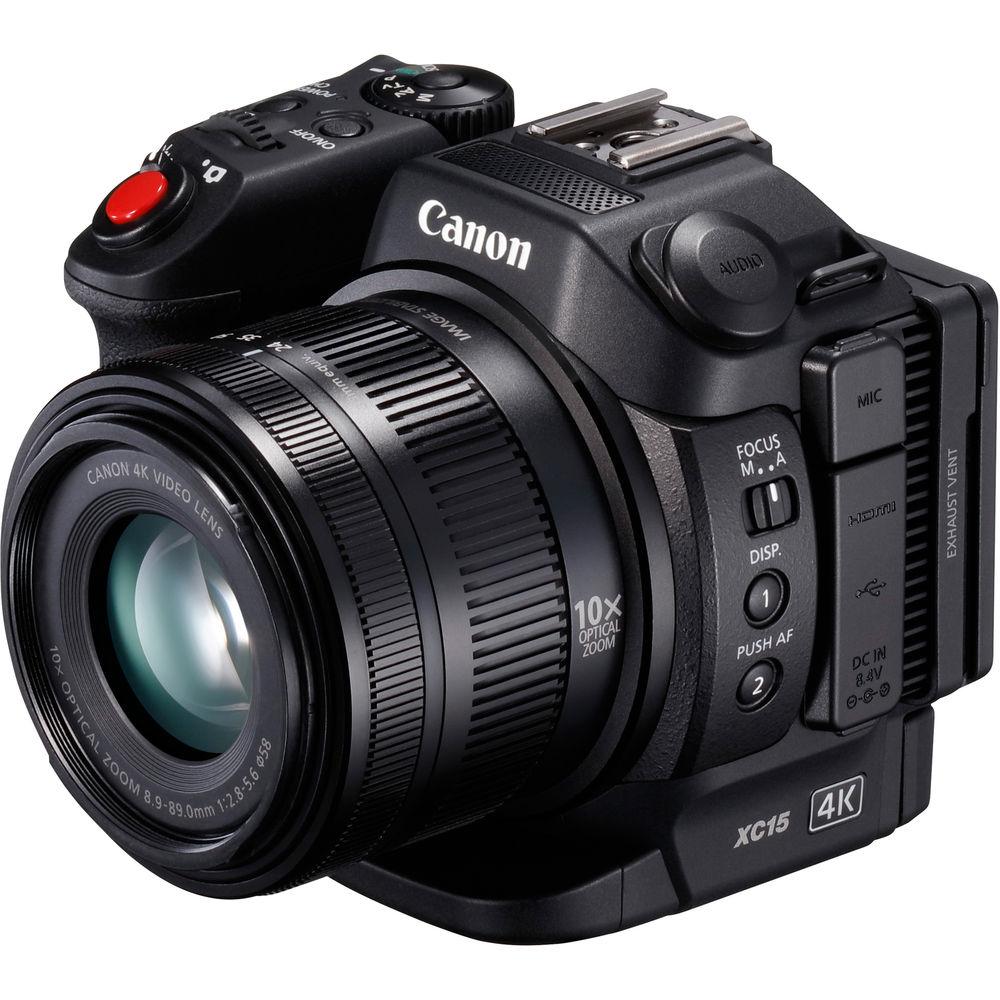

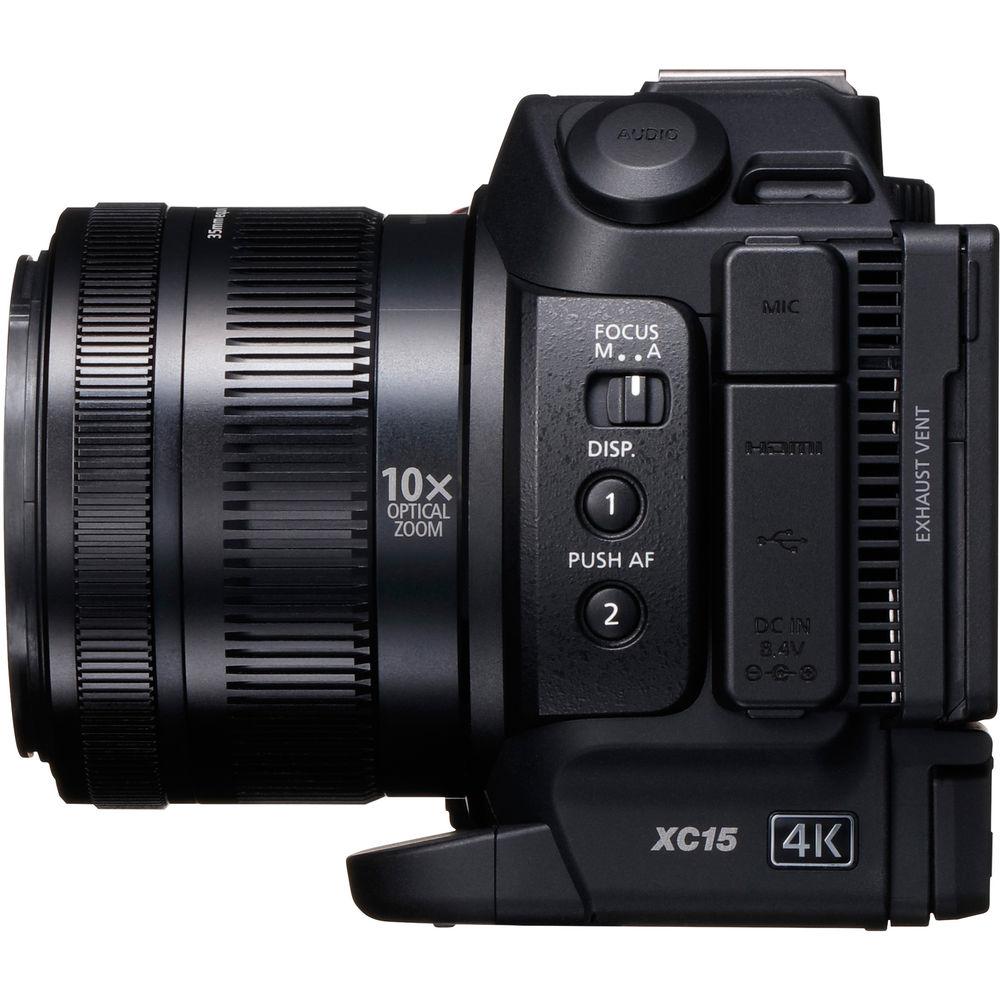

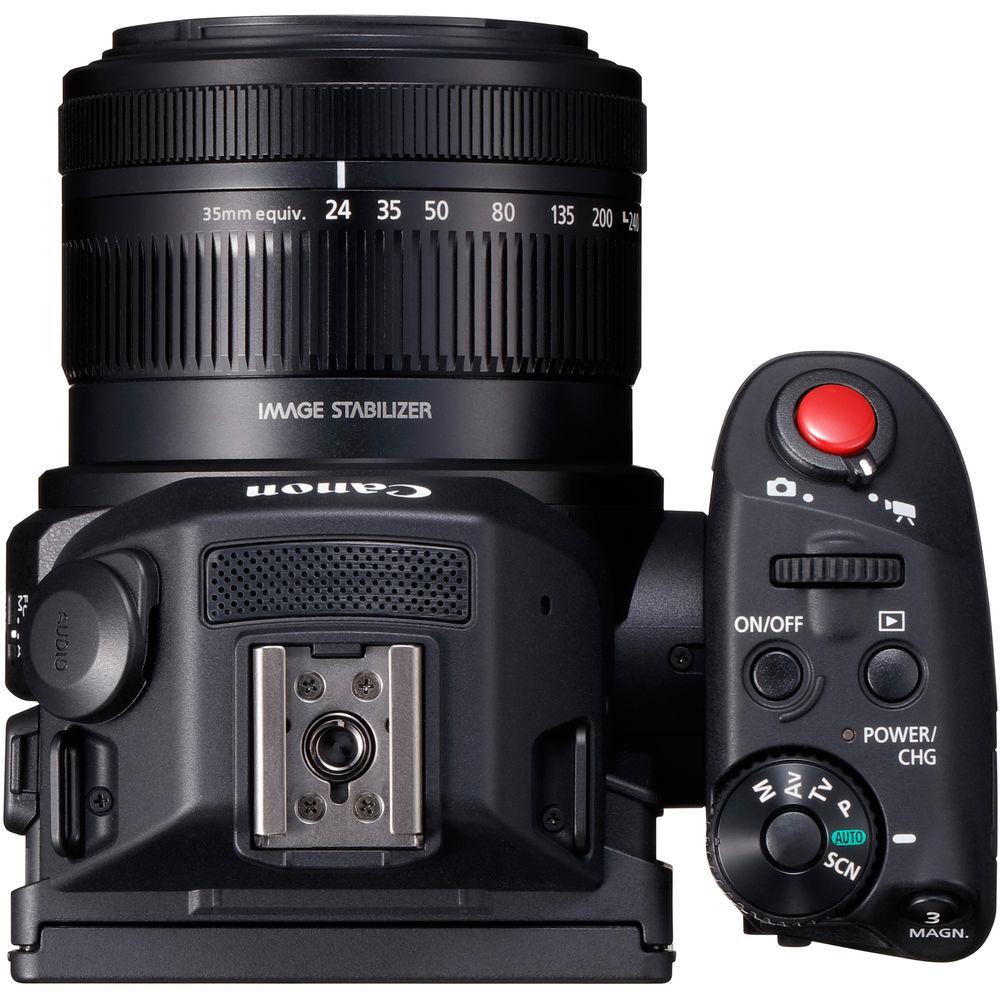

User Manual for Canon XC15 4K Professional Camcorder Click to enlarge the picture
Contents of the user manual for the Canon XC15 4K Professional Camcorder
- Product category: Camcorders Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Camcorders
 |
User manual for the Canon XC15 4K Professional Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Unveiled: The Canon XC15 Expands the XC Camcorder Line Read More An upgraded follow-up to the XC10, the Canon XC15 4K Professional Camcorder is enhanced for more professional use, providing for a more complete audio/video capture workflow among other in the same compact, ergonomic form factor.
The XC15 features a 1" 12MP CMOS sensor capable of capturing up to Ultra HD 4K resolutions at up to 29.97 fps and 1080p at up to 59.94p, and an integrated f/2.8 - 5.6, 8.9 to 89mm zoom lens, which has a 35mm equivalent focal length of 27.3 to 273mm in video mode. The camera has separate focus and zoom rings and offers auto and manual focus controls. The XC15 supports both CFast and SD cards like the XC10 did. 4K video records to CFast cards in an MXF wrapper at up to 305 Mbps in an H.264-based, IntraFrame, 4:2:2, 8-bit codec; while 1080p video writes to SD cards at up to 50 Mbps in an H.264-based, Long-GOP, 4:2:2, 8-bit codec, also in an MXF wrapper. Still images are also written to SD cards. Keeping 4K video separate from 1080p and stills will help avoid data mix-ups.

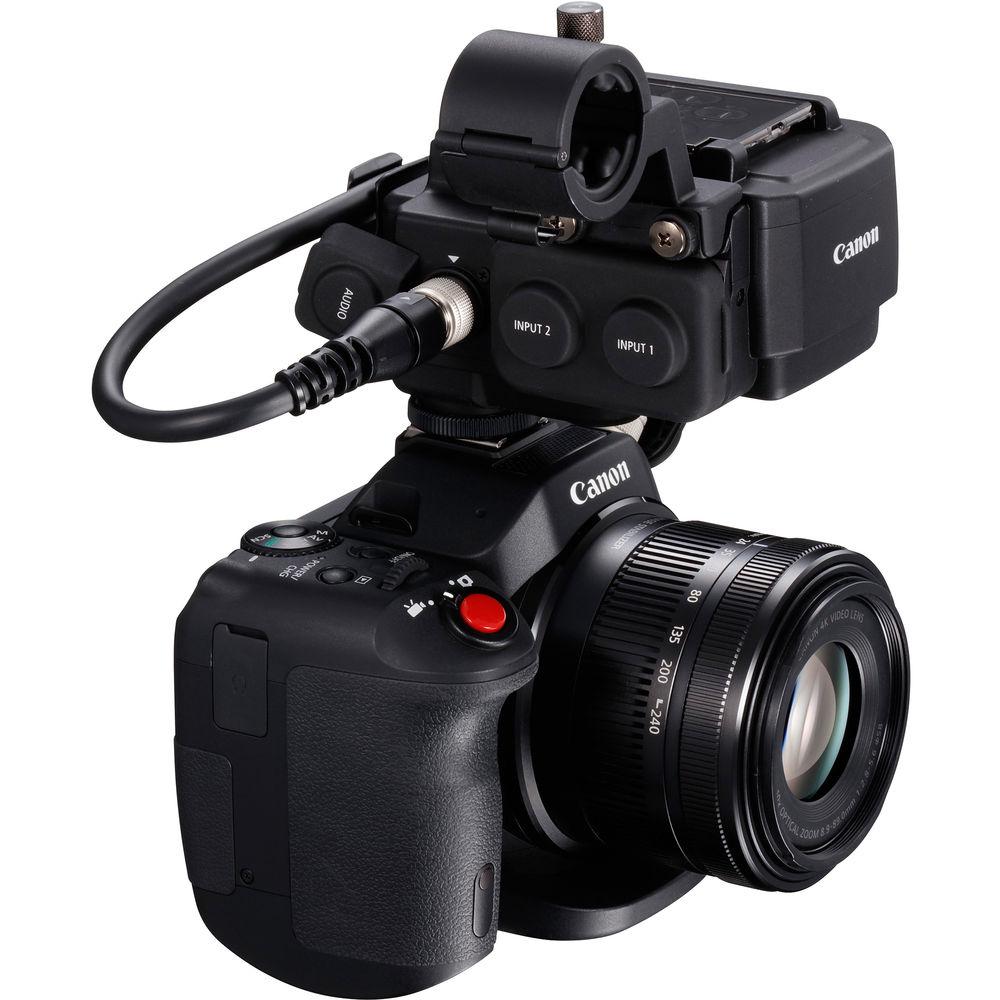

The XC15 comes with the MA-400 microphone adapter and features an XLR audio input supporting the adapter. The MA-400 was originally designed for the C300 Mk II and is geared toward single-user applications such as run-and-gun news gathering. It's shoe-mountable from two different positions and offers an external mic holder.
With the added XLR input, menu options have also been added to the XC15 and many existing ones revised for pro applications. Among the new menu options you'll find internal mic trimming, mic low-cut, and internal mic sensitivity. New looks have been added as well for movies and still photos. The movie looks from the C300 Mk II have been incorporated, and this will allow for consistency with the C300 Mk II if you use the XC15 as a B-camera, and will also make grading easier. The XC15 also has a new 24p mode for both 4K and 1080p video for film productions (in addition to the XC10's 23.98p), and 24p can also be recorded at up to 305 Mbps in 4K, just like in the C300 Mk II, allowing for further consistency.
The XC15 also features a Waveform Monitor display, which enables accurate monitoring of video signal characteristics during outdoor shooting or whenever lighting conditions make the display difficult to see. Three additional shutter speeds matching the C300 Mk II have also been added for flicker reduction. You'll be able to set the right speed to handle the wave frequency at the shooting location. The scale display has also been changed to now be based on 1/24 second shutter speeds in following with the 23.98 sequence, improving usability for cinema productions. Finding a standard shutter speed is generally hard when shooting in 23.98p, but now that has changed with the UI being based on 1/24 second shutter speeds. The shutter speed display can also be switched to a shutter angle display from the menu if that's how you prefer it.
Another new feature is Highlight Priority, a new gamma mode that provides similar effects to HDR. Highlight Priority offers a bright linear display that expresses the very tonality seen with the eyes. The color reproduction and sharpness of mid- to high-brightness areas are displayed with greater realism. Rules can also now be assigned to file names and metadata after filming for easier data management using XF-AVC. Proxy files are defined to be distinguished with a quick look at the file name, improving work efficiency. And finally, there's also a new touch panel with an operation lock. When operating the camera with cross keys, you can set the operation lock to prevent mistakes in operation and settings.

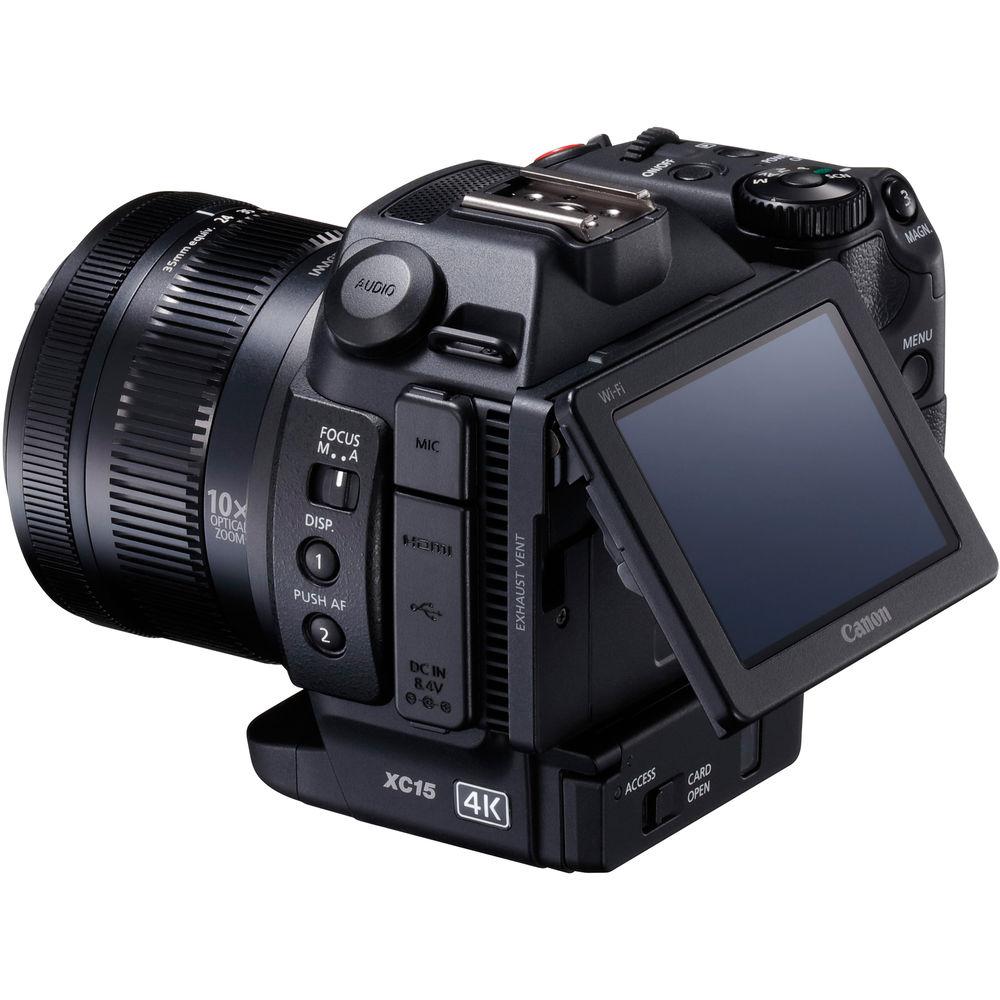

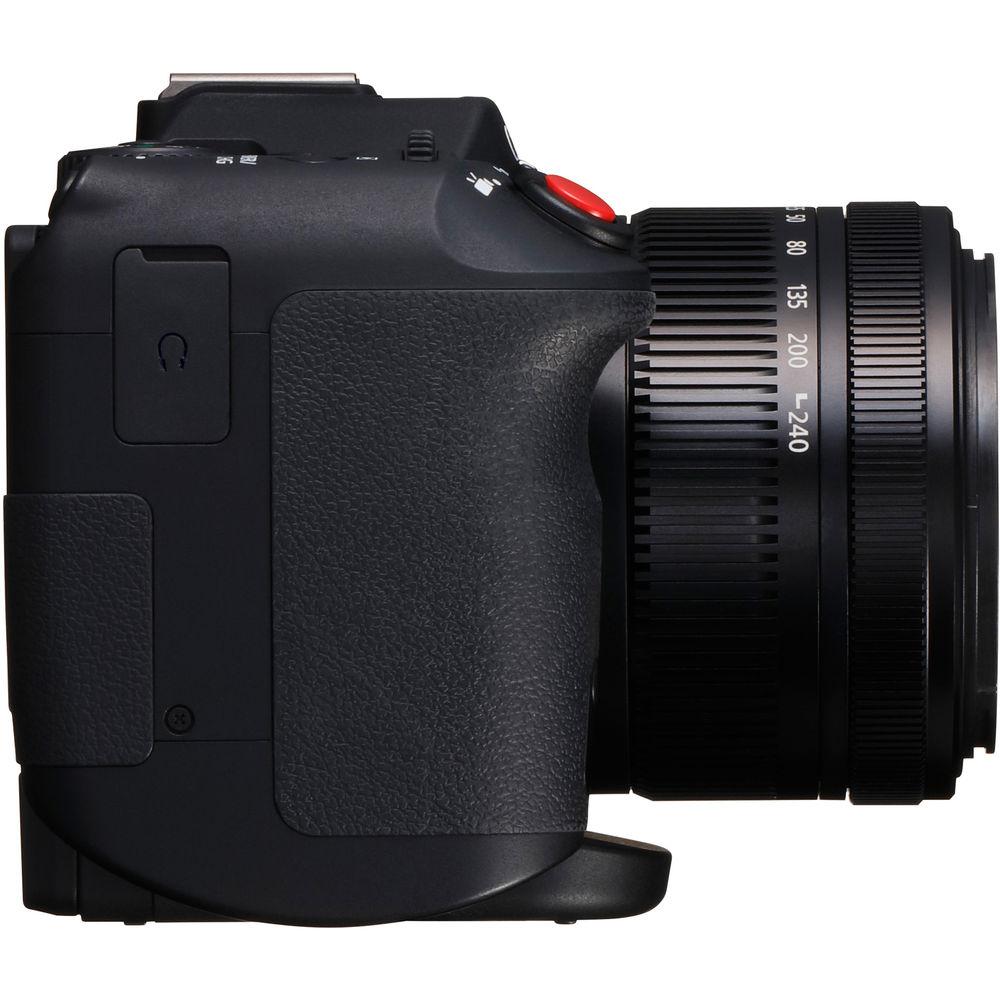

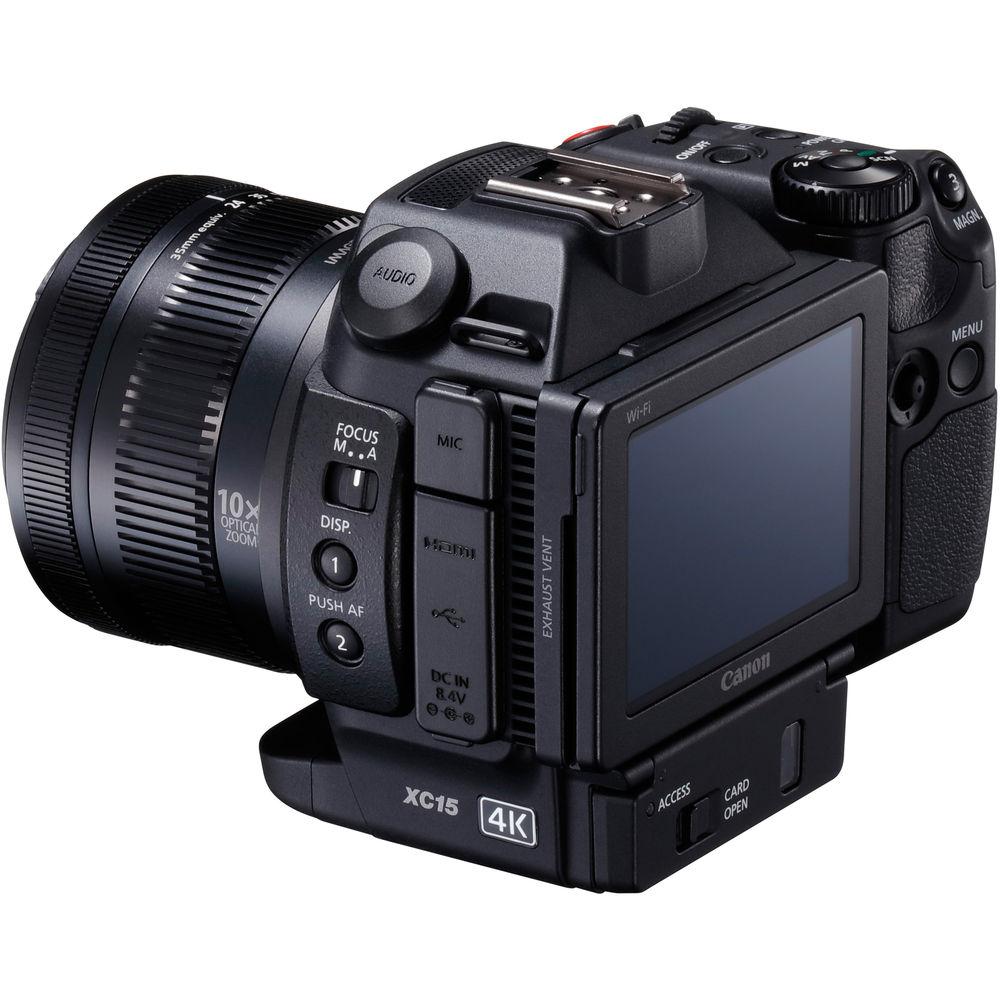

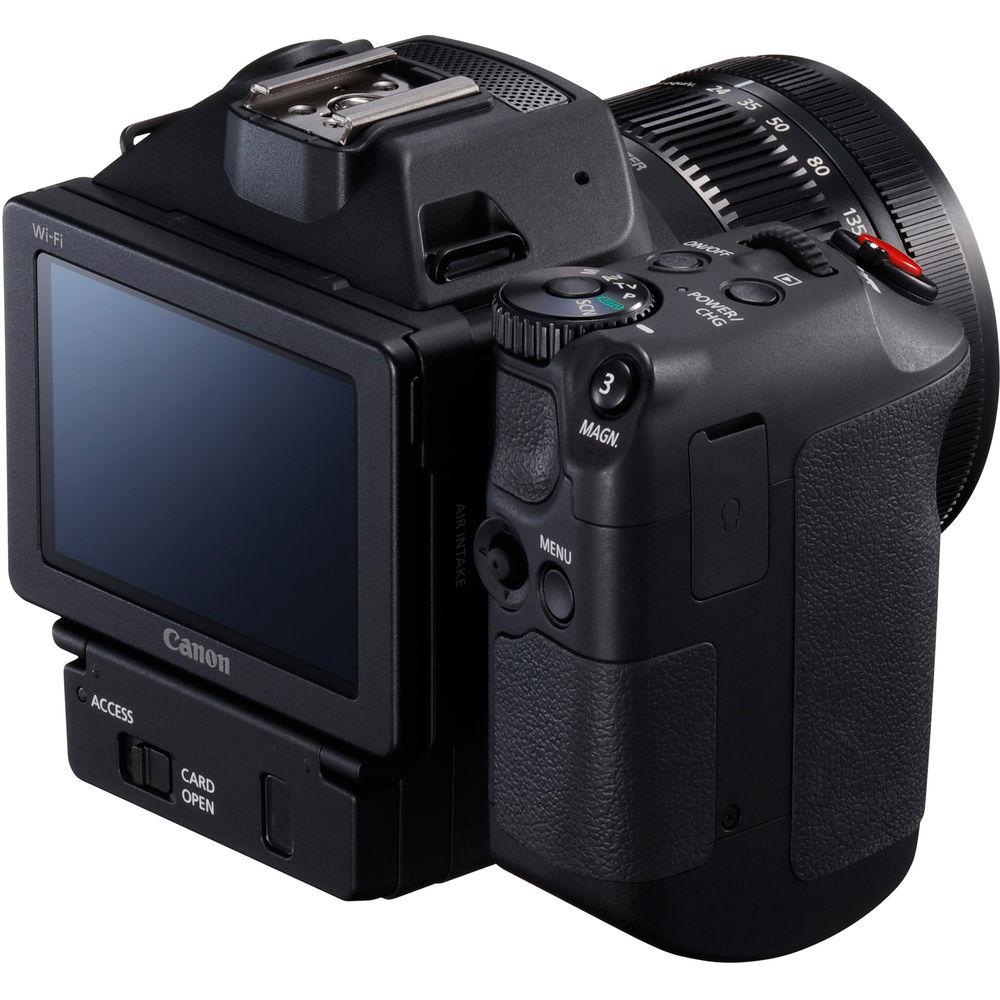

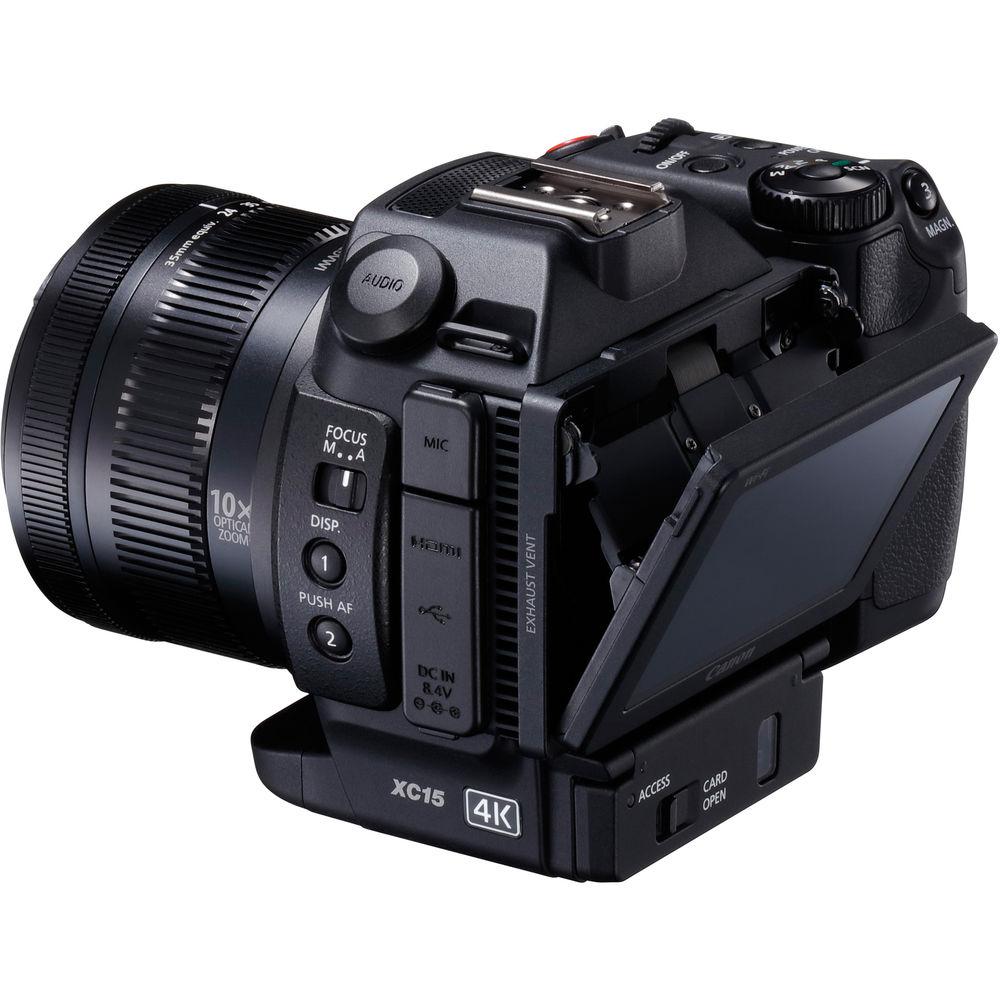

The XC15 is small enough to be highly compact, yet large enough to handle comfortably. It features a grip on the side with a record button and other controls at your fingertips. The LCD on the rear is centered and tiltable. The included viewfinder attaches right onto the LCD and stays at the center of the rear of the camera, which is especially beneficial for those rare users who prefer to use their left eye with viewfinders. The camera also has a large foot on the bottom that allows you to safely place it down. - General Features
-
- Upgraded follow-up to the XC10, enhanced for a more professional audio/video workflow
- 1" 12MP CMOS sensor
- Captures up to UHD 4K at up to 29.97 fps and 1080p at up to 59.94p
- Integrated f/2.8 - 5.6, 8.9 - 89mm, 10x optical zoom lens with an ND filter
- DIGIC DV 5 Image Processor
- Separate focus and zoom rings
- Auto and manual focus controls
- Supports both CFast and SD cards
- 3" LCD Display
- Detachable viewfinder
- 720p high-frame rate recording
- 160 to 20,000 ISO range
- Canon Log Gamma and Wide DR Gamma
- New Features
-
- XLR audio input for MA-400 microphone adapter
- Includes MA-400 microphone adapter
- New and revised menu options such as internal mic trimming
- New looks for movies and still photos
- Movie looks incorporated from the C300 Mk II
- 24p mode for both 4K (at 305 Mbps, like in C300 Mk II) and 1080p video
- Waveform Monitor display
- Three new shutter speeds matching the C300 Mk II for flicker reduction
- Scale display based on 1/24 sec shutter speeds in following with the 23.98 sequence
- Shutter speed display can be switched to a shutter angle display
- Highlight Priority, a new gamma that provides the same effects as HDR
- Rules can be assigned to file names and metadata after filming
- Operation lock for when operating the camera with cross keys
UPC: 013803275841 In the Box Canon XC15 4K Professional Camcorder MA-400 Microphone Adapter for EOS C300 Mark II and XC15 Camcorders CA-945 Compact Power Adapter for C300 & C300 PL LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh) Shoulder Strap Hood Lens Cap Cable for Microphone Unit Cable Clamp Viewfinder USB Cable High-Speed HDMI Cable Limited 1-Year Warranty User Manual PDF 8.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XC15 4K Professional Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XC15 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 4224 x 3164 (13.36 MP) | | Effective Sensor Resolution | 3840 x 2160 (8.29 MP) | | ISO | 160 to 20,000 | | Gain | 0 to 42 dB | | Minimum Illumination | 0.05 lux at 1/2 Shutter Speed | | | | Focal Length | 8.9 to 89mm | | 35mm Equivalent Focal Length | 27.3 to 273mm | | Optical Zoom Ratio | 10x | | Maximum Aperture | f/2.8 to 5.6 | | Filter Size | 58 mm | | Control Rings | Focus
Zoom | | Image Stabilization | Optical
Digital | | Focus Control | Autofocus
Manual Focus | | | | Recording Media | 1 x CFast Card Slot
1 x SDXC Card Slot | | | | Broadcast System Compatibility | NTSC | | Recording Modes | MXF 4:2:2 8-Bit:
3840 x 2160p at 23.98/24/29.97 fps (305 Mb/s)
1920 x 1080p at 23.98/24/29.97/59.94 fps (50 Mb/s)
1920 x 1080i at 59.94 fps (35 Mb/s) | | Still Photo | JPEG: 4000 x 3000 (12 MP)
JPEG: 4000 x 2664 (10.66 MP)
JPEG: 3840 x 2160 (8.29 MP) | | Audio Recording | 2-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x HDMI Output | | Audio Connectors | 2 x 3-Pin XLR Input
1 x 1/8" (3.5 mm) Mono Input
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x USB Micro-B | | Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi | | | | Display Type | LCD | | Screen Size | 3" | | Touchscreen | Yes | | Screen Resolution | 1,030,000 Dots | | | | Battery Type | Canon LP-E6N | | Power Connectors | 1 x Barrel Input | | | | Accessory Mount | 1 x Cold Shoe Mount | | Tripod Mount | 1/4"-20 Thread | | Dimensions | 9.4 x 8.7 x 5.2" / 23.88 x 22.1 x 13.21 cm (With Protrusions)
4.8 x 4.2 x 5" / 12.19 x 10.67 x 12.7 cm (Without Protrusions) | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 15.9 x 13.4 x 9.1" |
