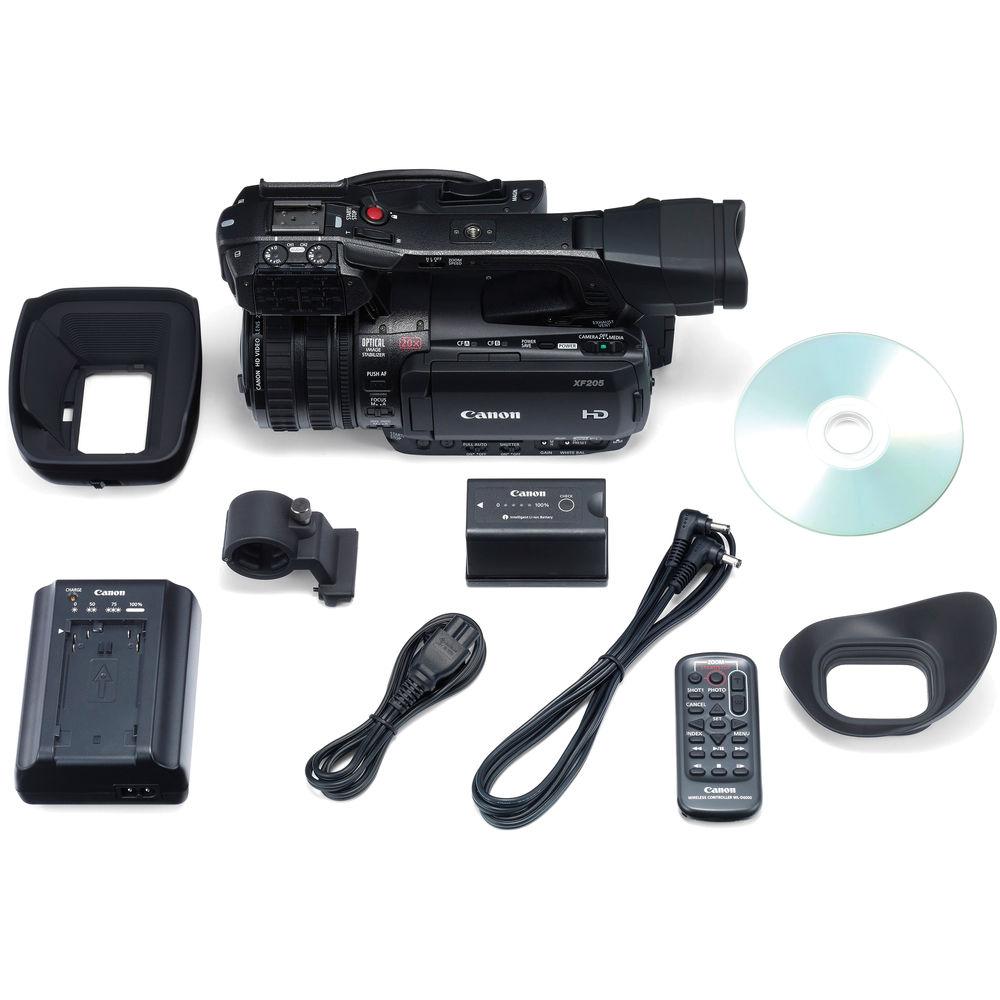

• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Camcorders

Product description

• Canon XF205 Demo

1920 x 1080 CMOS Sensor
• The XF205 features a 1/2.84" HD CMOS image sensor which is slightly larger than a 1/3" sensor. The sensor features approximately 5% more pixels than 1920 x 1080, and records a 1920 x 1080 window from the slightly large sensor. This allows the camera to use the extra pixels for Electronic Image Stabilization and maintain the 1920 x 1080 resolution so the image isn't degraded by being blown up as with traditional EIS systems.

20x Optical Zoom Lens
• The Canon 20x HD zoom lens provides a zoom range with 35mm equivalent of 26.8 to 576mm, and a minimum object distance of just 23.6". The lens features an eight-blade iris design providing out-of-focus highlights with a natural rounded appearance.

  The lens features three infinitely rotating rings for focus, zoom, and iris. The rings use an electronic coupling to move the lens functions but maintains a mechanically linked feel during use.

Image Stabilization
• The XF205 offers optical image stabilization (OIS), useful for reducing image blur in a wide variety of shooting situations. It also utilizes electronic image stabilization (EIS) in conjunction with the OIS, providing five-axis image stabilization.

Advanced Displays
• The camera features focus peaking and a selectable waveform monitor display.

OLED View Screen and EVF
• The 3.5" Organic Light-Emitting Diode (OLED) display provides vivid color and 1.23MP resolution. The view screen has a viewing angle of over 80° in all directions, allowing you to see a usable image even when you are off-angle to the view screen. The color EVF is 0.45" with 1.23MP of resolution and tilts up to 45° to accommodate different shooting positions.

Audio

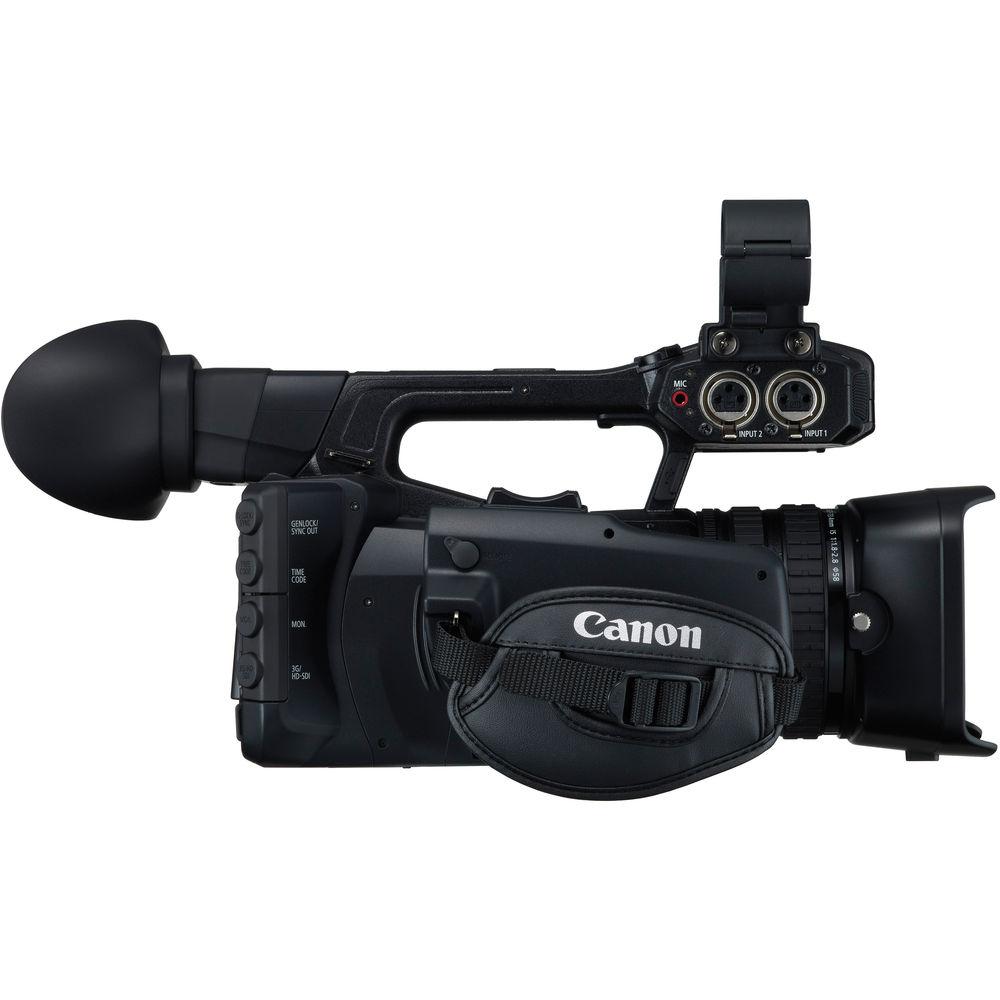

• The XF205 features an integrated microphone and two XLR line/mic level inputs with +48V phantom power for connecting external mics.

Outputs

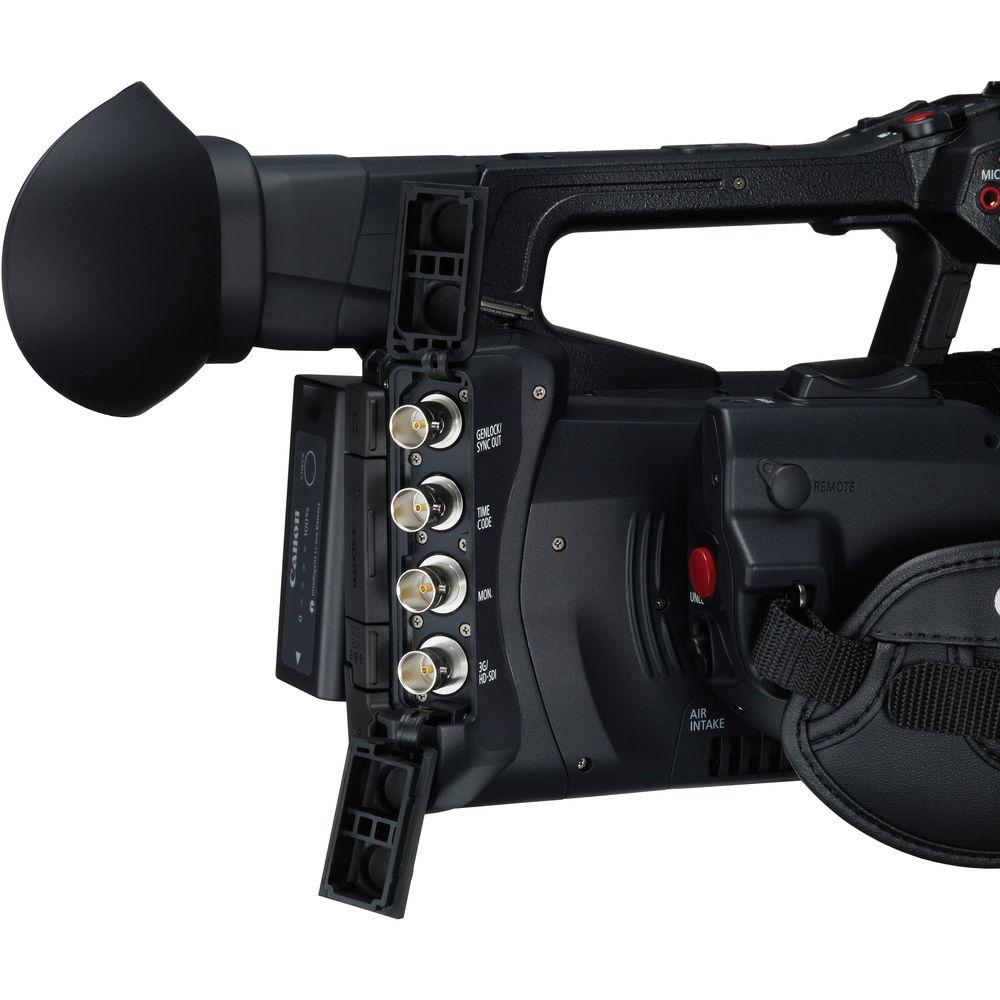

• The camera features an HDMI output, as well as HD-SDI, 3G-SDI, and timecode output via BNC connectors on the side of the camera.

Media Card Slots
• Dual CF Card slots allow varied recording options:
  • Dual recording: Simultaneously record the same footage to different media cards using different codecs and bit rates
  • Double-slot recording: Record simultaneously to each of the two CF memory card slots, providing an instant backup for your footage
  • Relay recording: the XF205 automatically switches video recording from one memory card to the other when the first memory card becomes full
  The SDXC slot can be used to record high-quality MP4 files, and you can record to one CF card slot and the SDXC card slot simultaneously.

Infrared Shooting Mode
• Engaging the Infrared (IR) shooting mode moves the IR cut filter out of the optical path for shooting in extreme low-light conditions. An IR emitter built into the top handle provides an IR source.

Wi-Fi Connectivity
• Dual-band Wi-Fi (5 GHz and 2.4 GHz) support is built into the camera, allowing FTP file transfer of MP4 video. The camera supports a web browser interface that, when combined with Wi-Fi support, allows you to control key features of the camera including start/stop recording, zoom (limited to three speeds), exposure functions, and focus using a smartphone or tablet. You can also view and download recorded MP4 footage from the camera on a PC or mobile device while continuing to shoot.

Wired Connectivity
• An integrated Ethernet port allows you to link your camera to existing wired networks and wireless routers, allowing you to download footage from the memory cards.

Autofocus
• The camera features an autofocus system with several useful modes including Instant AF, which uses both the TTL-Video Signal Detection System and the external sensor, and Face Detection AF, which tracks the focus on faces in the video frame.

Wide Dynamic Range
• A wide dynamic range gamma of 600% helps prevent overexposure, even for high-brightness areas of an image and/or with non-uniform colors. Unlike the normal knee function that compresses video signals in high-brightness areas using linear gamma, a wide DR gamma retains continuity across the image and enables color grading.
